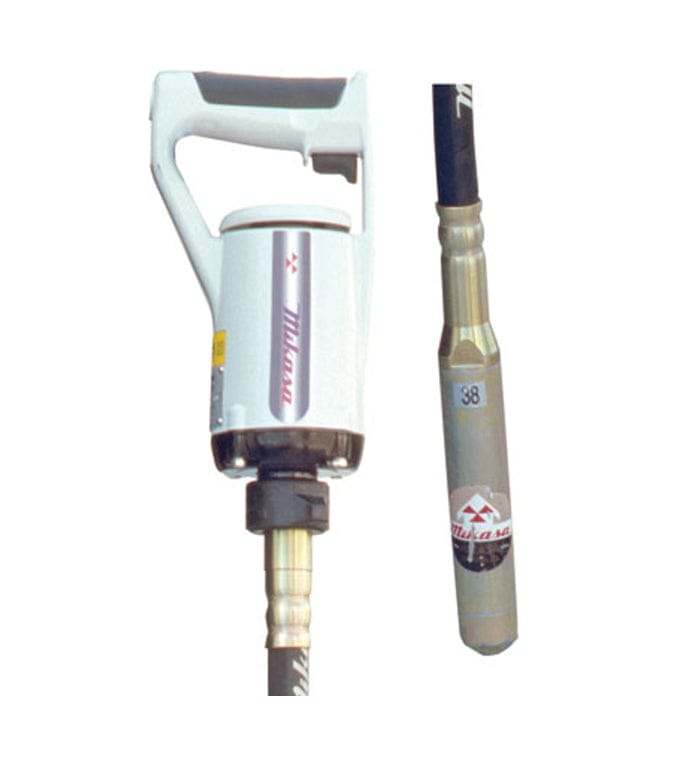

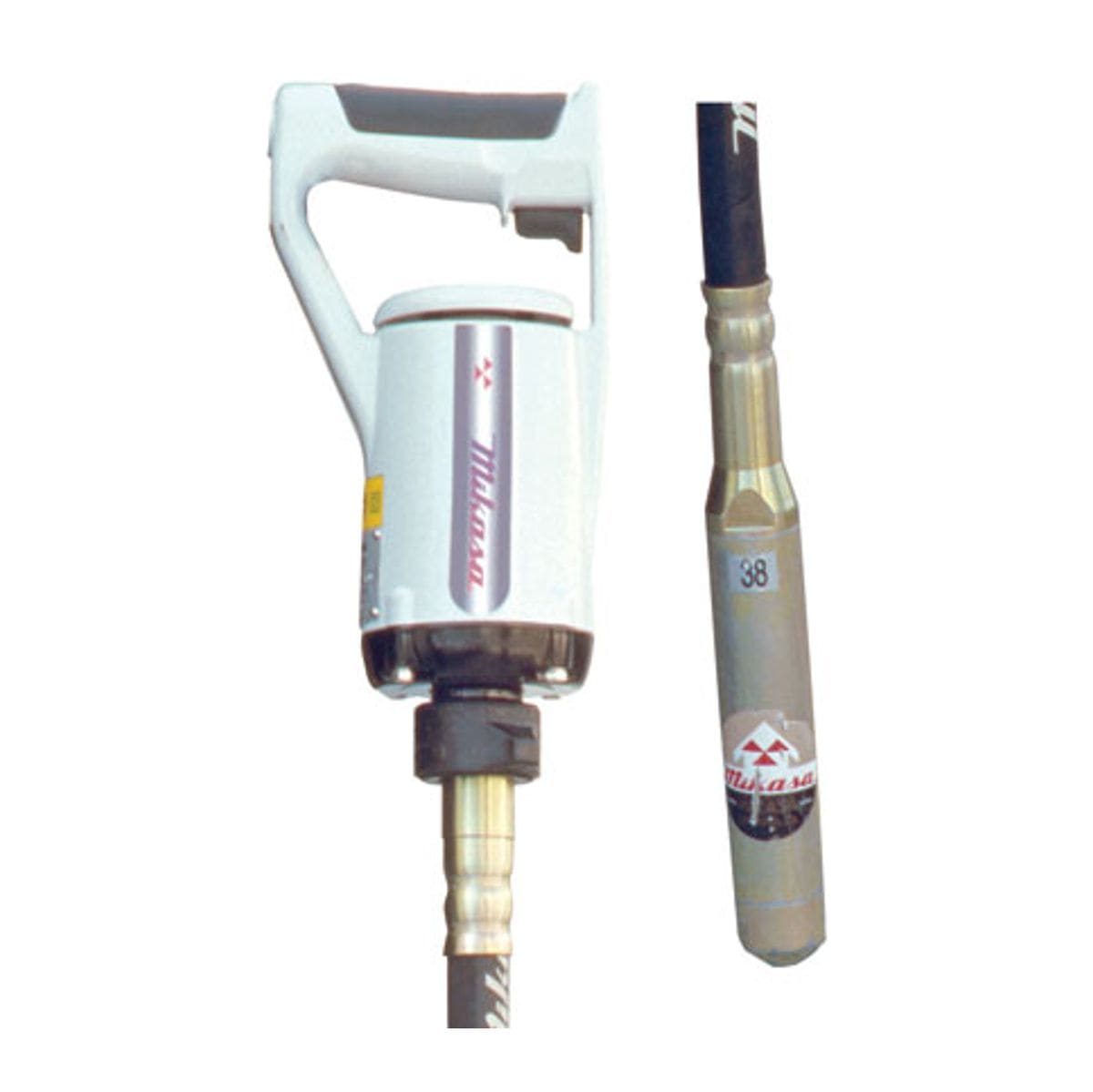

Composite image showing the white motor unit with its grey handle on the left, alongside a close-up detail of the silver steel vibrator head on the right.
Full view of the complete assembled concrete vibrator tool, displaying the white motor unit, the long coiled black flexible shaft, and the silver vibrator head.

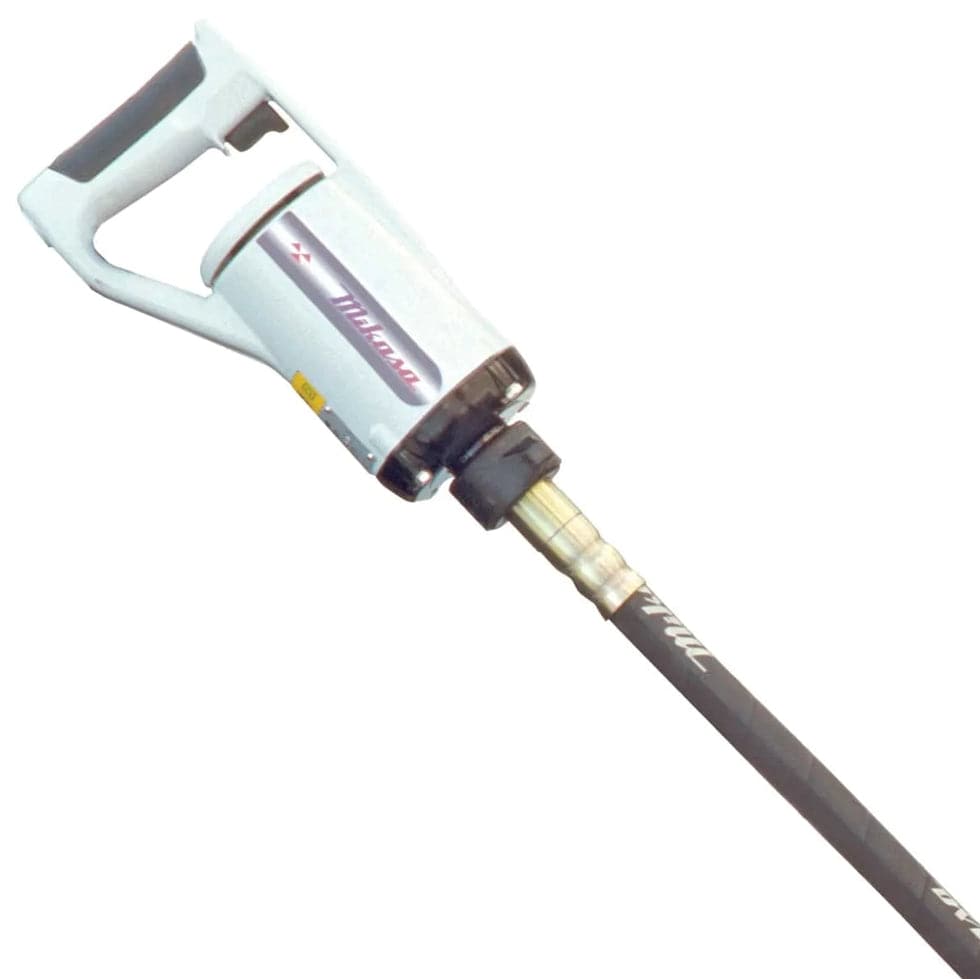

Close-up view of the white handheld motor unit, featuring a grey D-handle, side ventilation slots, and the coupler connection for the flexible shaft.
Close-up view focusing on the junction where the black flexible shaft connects to the silver metallic vibrator head.
Composite image showing the white motor unit with its grey handle on the left, alongside a close-up detail of the silver steel vibrator head on the right.
Composite image showing the white motor unit with its grey handle on the left, alongside a close-up detail of the silver steel vibrator head on the right.
Full view of the complete assembled concrete vibrator tool, displaying the white motor unit, the long coiled black flexible shaft, and the silver vibrator head.
Close-up view of the white handheld motor unit, featuring a grey D-handle, side ventilation slots, and the coupler connection for the flexible shaft.
Close-up view focusing on the junction where the black flexible shaft connects to the silver metallic vibrator head.
Composite image showing the white motor unit with its grey handle on the left, alongside a close-up detail of the silver steel vibrator head on the right.
MULTIQUIP

Multiquip Concrete Vibrator UM12825 1 1/10 Inch Head 9 1/2 Foot Flexible Shaft Construction Tool (120V, 3 4/5 Amps, Deep Wall Consolidation)

In stock
SKU: UM12825
$399.00 USD

Description

Multiquip UM12825 Handheld Electric Concrete Vibrator Assembly

The Multiquip UM12825 Handheld Electric Concrete Vibrator Assembly is a 120V portable construction tool featuring a 1 1/10-inch steel head and a 9 1/2-foot overall flexible shaft reach engineered for deep wall consolidation. Driven by a 3 4/5-amp double-insulated motor producing up to 15,500 VPM, this system removes internal air voids to ensure maximum structural integrity in dense pours.

Best Used For:

  • Deep Concrete Wall Pours: Eliminating trapped air pockets and honeycombing in extended height foundation walls and tall forms.
  • Structural Column Consolidation: Compacting stiff 3-inch or higher slump concrete mixes within narrow structural support columns.
  • Congested Footing Matrices: Navigating dense steel rebar spacing effortlessly using a compact 1 1/10-inch vibrator head profile.

Key Performance & Safety Features

  • Extended Flexible Reach: 8 1/5-foot shaft provides generous vertical coverage for deep-set concrete forms and columns.
  • High-Frequency Output: Operates between 12,000 and 15,500 VPM for rapid, thorough concrete consolidation.
  • Operator Comfort Grip: Integrated vibration-dampening handle minimizes fatigue during extended consolidation sessions.
  • Sealed Motor Protection: Sealed fan system blocks wet concrete splash and abrasive dust from entering the housing.

What's Included

  • (1) Multiquip Handheld Motor Unit (115V)
  • (1) 8 1/5 ft. Flexible Shaft
  • (1) 1 1/10 in. Vibrator Head

Technical Specifications

Model Number UM12825
Head Diameter 1 1/10 in.
Shaft Length 8 1/5 ft.
Overall Length 9 1/2 ft.
Voltage 115V / 120V
Amperage 3 4/5 Amps
Power 280 Watts
Frequency (VPM) 12,000 - 15,500 VPM
Amplitude 7/100 in.
Total Weight 11 1/2 lbs

Pro-Tip: Insert the head quickly into the fresh concrete lift and slowly withdraw it at roughly 1 inch per second to give trapped air bubbles sufficient time to rise to the surface.
