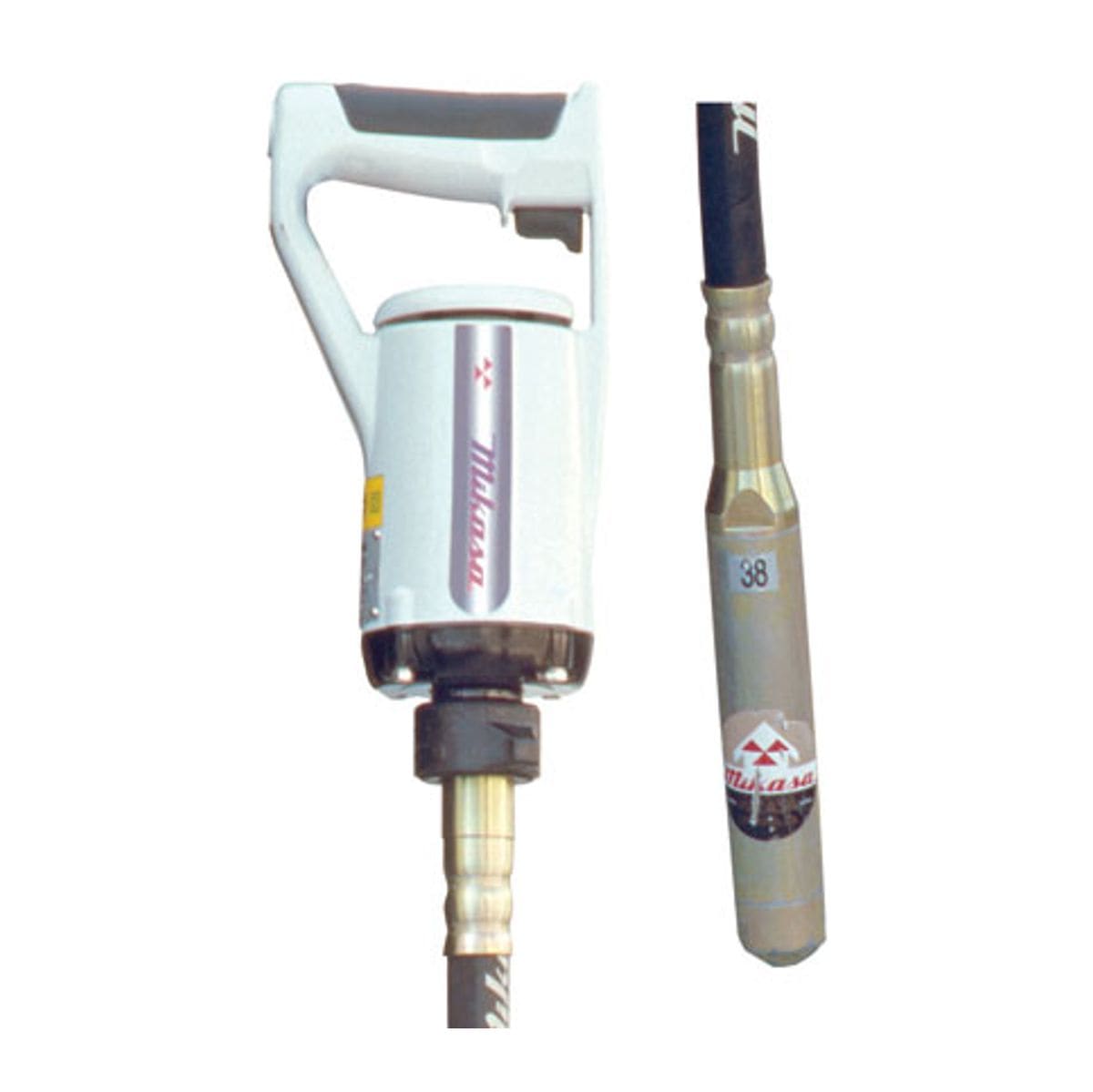

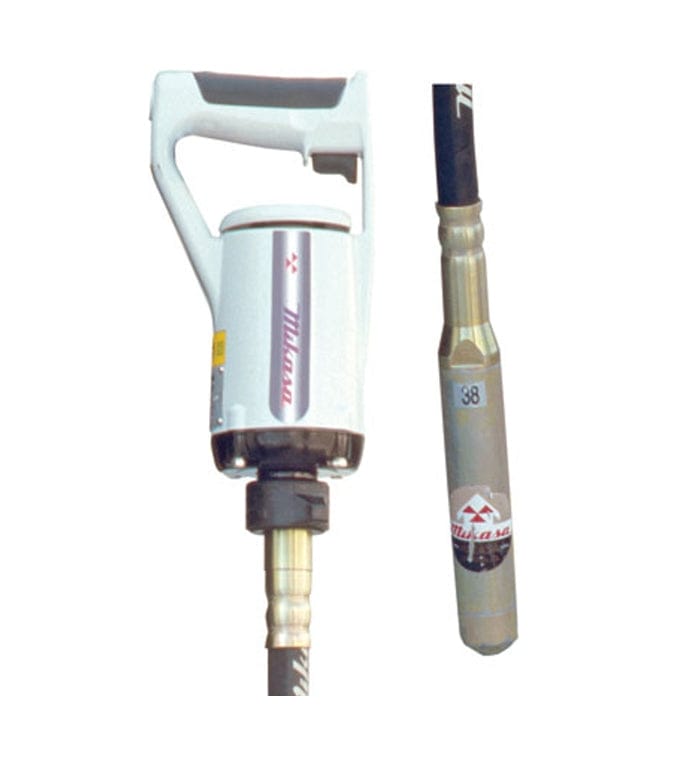

Split view showing the white aluminum motor unit with handle on the left and a close-up of the metal vibrating head on the right.
Full length view of the complete handheld concrete vibrator assembly displaying the white motor unit, long black flexible shaft, and silver vibrating head.

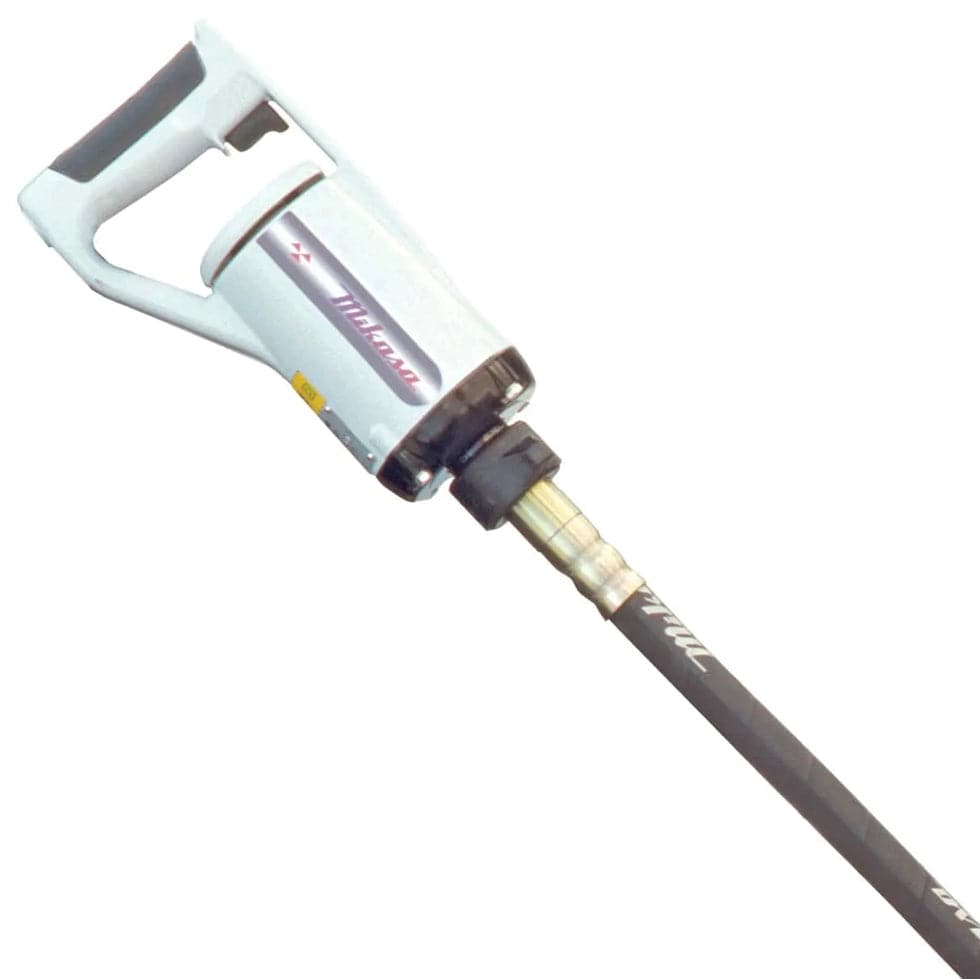

Close-up view of the handheld motor unit featuring a white casing, grey D-handle, and the connection point for the flexible shaft.
Close-up view of the black flexible shaft connecting to the silver metal vibrating head.
Split view showing the white aluminum motor unit with handle on the left and a close-up of the metal vibrating head on the right.
Split view showing the white aluminum motor unit with handle on the left and a close-up of the metal vibrating head on the right.
Full length view of the complete handheld concrete vibrator assembly displaying the white motor unit, long black flexible shaft, and silver vibrating head.
Close-up view of the handheld motor unit featuring a white casing, grey D-handle, and the connection point for the flexible shaft.
Close-up view of the black flexible shaft connecting to the silver metal vibrating head.
Split view showing the white aluminum motor unit with handle on the left and a close-up of the metal vibrating head on the right.
MULTIQUIP

Multiquip Concrete Vibrator UM13225 1 1/4 Inch Head 9 3/5 Foot Flexible Shaft Construction Tool (120V, 3 4/5 Amps, Deep Footing Consolidation)

Only 1 left
SKU: UM13225
$419.00 USD

Description

Multiquip UM13225 Handheld Electric Concrete Vibrator Assembly

The Multiquip UM13225 Handheld Electric Concrete Vibrator Assembly is a 120V portable consolidation tool featuring a 1 1/4-inch steel head and a 9 3/5-foot overall flexible shaft reach engineered for deep footing placement. Powered by a 3 4/5-amp double-insulated motor delivering up to 15,500 VPM, this system displaces internal air voids to ensure maximum density in stiff pours.

Best Used For:

  • Deep Footing Consolidation: Displacing trapped air pockets and honeycombing across thick concrete foundation footings.
  • Medium Wall Form Pours: Liquefying 3-inch or higher slump concrete mixes within medium-width wall assemblies.
  • Structural Column Placement: Navigating intermediate rebar networks to pack wet concrete thoroughly around internal steel supports.

Key Performance & Safety Features

  • Extended Flexible Shaft: 8 1/5-foot drive shaft provides deep immersion access for tall forms and subterranean footings.
  • High-Frequency Output: Produces 12,000 to 15,500 VPM for rapid, continuous air-pocket evacuation.
  • Vibration-Dampened Grip: Ergonomic handle reduces hand strain and operator fatigue during extended pouring tasks.
  • Sealed Motor Protection: Sealed ventilation system blocks concrete dust and slurry splatter from internal electrical components.

What's Included

  • (1) Multiquip Handheld Motor Unit (115V)
  • (1) 8 1/5 ft. Flexible Shaft
  • (1) 1 1/4 in. Vibrator Head

Technical Specifications

Model Number UM13225
Head Diameter 1 1/4 in.
Shaft Length 8 1/5 ft.
Overall Length 9 3/5 ft.
Voltage 115V / 120V
Amperage 3 4/5 Amps
Power 280 Watts
Frequency (VPM) 12,000 - 15,500 VPM
Amplitude 27/1000 in.
Total Weight 16 1/2 lbs

Pro-Tip: Insert the head quickly to the bottom of the pour and withdraw it at approximately 1 to 2 inches per second to ensure smooth air release without causing aggregate segregation.
