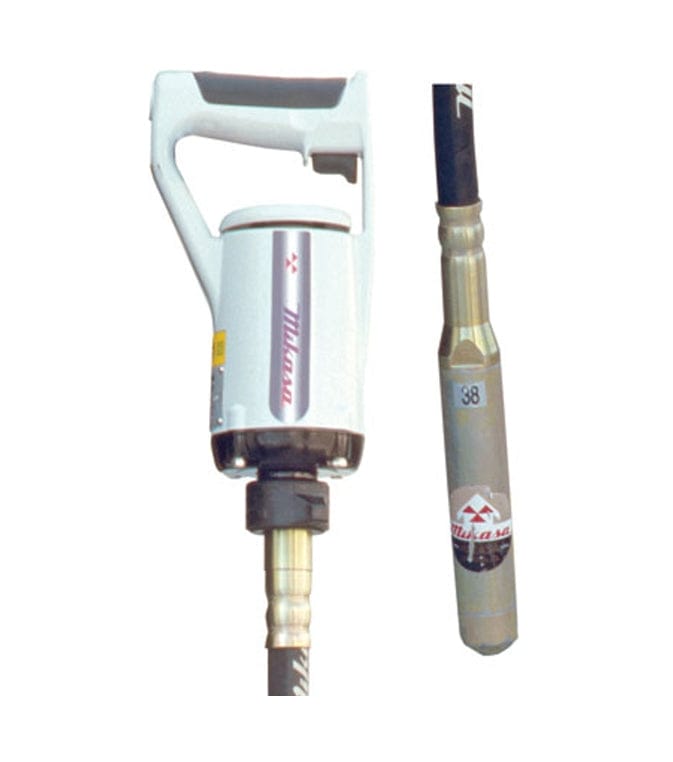

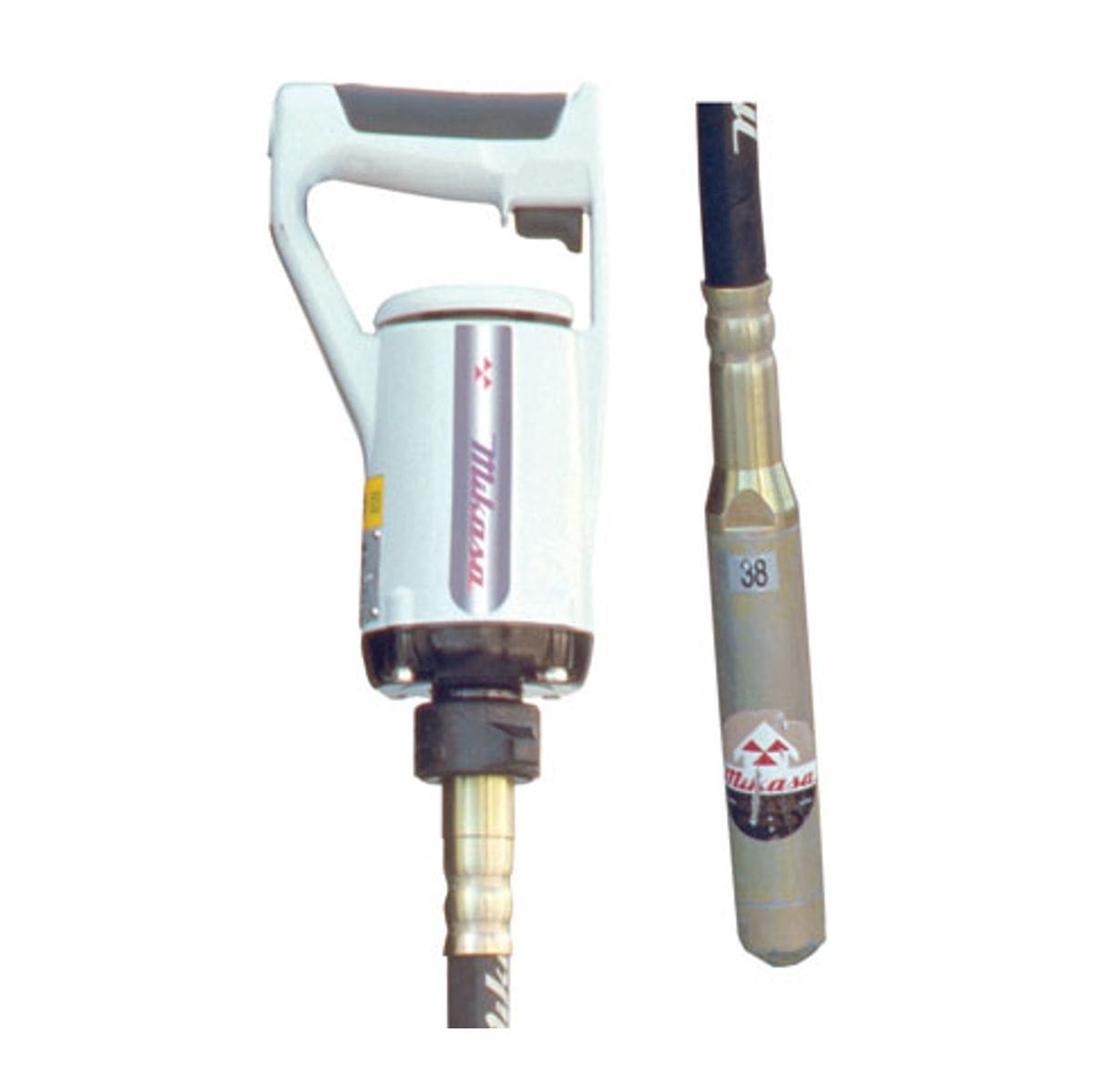

A split-view image showing the white handheld motor unit with its grey handle on the left side, and a close-up detail of the silver steel vibrator head on the right side.
A split-view image showing the white handheld motor unit with its grey handle on the left side, and a close-up detail of the silver steel vibrator head on the right side.
Full view of the complete assembled handheld concrete vibrator tool, displaying the white motor unit, the coiled black flexible shaft, and the silver vibrator head.
Close-up view of the white handheld electric motor unit for the concrete vibrator, showing the grey D-handle, trigger switch, side vents, and shaft connection point.
Close-up detail showing the junction where the black flexible drive shaft attaches to the silver metallic concrete vibrator head.
A split-view image showing the white handheld motor unit with its grey handle on the left side, and a close-up detail of the silver steel vibrator head on the right side.
A split-view image showing the white handheld motor unit with its grey handle on the left side, and a close-up detail of the silver steel vibrator head on the right side.
Full view of the complete assembled handheld concrete vibrator tool, displaying the white motor unit, the coiled black flexible shaft, and the silver vibrator head.
Close-up view of the white handheld electric motor unit for the concrete vibrator, showing the grey D-handle, trigger switch, side vents, and shaft connection point.
Close-up detail showing the junction where the black flexible drive shaft attaches to the silver metallic concrete vibrator head.
MULTIQUIP

Multiquip Concrete Vibrator UM13810 1 1/2 Inch Head 4 3/5 Foot Shaft Construction Tool (120V, 3 4/5 Amps, Column Footing Consolidation)

In stock
SKU: UM13810
$399.00 USD

Description

Multiquip UM13810 Handheld Electric Concrete Vibrator Assembly

The Multiquip UM13810 Handheld Electric Concrete Vibrator Assembly is a 120V portable compaction tool featuring a 1 1/2-inch steel head and a 4 3/5-foot overall length engineered for short formwork consolidation. Powered by a 3 4/5-amp double-insulated motor delivering up to 15,500 VPM, this assembly liquefies stiff concrete mixes to eliminate air voids in restricted pours.

Best Used For:

  • Column Footing Consolidation: Displacing trapped air pockets and honeycombing in shallow structural column foundations and stair steps.
  • Retaining Wall Pours: Compacting 3-inch or higher slump concrete mixes evenly across medium-width retaining wall forms.
  • Standard Aggregate Compaction: Processing fresh concrete pours containing standard gravel sizes to achieve maximum structural density.

Key Performance & Safety Features

  • High-Frequency Output: Generates 12,000 to 15,500 VPM for rapid air-pocket evacuation and mix settling.
  • Vibration-Dampened Handle: Reduces hand strain and operator fatigue during extended concrete consolidation tasks.
  • Double-Insulated Motor: Increases electrical safety on wet job sites by operating without ground wire requirements.
  • Sealed Fan Defense: Prevents concrete dust, moisture, and slurry splatter from entering internal motor housings.

What's Included

  • (1) Multiquip Handheld Motor Unit (115V)
  • (1) 3 1/5 ft. Flexible Shaft
  • (1) 1 1/2 in. Vibrator Head

Technical Specifications

Model Number UM13810
Head Diameter 1 1/2 in.
Shaft Length 3 1/5 ft.
Overall Length 4 3/5 ft.
Voltage 115V / 120V
Amperage 3 4/5 Amps
Power 280 Watts
Frequency (VPM) 12,000 - 15,500 VPM
Amplitude 79/1000 in.
Total Weight 11 1/2 lbs

Pro-Tip: Immerse the 1 1/2-inch head completely into the concrete mix lift and withdraw it slowly at 1 to 2 inches per second to ensure uniform consolidation without trapping air.
