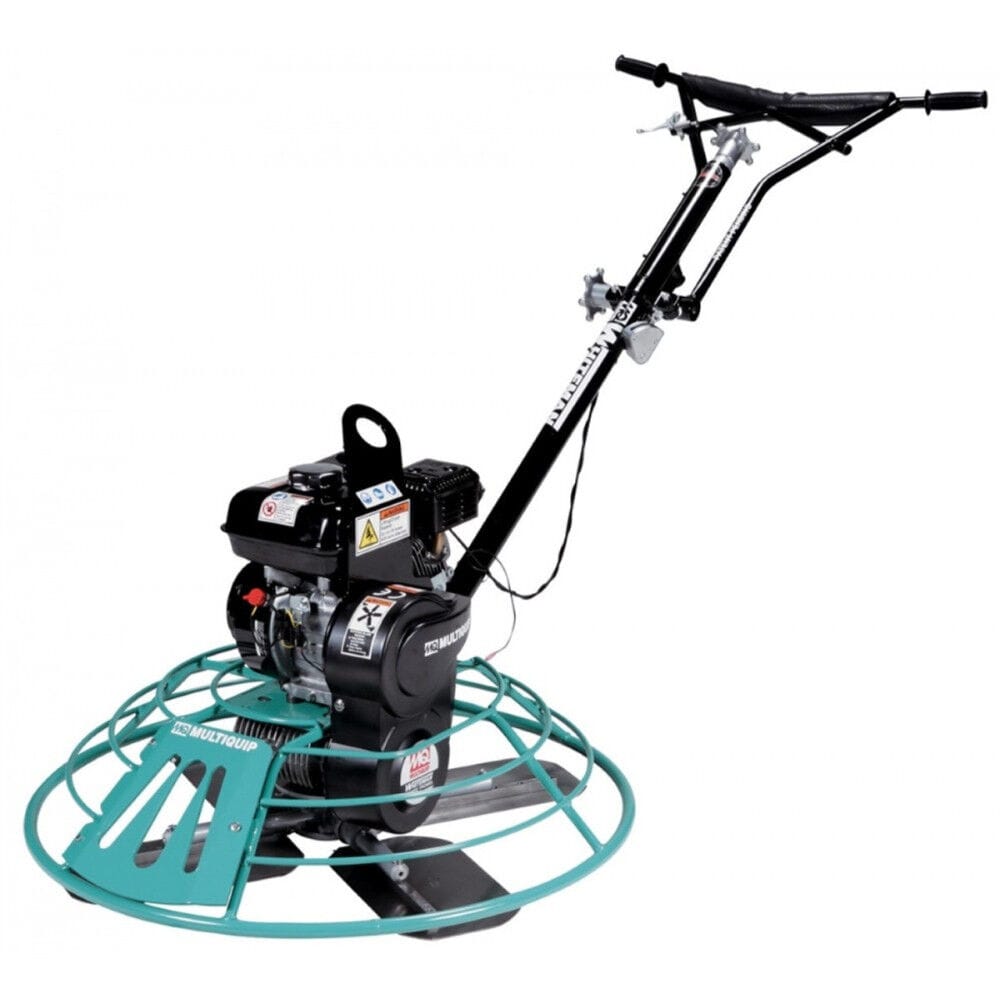

Multiquip Walk Behind Power Trowel B46H90-QXH 46 Inch Honda GX270 8.5 HP Engine QXH Handle (Concrete Slab Surface Finishing Tool)
Couldn't load pickup availability
Multiquip MQ Whiteman B46H90-QXH 46-Inch 8.5 HP Honda GX270 Walk-Behind Concrete Power Trowel with QXH QuickPitch Handle
Call or Email for Availability and Shipping:
281-351-2211 - Sales@HilltopTool.com

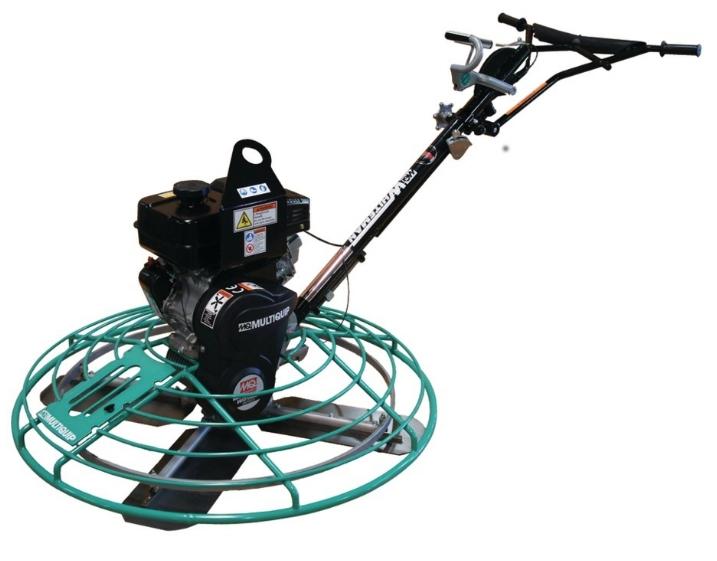

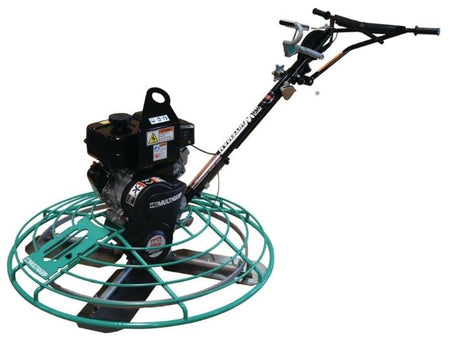

The Multiquip MQ Whiteman B46H90-QXH 46-Inch Walk-Behind Power Trowel is an industrial concrete finishing machine powered by an 8.5 HP Honda GX270 gas engine designed to smooth and burnish fresh concrete slabs. Equipped with a 4-blade spider rotor assembly, a heavy-duty gearbox, and a QXH QuickPitch handle system, this heavy-duty power trowel delivers reliable blade pitch control to accelerate concrete pan floating and final burnishing on medium-to-large commercial slab pours.
Best Used For:
- Commercial Concrete Slab Burnishing: Floating and fine-finishing large indoor industrial warehouse floors, outdoor driveways, and foundations.
- Rapid Blade Pitch Adjustments: Modifying trowel blade angles on-the-fly via the QXH QuickPitch mechanism as concrete transitions from wet paste to hard set.
- On-Site Equipment Maintenance: Accessing spider arms and thrust collar assemblies quickly through the front-mounted access panel to swap finishing blades.
Key Performance & Safety Features

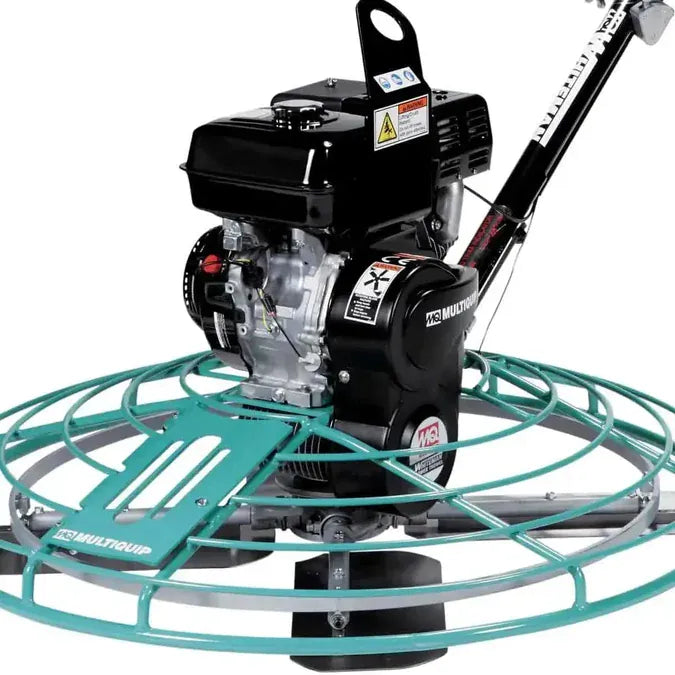

- Commercial Honda GX270 Engine: Reliable 8.5 HP 270cc overhead valve gasoline engine with recoil start delivers high rotor speeds under heavy cement drag.

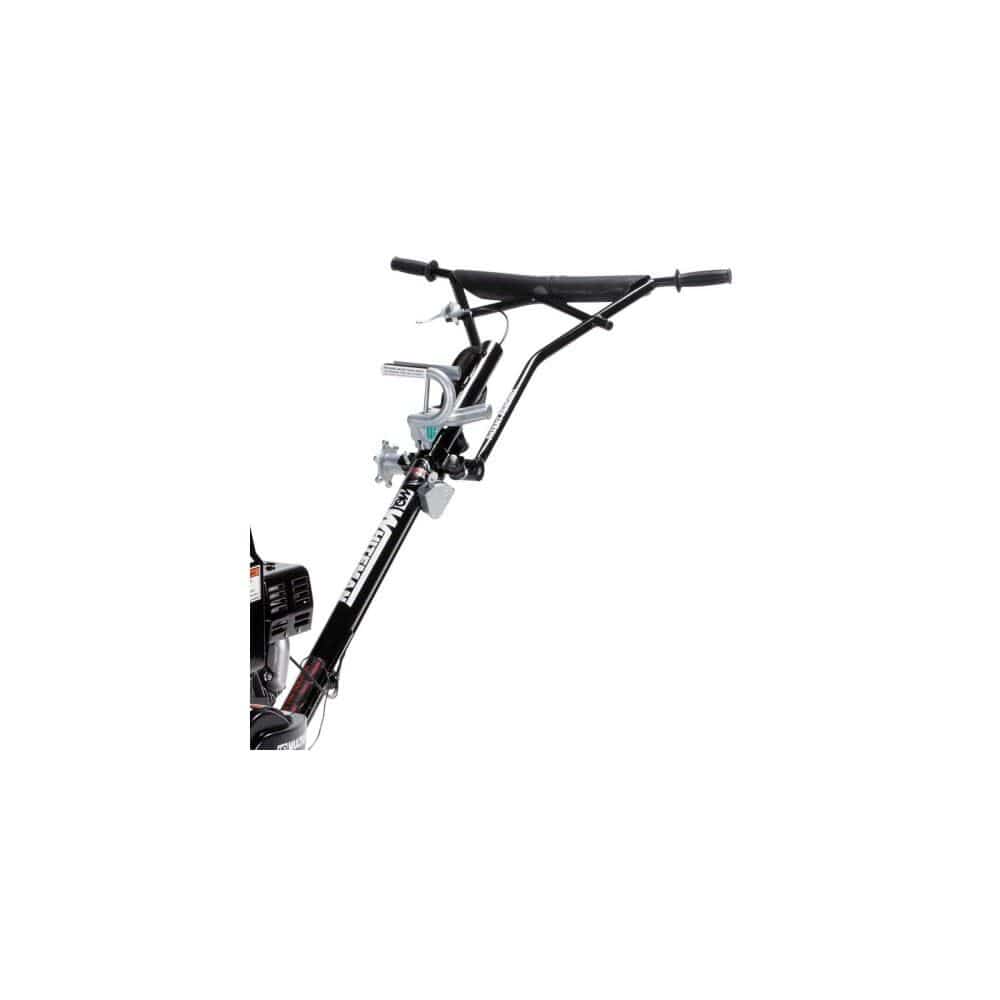

- QXH QuickPitch Handle Assembly: Patented spring-loaded pitch control lever allows immediate, smooth blade angle changes without manual knob spinning.
- High-Capacity Industrial Gearbox: Heavy-duty gearbox housing holds extra oil capacity to dissipate heat during continuous summer finishing passes.
- 46-Inch Guard Ring Diameter: Heavy-gauge steel tubular guard ring protects workers and jobsite forms while providing full 46-inch rotor coverage.
- Front Maintenance Access Panel: Removable front guard section grants immediate access to spider arms, thrust collars, and trowel blade hardware.
- Center-Mounted Lifting Bale: Integrated top lifting eye allows easy crane or forklift loading and transport across jobsite floors.
What's Included
- (1) Multiquip MQ Whiteman B46H90-QXH 46" Power Trowel Base Unit
- (1) Honda GX270 8.5 HP Gasoline Engine
- (1) QXH QuickPitch Handle Assembly
- (1) 4-Blade Spider and Thrust Collar Assembly
- (1) Center Mount Lifting Bale
- (1) Set of Standard Combination Trowel Blades
Available for pickup at our Tomball, TX location:
30702 State Highway 249
Tomball, Texas 77375
Monday-Friday 7am-5pm CST
Saturday 7am-1pm CST
Technical Specifications
| Brand / Series | Multiquip MQ Whiteman |
| Model / OEM Part Number | B46H90-QXH |
| Guard Ring Diameter | 46.0 in. (1170 mm) |
| Engine Make & Model | Honda GX270 OHV Commercial Engine |
| Horsepower Rating | 8.5 HP (6.3 kW Output Class) |
| Engine Displacement | 16.48 cu. in. (270 cc) |
| Starting System | Manual Recoil Starter |
| Blade Count / Configuration | 4-Blade Spider Assembly |
| Handle Control Type | QXH QuickPitch Lever Mechanism |
| Assembled Dimensions | 75 in. L x 46 in. W x 41 in. H (190.5 cm x 116.8 cm x 104.1 cm) |
| Operating Weight | 277.0 lbs (125.64 kg) |
| Total Shipping Weight | 285.0 lbs (129.27 kg) |
| Warranty Coverage | 1-Year Limited Manufacturer Warranty |
| UPC Code | 402460000468 |
Pro-Tip: Check and maintain the gearbox oil level before every major pour, as proper lubrication under high-torque floating passes prevents thermal degradation of internal worm gears.
