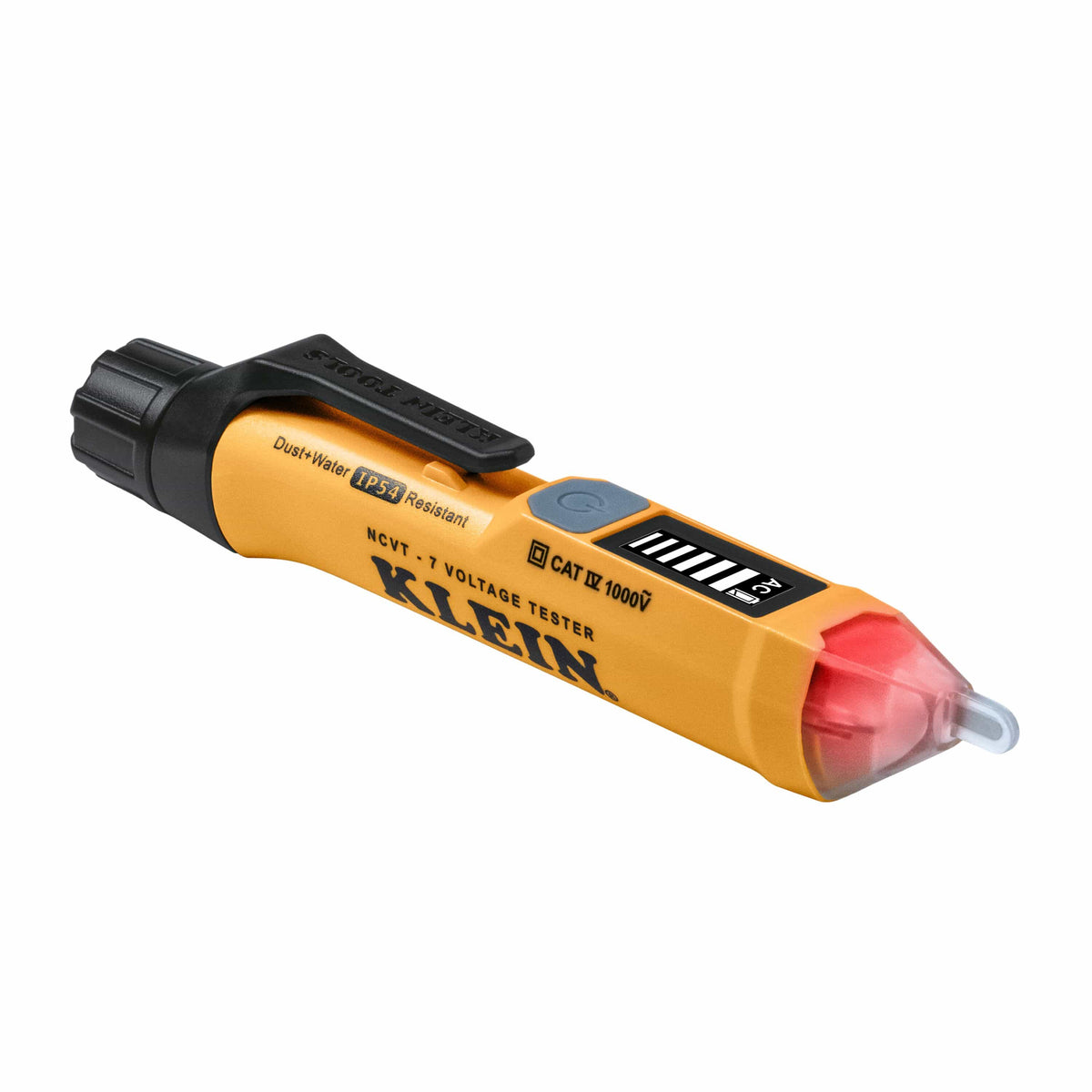

Klein Navy 7 Voltage Tester with a yellow and black body, a red translucent tip, and a clear plastic ground clip, shown on a white background.

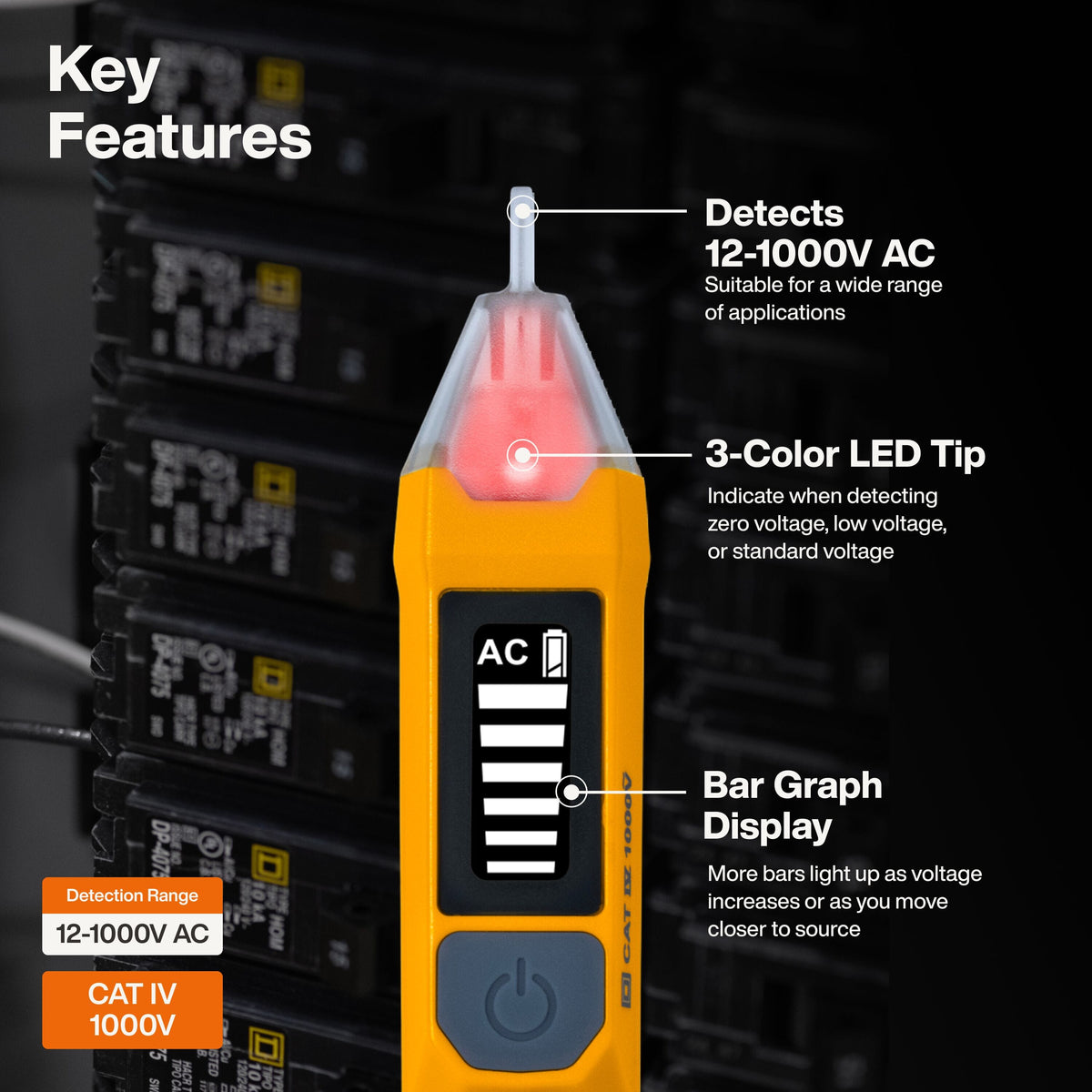

An AC voltage tester with a bright orange body and a 3-color LED tip showing red, yellow, and green lights, displayed against a dark background of electrical panels. The image includes feature callouts with text labels.

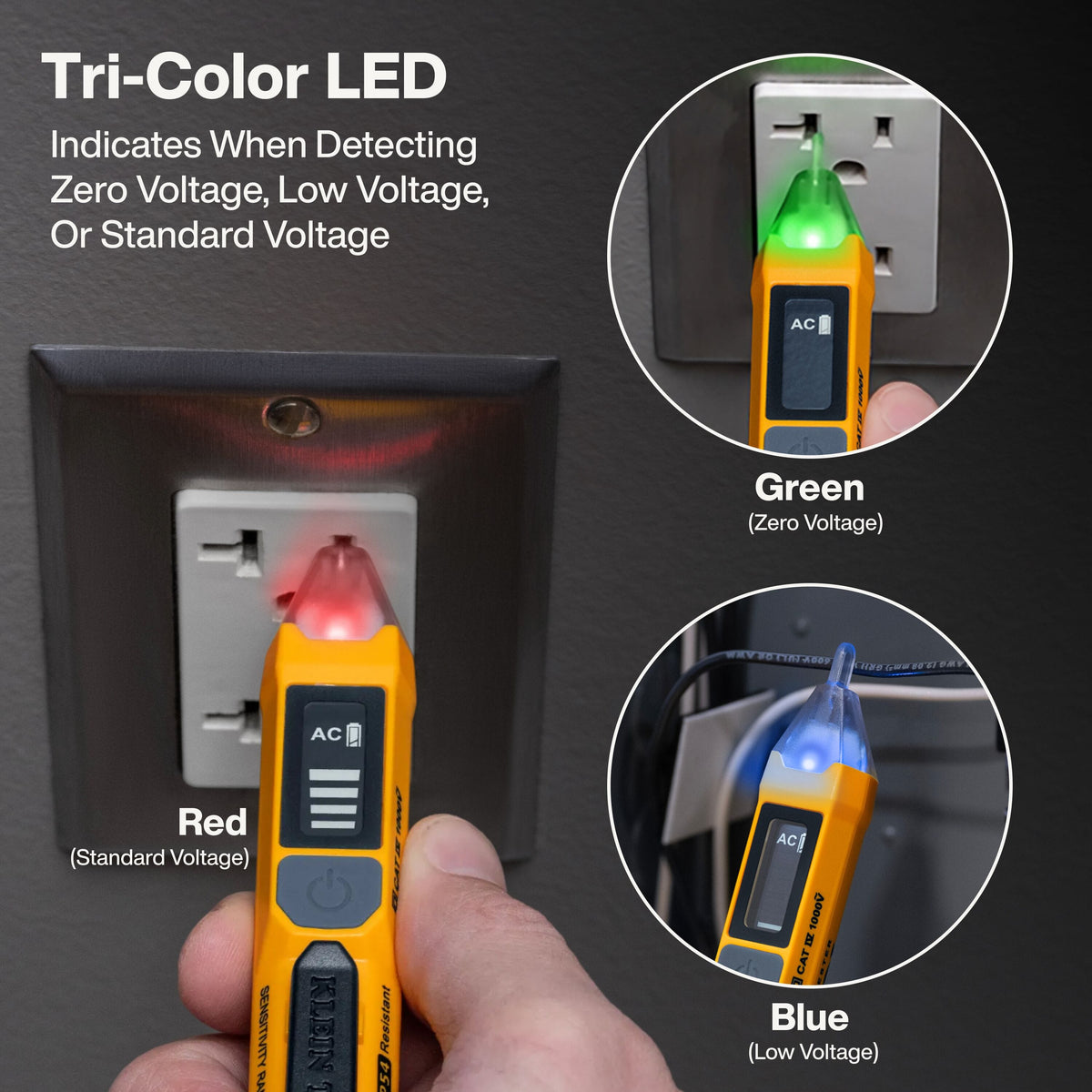

Tri-color LED AC voltage tester shown being held near wall outlets, with text explaining the green, red, and blue light indicators for zero voltage, low voltage, and standard voltage. Two circular inset photos show the tester plugged into outlets with the lights glowing green, red, and blue.

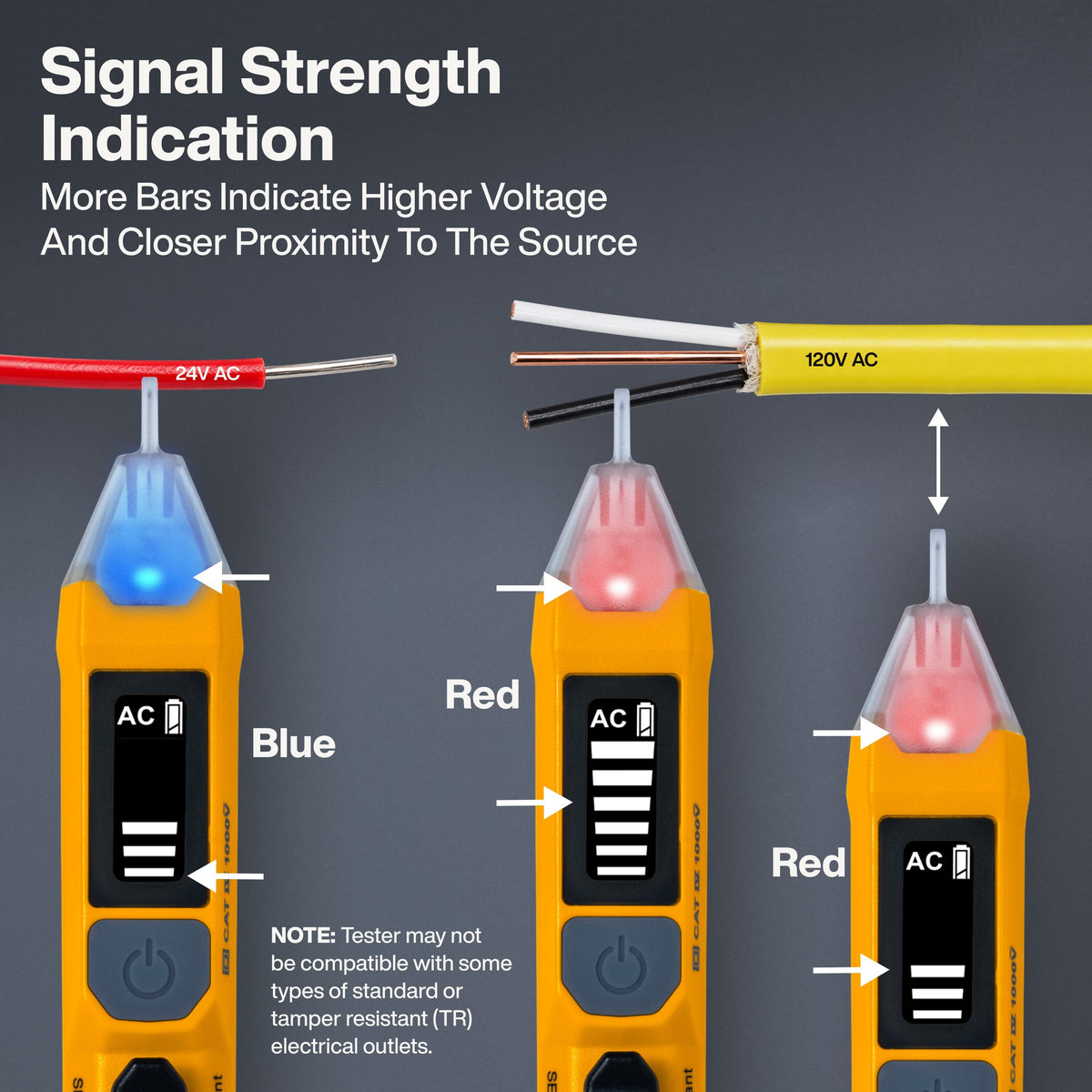

Three yellow and orange electrical testers shown with colored indicator lights and text explaining signal strength and voltage levels on a dark gray background.

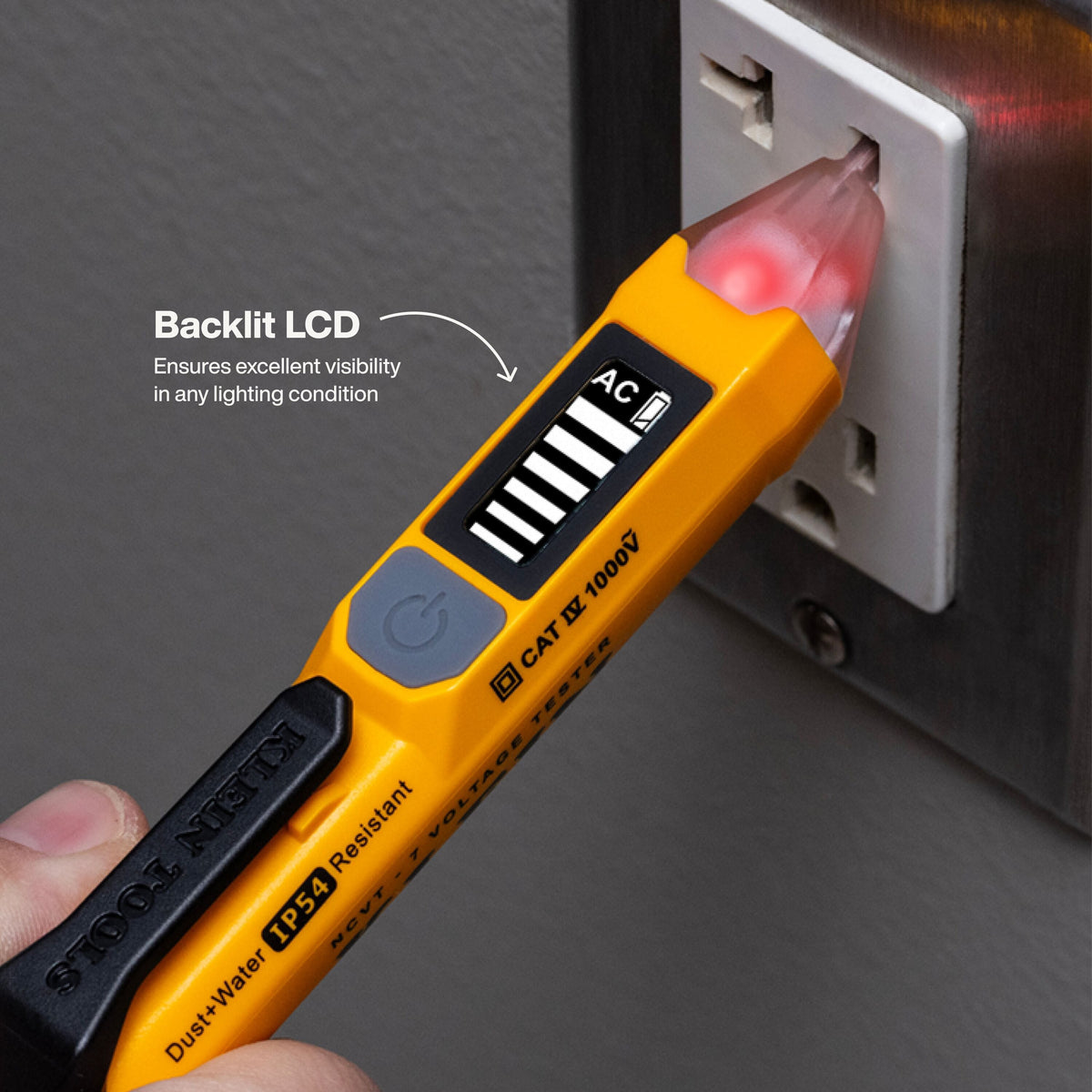

A yellow and black STICKElectric CAT 12 1000V multimeter tester plugged into a wall outlet, with a backlit LCD screen showing a red illuminated indicator. A hand is holding the tool, and text on the image highlights the backlit LCD feature.

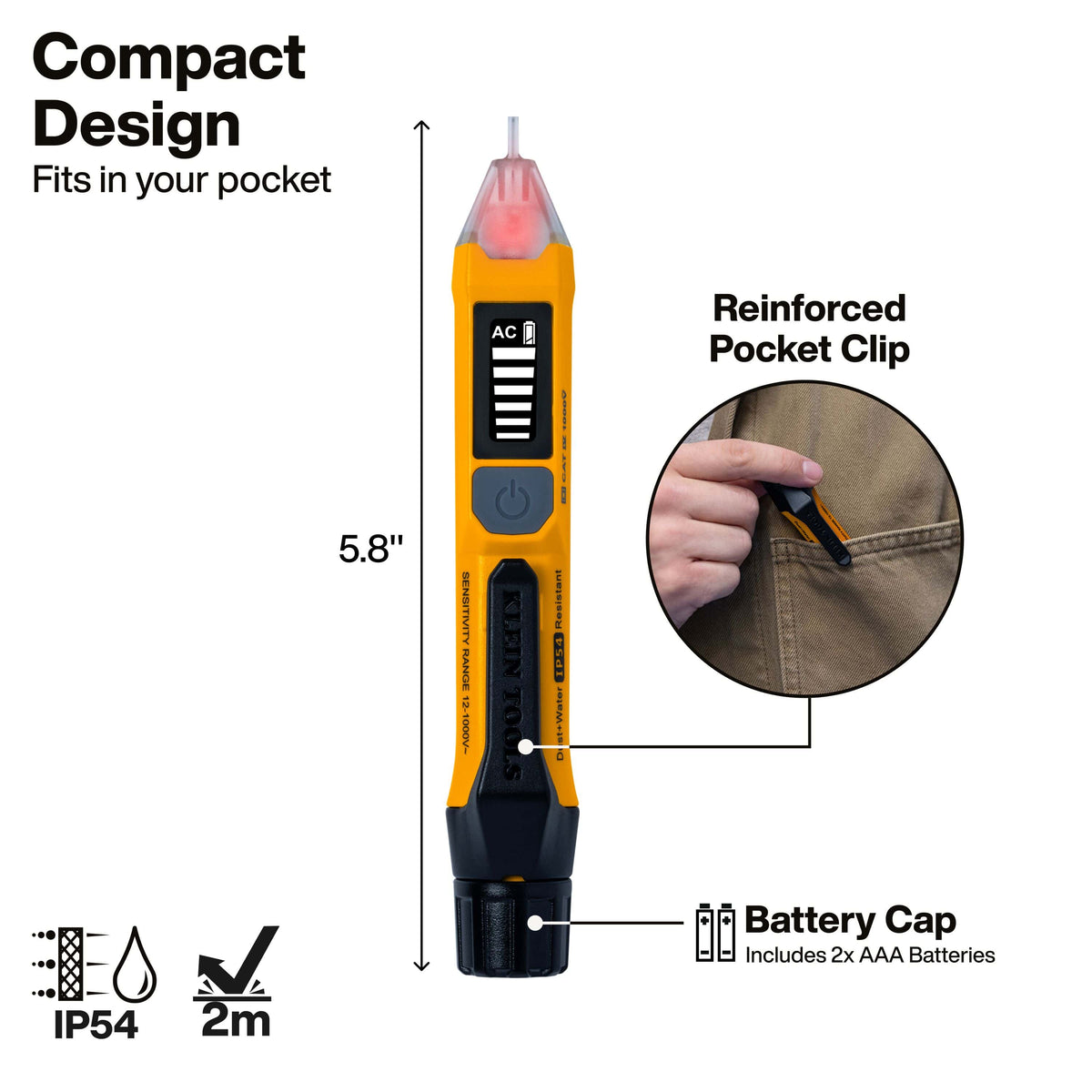

Yellow and black pocket tester multimeter with text callouts for compact design, reinforced pocket clip, battery cap, and IP54 2m rating, plus a circular inset showing a hand inserting the clip into fabric.

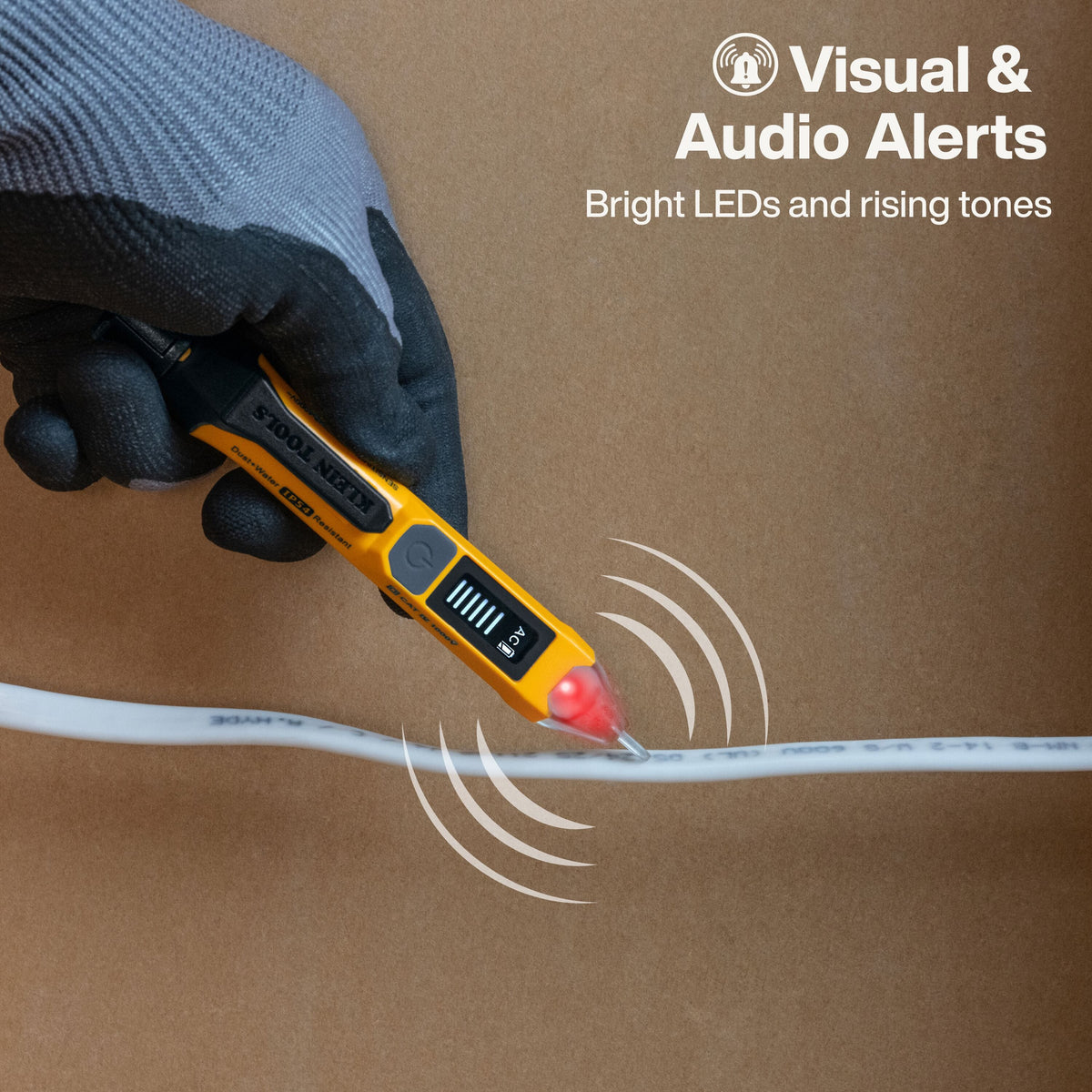

A gloved hand holds a yellow and black Fluke multimeter tester over a white cable, with graphic wave lines indicating visual and audio alerts. The background is a solid brown surface, and text in the upper right reads 'Visual & Audio Alerts'.
Klein Navy 7 Voltage Tester with a yellow and black body, a red translucent tip, and a clear plastic ground clip, shown on a white background.
An AC voltage tester with a bright orange body and a 3-color LED tip showing red, yellow, and green lights, displayed against a dark background of electrical panels. The image includes feature callouts with text labels.
Tri-color LED AC voltage tester shown being held near wall outlets, with text explaining the green, red, and blue light indicators for zero voltage, low voltage, and standard voltage. Two circular inset photos show the tester plugged into outlets with the lights glowing green, red, and blue.
Three yellow and orange electrical testers shown with colored indicator lights and text explaining signal strength and voltage levels on a dark gray background.
A yellow and black STICKElectric CAT 12 1000V multimeter tester plugged into a wall outlet, with a backlit LCD screen showing a red illuminated indicator. A hand is holding the tool, and text on the image highlights the backlit LCD feature.
Yellow and black pocket tester multimeter with text callouts for compact design, reinforced pocket clip, battery cap, and IP54 2m rating, plus a circular inset showing a hand inserting the clip into fabric.
A gloved hand holds a yellow and black Fluke multimeter tester over a white cable, with graphic wave lines indicating visual and audio alerts. The background is a solid brown surface, and text in the upper right reads 'Visual & Audio Alerts'.
Klein

Klein Tools Non-Contact Voltage Tester with Signal Strength LCD 12-1000V AC (NCVT7)

Only 2 left
SKU: NCVT7
$24.00 USD

Description

Klein Tools logo

Non-Contact Voltage Tester with Signal Strength, 12-1000V AC

The Klein Tools NCVT7 Non-Contact Voltage Tester is designed to detect 12 to 1000V AC in cables, cords, circuit breakers, lighting fixtures, switches, outlets, and wires without direct electrical contact. Its backlit LCD displays signal strength, while the three-color LED tip and adjustable audible alert provide additional indications as the tester approaches an AC voltage source.

Best Used For

  • Electrical Troubleshooting: Quickly check for the presence of AC voltage in wires, outlets, switches, and other electrical components.
  • Circuit & Equipment Checks: Identify energized conductors and components without making direct contact.
  • Jobsite Electrical Service: Compact pen-style design and pocket clip make the tester convenient for everyday electrical inspections.

Key Performance & Safety Features

  • 12-1000V AC Detection: Detects AC voltage across a broad range for residential, commercial, and industrial electrical applications.
  • Signal-Strength Display: Backlit LCD bar graph provides a visual indication of signal strength, with more bars illuminating as voltage increases or the tester moves closer to the source.
  • Three-Color LED Tip: Blue indicates low signal strength, red indicates high signal strength, and green indicates no voltage detected.
  • Adjustable Audible Alert: Audible indication changes its rate to correspond with the displayed signal strength.
  • IP54 Protection: Provides protection against dust ingress and water splashing from applicable directions.
  • 6.5-Foot Drop Protection: Designed to withstand drops from up to 6.5 feet (2 meters).

What's Included

  • 1 x Klein Tools NCVT7 Non-Contact Voltage Tester
  • 2 x AAA Batteries

Klein Tools Non-Contact Voltage Tester Specifications

Parameter Specification
Tester Type & Application Non-Contact Voltage Tester; Non-Contact Detection & Testing of AC Voltage
Voltage Range & Frequency 12V – 1000V AC; 50 Hz – 500 Hz
Detection Indicators Visual Signal Strength Bar Graph, High-Visibility LEDs, and Audible Beeper
Ingress & Environmental Rating IP54 Dust & Water Splash Resistant; Pollution Degree 2
Drop Protection & Construction 6.5 ft (2.0 m) Drop-Rated Impact-Resistant Polymer Body with Integrated Pocket Clip
Safety & Compliance Standards Conforms to UL 61010-1 & 61010-2-030; Certified to CSA C22.2 No. 61010-1 & 61010-2-030
Power Supply & Battery Life 2 × AAA Alkaline (Included); Up to 142 Hours Runtime with Auto-Power Off
Operating Temperature Range 32°F – 122°F (0°C – 50°C)
Overall Dimensions (L × W × H) 5.8 in × 1.0 in × 1.2 in (14.7 cm × 2.5 cm × 3.0 cm)
Operating Weight 1.97 oz (56 g)
Electrical Safety & Operational Note:

Broad 12V to 1000V AC testing range supports both standard line voltage (outlets, switches, cables) and low-voltage systems (security, doorbells, HVAC controls). Always verify proper tester operation on a known live circuit prior to inspecting de-energized wiring.
