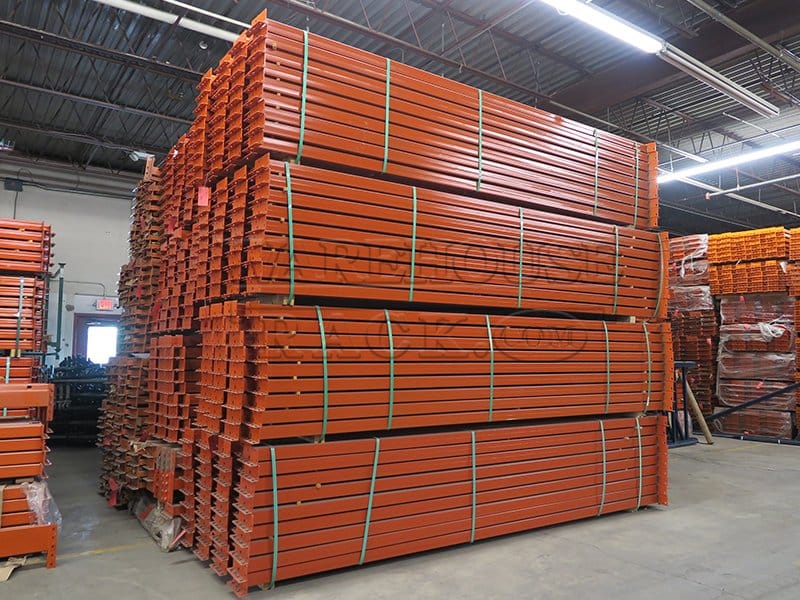

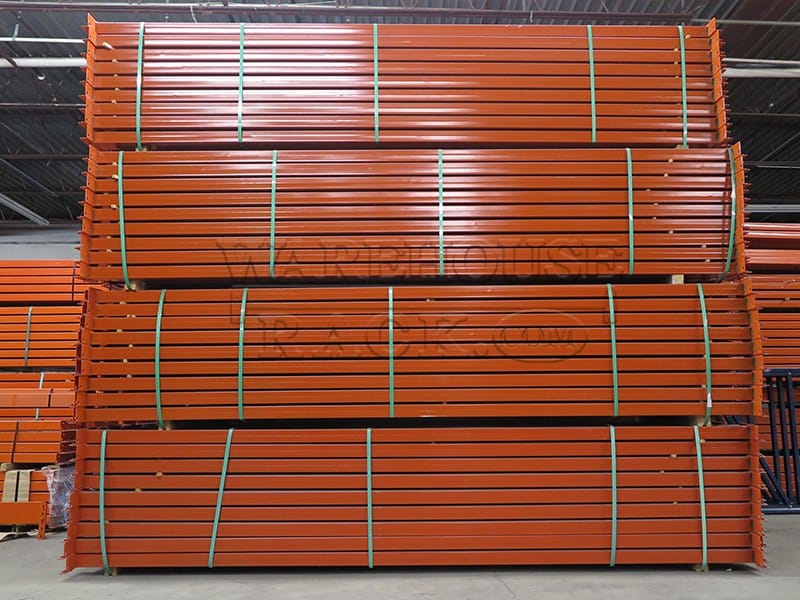

New Teardrop Pallet Rack NS Beam 144 Inch x 4.5 Inch x 1 5/8 Industrial Steel Warehouse Orange Load Beam 3305 lbs Capacity BMNS144412158RN

Optimize Your Vertical Storage: Heavy-Duty 144-Inch Teardrop Pallet Rack Load Beams

We also have USED Pallet Racks Available, call or email for details.

281-351-2211 - Sales@HilltopTool.com

The BMNS144412158RN Teardrop NS Load Beam is a fundamental component for high-capacity warehouse storage systems. Measuring 144 inches in length with a 4.5-inch face, these roll-formed steel beams are engineered to provide a stable, horizontal surface for palletized inventory. The "NS" (Narrow Step) design is specifically crafted to support standard wire decking or cross bars, ensuring your products remain secure. Designed for universal compatibility, these beams integrate seamlessly with most industry-standard teardrop uprights, making them an ideal choice for facility expansions or replacing worn components in your existing selective rack system.

Strength and versatility define this industrial load beam. With a robust capacity of 3,305 lbs. per pair, these 12-foot beams allow for wide-bay storage, accommodating multiple pallets side-by-side to maximize your aisle efficiency. The teardrop shaved-pin connectors allow for rapid, tool-free installation into upright frames, providing a secure "click-in" fit that can be easily adjusted as your inventory needs change. Coated in a high-visibility safety orange finish, these beams not only resist the rigors of daily forklift operations but also enhance warehouse safety by providing clear visual markers for drivers during loading and unloading maneuvers.

Key Features

• Universal Teardrop Connection: Features shaved-pin end connectors that are interchangeable with most major teardrop pallet rack manufacturers.
• High Load Capacity: Rated for 3,305 lbs. per pair, providing reliable support for standard palletized loads across a 12-foot span.
• Narrow Step (NS) Design: Optimized for use with standard wire decking, pallet support bars, and other racking accessories.
• Roll-Formed Steel: Manufactured from high-tensile steel for industrial-grade durability and long-term structural integrity.
• Safety Orange Finish: Durable powder-coated finish ensures high visibility for forklift operators and resists corrosion and scratching.
• Tool-Free Assembly: Innovative design allows for fast, simple installation and height reconfiguration to maximize warehouse cubic space.

What's Included

• (1) 144" x 4 1/2" x 1 5/8" Teardrop NS Load Beam
• Pre-installed Safety Locking Clips

Available for pickup at our Tomball, TX location:

30702 State Highway 249
Tomball, Texas 77375

Monday-Friday 7am-5pm CST
Saturday 7am-1pm CST

Specifications

Pro-Tip: To ensure structural safety, always verify that the safety locking clips are fully engaged after seating the beam. For 144-inch spans, it is highly recommended to use at least two pallet support bars per pallet position to prevent beam "rotation" and to ensure the load is distributed evenly across the steel profile.
