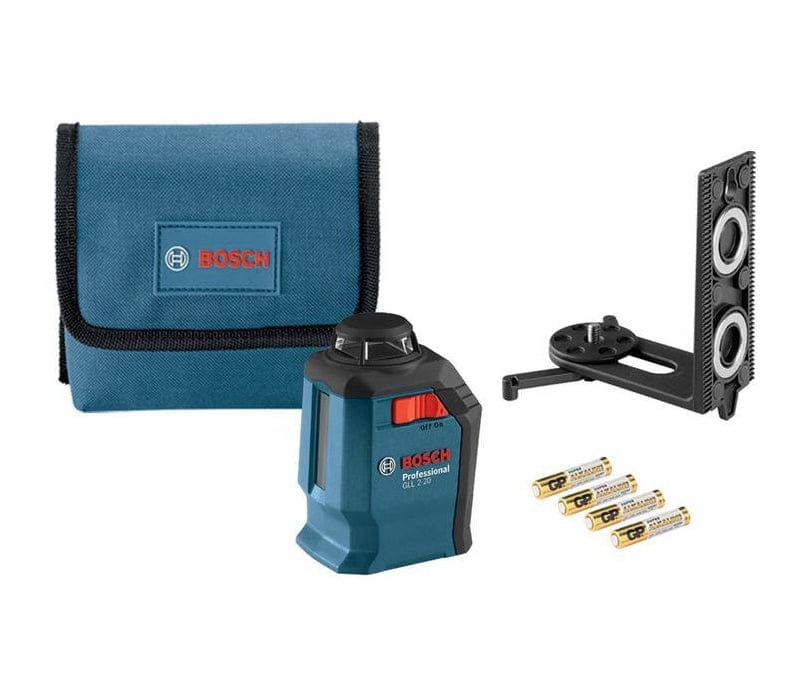

Bosch GLL 2-20 S-RT reconditioned laser level kit contents including the 360-degree self-leveling laser unit, BM3 positioning mount, four AA batteries, and a blue carrying pouch.

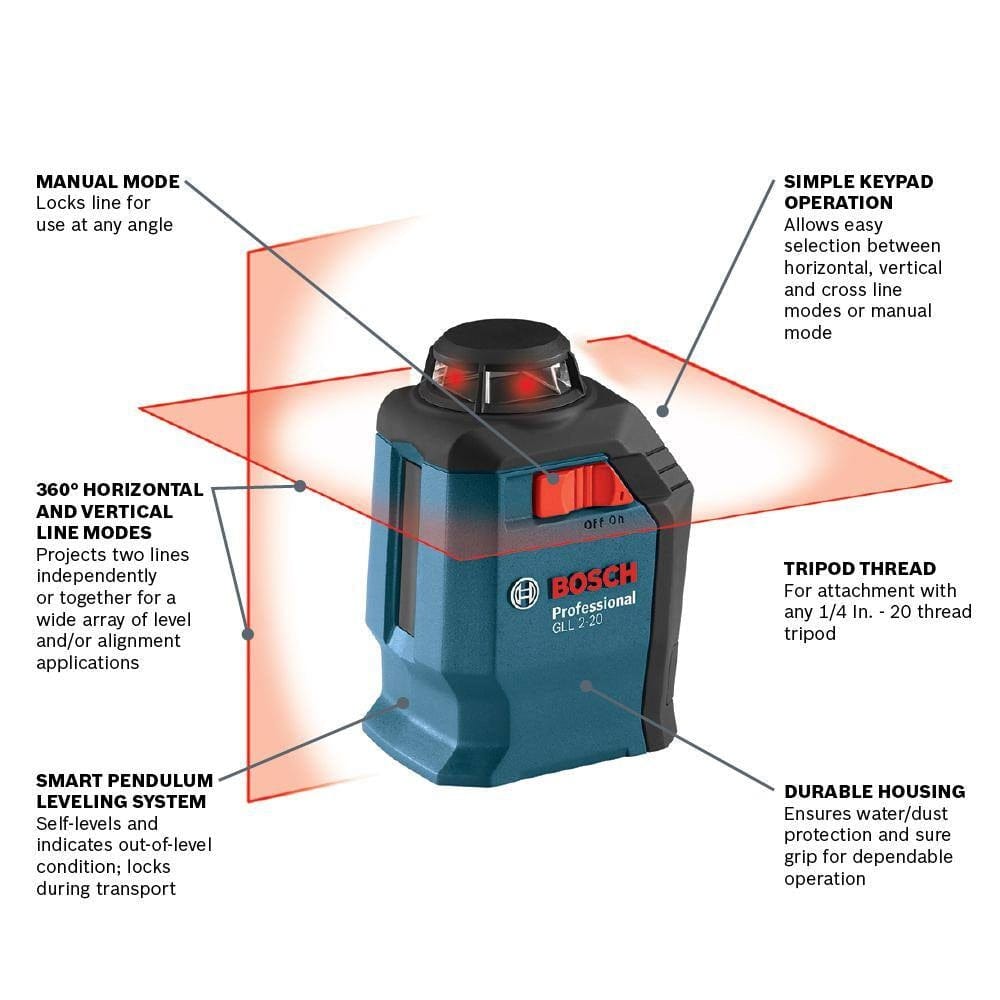

Technical diagram of the Bosch GLL 2-20 professional laser level highlighting the 360-degree horizontal and vertical line modes, Smart Pendulum System, manual mode, simple keypad operation, 1/4-20 tripod thread, and durable IP54 housing.

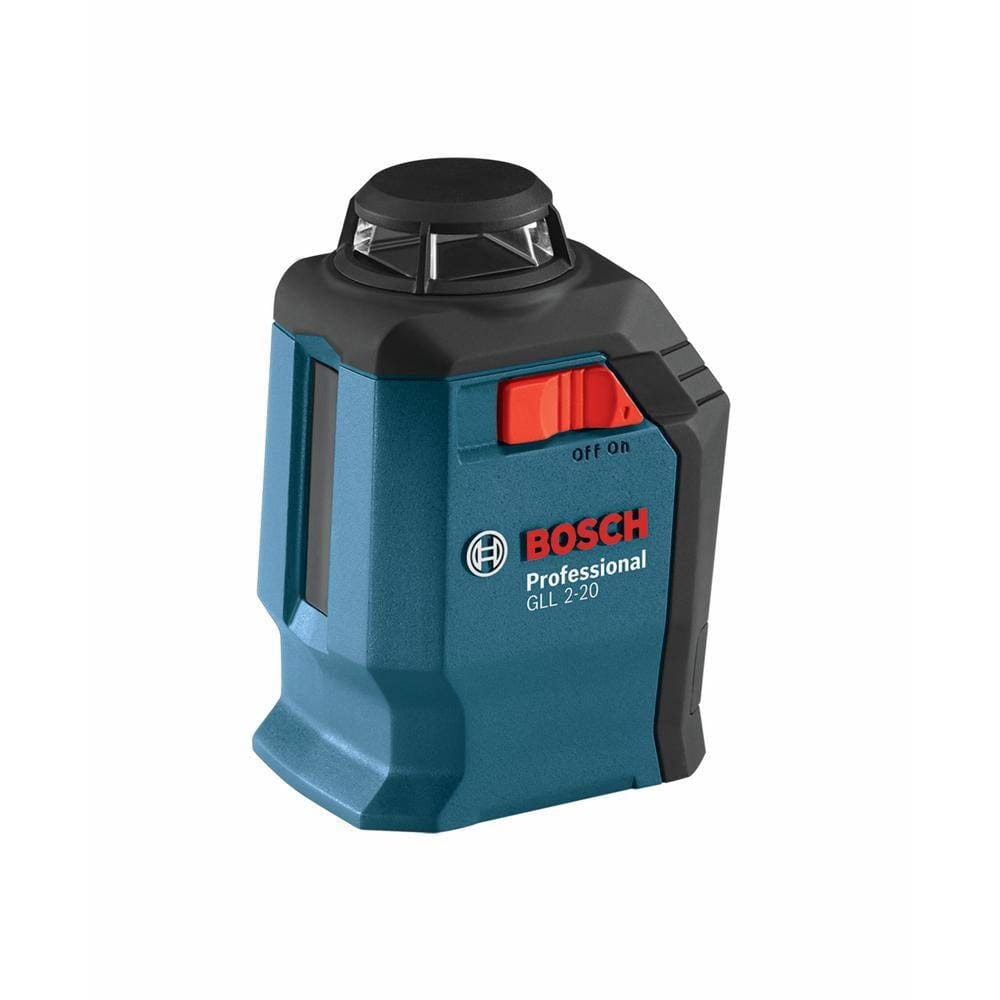

Studio shot of the Bosch GLL 2-20 professional laser level unit in blue and black with the red power slider in the off position.

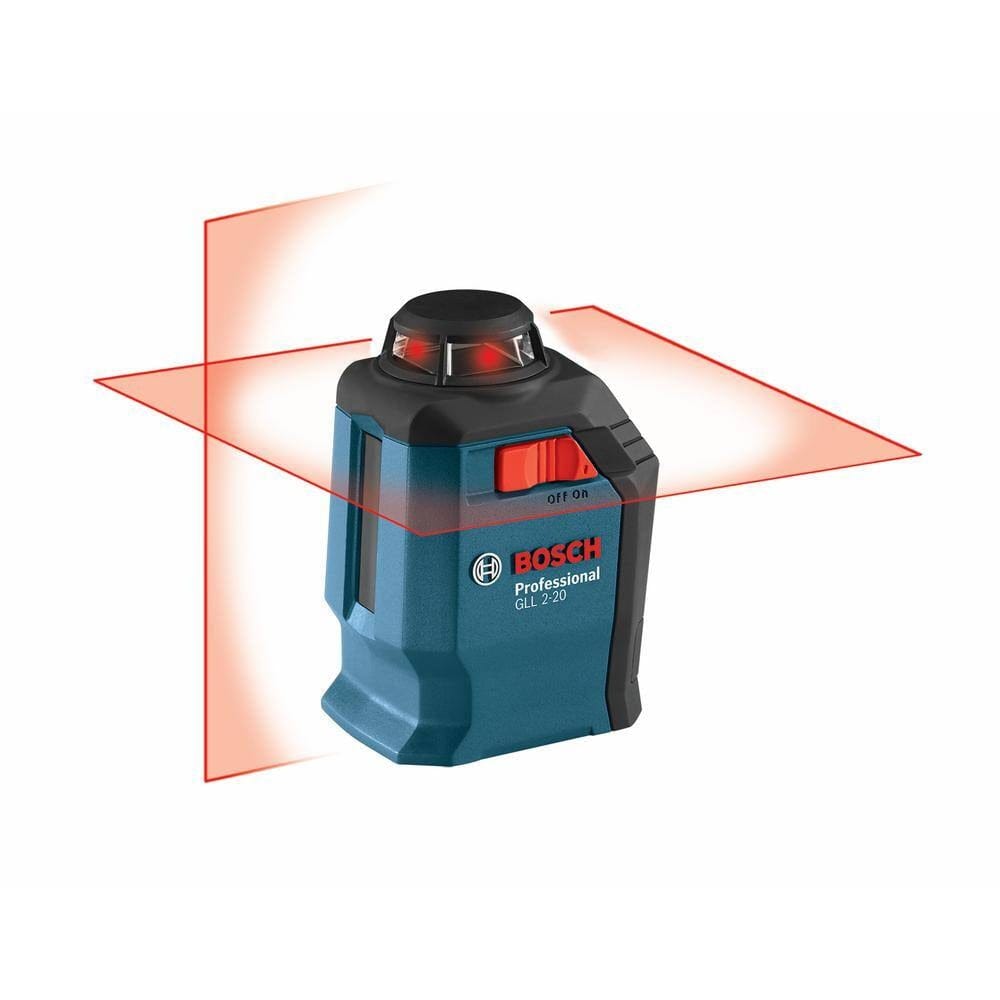

The Bosch GLL 2-20 laser level unit projecting bright red 360-degree horizontal and 120-degree vertical intersecting laser lines.

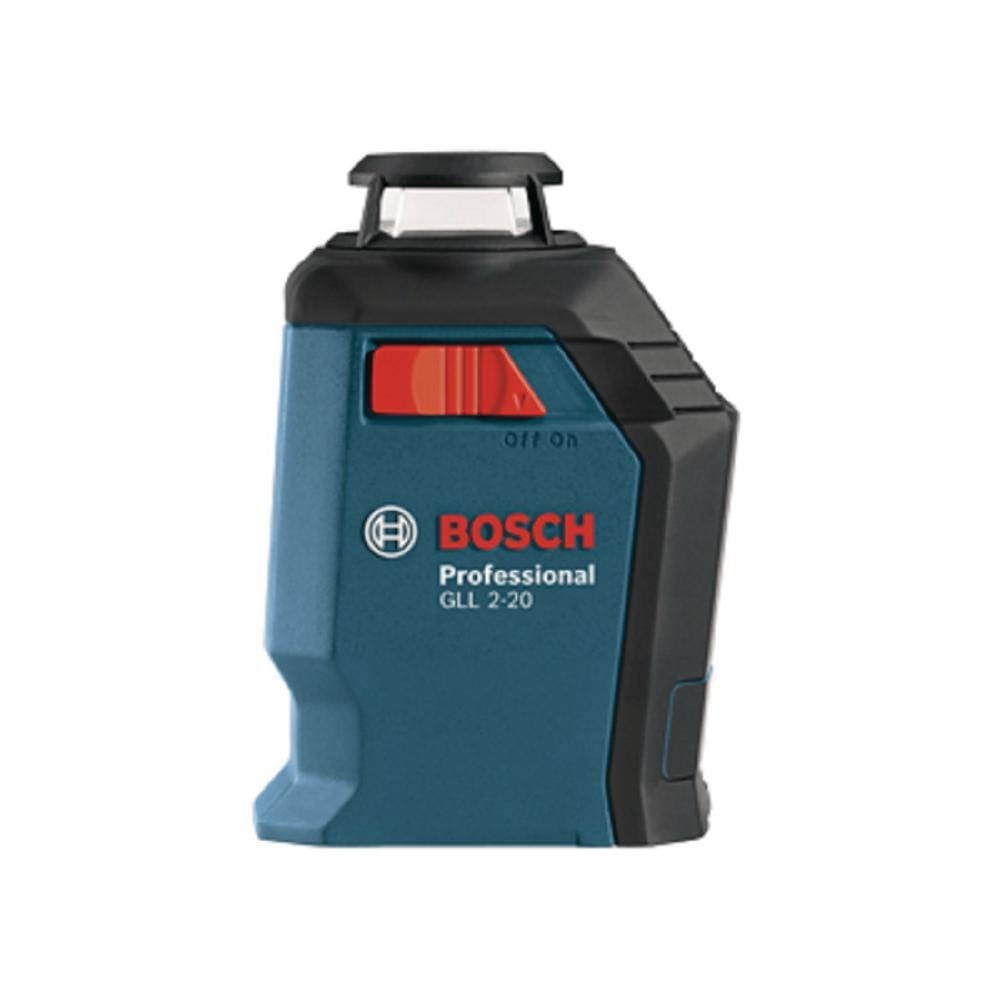

Side profile view of the blue and black Bosch GLL 2-20 self-leveling laser level showing the professional series branding and red activation switch.

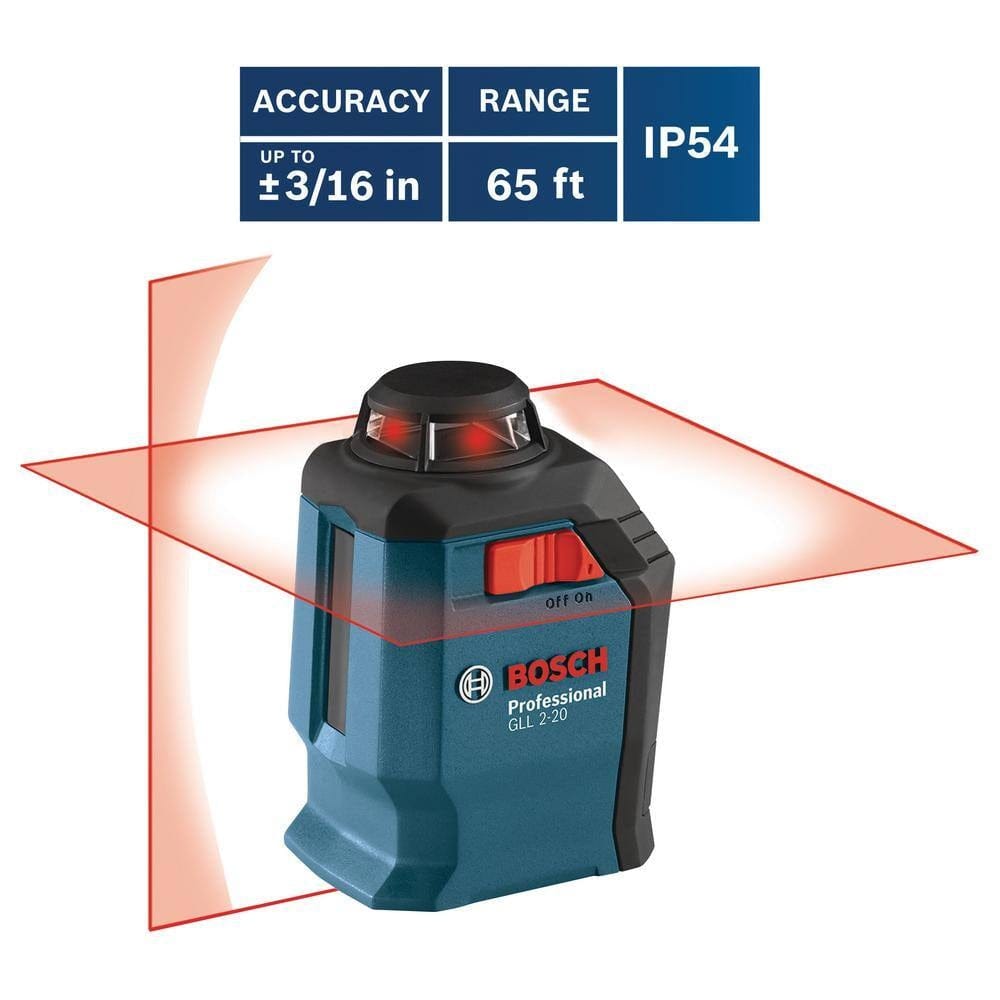

Infographic of the Bosch GLL 2-20 cross-line laser showing a 65-foot range, ±3/16 inch accuracy, and IP54 water and dust protection rating.

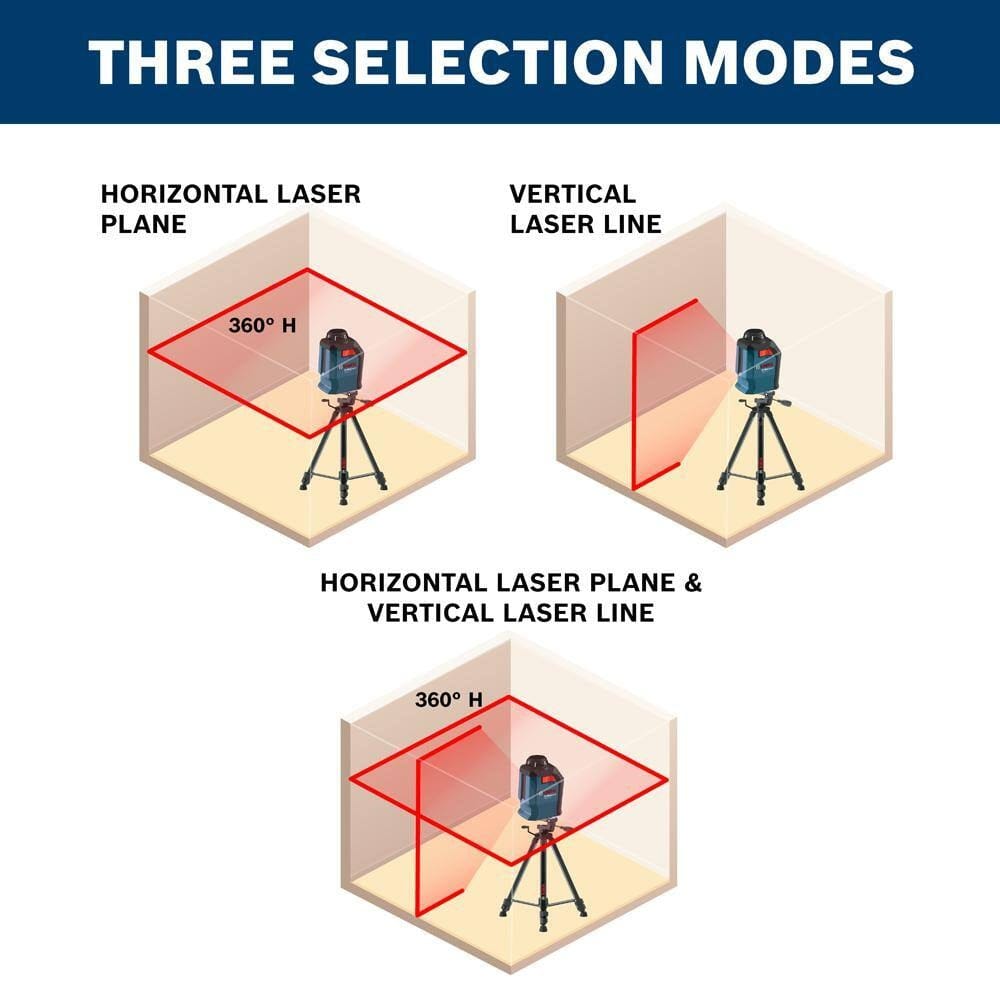

Visual guide demonstrating the three selection modes of the Bosch GLL 2-20 including horizontal laser plane, vertical laser line, and combined horizontal and vertical cross-line modes.
Bosch GLL 2-20 S-RT reconditioned laser level kit contents including the 360-degree self-leveling laser unit, BM3 positioning mount, four AA batteries, and a blue carrying pouch.

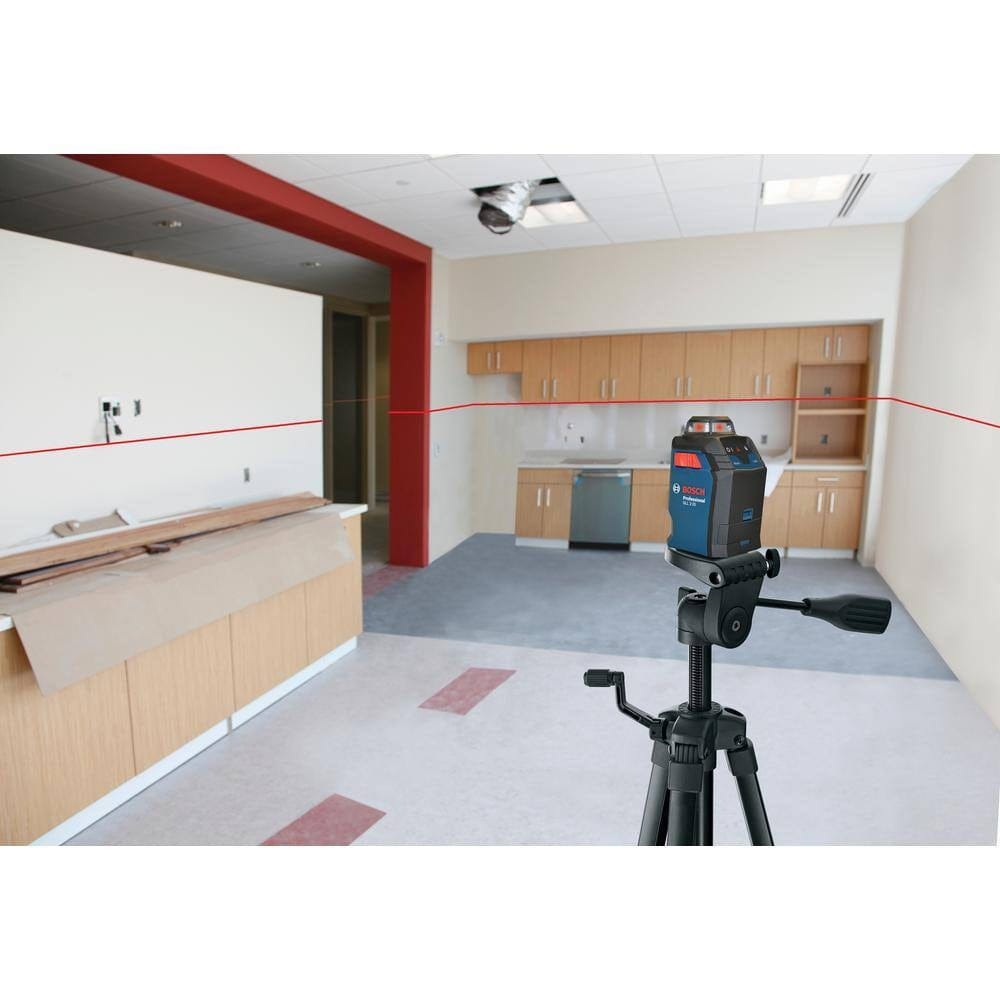

The Bosch GLL 2-20 laser level mounted on a tripod in a room under construction, projecting a continuous red horizontal level line across all four walls and cabinetry.

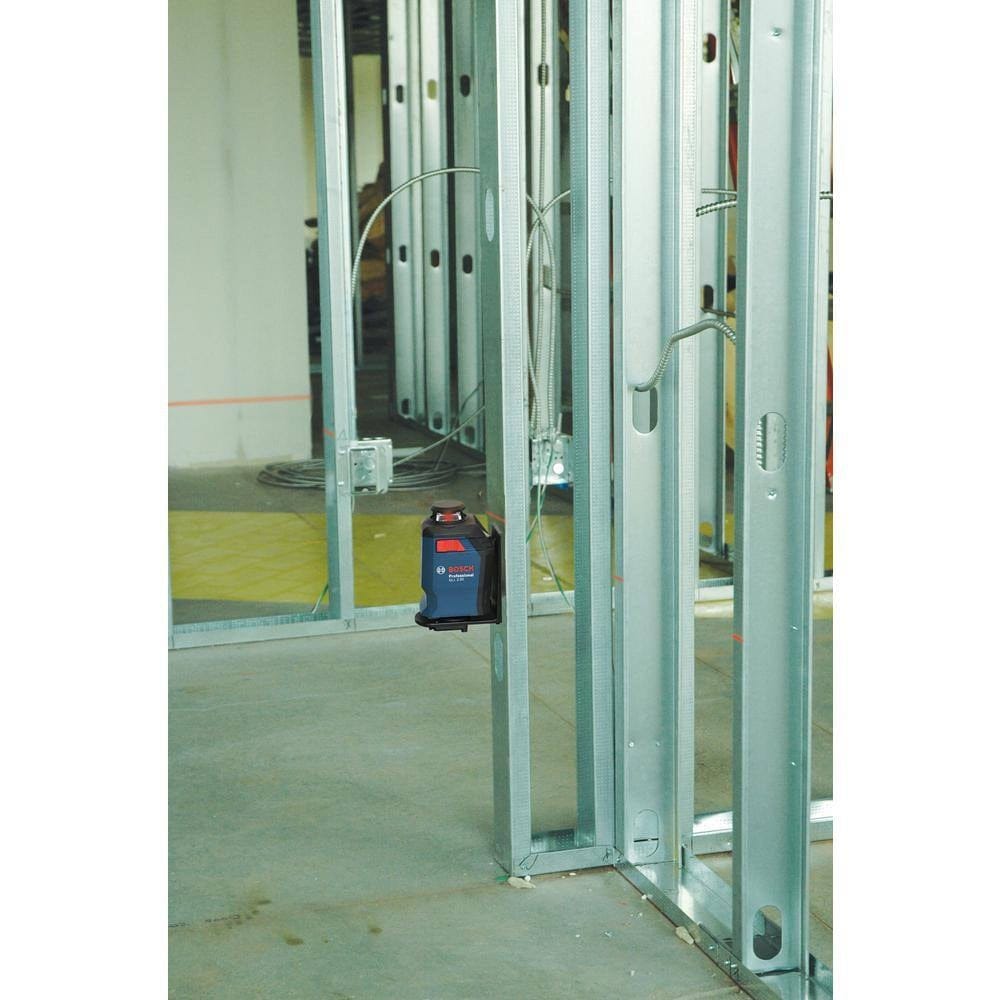

The Bosch GLL 2-20 laser level attached to a metal wall stud using the BM3 positioning mount, projecting a red horizontal line for electrical box alignment.
Bosch limited warranty information for measuring and layout tools showing a 1-year tool warranty with an additional year available upon registration.
"Champ" :30 | Bosch Lasers promotional video
Bosch GLL 2-20 S-RT reconditioned laser level kit contents including the 360-degree self-leveling laser unit, BM3 positioning mount, four AA batteries, and a blue carrying pouch.
Technical diagram of the Bosch GLL 2-20 professional laser level highlighting the 360-degree horizontal and vertical line modes, Smart Pendulum System, manual mode, simple keypad operation, 1/4-20 tripod thread, and durable IP54 housing.
Studio shot of the Bosch GLL 2-20 professional laser level unit in blue and black with the red power slider in the off position.
The Bosch GLL 2-20 laser level unit projecting bright red 360-degree horizontal and 120-degree vertical intersecting laser lines.
Side profile view of the blue and black Bosch GLL 2-20 self-leveling laser level showing the professional series branding and red activation switch.
Infographic of the Bosch GLL 2-20 cross-line laser showing a 65-foot range, ±3/16 inch accuracy, and IP54 water and dust protection rating.
Visual guide demonstrating the three selection modes of the Bosch GLL 2-20 including horizontal laser plane, vertical laser line, and combined horizontal and vertical cross-line modes.
Bosch GLL 2-20 S-RT reconditioned laser level kit contents including the 360-degree self-leveling laser unit, BM3 positioning mount, four AA batteries, and a blue carrying pouch.
The Bosch GLL 2-20 laser level mounted on a tripod in a room under construction, projecting a continuous red horizontal level line across all four walls and cabinetry.
The Bosch GLL 2-20 laser level attached to a metal wall stud using the BM3 positioning mount, projecting a red horizontal line for electrical box alignment.
Bosch limited warranty information for measuring and layout tools showing a 1-year tool warranty with an additional year available upon registration.
"Champ" :30 | Bosch Lasers promotional video
BOSCH

Bosch Line Laser Level GLL 2-20 S-RT 65-Foot Reconditioned Kit (360 Degree Horizontal Line 120 Vertical Smart Pendulum BM3 Mount Cabinet Layout)

In stock
SKU: GLL 2-20 S-RT
$82.99 USD

Description

Bosch Promotional Logo Logout

Bosch GLL 2-20 S-RT Reconditioned 360° Horizontal & Vertical Cross-Line Laser Level Kit

The Bosch GLL 2-20 S-RT self-leveling cross-line laser level projects a continuous 360-degree horizontal reference line and a 120-degree vertical beam across a 65-foot working diameter range with ±3/16-inch accuracy at 30 feet. Engineered for interior construction, cabinetry installation, suspended drop-ceiling grids, and electrical fixture alignment, this precision optical layout tool allows multiple trades to work simultaneously off a single room-wide datum line without rotating the housing. Equipped with the Bosch Smart Pendulum System that self-levels within ±4 degrees, a secure internal transport lock, and the versatile BM3 magnetic positioning mount, it provides finish carpenters, drywall contractors, and remodelers with rapid, reliable spatial squaring and plumb referencing across residential and commercial jobsites.

Note: This is a manufacturer-reconditioned tool, certified to look and perform like new.

Best Used For:

  • Cabinetry and Countertop Installation: Projecting a continuous 360-degree level datum line around entire kitchens and utility rooms for uniform upper cabinet and base level mounting.
  • Acoustical Drop-Ceiling Grid Layout: Securing perimeter wall tracks and main runner tees rapidly at precise elevations using the included BM3 magnetic positioning clip.
  • Plumb and Level Partition Wall Framing: Intersecting 120-degree vertical and 360-degree horizontal beams to establish plumb stud lines, track squaring, and doorway alignments.

Key Performance & Safety Features

  • 360-Degree Horizontal Line Coverage: Delivers full-room level projection from a single setup position, eliminating rotational errors and repeat measurements.
  • Smart Pendulum Self-Leveling System: Automatically levels internal diode optics within ±4 degrees and visually alerts operators when placed out of level.
  • Secure Transport Mechanism: Automatically locks the optical pendulum in place when the power switch is turned off to safeguard sensitive calibration during transit.
  • Independent Line Mode Selection: Lets users toggle between horizontal-only, vertical-only, or simultaneous cross-line operation to optimize power consumption.
  • BM3 Magnetic Positioning Device: Attaches firmly to steel studs, metal ceiling grids, tripods via 1/4-20 threads, or sits freestanding with microfine height adjustment.
  • High-Visibility Red Diode Output: Generates crisp 635 nm laser lines delivering a working diameter range up to 65 feet for interior layout tasks.

What's Included

  • (1) Bosch GLL 2-20 S-RT Reconditioned 360° Self-Leveling Cross-Line Laser Level
  • (1) BM3 Magnetic Positioning Device / Wall Mount
  • (1) Red Laser Target Plate
  • (1) Protective Soft Carrying Pouch
  • (4) 1.5V AA Alkaline Batteries

Technical Specifications

Manufacturer Bosch Power Tools
Model Number GLL 2-20 S-RT
Product Classification 360° Horizontal & Vertical Cross-Line Laser Level
Condition Grade Manufacturer Reconditioned (Certified Like-New)
Working Range (Diameter) Up to 65.00 Feet (19.81 Meters)
Leveling Accuracy ±3/16 Inch at 30 Feet (±0.1875 in)
Self-Leveling Range Up to ±4.0 Degrees
Beam Fan Angles 360° Horizontal Plane / 120° Vertical Fan Line
Laser Diode Class & Wavelength Class II, <1 mW @ 630 - 650 nm (Red)
Mounting Thread Interface 1/4-20 Standard Tripod / Mount Thread
Power Supply (4) Standard 1.5V AA Alkaline Batteries
Operating Temperature Range 14°F to 104°F (-10°C to 40°C)
Overall Tool Dimensions 10.50 Inches (H) x 4.75 Inches (W)
Country of Origin China
UPC Barcode 000346487771

Pro-Tip: Always lock the Smart Pendulum before powering down or moving the unit between room setups; this prevents shock damage to the internal gimbal bearings and preserves ±3/16-inch leveling accuracy over long-term jobsite use.
