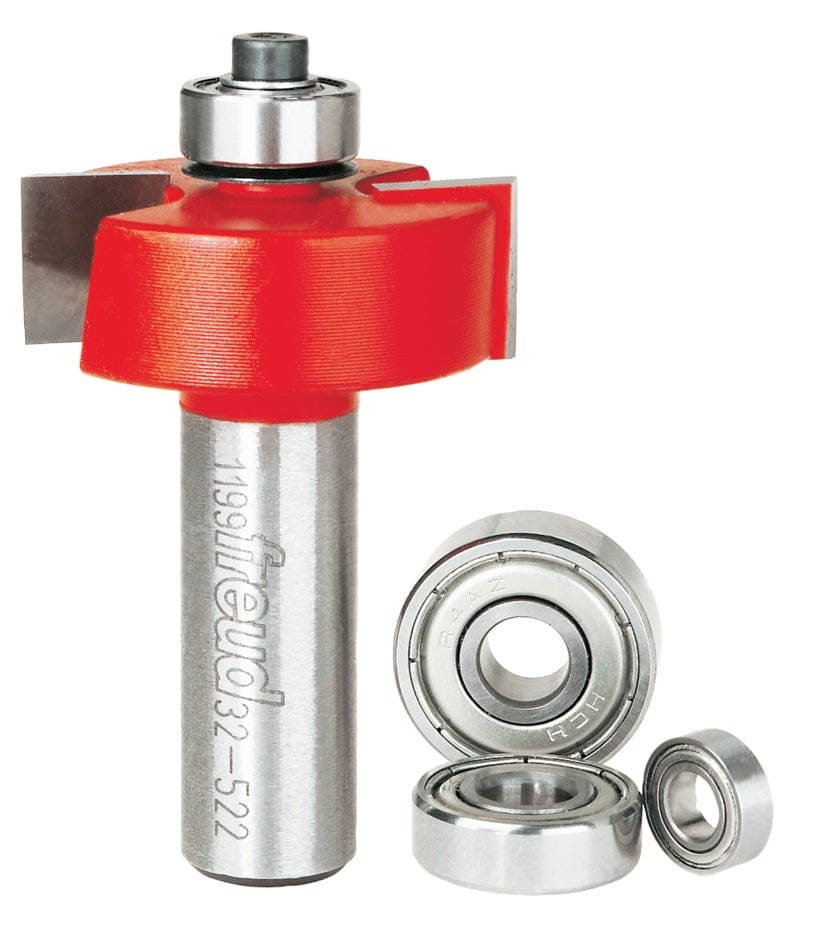

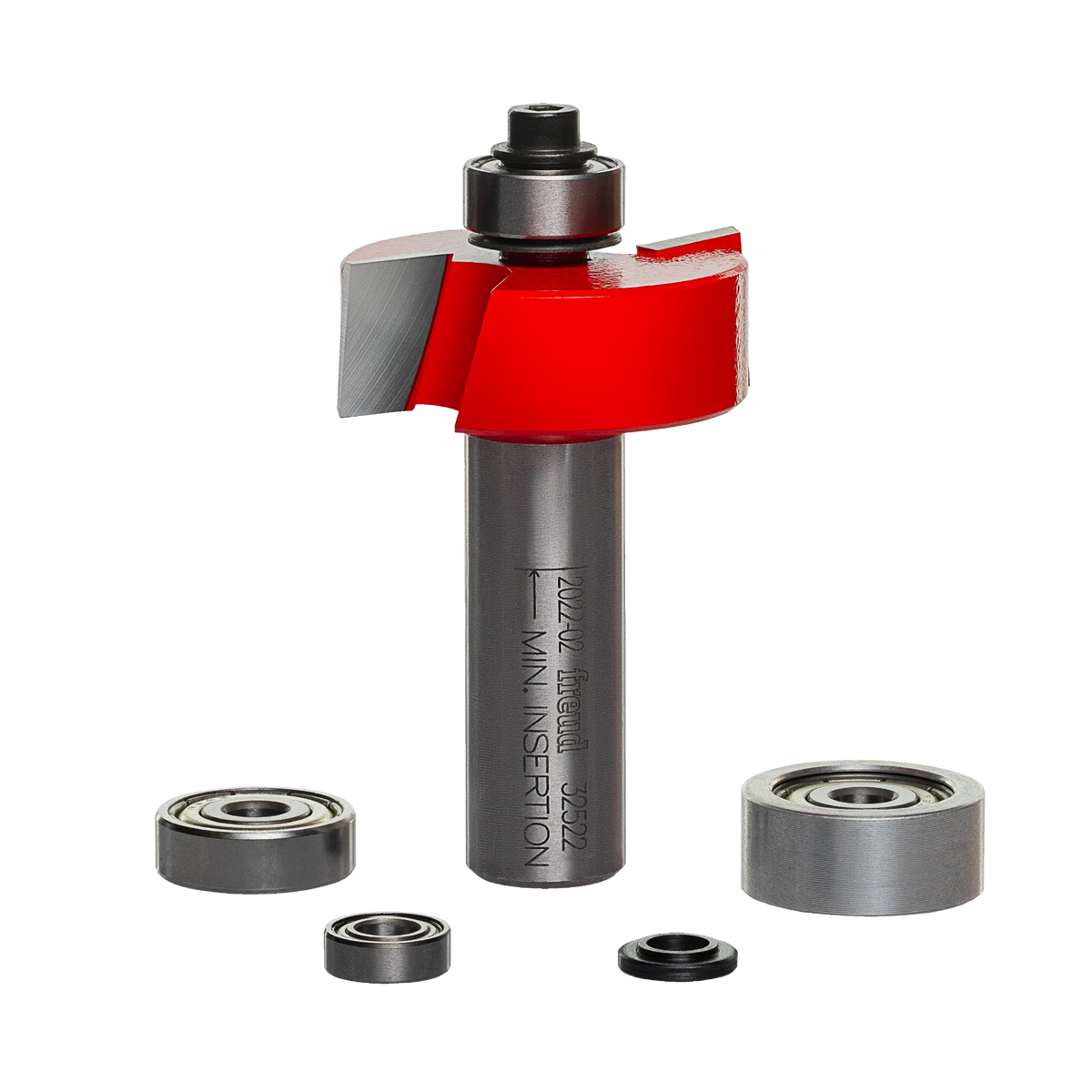

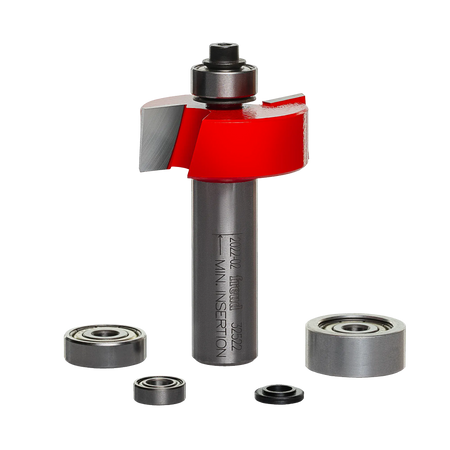

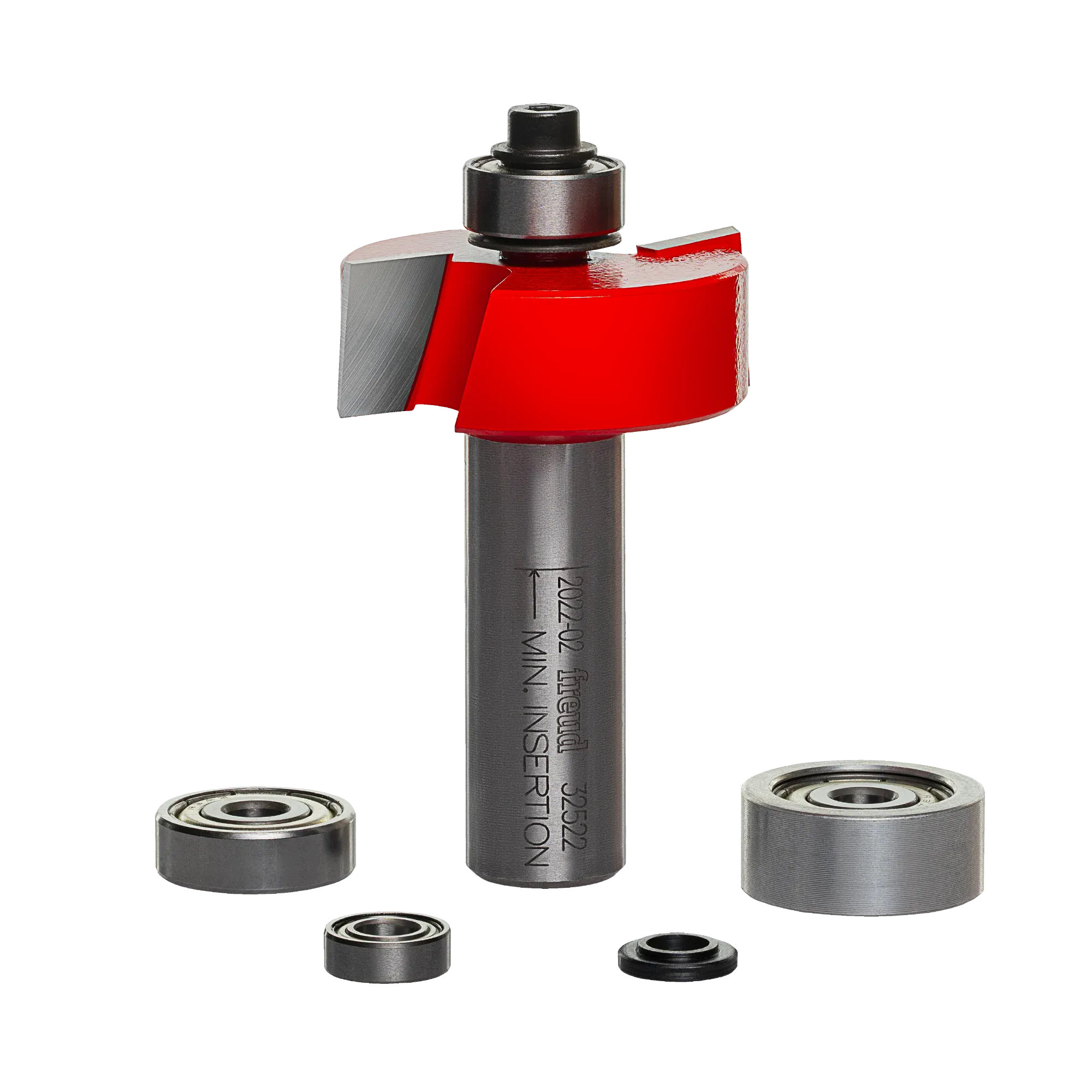

A professional studio photograph of the Freud 32-522 multi-rabbet router bit, showcasing its red Perma-SHIELD coating on the cutting head, silver TiCo carbide edges, and a polished 1/2-inch steel shank, shown alongside its included interchangeable ball bearings of various diameters.

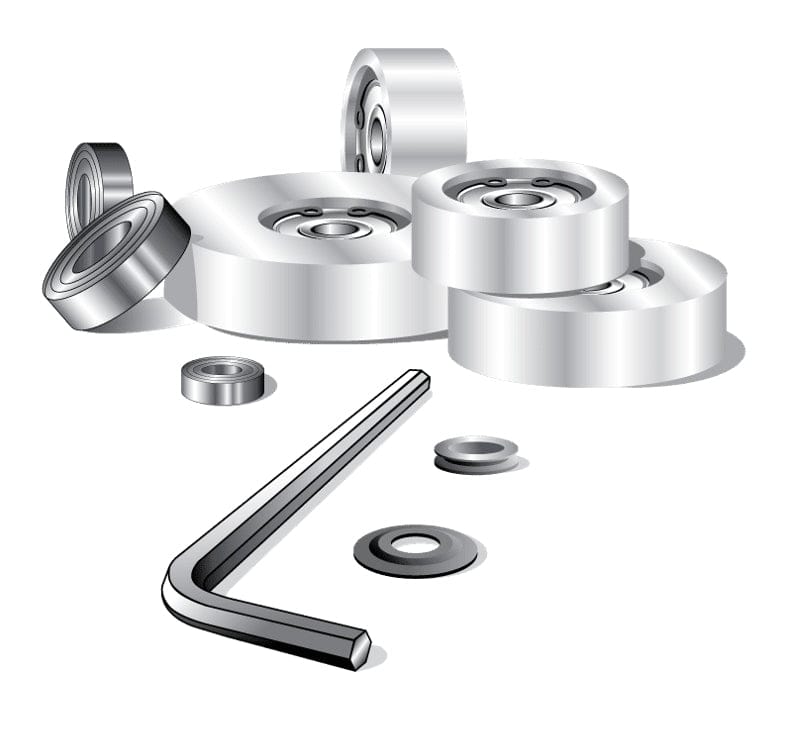

A technical illustration of the accessories included in the Freud 32-522 set, featuring several polished steel ball bearings, specialized step washers, and a black hex key wrench for making bearing changes.

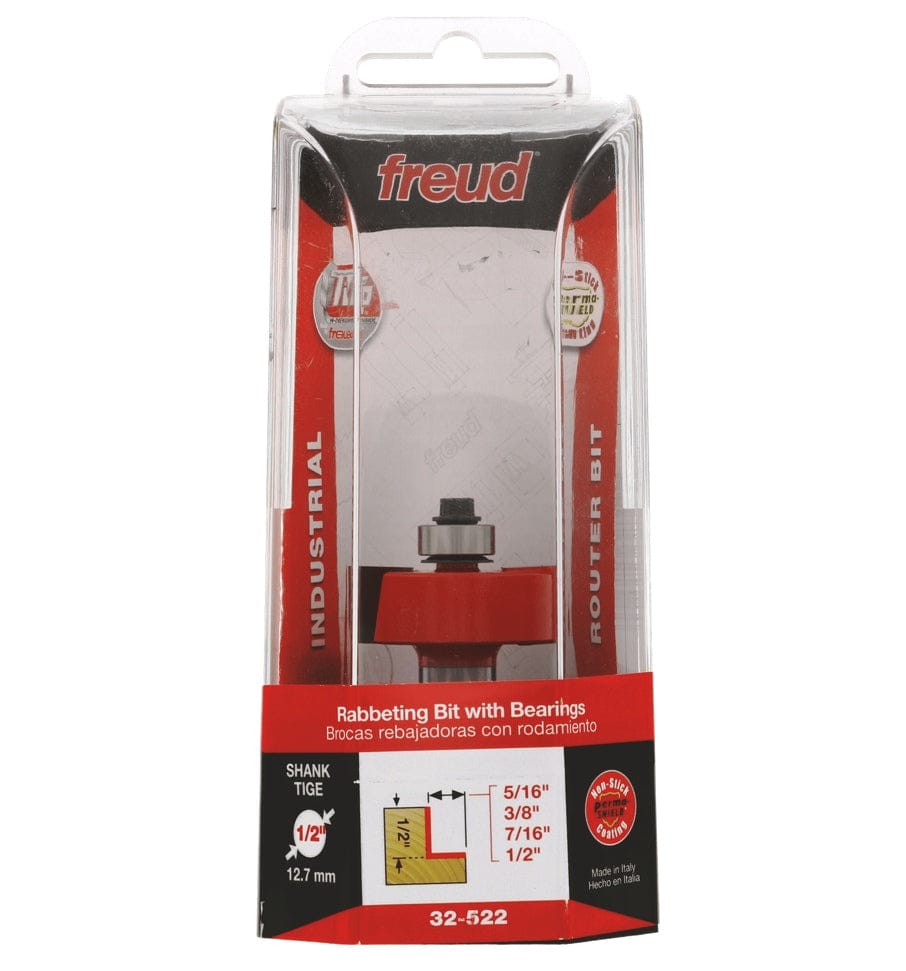

The retail packaging for the Freud 32-522 multi-rabbet set, showcasing the Industrial Router Bit branding and listing the four available cutting depths: 5/16 inch, 3/8 inch, 7/16 inch, and 1/2 inch.

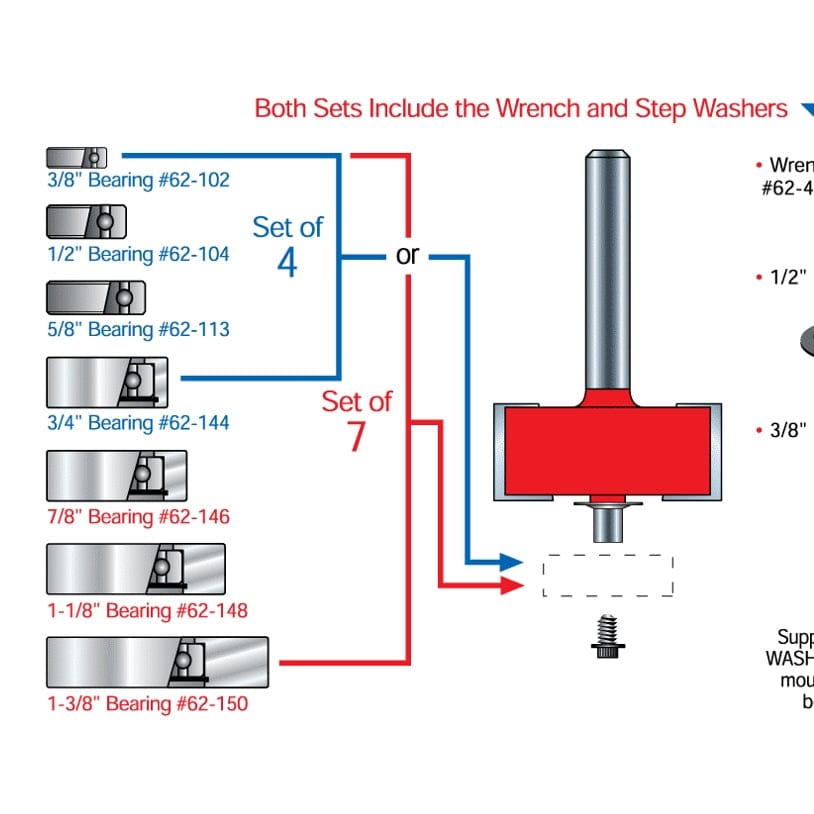

A detailed technical schematic for the Freud 32-522 bit assembly. The diagram lists various compatible ball bearings, the included hex wrench, and illustrates how the 3/8-inch and 1/2-inch step washers are mounted to the bit's pilot.

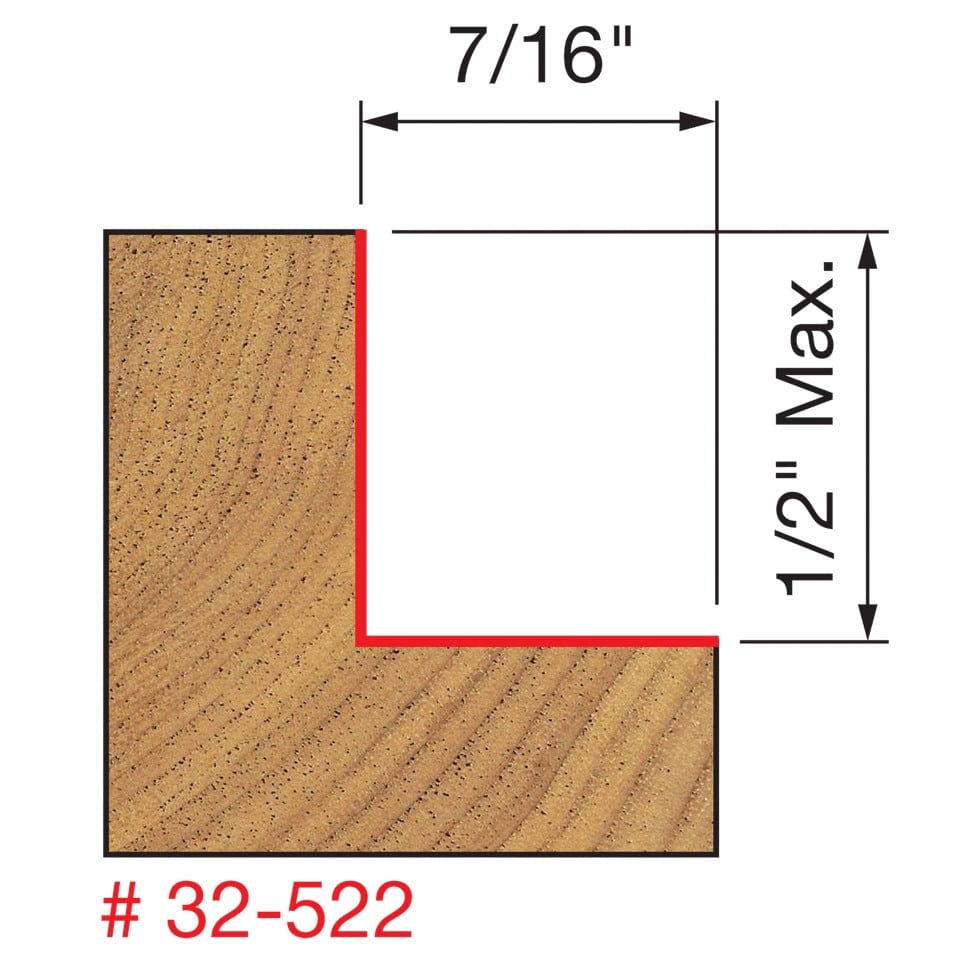

A technical diagram for the Freud 32-522 bit illustrating a wood cross-section with a red path indicating a precise 7/16-inch deep rabbet cut that is up to 1/2-inch high.

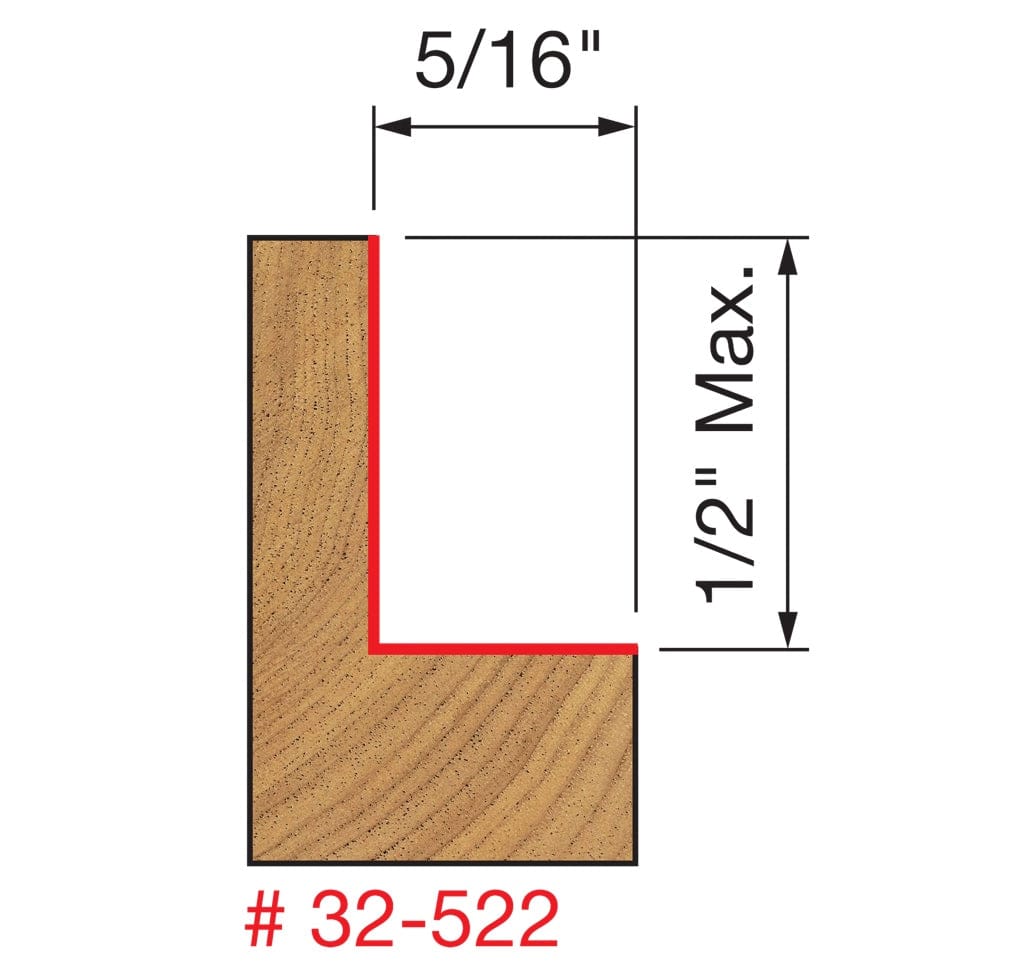

A technical diagram for the Freud 32-522 bit illustrating a wood cross-section with a red path indicating a precise 5/16-inch deep rabbet cut that is up to 1/2-inch high.

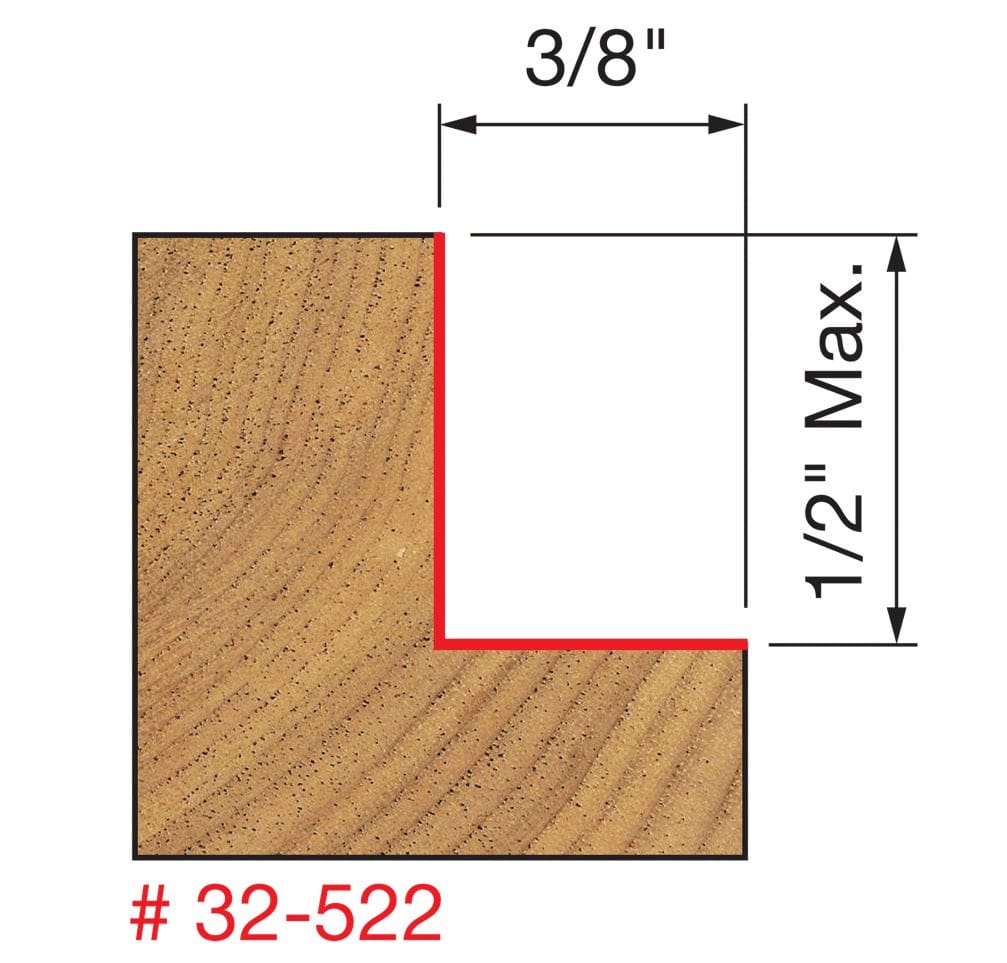

A technical diagram for the Freud 32-522 bit illustrating a wood cross-section with a red path indicating a precise 3/8-inch deep rabbet cut that is up to 1/2-inch high.

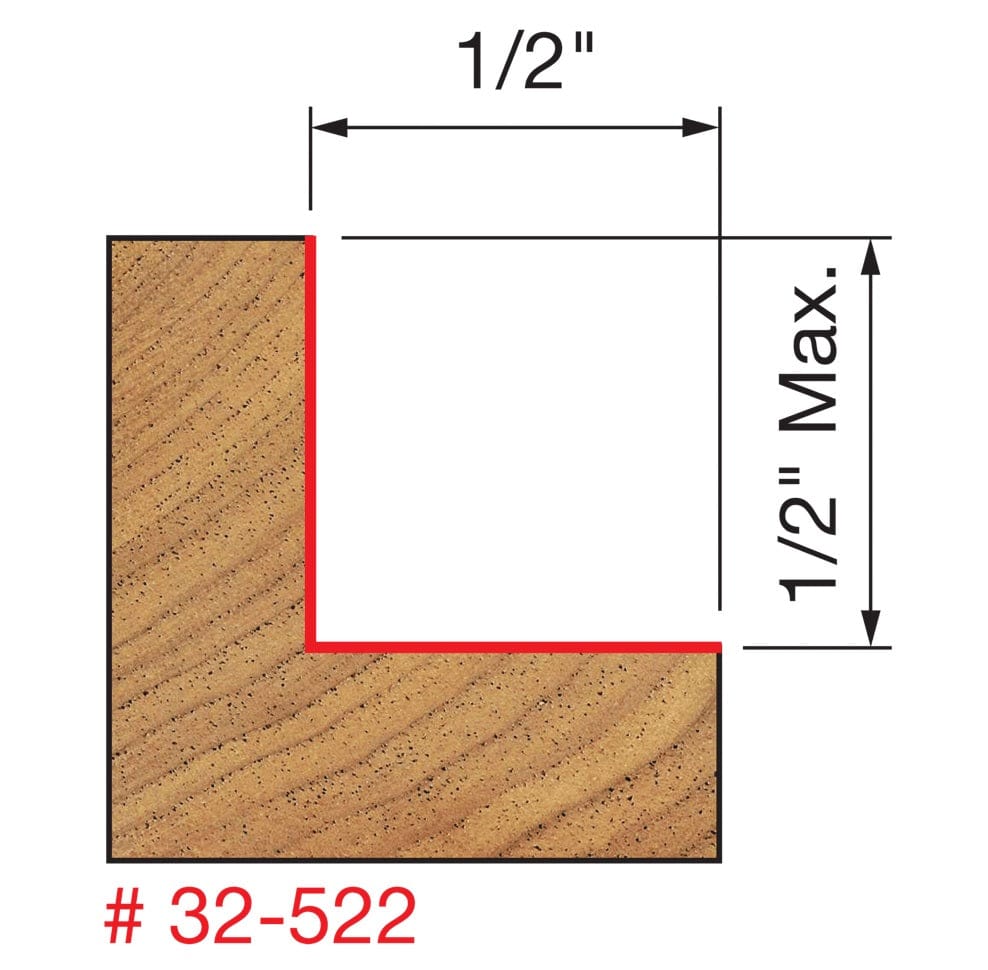

A technical diagram for the Freud 32-522 bit illustrating a wood cross-section with a red path indicating a precise 1/2-inch deep rabbet cut that is up to 1/2-inch high.
A technical diagram for the Freud 32-522 bit illustrating a wood cross-section with a red path indicating a precise 1/4-inch deep rabbet cut that is up to 1/2-inch high.
A technical diagram for the Freud 32-522 bit illustrating a wood cross-section with a red path indicating a precise 1/2-inch deep rabbet cut that is up to 1/2-inch high.

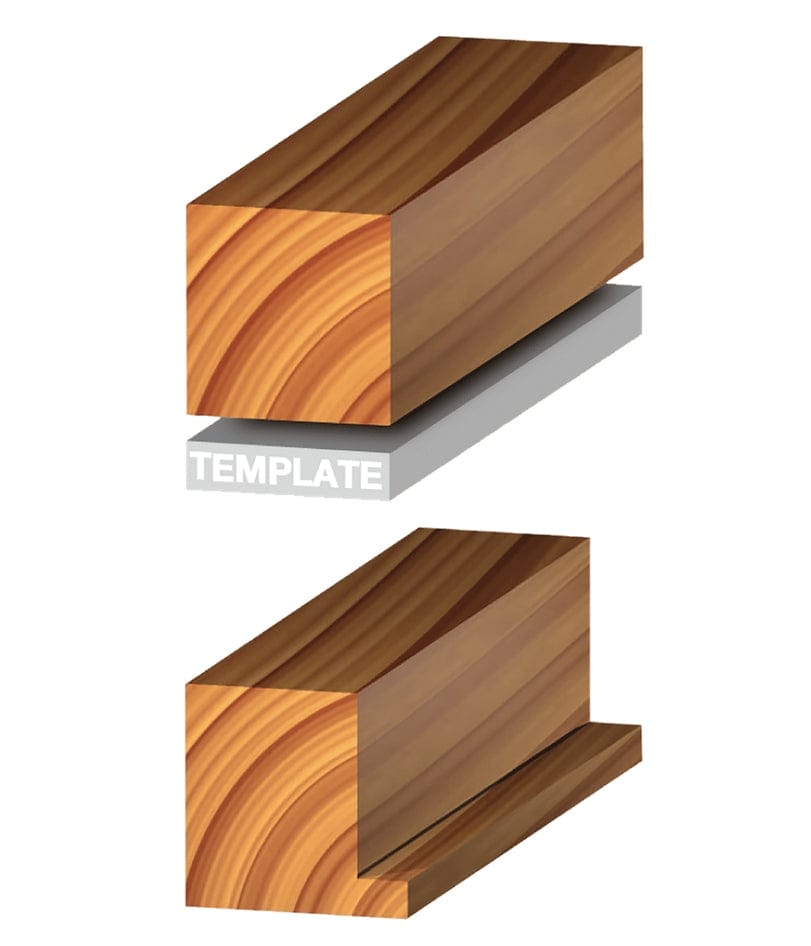

A two-part technical diagram showing a rectangular wooden block. The top image shows the block with a grey template attached to the bottom, and the bottom image shows the block after routing, with a precise L-shaped rabbet joint cut along the edge.
A professional studio photograph of the Freud 32-522 multi-rabbet router bit, showcasing its red Perma-SHIELD coating on the cutting head, silver TiCo carbide edges, and a polished 1/2-inch steel shank, shown alongside its included interchangeable ball bearings of various diameters.

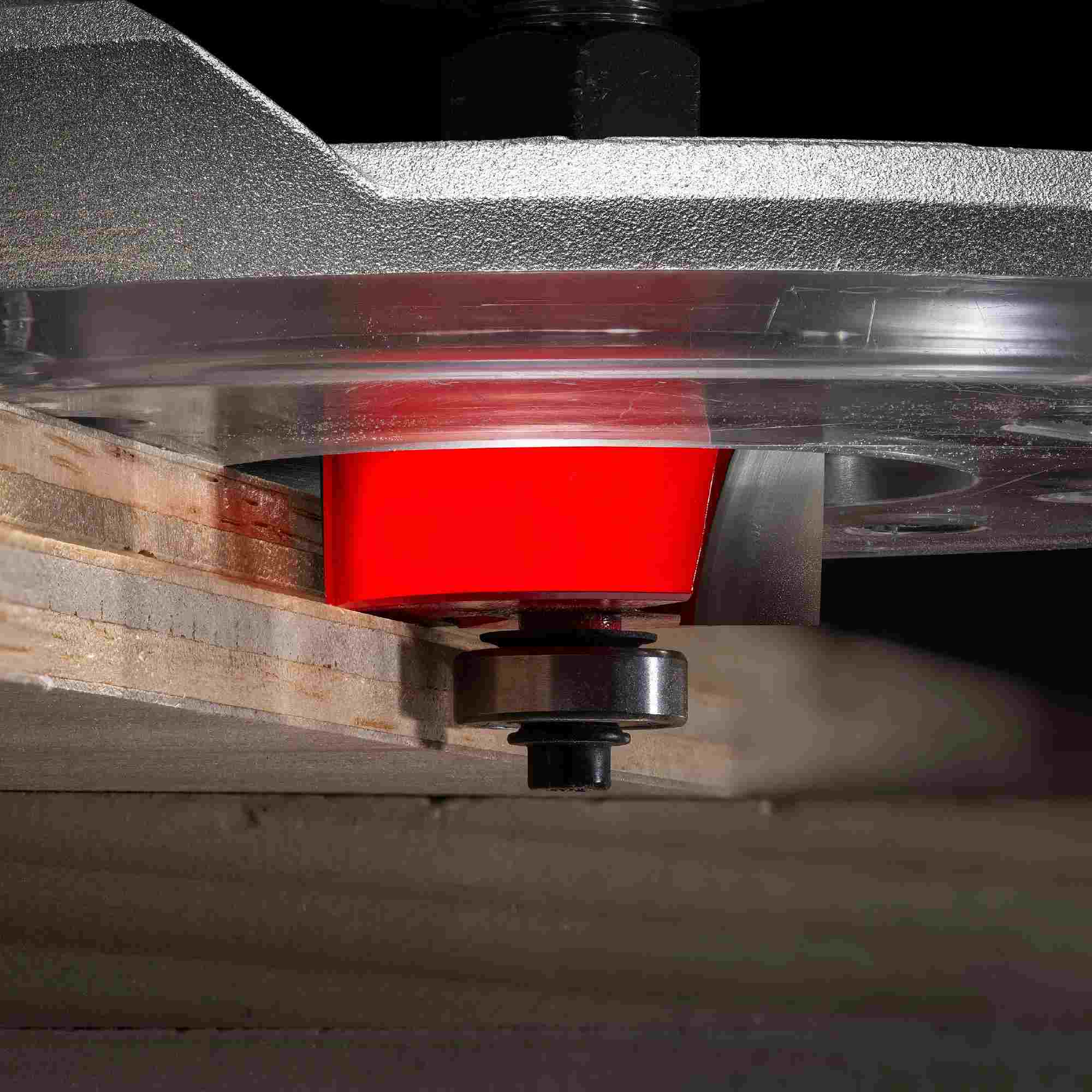

A close-up action photograph of the Freud 32-522 bit mounted in a router table, performing a clean rabbeting cut on the edge of a piece of plywood.
A professional studio photograph of the Freud 32-522 multi-rabbet router bit, showcasing its red Perma-SHIELD coating on the cutting head, silver TiCo carbide edges, and a polished 1/2-inch steel shank, shown alongside its included interchangeable ball bearings of various diameters.
A technical illustration of the accessories included in the Freud 32-522 set, featuring several polished steel ball bearings, specialized step washers, and a black hex key wrench for making bearing changes.
The retail packaging for the Freud 32-522 multi-rabbet set, showcasing the Industrial Router Bit branding and listing the four available cutting depths: 5/16 inch, 3/8 inch, 7/16 inch, and 1/2 inch.
A detailed technical schematic for the Freud 32-522 bit assembly. The diagram lists various compatible ball bearings, the included hex wrench, and illustrates how the 3/8-inch and 1/2-inch step washers are mounted to the bit's pilot.
A technical diagram for the Freud 32-522 bit illustrating a wood cross-section with a red path indicating a precise 7/16-inch deep rabbet cut that is up to 1/2-inch high.
A technical diagram for the Freud 32-522 bit illustrating a wood cross-section with a red path indicating a precise 5/16-inch deep rabbet cut that is up to 1/2-inch high.
A technical diagram for the Freud 32-522 bit illustrating a wood cross-section with a red path indicating a precise 3/8-inch deep rabbet cut that is up to 1/2-inch high.
A technical diagram for the Freud 32-522 bit illustrating a wood cross-section with a red path indicating a precise 1/2-inch deep rabbet cut that is up to 1/2-inch high.
A technical diagram for the Freud 32-522 bit illustrating a wood cross-section with a red path indicating a precise 1/4-inch deep rabbet cut that is up to 1/2-inch high.
A technical diagram for the Freud 32-522 bit illustrating a wood cross-section with a red path indicating a precise 1/2-inch deep rabbet cut that is up to 1/2-inch high.
A two-part technical diagram showing a rectangular wooden block. The top image shows the block with a grey template attached to the bottom, and the bottom image shows the block after routing, with a precise L-shaped rabbet joint cut along the edge.
A professional studio photograph of the Freud 32-522 multi-rabbet router bit, showcasing its red Perma-SHIELD coating on the cutting head, silver TiCo carbide edges, and a polished 1/2-inch steel shank, shown alongside its included interchangeable ball bearings of various diameters.
A close-up action photograph of the Freud 32-522 bit mounted in a router table, performing a clean rabbeting cut on the edge of a piece of plywood.
Freud

Freud Router Bit 32-522 Multi Rabbet Set Bearings (1/2 Inch Shank TiCo Carbide Perma-SHIELD 16000 RPM Cabinet Furniture Joinery Molding)

Only 2 left
SKU: 32-522
$39.29 USD

Description

Freud precisely the best logo Logout

Freud 32-522 Multi-Rabbet Router Bit Set with Bearings

The Freud 32-522 is a 1-3/8-inch overall diameter multi-rabbet router bit set engineered to rout precise 5/16-inch, 3/8-inch, 7/16-inch, and 1/2-inch deep rabbet joinery, cabinet back panel recesses, and decorative lap molding channels. Built with a heavy-duty 1/2-inch shank and four interchangeable ball bearings, this 2-cutter tool enables instant adjustment of cut depths without moving the router fence. Tipped with TiCo™ Hi-Density Micrograin Carbide and protected by a heat-resistant Perma-SHIELD® non-stick coating, it operates safely at speeds up to 16,000 RPM across solid hardwoods, softwoods, plywood, and composites in handheld or table-mounted routers.

Best Used For:

  • Multi-Depth Cabinet Back Panel Recessing: Swapping pilot bearings to cut precise 5/16-inch to 1/2-inch deep stepped rabbets for flush backing panels.
  • Drawer & Frame Lap Joinery: Milling clean interlocking corner lap joints on solid hardwood face frames and heavy drawer assemblies.
  • Architectural Molding & Trim Step Milling: Inscribing smooth, burn-free stepped edge profiles and rabbeted borders on custom decorative wood moldings.

Key Performance & Safety Features

  • Interchangeable Multi-Depth Pilot Bearings: Includes four interchangeable ball bearings to achieve 5/16-inch, 3/8-inch, 7/16-inch, and 1/2-inch cut depths with one bit.
  • TiCo™ Hi-Density Micrograin Carbide: Custom-formulated titanium-cobalt carbide tips deliver high wear resistance and retain razor sharpness under production friction.
  • Perma-SHIELD® Non-Stick Coating: Protective red fluoropolymer coating guards against thermal friction, pitch accumulation, and rust corrosion.
  • Computer-Balanced Anti-Vibration Body: Precision body balancing eliminates chatter and ensures smooth rotational tracking at speeds up to 16,000 RPM.
  • Rigid 1/2-Inch Steel Shank: Heavy-gauge shank diameter minimizes vibration, cutter deflection, and chatter under heavy rotational loads.
  • Universal Machine Compatibility: Formulated for stable, high-precision performance in portable handheld routers and stationary router tables.

What's Included

  • (1) Freud 32-522 Rabbeting Router Bit with 1/2" Shank
  • (1) #62-102 - 3/8" Outer Diameter Ball Bearing
  • (1) #62-104 - 1/2" Outer Diameter Ball Bearing
  • (1) #62-113 - 5/8" Outer Diameter Ball Bearing
  • (1) #62-114 - 1-1/8" Outer Diameter Ball Bearing
  • (1) #62-311 Washer
  • (1) #62-313 Washer
  • (1) #62-402 Hex Wrench

Technical Specifications

Brand Manufacturer Freud® Tools
Model Part Number OEM SKU 32-522
Rabbet Depth Capacities (C) 5/16", 3/8", 7/16", 1/2" (7.9 mm, 9.5 mm, 11.1 mm, 12.7 mm)
Overall Cutting Diameter (D) 1.375 inches (1-3/8" / 34.9 mm)
Shank Diameter (A) 0.500 inches (1/2" / 12.7 mm)
Carbide Cutting Height (h) 0.500 inches (1/2" / 12.7 mm)
Overall Tool Length (H) 2.250 inches (2-1/4" / 57.2 mm)
Number of Carbide Cutters 2 Flute Carbide Cutters
Maximum Operating Speed 16,000 RPM
Body Protective Coating Red Perma-SHIELD® Non-Stick Fluoropolymer
Cutter Metallurgy Material TiCo™ Hi-Density Micrograin Carbide Tipped
Primary Machine Compatibility Router Tables, Handheld Routers

Pro-Tip: Always verify that the pilot bearing retaining washer is seated flat and the hex screw is fully tightened before changing cut depths; proper bearing installation ensures exact rabbet depth consistency across continuous cabinet runs.
