Rolair 5 HP 80 Gallon Two Stage Air Compressor 15.3 CFM @ 175 PSI Dual Voltage with ASME Tank and Factory Installed Magnetic Starter V5180K30B-19
Couldn't load pickup availability
Industrial Powerhouse: Rolair 5 HP Two-Stage Compressor for High-Pressure Shop Tools
Call or Email for Availability and Shipping:
281-351-2211 - Sales@HilltopTool.com

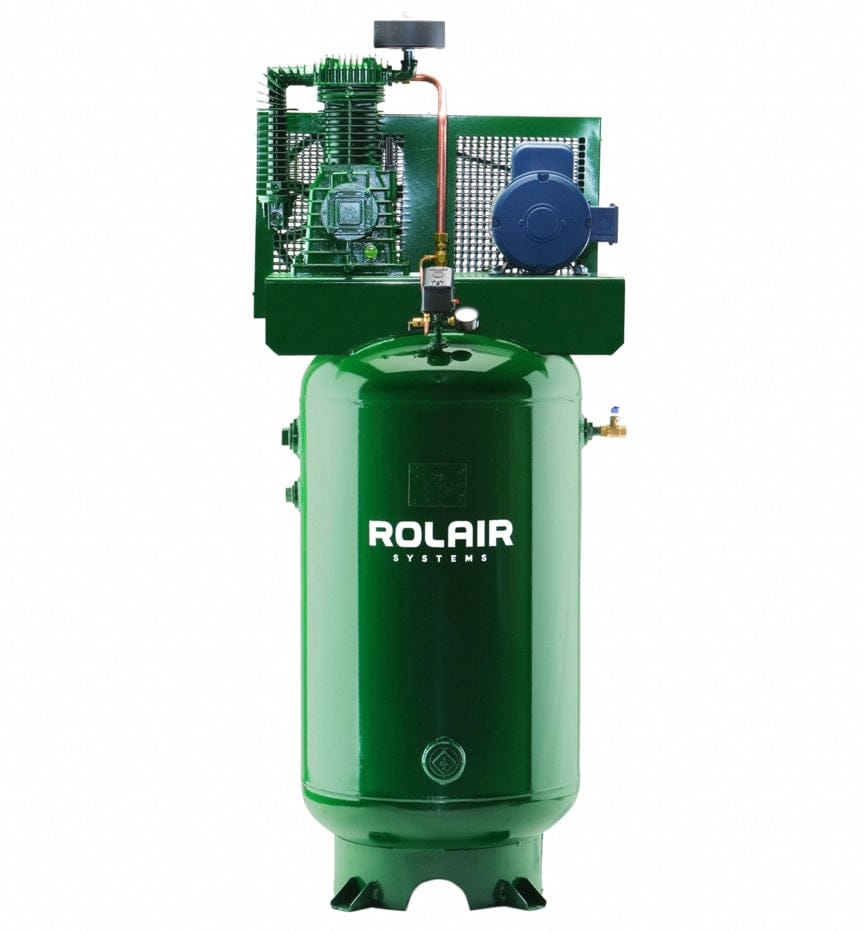

The ROLAIR® V5180K30B-19 is a high-performance stationary air compressor engineered for demanding professional workshops and industrial applications. Driven by a powerful 5 HP motor, this unit features an efficient two-stage pump that delivers a formidable 15.3 CFM at 175 PSI, making it ideal for high-pressure tools like specialized sandblasters, commercial paint equipment, and large rotary tools. The massive 80-gallon vertical ASME tank provides superior air storage capacity, while the vertical design is ergonomically beneficial for maximizing space efficiency in your shop.

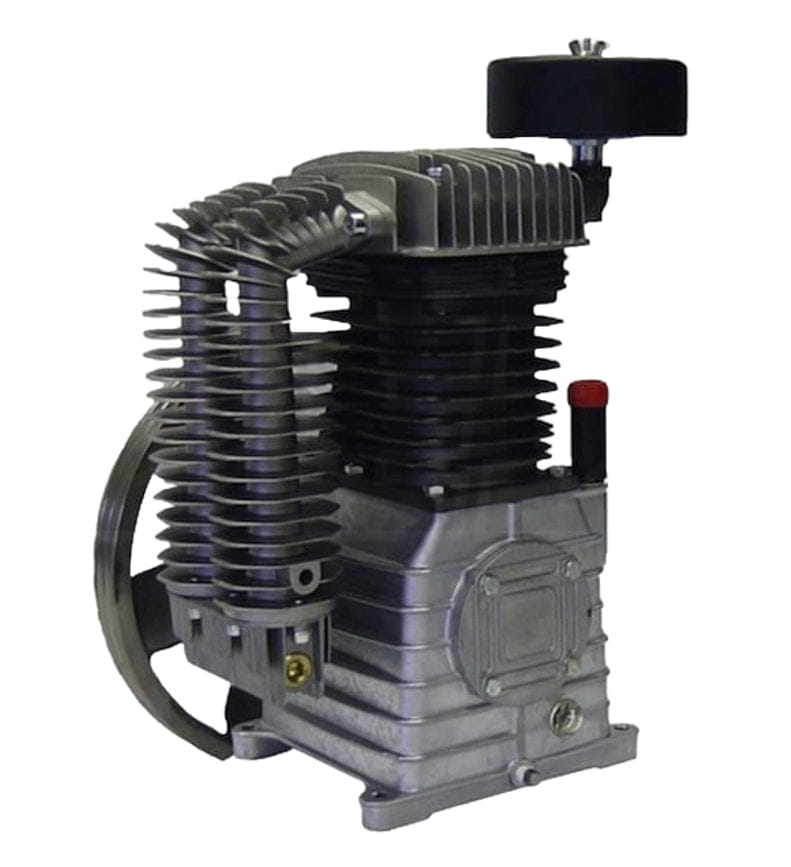

Built for durability and seamless operation, this compressor utilizes a double-cylinder pump manufactured with robust cast iron and steel components for maximum longevity. It includes a factory-installed Magnetic Starter (Part# MAG51F208V or MAG51F230V depending on selection) which is essential for protecting the motor during startup. Further safety and reliability are ensured by the thermal reset overload protection feature, which automatically shuts down the motor to prevent damage from overheating. The flexibility of dual-voltage operation (208V or 230V single phase) makes it easy to hard-wire into various shop electrical systems.
Key Features
- Two-Stage Pump: Delivers high pressure output of up to 175 PSI, maximizing the performance of high-pressure tools.
- High CFM Output: Provides 15.3 CFM at 175 PSI, sustaining continuous air consumption for industrial applications.
- 80-Gallon Vertical Tank: Large capacity, vertical tank configuration is ASME certified and space-saving.
- Factory Magnetic Starter: Includes a pre-installed Magnetic Starter for safe and compliant operation of the 5 HP motor.
- Dual Voltage Capability: Operates on either 208V or 230V single phase power, providing flexible installation options.
- Motor Protection: Features thermal reset overload protection and an automatic unloading device for loadless starts.
- Durable Construction: Built with steel and cast iron components, including a multiple V-Belt Drive, for long service life.
- Easy Monitoring: Pressure gauge provides accurate readings from 0-300 PSI in 5 lb. graduations.
What's Included
- (1) Rolair V5180K30B-19 5 HP 80 Gallon Two-Stage Air Compressor Unit
- (1) Factory Installed Magnetic Starter (MAG51F208V or MAG51F230V)
- (1) Intake Filter/Silencer with Replaceable Element
Available for pickup at our Tomball location:
30702 State Highway 249
Tomball, Texas 77375
Monday-Friday 7am-5pm CST
Saturday 7am-1pm CST
Specifications
| Unit Model | V5180K30B-19 |
| Horse Power | 5 HP |
| CFM Delivered | 15.3 CFM @ 175 PSI |
| Tank Capacity | 80 Gallons |
| Pump Type | Two-Stage |
| Voltage / Phase | 208V or 230V / Single Phase |
| Max PSI Settings | 175 PSI |
| Tank Certification | ASME Approved |
| Amp Draw (230V) | 25.6 Amps |
| Motor RPM | 1750 RPM |
| Oil Capacity | 47 oz. (Splash Lubrication) |
| Shipping Weight | 495 lbs |
Pro Tip: The 175 PSI two-stage design is crucial for high-demand industrial tools, such as specialized paint guns and impact wrenches that require pressure above 150 PSI. Due to the pump's 47 oz. oil capacity, always verify the oil level before beginning a full workday to ensure the pump runs efficiently and reliably at its highest performance output.
