Seal Fast Discharge Hose PVC Lay Flat 50 Foot (2 Inch 3 Inch 4 Inch 6 Inch Aluminum Cam Lock Couplings Dewatering Irrigation Water Transfer)
Couldn't load pickup availability

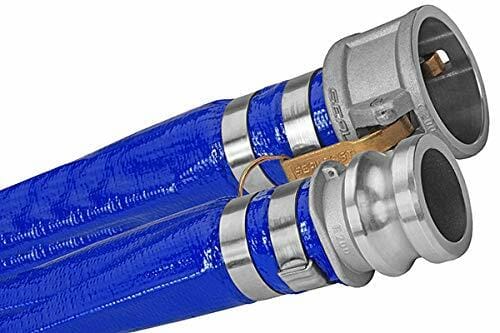

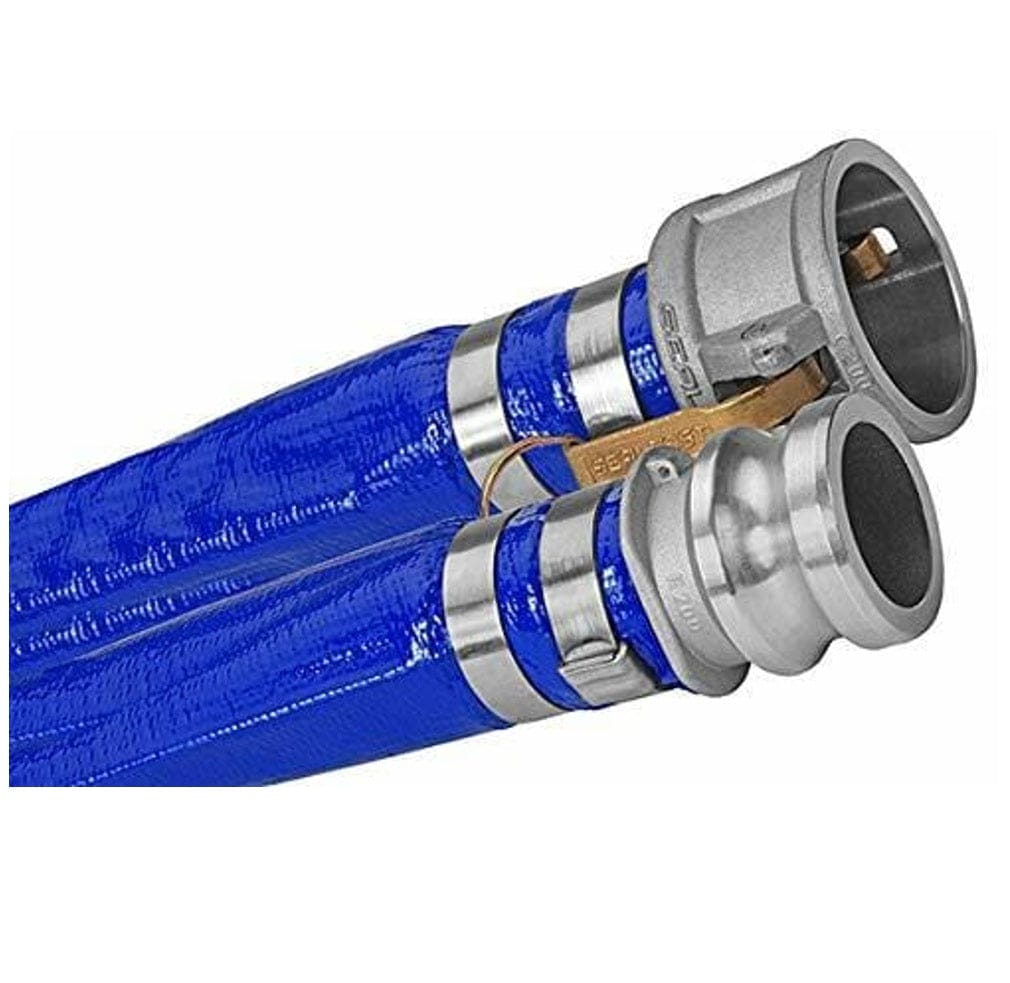

Seal Fast Blue PVC Lay-Flat Discharge Hose Assembly with Aluminum Cam Lock Couplings
The Seal Fast Blue PVC Lay-Flat Discharge Hose Assembly with Aluminum Cam Lock Couplings is a high-volume fluid transfer line engineered for rapid dewatering across construction sites, agricultural fields, and industrial sumps. Built from synthetic fiber-reinforced blue PVC with factory-installed Type C and E aluminum camlock fittings, this 50-foot hose assembly connects to trash pumps, utility pumps, and storage tanks in 2-inch, 3-inch, 4-inch, or 6-inch inner diameter variants. Designed with UV-resistant compound treatment and secured with heavy-duty band clamps on both ends, this lay-flat water line solves site flooding, standing water accumulation, and pump discharge challenges during heavy outdoor operations.
Best Used For:
- Construction Site & Excavation Dewatering: Evacuating muddy standing water and surface runoff from flooded trenches, footings, and foundation pits using trash pumps.
- Agricultural Field Irrigation & Transfer: Conveying large volumes of non-potable water from retention ponds and wells to livestock troughs or crop field ditches.
- Industrial Sump & Tank Draining: Flushing out industrial retention basins, storage tanks, and municipal stormwater sumps during routine maintenance.
Key Performance & Safety Features
- Pre-Installed Aluminum Camlock Fittings: Type C female and Type E male aluminum cam and groove couplers enable instant, tool-free connection to pump discharges.
- High-Tensile Synthetic Fiber Reinforcement: Internal woven polyester yarn matrix maintains structural integrity under continuous low-pressure fluid discharge.
- Lightweight Lay-Flat PVC Construction: Flexible polyvinyl chloride wall rolls flat when depressurized for compact coiling, rapid transport, and space-saving storage.
- UV & Weather Resistant Compound: Specially treated blue PVC formulation guards against solar degradation, surface abrasion, and outdoor weathering.
- Double-Banded End Clamping: Heavy-duty mechanical clamps (2 per end) secure the aluminum couplings against blow-off during peak pump pressure spikes.
- Smooth Interior Bore Geometry: Low-friction internal wall profile maximizes volumetric flow rates while minimizing pump head loss over 50-foot runs.
What's Included
- (1) 50 ft. Seal Fast Blue PVC Lay-Flat Discharge Hose
- (1) Pre-Installed Aluminum Female Camlock Coupler with Shank (Type C)
- (1) Pre-Installed Aluminum Male Camlock Adapter with Shank (Type E)
- (4) Heavy-Duty Retaining Band Clamps (2 Fastened Per End)
Technical Specifications
| Manufacturer Brand | Seal Fast |
| Hose Inner Diameter Options | 2 in., 3 in., 4 in., or 6 in. (Variant Specific) |
| Total Assembly Length | 50.0 ft. (15.24 m) |
| Primary Hose Tube Material | Polyvinyl Chloride (PVC) |
| Internal Reinforcement Material | Woven High-Tensile Synthetic Fiber |
| Coupling Style Format | Cam & Groove (Camlock Type C Female & Type E Male) |
| Coupling Body Material | Aluminum Alloy |
| Hose End Clamp Quantity | 4 Total Clamps (2 Heavy-Duty Clamps per End) |
| UV & Resistance Rating | UV Treated, Weather and Abrasion Resistant |
| Primary Application Focus | Open-End Water Discharge & Trash Pump Dewatering |
Pro-Tip: Unroll the hose fully along a straight path before starting your pump to prevent kinks or twists from restricting fluid discharge and increasing backpressure on the pump housing.
