Seal Fast Camlock Fitting A200AL90 2 Inch Type A (Male Adapter to Female NPT 90 Degree Elbow Aluminum Fluid Transfer Hose Pipe Industrial Coupler)
Couldn't load pickup availability

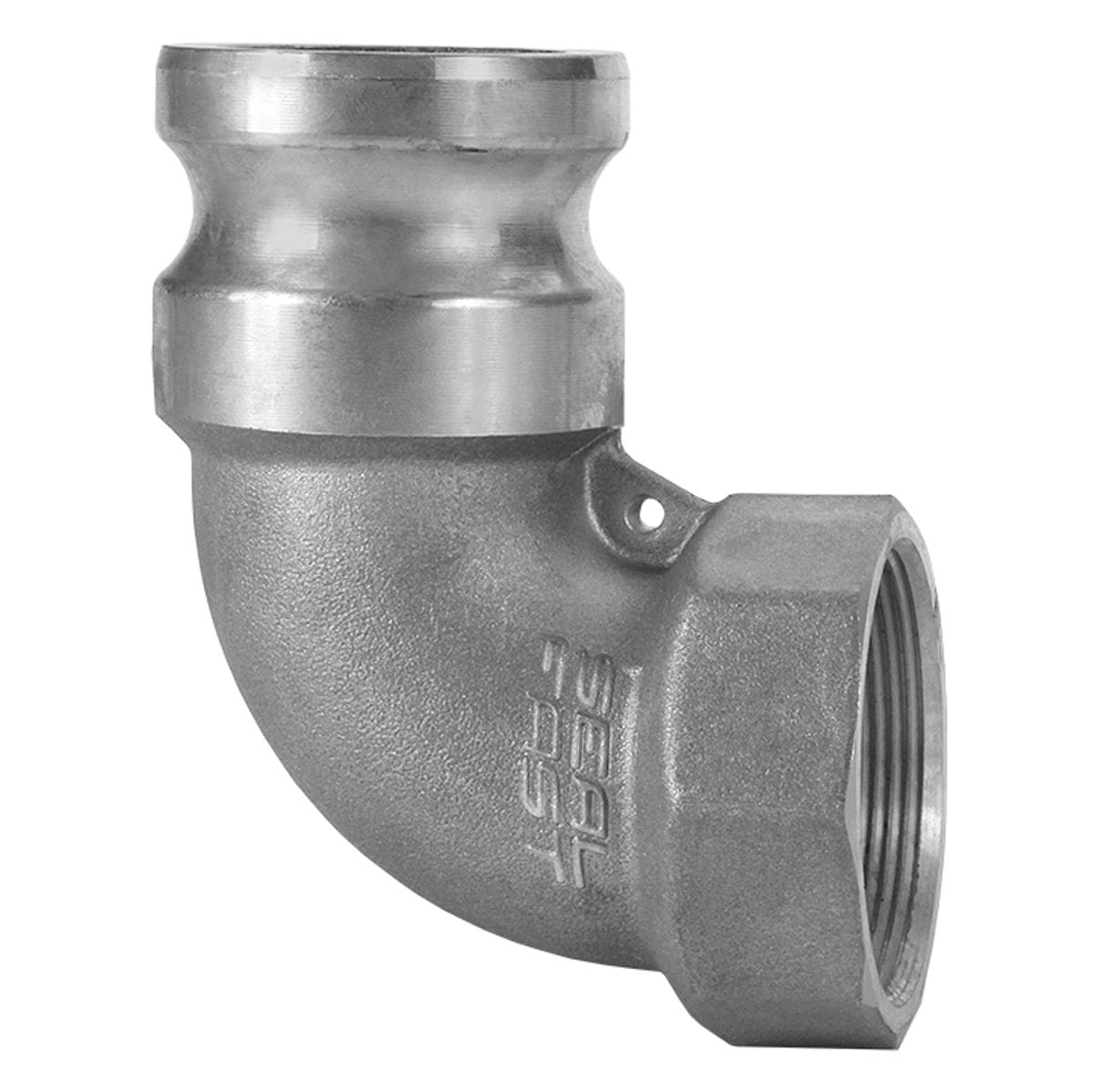

Seal Fast A200AL90 2-Inch Type A Aluminum Male Camlock Adapter to Female NPT 90-Degree Elbow
The Seal Fast A200AL90 2-Inch Type A Aluminum 90-Degree Cam and Groove Elbow routes industrial fluid lines, discharge hoses, and suction manifolds around compact obstacles without hose kinking. Manufactured from lightweight, corrosion-resistant cast aluminum alloy with precision-machined connection points, this fitting features a 2-inch male quick-connect adapter on one end and a 2-inch female National Pipe Taper (NPT) threaded port on the opposite 90-degree bend. Engineered to withstand operating pressures up to 250 PSI in ambient liquid service, this heavy-duty elbow fitting equips municipal water haulers, agricultural pump operators, and industrial processing plants with leak-free, rapid-turn fluid routing.
Best Used For:
- Tight-Radius Pump Manifold Routing: Directing water suction and discharge hoses at a sharp right angle off pump housings to prevent hose pinching and flow restriction.
- Agricultural Irrigation & Liquid Fertilizer Transfer: Connecting rigid delivery pipes to flexible nurse tank transfer hoses in mobile field operations.
- Municipal & Construction Dewatering: Transitioning threaded trash pump discharge outlets directly to quick-connect layflat hose lines in tight trenches.
Key Performance & Safety Features
- Integrated 90-Degree Cast Elbow: Eliminates the need for multiple threaded street elbows and reduces potential leak paths in high-vibration pumping setups.
- High-Strength Cast Aluminum Alloy: Delivers superior strength-to-weight ratio and corrosion resistance against water, mild hydraulic oils, and petroleum fuels.
- Standard A-A-59326 / Mil-C-27487 Compliance: Ensures 100% interchangeable connection with all standard 2-inch female camlock couplers across various brands.
- Tapered Female NPT Threading: Provides a secure, vibration-resistant fluid seal when mating onto standard male pipe nipples and threaded pump flanges.
- High-Flow Internal Radius: Smoothly contoured internal throat reduces turbulence and minimizes line friction pressure loss during high-volume pumping.
What's Included
- (1) Seal Fast 2-Inch Type A Aluminum Male Adapter x Female NPT 90-Degree Cam and Groove Elbow (A200AL90)
Technical Specifications
| Specification | Detail |
|---|---|
| Model Number / Part ID | A200AL90 (Camlock Elbow) |
| Coupling Configuration Type | Type A (Male Adapter x Female NPT) |
| Nominal Fitting Size | 2.00 in (2 in / 50.8 mm) |
| Elbow Bend Angle | 90 Degrees (Right Angle) |
| End Connection 1 (Inlet) | 2.00 in Male Cam and Groove Adapter |
| End Connection 2 (Outlet) | 2.00 in Female NPT (National Pipe Taper) |
| Body Construction Material | Cast Aluminum Alloy (ASTM-Equivalent) |
| Maximum Working Pressure | 250 PSI at 70°F (Ambient Rating) |
| Industry Manufacturing Standards | A-A-59326 / Commercial MIL-C-27487 Specs |
| Compatible Media Fluids | Water, Industrial Wastewater, Hydraulic Oil, Diesel |
Pro-Tip: Always apply a quality PTFE thread sealant paste or tape specifically rated for aluminum to the female NPT connection prior to assembly; proper lubrication prevents thread galling between dissimilar metals and ensures a pressure-tight hydraulic seal.
