Seal Fast Camlock Fitting A300AL90 3 Inch Type A (Male Adapter to Female NPT 90 Degree Elbow Aluminum Fluid Transfer Hose Pipe Industrial Coupler)
Couldn't load pickup availability

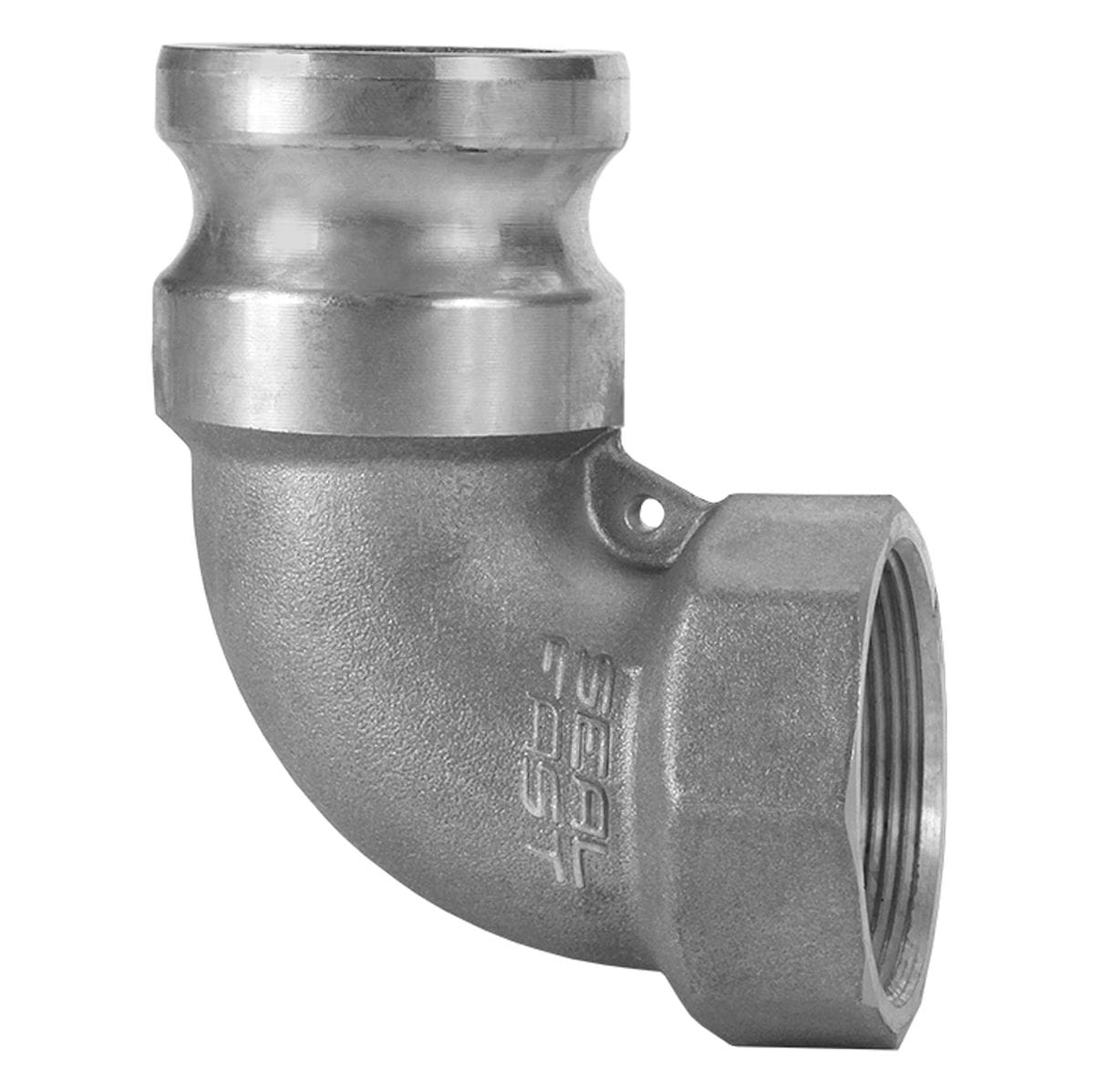

Seal Fast A300AL90 3-Inch Type A Aluminum Male Camlock Adapter to Female NPT 90-Degree Elbow
The Seal Fast A300AL90 3-Inch Type A Aluminum 90-Degree Cam and Groove Elbow routes large-diameter fluid discharge lines, high-volume suction hoses, and pump manifolds around tight layout obstacles without hose kinking or flow restriction. Manufactured from lightweight, corrosion-resistant cast aluminum alloy with precision-machined connection points, this heavy-duty fitting features a 3-inch male quick-connect camlock adapter on one end and a 3-inch female National Pipe Taper (NPT) threaded port on the opposite 90-degree bend. Engineered to maintain operating pressures up to 125 PSI in ambient liquid service, this high-flow right-angle fitting equips municipal dewatering teams, agricultural transfer crews, and industrial bulk plants with leak-free, rapid-turn fluid management.
Best Used For:
- High-Volume Dewatering & Trash Pump Routing: Directing 3-inch suction and discharge hoses cleanly off pump casings at a sharp 90-degree right angle to prevent line pinching and floor clutter.
- Agricultural Irrigation & Bulk Fertilizer Transfer: Connecting high-capacity nurse tanks and liquid distribution manifolds to flexible camlock hose assemblies in field operations.
- Industrial Wastewater & Slurry Transport: Transitioning stationary threaded pipe outlets directly to quick-connect layflat delivery hoses in tight mechanical plant rooms.
Key Performance & Safety Features
- Integrated 90-Degree Cast Elbow: Replaces awkward multi-piece threaded pipe elbow assemblies to reduce potential leak points and installation time.
- High-Strength Cast Aluminum Alloy: Delivers exceptional strength-to-weight performance and natural oxidation resistance against water, mild hydraulic oils, and petroleum products.
- Standard A-A-59326 / Mil-C-27487 Compliance: Ensures 100% interchangeable connection with all standard commercial 3-inch female camlock couplers regardless of manufacturer.
- Tapered Female NPT Threading: Provides a rigid, vibration-resistant mechanical seal when threading onto standard male pipe nipples and pump flange connections.
- Full-Flow Internal Geometry: Smoothly contoured internal radius minimizes line friction, pressure drop, and turbulence during high-volume liquid pumping.
What's Included
- (1) Seal Fast 3-Inch Type A Aluminum Male Adapter x Female NPT 90-Degree Cam and Groove Elbow (A300AL90)
Technical Specifications
| Specification | Detail |
|---|---|
| Model Number / Part ID | A300AL90 (Camlock Elbow) |
| Coupling Configuration Type | Type A (Male Adapter x Female NPT) |
| Nominal Fitting Size | 3.00 in (3 in / 76.2 mm) |
| Elbow Bend Angle | 90 Degrees (Right Angle) |
| End Connection 1 (Inlet) | 3.00 in Male Cam and Groove Adapter |
| End Connection 2 (Outlet) | 3.00 in Female NPT (National Pipe Taper) |
| Body Construction Material | Cast Aluminum Alloy (ASTM-Equivalent) |
| Maximum Working Pressure | 125 PSI at 70°F (Ambient Rating) |
| Industry Manufacturing Standards | A-A-59326 / Commercial MIL-C-27487 Specs |
| Compatible Media Fluids | Water, Industrial Wastewater, Hydraulic Oil, Diesel |
| Approximate Unit Weight | 1.85 lbs (0.84 kg) |
Pro-Tip: Apply a non-hardening PTFE pipe thread paste formulated for aluminum on male pipe threads before threading into the 3-inch female NPT port; proper thread lubrication prevents galling under high-torque tightening and ensures a reliable pressure seal.
