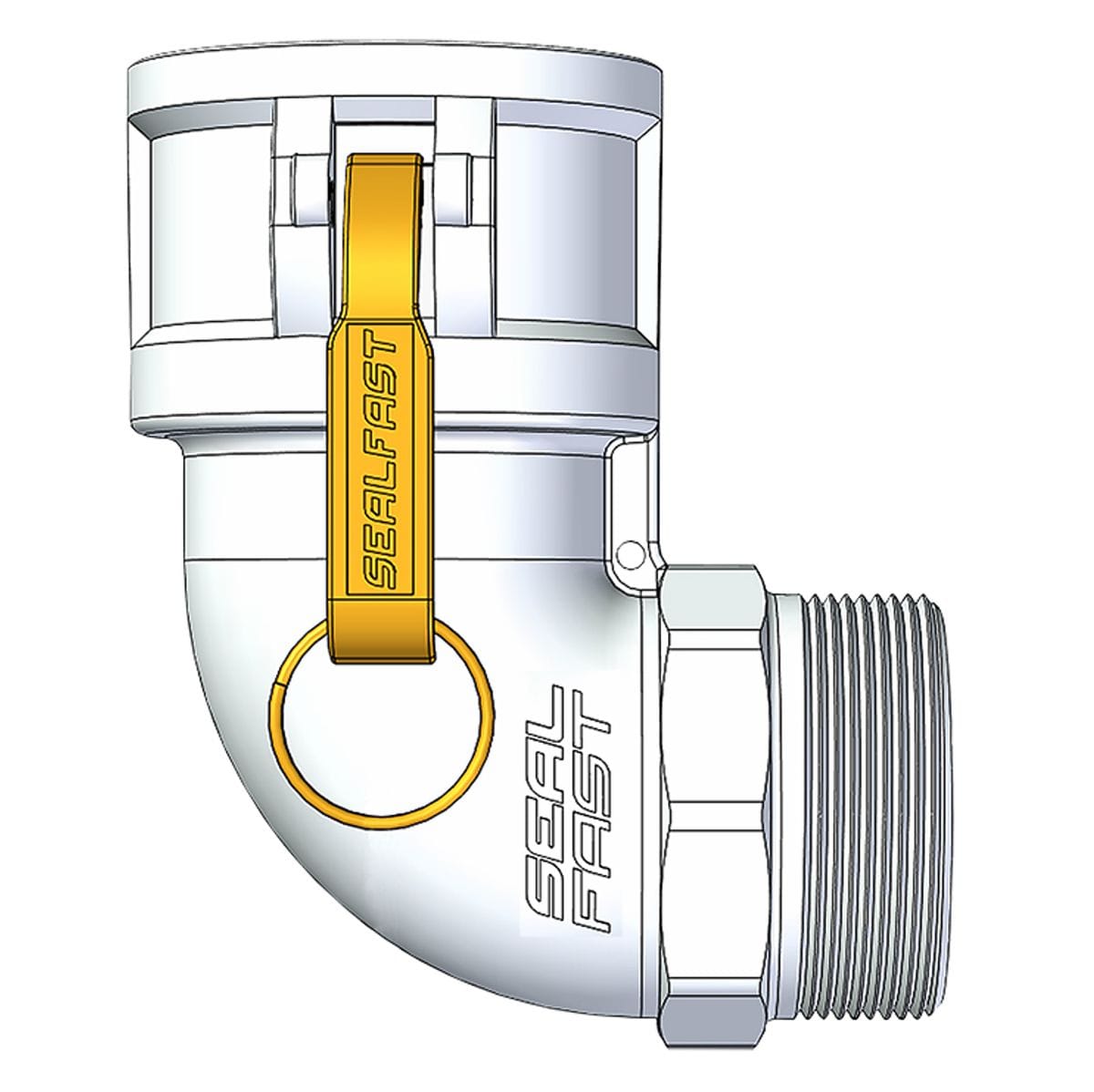

Seal Fast B200AL90 2-Inch Type B Aluminum Female Camlock Coupler to Male NPT 90-Degree Elbow
The Seal Fast B200AL90 2-Inch Type B Aluminum 90-Degree Cam and Groove Elbow directs industrial liquid lines, pump discharge hoses, and suction manifolds around sharp corners without hose kinking or flow restriction. Manufactured from lightweight, corrosion-resistant cast aluminum alloy with brass cam locking arms and stainless steel pins, this heavy-duty fitting features a 2-inch female quick-connect camlock socket on one end and a 2-inch male National Pipe Taper (NPT) threaded port on the opposite 90-degree turn. Engineered to sustain working pressures up to 250 PSI in ambient liquid transfer service, this right-angle coupling equips municipal dewatering operators, agricultural spray crews, and industrial processing plants with secure, leak-free fluid routing.
Best Used For:
- Tight-Radius Dewatering & Trash Pump Routing: Directing flexible 2-inch suction or discharge hoses cleanly off threaded pump ports at a sharp right angle to prevent line pinching and floor clutter.
- Agricultural Sprayer & Liquid Fertilizer Transfer: Connecting rigid female-threaded nurse tank valves directly to quick-connect male camlock hose assemblies in field applications.
- Industrial Wastewater & Petroleum Manifolds: Transitioning female NPT pipe outlets to rapid-coupling delivery lines in confined mechanical equipment bays.
Key Performance & Safety Features
- Integrated 90-Degree Cast Body: Replaces cumbersome multi-fitting pipe elbows, drastically minimizing installation time and eliminating potential connection leak points.
- Corrosion-Resistant Cast Aluminum: Delivers high tensile strength with minimal weight, resisting oxidation from water, mild hydraulic oils, and petroleum products.
- Standard A-A-59326 / Mil-C-27487 Compliance: Guarantees 100% interchangeability with all standard commercial 2-inch male camlock adapters across multiple brands.
- Heavy-Duty Cam Arms & Buna-N Seal: Forged brass cam levers with stainless steel pivot pins compress a resilient Buna-N gasket for an instant, pressure-tight seal.
- Full-Flow Internal Throat: Smoothly radiused internal bend reduces fluid turbulence, minimizes pressure drop, and ensures maximum flow velocity.
What's Included
- (1) Seal Fast 2-Inch Type B Aluminum Female Coupler x Male NPT 90-Degree Cam and Groove Elbow (B200AL90)
- (2) Pre-Installed Forged Brass Cam Arms with Stainless Steel Pivot Pins and Pull Rings
- (1) Factory-Installed High-Resilience Nitrile (Buna-N) Gasket
Technical Specifications
| Specification | Detail |
|---|---|
| Model Number / Part ID | B200AL90 (Camlock Elbow) |
| Coupling Configuration Type | Type B (Female Coupler x Male NPT) |
| Nominal Fitting Size | 2.00 in (2 in / 50.8 mm) |
| Elbow Bend Angle | 90 Degrees (Right Angle) |
| End Connection 1 (Inlet) | 2.00 in Female Cam and Groove Coupler |
| End Connection 2 (Outlet) | 2.00 in Male NPT (National Pipe Taper) |
| Body Construction Material | Cast Aluminum Alloy (ASTM-Equivalent) |
| Cam Arm & Pin Materials | Forged Brass Levers / Stainless Steel Pins |
| Gasket Material | Buna-N (Nitrile Rubber) |
| Maximum Working Pressure | 250 PSI at 70°F (Ambient Rating) |
| Industry Manufacturing Standards | A-A-59326 / Commercial MIL-C-27487 Specs |
| Approximate Unit Weight | 1.15 lbs (0.52 kg) |
Pro-Tip: Wrap 3 to 4 turns of heavy-duty PTFE thread seal tape around the male NPT threads before threading into a pump volute or manifold port; applying proper tape prevents galling and creates a leak-free seal without overtightening the cast aluminum housing.
