Seal Fast Camlock Fitting D200AL90 2 Inch Type D (Female Coupler to Female NPT 90 Degree Elbow Aluminum Fluid Transfer Hose Pipe Joint Coupler)
Couldn't load pickup availability

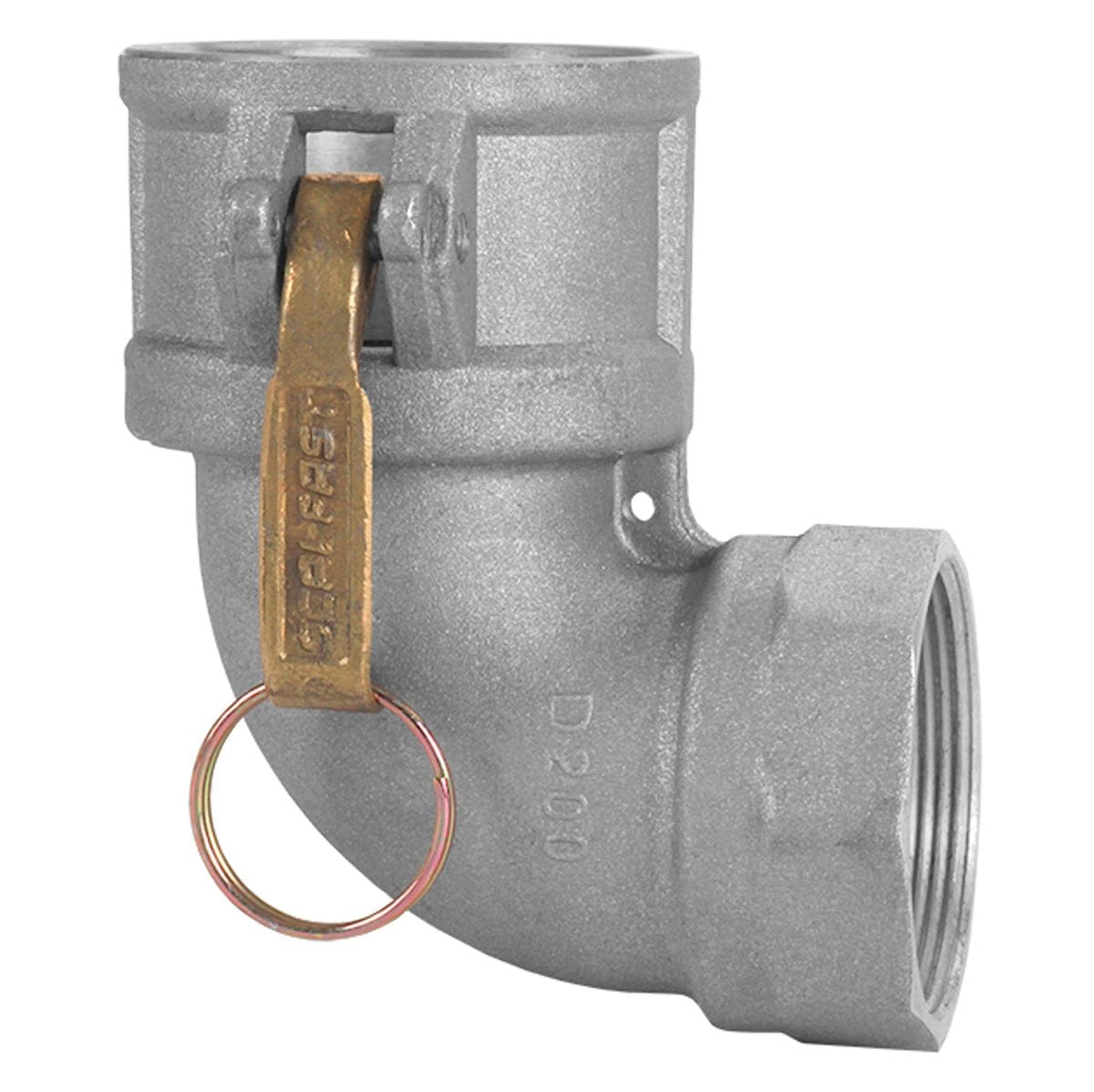

Seal Fast D200AL90 2-Inch Type D Aluminum Female Camlock Coupler to Female NPT 90-Degree Elbow
The Seal Fast D200AL90 2-Inch Type D Aluminum 90-Degree Cam and Groove Elbow directs industrial fluid lines, discharge hoses, and suction manifolds around tight structural obstacles without line kinking or flow restriction. Manufactured from lightweight, corrosion-resistant cast aluminum alloy with brass cam locking arms and stainless steel pivot pins, this heavy-duty fitting features a 2-inch female quick-connect camlock coupler socket on one end and a 2-inch female National Pipe Taper (NPT) threaded port on the opposite 90-degree bend. Engineered to maintain operating pressures up to 250 PSI in ambient liquid service, this high-flow right-angle fitting equips municipal dewatering operators, agricultural spray crews, and industrial processing plants with leak-free, rapid-turn fluid routing.
Best Used For:
- Confined Pump & Pipe Manifold Routing: Directing flexible 2-inch suction or discharge hoses cleanly off male threaded pipe nipples at a sharp right angle to prevent hose pinching and floor clutter.
- Agricultural Irrigation & Fertilizer Distribution: Connecting rigid male NPT pipe headers and tank outlets directly to quick-connect male camlock hose assemblies in mobile field setups.
- Industrial Plant Dewatering & Wastewater Transfer: Transitioning fixed male threaded pipe connections directly to rapid-coupling delivery lines in cramped mechanical equipment rooms.
Key Performance & Safety Features
- Integrated 90-Degree Cast Body: Replaces cumbersome multi-piece threaded pipe elbow assemblies to reduce installation time and eliminate potential leak points.
- Corrosion-Resistant Cast Aluminum: Delivers high tensile strength with minimal weight, resisting oxidation from water, mild hydraulic oils, and petroleum products.
- Standard A-A-59326 / Mil-C-27487 Compliance: Guarantees 100% interchangeability with all standard commercial 2-inch male camlock adapters across multiple brands.
- Heavy-Duty Cam Arms & Buna-N Seal: Forged brass cam levers with stainless steel pivot pins compress a resilient Buna-N gasket for an instant, pressure-tight seal.
- Tapered Female NPT Threading: Features precision CNC-machined internal tapered threads to ensure a secure, vibration-proof seal when mating with standard male NPT pipe fittings.
What's Included
- (1) Seal Fast 2-Inch Type D Aluminum Female Coupler x Female NPT 90-Degree Cam and Groove Elbow (D200AL90)
- (2) Pre-Installed Forged Brass Cam Arms with Stainless Steel Pivot Pins and Pull Rings
- (1) Factory-Installed High-Resilience Nitrile (Buna-N) Gasket
Technical Specifications
| Specification | Detail |
|---|---|
| Model Number / Part ID | D200AL90 (Camlock Elbow) |
| Coupling Configuration Type | Type D (Female Coupler x Female NPT) |
| Nominal Fitting Size | 2.00 in (2 in / 50.8 mm) |
| Elbow Bend Angle | 90 Degrees (Right Angle) |
| End Connection 1 (Inlet) | 2.00 in Female Cam and Groove Coupler |
| End Connection 2 (Outlet) | 2.00 in Female NPT (National Pipe Taper) |
| Body Construction Material | Cast Aluminum Alloy (ASTM-Equivalent) |
| Cam Arm & Pin Materials | Forged Brass Levers / Stainless Steel Pins |
| Gasket Material | Buna-N (Nitrile Rubber) |
| Maximum Working Pressure | 250 PSI at 70°F (Ambient Rating) |
| Industry Manufacturing Standards | A-A-59326 / Commercial MIL-C-27487 Specs |
| Approximate Unit Weight | 1.20 lbs (0.54 kg) |
Pro-Tip: Always apply a quality PTFE thread sealant paste or tape formulated for aluminum on male pipe threads before connecting to the 2-inch female NPT port; proper thread lubrication prevents galling under high-torque tightening and ensures a dependable, leak-free seal.
