Seal Fast Camlock Fitting DA150AL90 1 1/2 Inch Type DA (Female Coupler to Male Adapter 90 Degree Elbow Aluminum Fluid Hose Industrial Quick Joint)
Couldn't load pickup availability

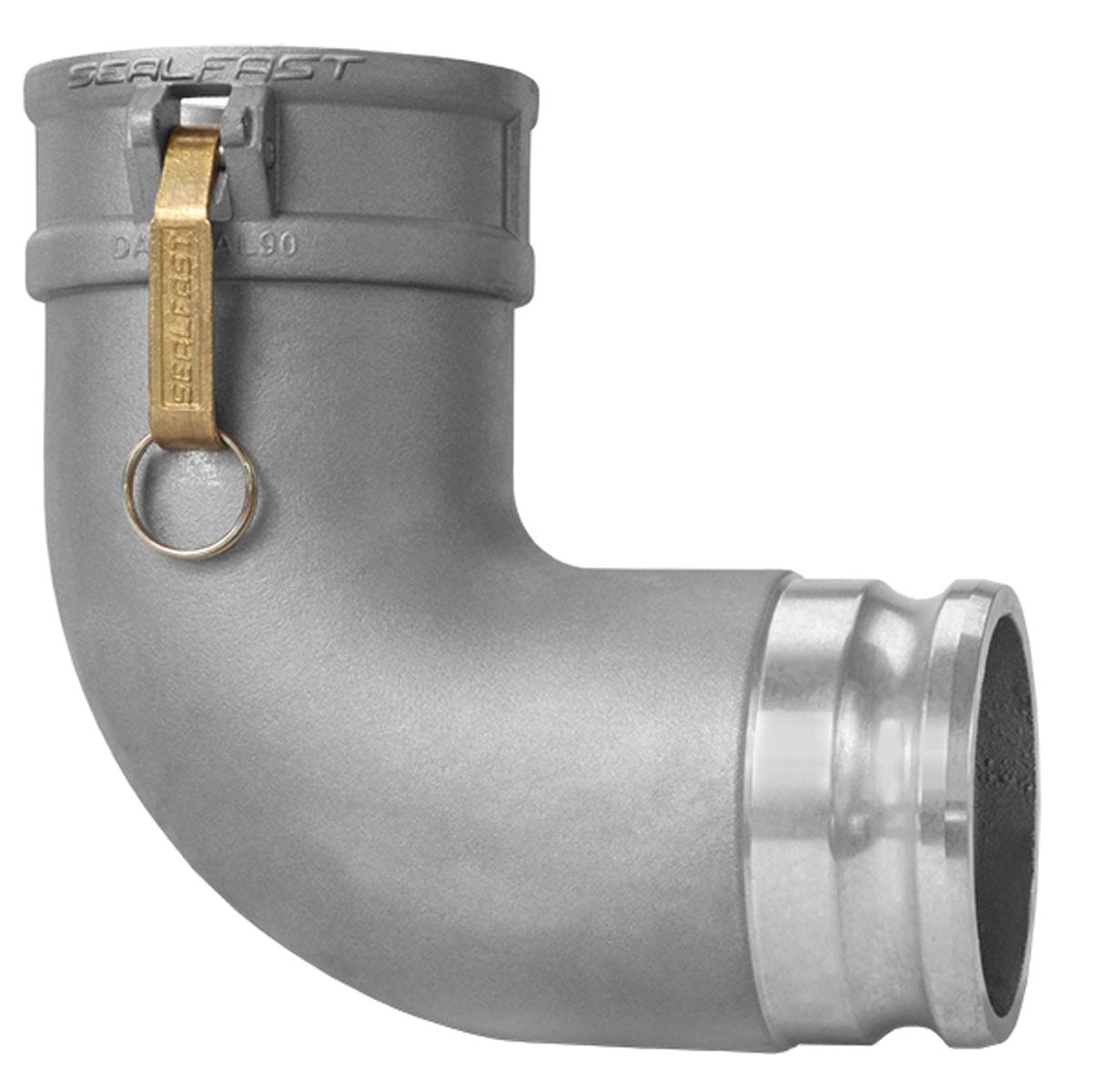

Seal Fast DA150AL90 1.5-Inch Type DA Aluminum Female Camlock Coupler to Male Camlock Adapter 90-Degree Elbow
The Seal Fast DA150AL90 1.5-Inch Type DA Aluminum 90-Degree Cam and Groove Elbow directs industrial liquid transfer lines, discharge hoses, and suction assemblies around sharp turns without hose pinching or flow restriction. Manufactured from lightweight, corrosion-resistant cast aluminum alloy with brass cam locking arms and stainless steel pivot pins, this heavy-duty spool-style adapter features a 1.5-inch female quick-connect camlock socket on one end and a 1.5-inch male camlock plug on the opposite 90-degree bend. Engineered to sustain working pressures up to 250 PSI in ambient liquid service, this high-flow right-angle fitting equips municipal dewatering operators, agricultural spray crews, and industrial processing plants with instant, leak-free directional fluid routing.
Best Used For:
- Quick-Disconnect Hose Line Redirection: Changing the direction of flexible 1.5-inch camlock hose lines by 90 degrees instantly between male and female connections without adding threaded adapters.
- Compact Dewatering & Utility Pump Routing: Relieving mechanical stress and preventing kinks on suction and discharge lines connected directly to camlock-equipped pump manifolds.
- Agricultural Chemical & Fertilizer Transfer: Coupling nurse tank camlock outlets to sprayer supply lines around tight equipment frames in mobile field rigs.
Key Performance & Safety Features
- Direct Camlock-to-Camlock 90-Degree Jump: Coupler-to-adapter geometry eliminates the need for separate threaded elbows and multiple fittings, minimizing leak paths.
- Corrosion-Resistant Cast Aluminum: Delivers exceptional strength-to-weight ratio and natural oxidation resistance against water, hydraulic oils, and petroleum fluids.
- Standard A-A-59326 / Mil-C-27487 Compliance: Guarantees 100% interchangeable connection with all standard commercial 1.5-inch camlock couplers and adapters regardless of manufacturer.
- Heavy-Duty Cam Arms & Buna-N Seal: Forged brass cam levers with stainless steel pivot pins compress a resilient Buna-N gasket for an instant, pressure-tight seal.
- Full-Flow Smooth Internal Radius: Contoured interior flow path reduces line friction, minimizes fluid turbulence, and prevents pressure drop.
What's Included
- (1) Seal Fast 1.5-Inch Type DA Aluminum Female Coupler x Male Adapter 90-Degree Cam and Groove Elbow (DA150AL90)
- (2) Pre-Installed Forged Brass Cam Arms with Stainless Steel Pivot Pins and Pull Rings
- (1) Factory-Installed High-Resilience Nitrile (Buna-N) Gasket
Technical Specifications
| Specification | Detail |
|---|---|
| Model Number / Part ID | DA150AL90 (Camlock Elbow) |
| Coupling Configuration Type | Type DA (Female Coupler x Male Adapter) |
| Nominal Fitting Size | 1.50 in (1-1/2 in / 38.1 mm) |
| Elbow Bend Angle | 90 Degrees (Right Angle) |
| End Connection 1 (Inlet) | 1.50 in Female Cam and Groove Coupler |
| End Connection 2 (Outlet) | 1.50 in Male Cam and Groove Adapter |
| Body Construction Material | Cast Aluminum Alloy (ASTM-Equivalent) |
| Cam Arm & Pin Materials | Forged Brass Levers / Stainless Steel Pins |
| Gasket Material | Buna-N (Nitrile Rubber) |
| Maximum Working Pressure | 250 PSI at 70°F (Ambient Rating) |
| Industry Manufacturing Standards | A-A-59326 / Commercial MIL-C-27487 Specs |
| Approximate Unit Weight | 0.95 lbs (0.43 kg) |
Pro-Tip: Ensure both brass cam levers close fully flat against the coupler body when engaging the male adapter plug; this fully compresses the Buna-N gasket evenly to maintain the rated 250 PSI seal under continuous liquid pressure.
