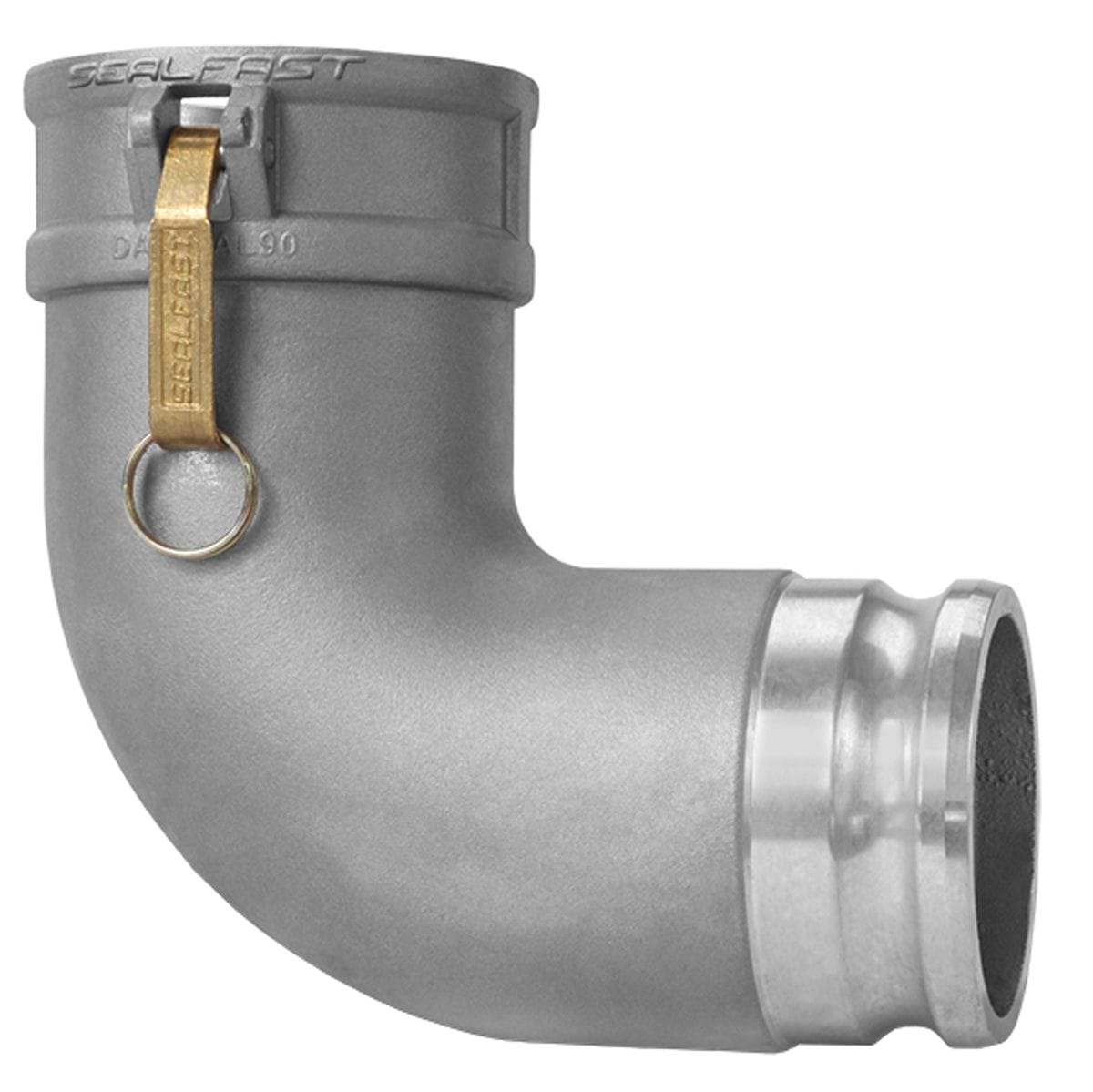

Seal Fast Camlock Fitting DA3020AL90 3 x 2 Inch Type DA (Female Coupler to Male Adapter Reducing 90 Degree Elbow Aluminum Fluid Hose Quick Joint)

Seal Fast DA3020AL90 3 x 2-Inch Type DA Aluminum Reducing Female Camlock Coupler to Male Camlock Adapter 90-Degree Elbow

The Seal Fast DA3020AL90 3 x 2-Inch Type DA Aluminum 90-Degree Reducing Cam and Groove Elbow steps down line sizing while directing fluid transfer assemblies around sharp structural obstacles without line kinking or flow disruption. Manufactured from lightweight, corrosion-resistant cast aluminum alloy with brass cam locking arms and stainless steel pivot pins, this heavy-duty jump-size fitting integrates a 3-inch female quick-connect camlock coupler on one end with a compact 2-inch male camlock adapter on the opposite 90-degree turn. Engineered to sustain working pressures up to 125 PSI in ambient fluid transfer service, this reducing right-angle spool equips municipal dewatering crews, agricultural operators, and industrial plants with leak-free directional hose transitions.

Best Used For:

• Jump-Size Pump & Manifold Line Redirection: Connecting 3-inch male camlock discharge or suction ports directly to compact 2-inch female camlock hose runs at a sharp 90-degree angle without stacking multiple reducing bushings.
• Vacuum Truck & Tanker Fluid Offloading: Coupling high-capacity 3-inch mobile tanker valves directly to 2-inch receiving hoses in tight service compartments.
• Industrial Wastewater & Coolant Manifolds: Reorienting liquid delivery runs around tight machinery corners while reducing piping diameter to optimize floor space.

Key Performance & Safety Features

• Integrated Reducing 90-Degree Cast Body: Combines size reduction and right-angle redirection into a single cast piece, eliminating multi-fitting stacks and leak paths.
• Corrosion-Resistant Cast Aluminum: Delivers high tensile strength with minimal weight, resisting oxidation from water, hydraulic oils, and petroleum products.
• Standard A-A-59326 / Mil-C-27487 Compliance: Ensures 100% interchangeable connection with standard commercial 3-inch and 2-inch camlock fittings across all brands.
• Heavy-Duty Cam Arms & Buna-N Gasket: Forged brass cam levers with stainless steel pivot pins compress a resilient Buna-N seal for an instant, pressure-tight joint.
• Tapered Internal Flow Transition: Smoothly radiused internal throat minimizes fluid turbulence and reduces line friction during diameter step-downs.

What's Included

• (1) Seal Fast 3 x 2-Inch Type DA Aluminum Reducing Female Coupler x Male Adapter 90-Degree Elbow (DA3020AL90)
• (2) Pre-Installed Forged Brass Cam Arms with Stainless Steel Pivot Pins and Pull Rings
• (1) Factory-Installed 3-Inch High-Resilience Nitrile (Buna-N) Gasket

Technical Specifications

Pro-Tip: When stepping down flow sizing from 3 inches to 2 inches, inspect the 3-inch female Buna-N gasket prior to cam arm closure; ensure it sits completely flat in the groove to prevent high-velocity bypass leaks under pressure.
