Seal Fast Camlock Fitting DA6040AL45 6 x 4 Inch Type DA (Female Coupler to Male Adapter Reducing 45 Degree Elbow Aluminum Fluid Hose Quick Joint)

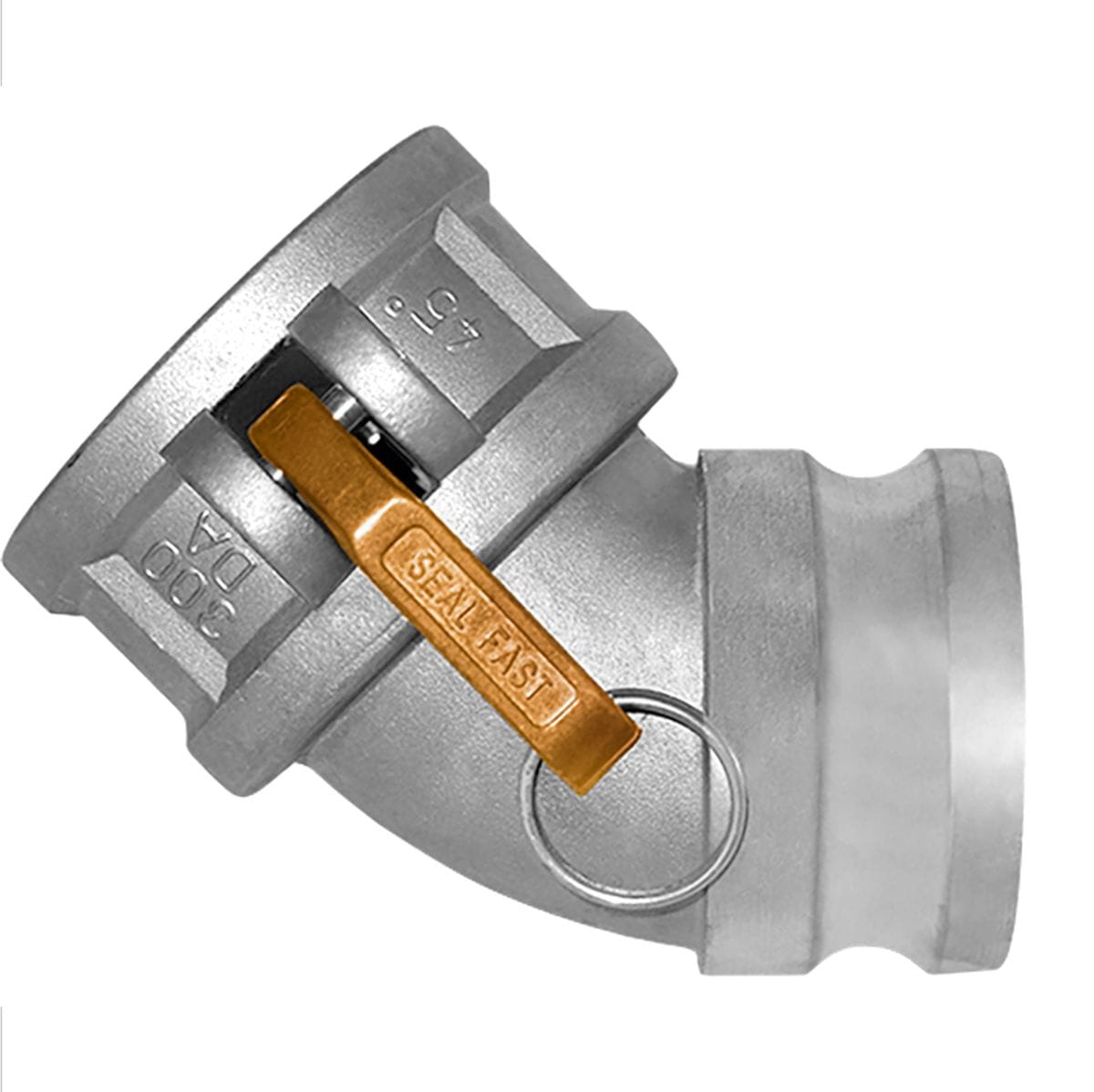

Seal Fast DA6040AL45 6 x 4-Inch Type DA Aluminum Reducing Female Camlock Coupler to Male Camlock Adapter 45-Degree Elbow

The Seal Fast DA6040AL45 6 x 4-Inch Type DA Aluminum 45-Degree Reducing Cam and Groove Elbow steps down line sizing while directing large-diameter fluid transfer assemblies along gradual angles without severe line kinking or flow disruption. Manufactured from lightweight, corrosion-resistant cast aluminum alloy with heavy-duty forged brass cam locking arms and stainless steel pivot pins, this industrial jump-size fitting integrates a 6-inch female quick-connect camlock coupler on one end with a 4-inch male camlock adapter on the opposite 45-degree angled turn. Engineered to sustain working pressures up to 75 PSI in ambient bulk liquid transfer service, this reducing right-angle spool equips municipal dewatering crews, agricultural irrigation operators, and industrial processing plants with leak-free directional hose transitions.

Best Used For:

• High-Volume Pump Step-Down Routing: Connecting large 6-inch male camlock pump discharge headers directly to standard 4-inch female camlock discharge hoses along a gentle 45-degree angle to reduce line stress.
• Municipal Dewatering & Flood Bypass: Transitioning high-capacity mobile dewatering manifold outlets into manageable distribution hose lines without stacking separate reducing bushings.
• Bulk Tanker Fluid Transfer: Coupling high-volume storage tank valves to transport hoses around angled vehicle obstructions in tight industrial loading bays.

Key Performance & Safety Features

• Integrated Reducing 45-Degree Cast Body: Combines size step-down and directional angular redirection into a single cast piece, eliminating multi-fitting stacks and potential leak paths.
• Corrosion-Resistant Cast Aluminum: Delivers high tensile strength with minimal weight, resisting oxidation from water, hydraulic oils, and petroleum products.
• Standard A-A-59326 / Mil-C-27487 Compliance: Ensures 100% interchangeable connection with standard commercial 6-inch and 4-inch camlock fittings across all brands.
• Heavy-Duty Cam Arms & Buna-N Gasket: Forged brass cam levers with stainless steel pivot pins compress a resilient Buna-N seal for an instant, pressure-tight joint.
• Tapered Internal Flow Transition: Smoothly radiused internal throat minimizes fluid turbulence and reduces line friction during diameter step-downs.

What's Included

• (1) Seal Fast 6 x 4-Inch Type DA Aluminum Reducing Female Coupler x Male Adapter 45-Degree Elbow (DA6040AL45)
• (2) Pre-Installed Forged Brass Cam Arms with Stainless Steel Pivot Pins and Pull Rings
• (1) Factory-Installed 6-Inch High-Resilience Nitrile (Buna-N) Gasket

Technical Specifications

Pro-Tip: When coupling large 6-inch hoses down to 4-inch lines, support the fitting weight during lever engagement; proper horizontal alignment seats the 6-inch Buna-N gasket evenly across the mating face to prevent bypass leakage under full 75 PSI pumping pressure.
