Seal Fast Camlock Fitting DD200AL90 2 Inch Type DD (Female Coupler to Female Coupler 90 Degree Elbow Aluminum Fluid Hose Quick Connect Joint)

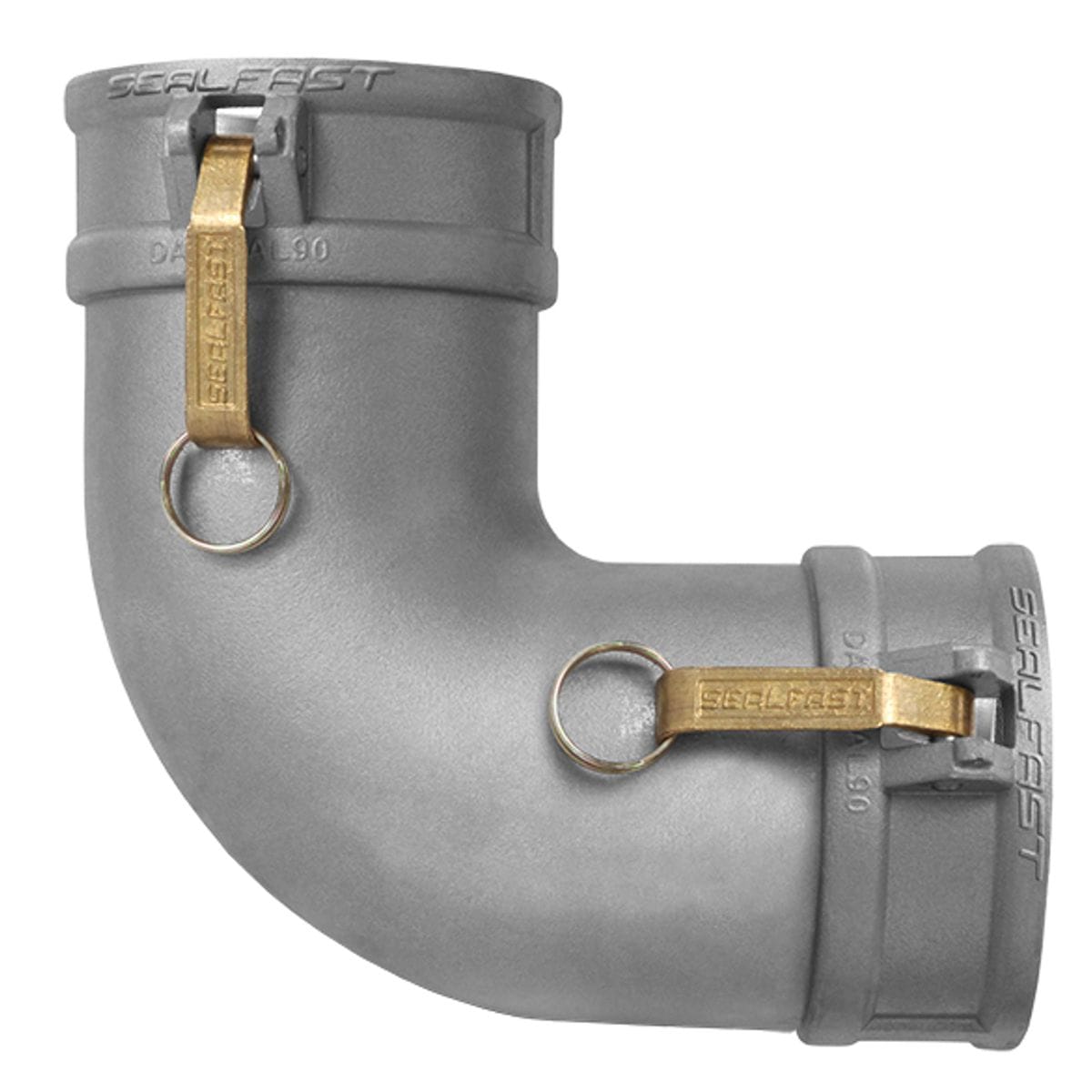

Seal Fast DD200AL90 2-Inch Type DD Aluminum Female Camlock Coupler to Female Camlock Coupler 90-Degree Elbow

The Seal Fast DD200AL90 2-Inch Type DD Aluminum 90-Degree Cam and Groove Elbow joins two male camlock hose ends or pipe adapters around sharp structural turns without hose pinching or flow restriction. Manufactured from lightweight, corrosion-resistant cast aluminum alloy with dual sets of heavy-duty forged brass cam locking arms and stainless steel pivot pins, this right-angle double-socket fitting features a 2-inch female quick-connect camlock coupler on both ends. Engineered to sustain working pressures up to 250 PSI in ambient liquid service, this high-flow directional coupler equips municipal dewatering operators, agricultural spray crews, and industrial processing facilities with instant, tool-free hose connections.

Best Used For:

• Dual-Hose Right-Angle Redirection: Connecting two male camlock-terminated hose runs directly at a 90-degree angle without requiring intermediate pipe nipples or threaded fittings.
• Pump Manifold & Tank Routing: Bypassing machinery obstacles and tight corners on suction and discharge lines to eliminate line kinking and bend fatigue.
• Agricultural Irrigation & Spray Rigs: Linking mobile supply lines to field nurse tanks and distribution piping in confined equipment spaces.

Key Performance & Safety Features

• Double Female Socket Architecture: Eliminates the need for separate coupler-to-coupler unions and threaded 90-degree elbows, minimizing potential leak points.
• Corrosion-Resistant Cast Aluminum: Provides high tensile strength with minimal overall weight for easy handling and resistance to environmental oxidation.
• Standard A-A-59326 / Mil-C-27487 Compliance: Guarantees 100% interchangeable connection with all standard commercial 2-inch male camlock adapters across multiple brands.
• Four Forged Brass Cam Arms & Buna-N Seals: Dual pairs of heavy-duty brass locking levers compress resilient Buna-N gaskets for an instant, pressure-tight seal on both ports.
• Full-Flow Internal Radius: Smooth 90-degree internal throat reduces fluid friction, minimizes line turbulence, and prevents pressure drop.

What's Included

• (1) Seal Fast 2-Inch Type DD Aluminum Female Coupler x Female Coupler 90-Degree Elbow (DD200AL90)
• (4) Pre-Installed Forged Brass Cam Arms with Stainless Steel Pivot Pins and Pull Rings
• (2) Factory-Installed High-Resilience Nitrile (Buna-N) Gaskets

Technical Specifications

Pro-Tip: When connecting two high-pressure hoses around a corner, close and lock both cam arms on one socket completely before inserting and engaging the mating adapter in the second socket; this ensures proper leverage and balanced gasket compression across both joints.
