Seal Fast Camlock Fitting F200AL90 2 Inch Type F (Male Adapter to Male NPT 90 Degree Elbow Aluminum Fluid Transfer Hose Pipe Industrial Joint)

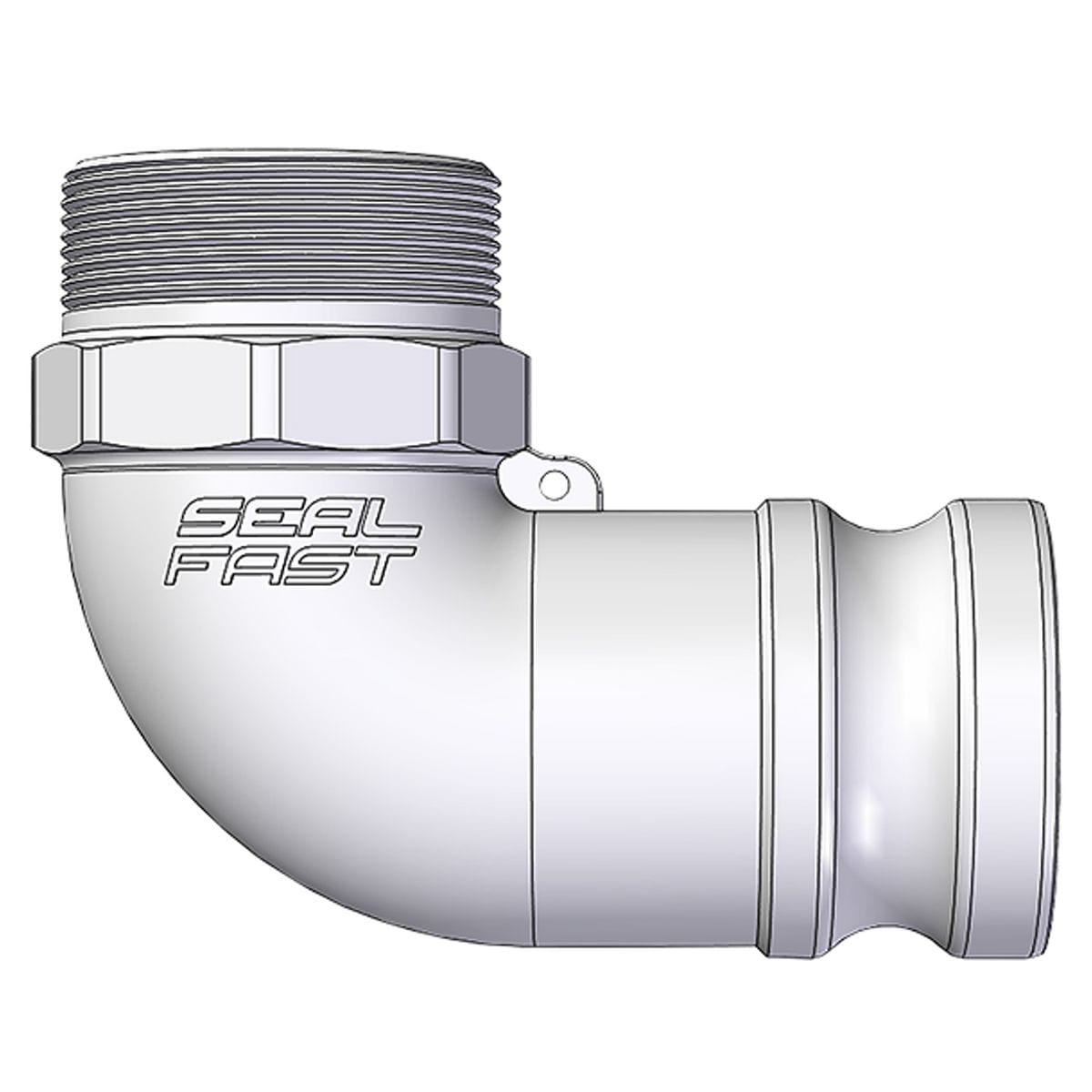

Seal Fast F200AL90 2-Inch Type F Aluminum Male Camlock Adapter to Male NPT 90-Degree Elbow

The Seal Fast F200AL90 2-Inch Type F Aluminum 90-Degree Cam and Groove Elbow directs industrial liquid lines, utility pump discharge hoses, and suction manifolds around sharp structural obstacles without line kinking or flow restriction. Manufactured from lightweight, corrosion-resistant cast aluminum alloy with precision-machined connection points, this heavy-duty fitting features a 2-inch male quick-connect camlock adapter on one end and a 2-inch male National Pipe Taper (NPT) threaded port on the opposite 90-degree bend. Engineered to sustain operating pressures up to 250 PSI in ambient fluid transfer service, this high-flow right-angle fitting equips municipal dewatering crews, agricultural operators, and industrial processing plants with leak-free, rapid-turn fluid routing.

Best Used For:

• Dewatering & Utility Trash Pump Hookups: Directing flexible 2-inch discharge hoses cleanly off female-threaded pump casings at a sharp right angle to eliminate line pinching and floor clutter.
• Agricultural Sprayer & Nurse Tank Plumbing: Connecting female NPT ball valves directly to quick-connect female camlock hose assemblies in tight mobile field rigs.
• Industrial Wastewater & Chemical Transfer: Transitioning female-threaded stationary manifold ports into quick-disconnect hose runs in confined mechanical equipment bays.

Key Performance & Safety Features

• Integrated 90-Degree Cast Body: Replaces cumbersome multi-fitting pipe elbows, drastically minimizing installation labor and eliminating potential connection leak points.
• High-Strength Cast Aluminum Alloy: Delivers high tensile strength with minimal weight, resisting oxidation from water, mild hydraulic oils, and petroleum products.
• Standard A-A-59326 / Mil-C-27487 Compliance: Guarantees 100% interchangeability with all standard commercial 2-inch female camlock couplers across multiple brands.
• Tapered Male NPT Threading: Precision CNC-machined external tapered threads provide a rigid, vibration-resistant mechanical seal when threading into female ports.
• Full-Flow Internal Geometry: Smoothly radiused internal throat minimizes fluid turbulence, reduces pressure drop, and ensures maximum flow velocity.

What's Included

• (1) Seal Fast 2-Inch Type F Aluminum Male Adapter x Male NPT 90-Degree Cam and Groove Elbow (F200AL90)

Technical Specifications

Pro-Tip: Wrap 3 to 4 turns of heavy-duty PTFE thread seal tape around the 2-inch male NPT threads before threading into a pump volute or valve port; proper tape application prevents thread galling and ensures a pressure-tight seal without overtightening the cast aluminum housing.
