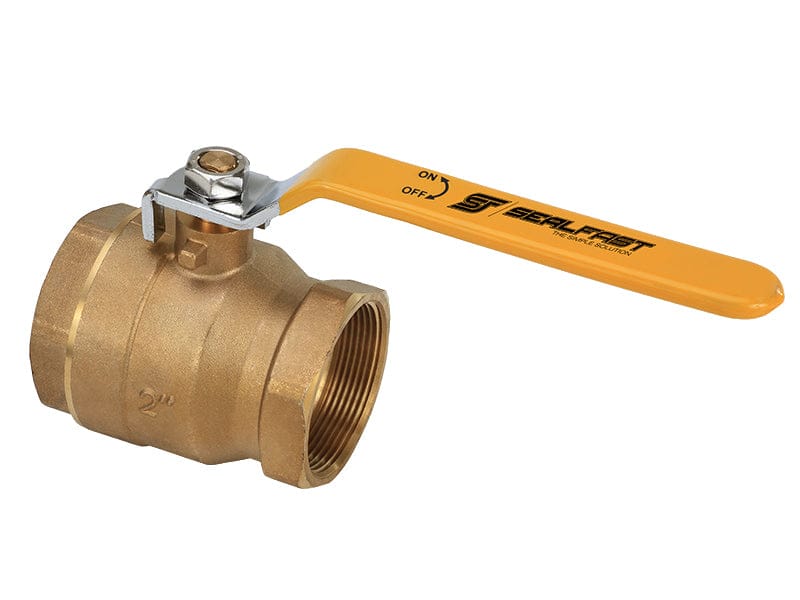

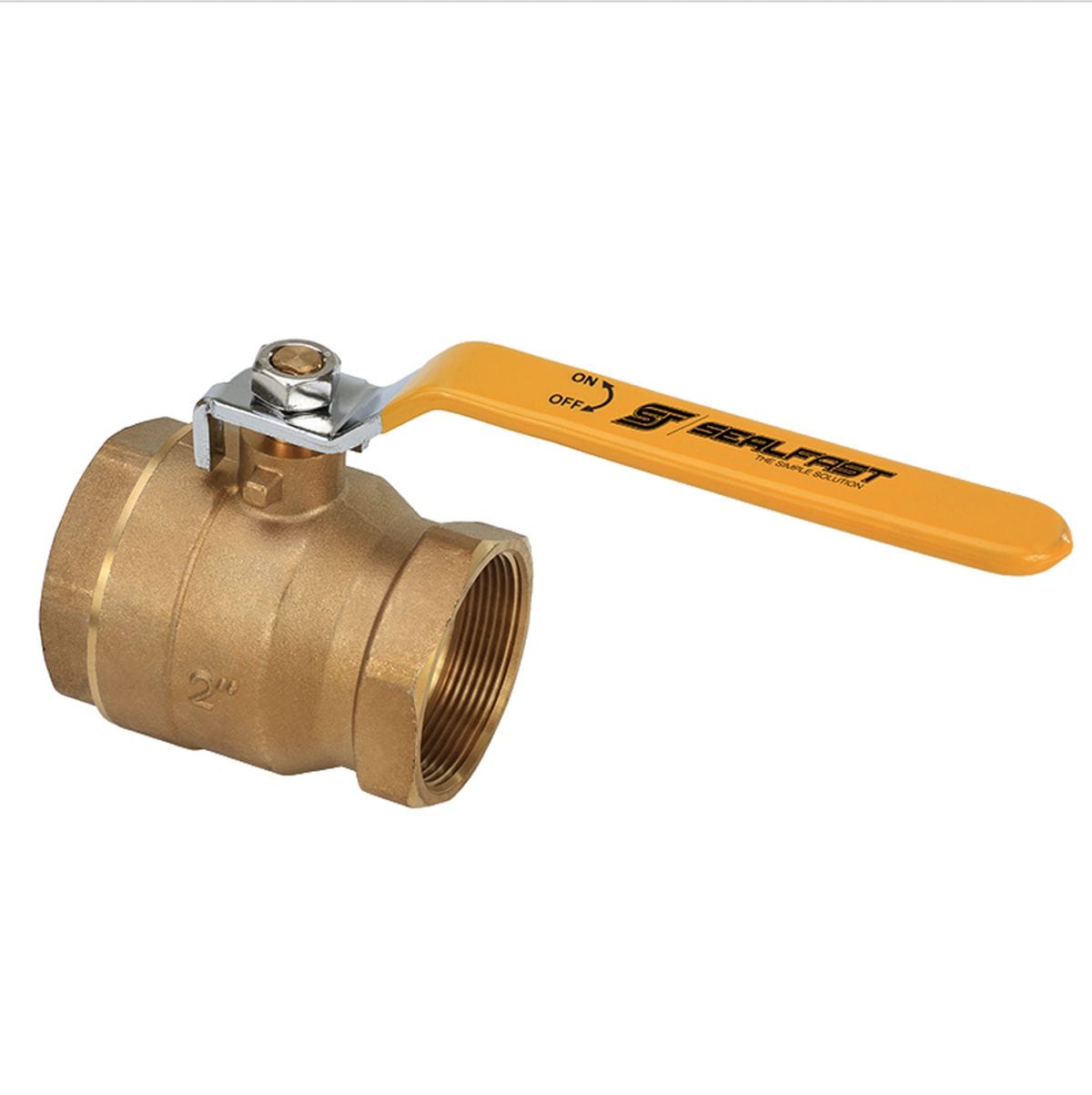

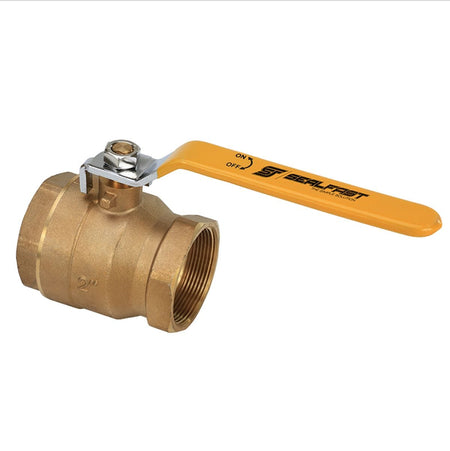

Seal Fast Full Bore 2-Piece Brass Ball Valve 2 Inch 600 WOG Plumbing HVAC Steam Air Systems
Seal Fast Full Bore 2-Piece Brass Ball Valve 2 Inch 600 WOG Plumbing HVAC Steam Air Systems
Seal Fast Full Bore 2-Piece Brass Ball Valve 2 Inch 600 WOG Plumbing HVAC Steam Air Systems
Seal Fast Full Bore 2-Piece Brass Ball Valve 2 Inch 600 WOG Plumbing HVAC Steam Air Systems
Seal Fast

Seal Fast Ball Valve 1/4 Inch to 4 Inch Full Bore 2-Piece 600 PSI WOG CWP Brass Plumbing HVAC Steam Compressed Air Fluid Flow Control Fitting

Only 2 left
SKU: BFV 025600B
$5.58 USD

SIZE
Description

Professional Full Bore 2-Piece Brass 600 PSI WOG CWP Ball Valve

The Seal Fast BFV Series is a heavy-duty 2-piece brass ball valve engineered to regulate high-pressure fluid, low-pressure steam, and compressed air transfer across complex mechanical networks. Featuring a full bore design that provides completely unrestricted fluid flow with negligible pressure drops, this inline valve is structurally rated for 600 PSI non-shock cold working pressure (CWP). Fabricated from corrosion-resistant structural brass, it incorporates a low-torque dynamic quarter-turn shutoff mechanism optimized for residential commercial heating systems, industrial process plumbing pipelines, and critical HVAC installations.

Best Used For:

  • Commercial HVAC Flow Control: Regulating water supply and glycol lines inside low-pressure hydronic heating and cooling systems.
  • Industrial Pneumatic Routing: Managing high-volume compressed air distribution trunks requiring reliable tight mechanical isolation.
  • Process Fluid Infrastructure: Establishing non-binding inline isolation valves for oil, non-corrosive chemicals, and industrial liquid lines.

Key Performance & Safety Features

  • Full Bore Geometry: Internal port diameter matches the pipe interior to eliminate localized fluid restriction and maximize volumetric flow efficiency.
  • 600 PSI WOG/CWP Rating: Structural pressure threshold ensures safe operation across water, oil, and gas media up to 600 PSI non-shock.
  • 2-Piece Forged Brass Body: High-purity metallic casting delivers premium mechanical impact durability and excellent corrosion protection.
  • Quarter-Turn Action: Streamlined vinyl-insulated steel handle rotates smoothly through 90 degrees for instantaneous fluid shutoff during upkeep loops.
  • Blowout-Proof Stem Layout: Internally assembled stem design utilizes structural safety margins to stay secured under sudden pressure spikes.

What's Included

  • (1) Seal Fast Full Bore 2-Piece Brass Ball Valve (Size selected at checkout: 1/4", 3/8", 1/2", 3/4", 1-1/4", up to 4")

Technical Specifications

Brand Name: Seal Fast, Inc.
Valve Architecture: 2-Piece Body Style
Port Configuration: Full Bore / Full Port Design
Core Body Metallurgy: Premium Forged Brass Alloy
Pressure Rating WOG/CWP: 600 PSI Non-Shock Ambient
Thread Interface Layout: Female NPT x Female NPT
Sizing Selection Range: 1/4 in. up to 4 in. Diameters
Stem Configuration: Blowout-Proof Bottom Loaded Stem
Media Fluid Compatibility: Water, Hydrocarbons, Compressed Air, Low-Pressure Steam
Primary Field Target Sectors: Commercial Plumbing, HVAC Distribution, Process Piping

Pro-Tip: When installing this threaded female NPT valve into copper pipe adapters or steel manifolds, make sure your adjustable wrench is firmly clamped onto the specific hex end profile closest to the pipe joint being threaded. This structural practice stops torque force from passing across the central 2-piece body joint, protecting internal seals from alignment stress.
