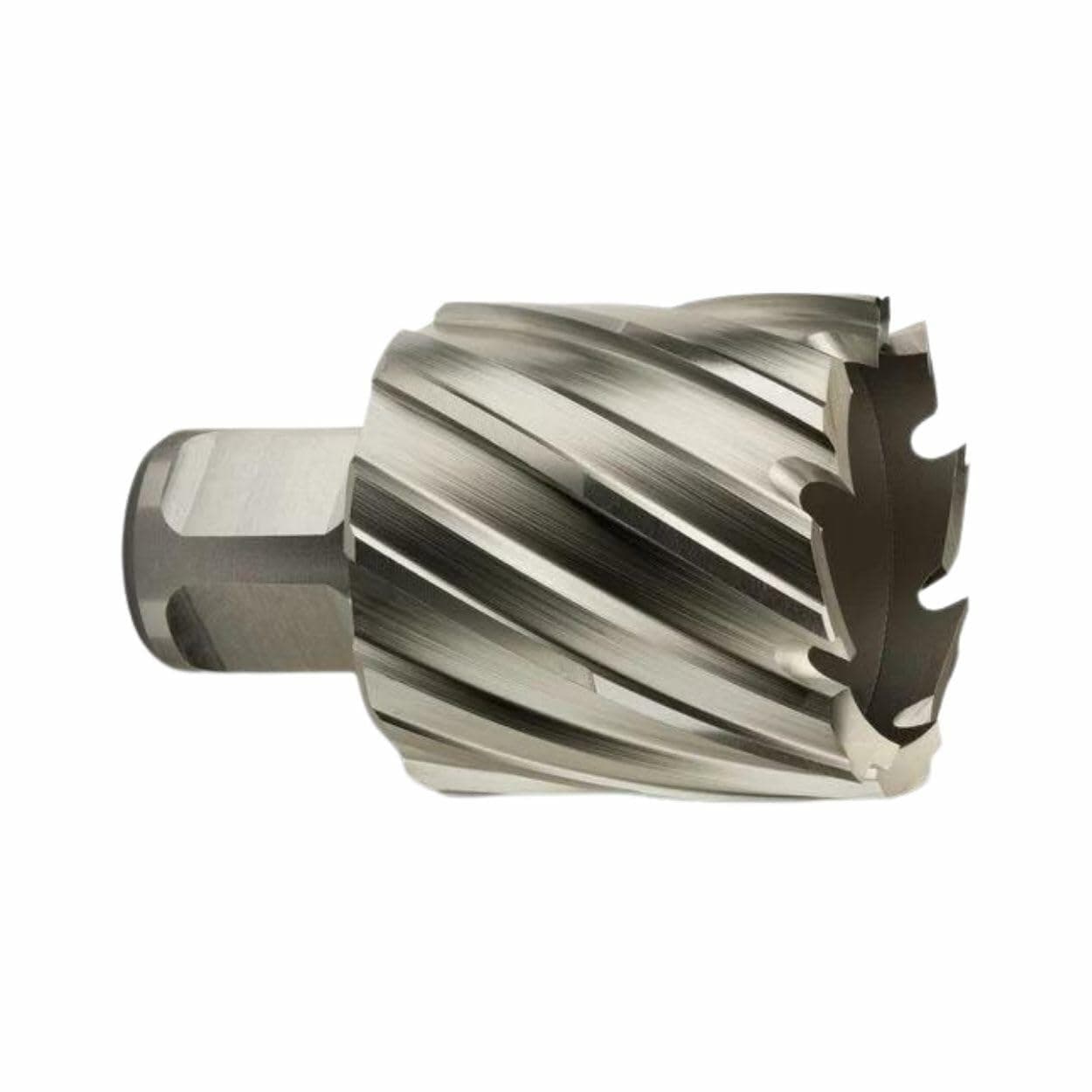

Close-up of a Slugger annular cutter showing spiral cutting edges and hollow center, designed for drilling precise holes in metal using a magnetic drill.

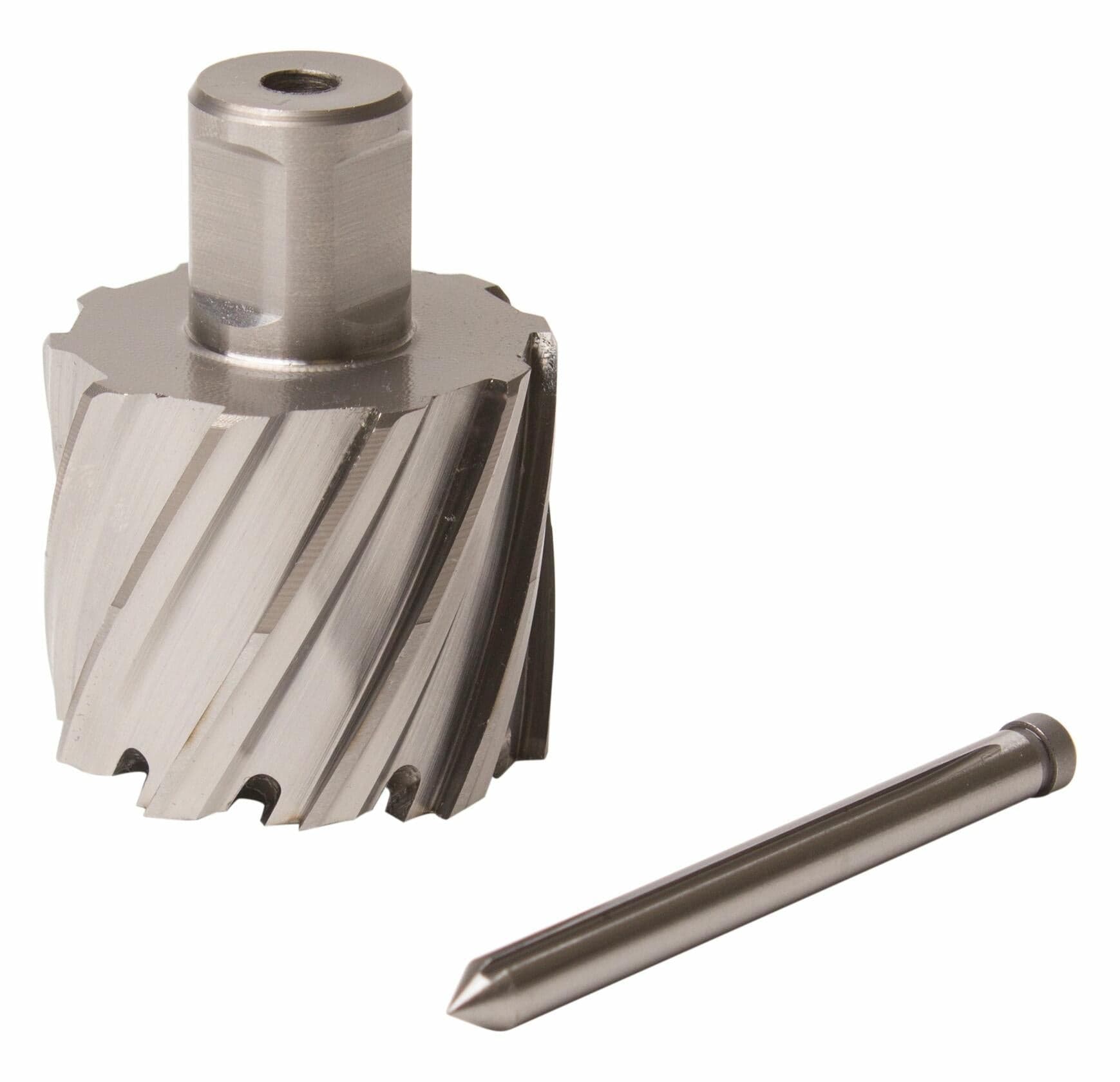

Annular cutter and pilot pin side by side, highlighting the cutter’s helical flutes and the pin used for centering and slug ejection during metal drilling.

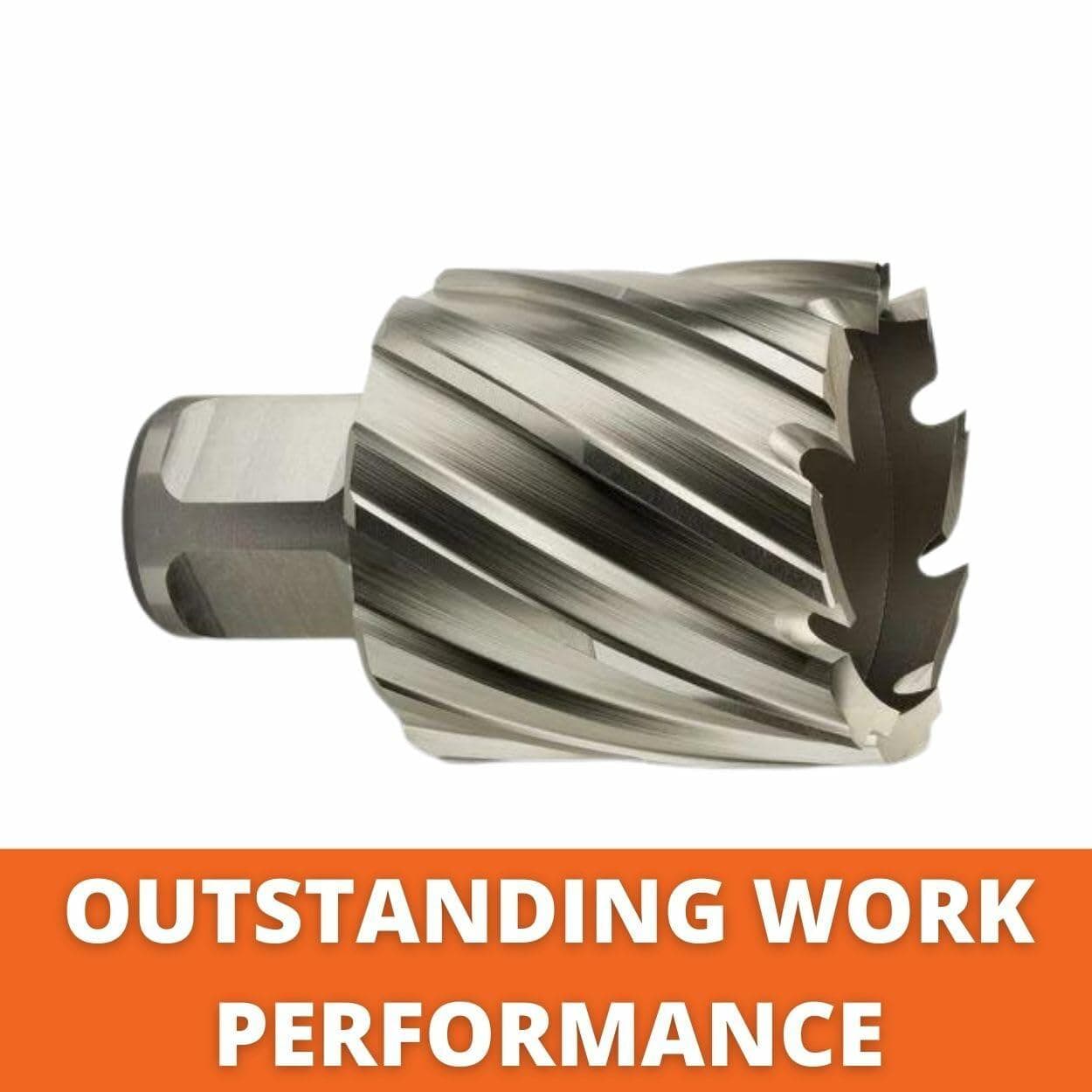

High-speed steel annular cutter with spiral flutes and sharp cutting edges, shown above an orange banner with white text reading “OUTSTANDING WORK PERFORMANCE.”
Promotional graphic of an HSS annular cutter with spiral flutes, set against an orange and white background with bold text stating “DESIGNED FOR DURABILITY AND EFFICIENCY.”
Annular cutter with spiral flutes and sharp edges on an orange background, with bold white text above reading “EFFORTLESSLY CREATES CLEAN, PRECISE HOLES.”

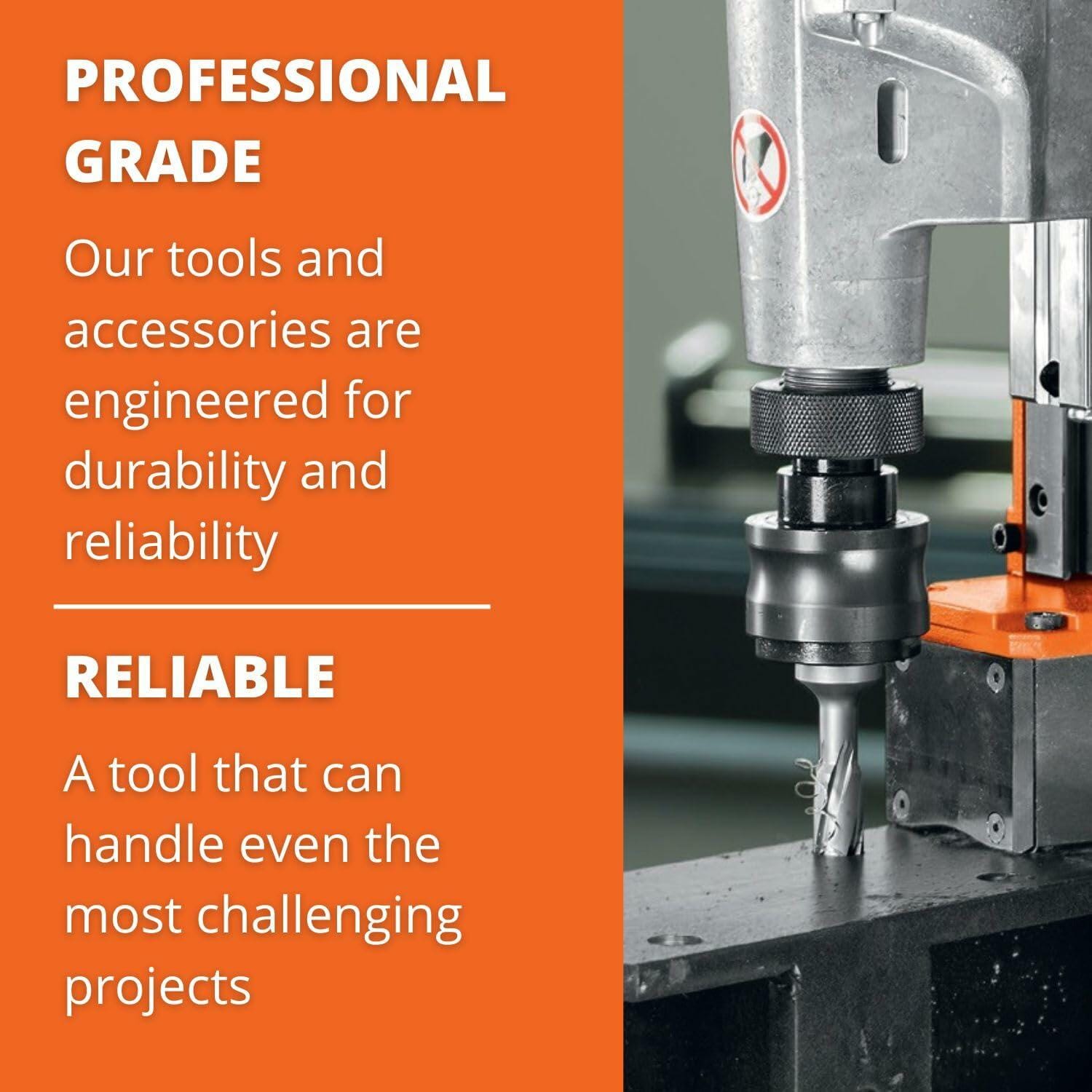

Industrial drill press in operation, actively drilling into metal with promotional text on the left highlighting tool durability and reliability for challenging projects.
Badge-style graphic featuring the American flag and bold white text reading “MADE IN USA” on a brushed metal background, indicating domestic manufacturing origin.
Close-up of a Slugger annular cutter showing spiral cutting edges and hollow center, designed for drilling precise holes in metal using a magnetic drill.
Annular cutter and pilot pin side by side, highlighting the cutter’s helical flutes and the pin used for centering and slug ejection during metal drilling.
High-speed steel annular cutter with spiral flutes and sharp cutting edges, shown above an orange banner with white text reading “OUTSTANDING WORK PERFORMANCE.”
Promotional graphic of an HSS annular cutter with spiral flutes, set against an orange and white background with bold text stating “DESIGNED FOR DURABILITY AND EFFICIENCY.”
Annular cutter with spiral flutes and sharp edges on an orange background, with bold white text above reading “EFFORTLESSLY CREATES CLEAN, PRECISE HOLES.”
Industrial drill press in operation, actively drilling into metal with promotional text on the left highlighting tool durability and reliability for challenging projects.
Badge-style graphic featuring the American flag and bold white text reading “MADE IN USA” on a brushed metal background, indicating domestic manufacturing origin.
Fein Power Tools, Inc.

Fein Annular Cutter 63134365041 1-7/16 Inch x 1 Inch Depth (Slugger M2 High Speed Steel 3/4 Inch Straight Shank Pilot Pin Structural Metal Drilling)

Only 1 left
SKU: 63134365041
$90.00 USD

Description

Fein 63134365041 Slugger 1-7/16-Inch x 1-Inch Depth HSS Annular Cutter

The Fein 63134365041 Slugger 1-7/16-Inch x 1-Inch Depth HSS Annular Cutter is an industrial core-drilling tool engineered to bore reamed-quality through-holes in structural steel, mild steel plate, aluminum, and non-ferrous alloys. Manufactured in the USA from M2 high-speed steel with a 3/4-inch straight shank and a 1-inch cutting depth, this 1-7/16-inch diameter cutter mounts directly into magnetic drill presses and heavy-duty drilling units. Incorporating patented tooth geometry and a spring-loaded ejection pilot pin, this core drill bit solves slow hole making, bit binding, and secondary reaming burr removal challenges across steel fabrication and bridge maintenance jobsites.

Best Used For:

  • Structural Steel Frame Fabrication: Coring clean 1-7/16-inch bolt holes through I-beams, structural channels, and steel gusset plates without pre-drilling pilot holes.
  • Industrial Machinery Maintenance & Retrofitting: Boring burr-free pass-through holes in heavy equipment steel frames and thick machine bases using portable magnetic drills.
  • Metal Building & Bridge Construction: Drilling continuous production holes in structural steel plates and angle iron up to 1 inch thick on site.

Key Performance & Safety Features

  • M2 High-Speed Steel Construction: Premium USA-melted high-speed steel formulation delivers heat resistance and long-lasting edge sharp retention.
  • Patented Multi-Edge Cutting Geometry: Distributes chip load evenly across multiple cutting edges to increase drilling speeds by 35 percent over conventional twist bits.
  • Positive Slug Ejection Pilot Pin: Included spring-actuated pilot pin locates the layout center mark, channels cutting lubricant, and ejects the solid steel core slug automatically.
  • Burr-Free Reamed-Quality Finish: Precision CNC-ground tooth geometry produces smooth, round hole walls that eliminate secondary deburring or reaming passes.
  • Universal 3/4-Inch Straight Shank: Rigid 3/4-inch shank features dual drive flats to fit standard magnetic drill press chucks and arbors securely.
  • Resharpenable Cutting Teeth: Hardened tool steel profile can be resharpened multiple times to maximize service life and lower cost-per-hole economics.

What's Included

  • (1) Fein 63134365041 Slugger 1-7/16 in. x 1 in. Depth HSS Annular Cutter
  • (1) Precision Steel Centering Ejection Pilot Pin

Technical Specifications

Manufacturer Brand Slugger by Fein
Model Part Number (OEM) 63134365041
Bore Cutting Diameter 1-7/16 in. (36.51 mm)
Maximum Depth of Cut 1.0 in. (25.4 mm)
Shank Type & Size 3/4 in. (19.05 mm) Straight Shank with Dual Weldon Flats
Cutter Material Composition M2 Premium High-Speed Steel (HSS)
Surface Coating / Finish Bright / Uncoated Precision Ground
Slug Removal System Spring-Loaded Ejection Pilot Pin Included
Power Tool System Compatibility Magnetic Drill Presses, Portable Mag Drills, Drill Press Arbors
Country of Origin United States of America (Davenport, IA)
Primary Target Substrates Structural Steel, Mild Steel, Stainless Steel, Aluminum, Brass
Pro-Tip: Always fill the magnetic drill arbor reservoir with water-soluble cutting fluid so coolant flows through the hollow pilot pin channel to keep the M2 HSS teeth cool and lubricated during heavy structural steel cuts.
