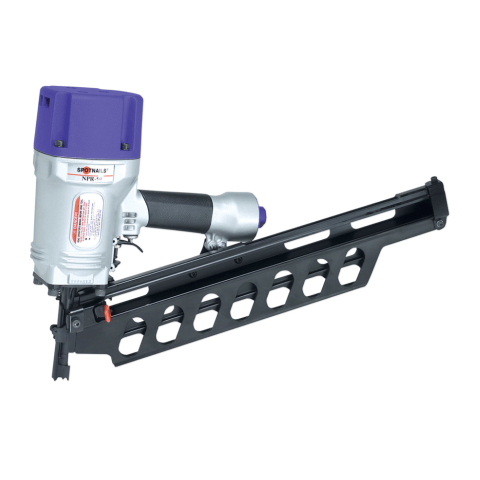

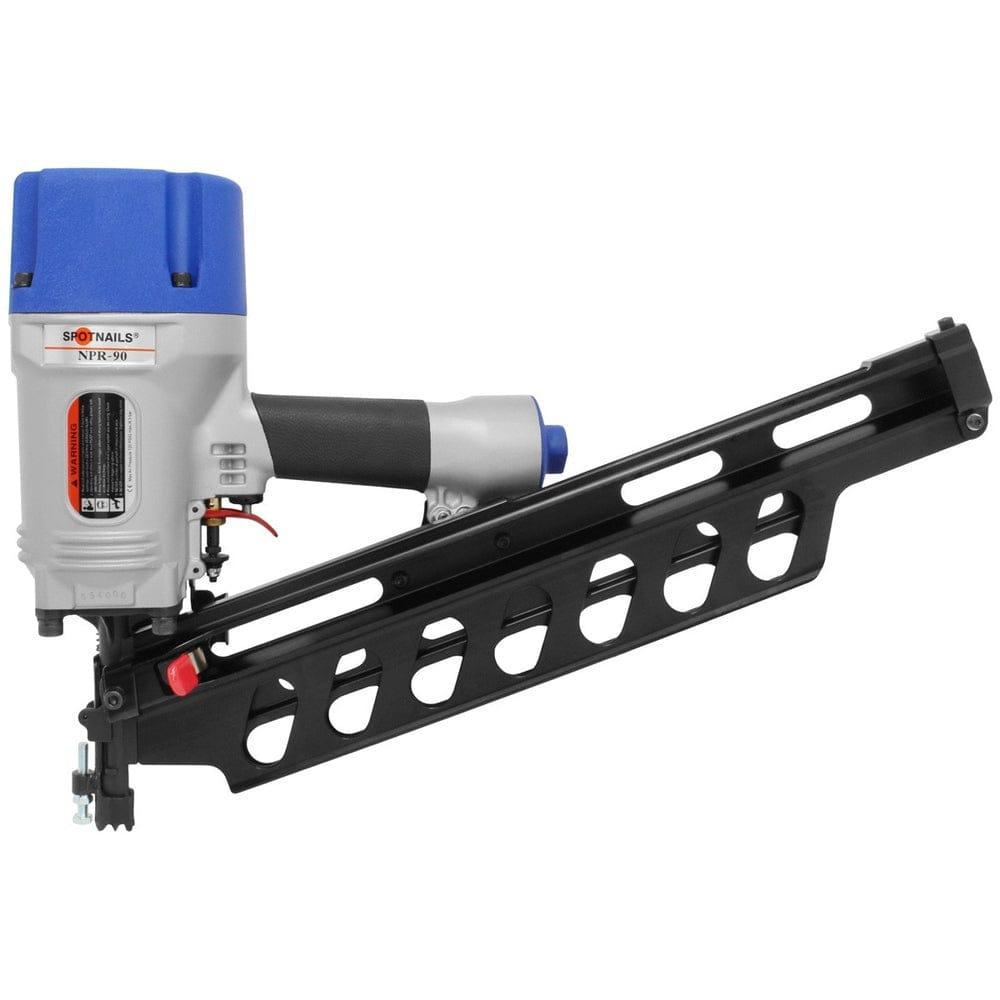

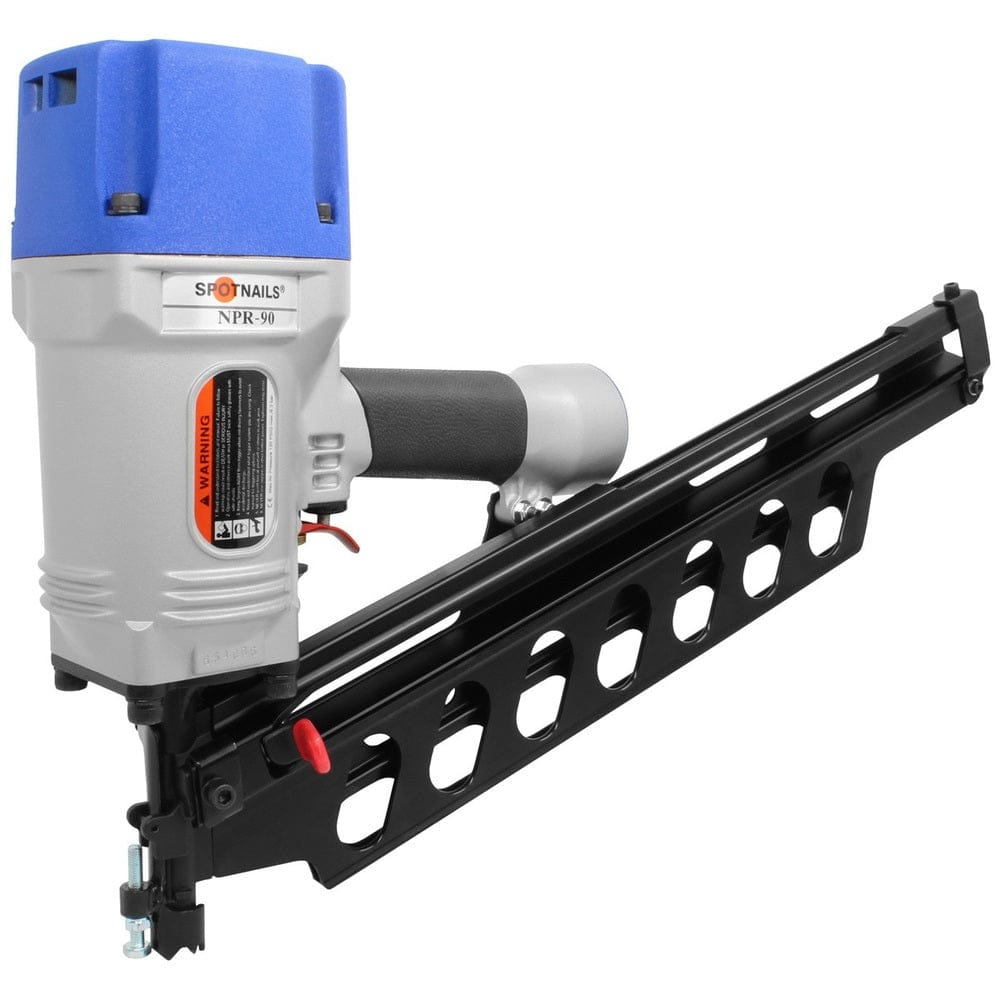

Spotnail Framing Nailer - NPR90
Stop fighting with weak nailers that can't sink a nail. The SpotNails NPR90 is a heavy-duty, professional-grade pneumatic framing nailer built to drive 3-1/2" nails all day long. Whether you're framing new construction, laying down decking, or assembling pallets and crates, this is the reliable, top-load beast you need. It's a true workhorse, built with an ergonomic rubber grip to save your arm and a front exhaust to keep the air out of your face.
Key Features
-
Adjustable Depth Control: Easily dial in the perfect nail depth, from flush-sinking to countersinking, for a clean finish every time.
-
Selectable Actuation: Ships with a full sequential trigger and includes a contact (bump) actuation trigger kit, giving you the choice between precision or speed.
-
Top Load Aluminum Magazine: Durable, lightweight, and easy to reload on the fly, minimizing downtime.
-
Ergonomic Rubber Grip: Provides a comfortable and secure hold, reducing fatigue during all-day use.
-
Front Exhaust: Intelligently designed to direct air away from your face and your work surface.
What's Included
- (1) NPR90 Framing Nailer
- (1) Contact Actuation Trigger Kit
Specifications
SPOTNAILS NPR90 20°-22° ROUND HEAD PNEUMATIC FRAMING NAILER
Heavy-Duty Framing, Truss Assembly, Decking & Crating Technical Specifications
| Manufacturer & Model (SKU) |
Spotnails | NPR90 |
| Tool Classification |
Industrial Heavy-Duty Pneumatic Strip Framing Nailer |
| Fastener Collation & Angle |
20° to 22° Plastic-Collated Full Round-Head Framing Strip Nails |
| Fastener Length Range |
2 in to 3-1/2 in (50.8 mm to 88.9 mm) |
| Fastener Shank Diameter |
0.113 in to 0.148 in (2.87 mm to 3.76 mm) Smooth, Ring & Screw Shank |
| Operating Air Pressure |
80 to 110 PSI (5.5 to 7.6 bar / 552 to 758 kPa) |
| Firing Actuation Modes |
Selectable: Sequential Fire (Installed) with Included Contact (Bump) Fire Kit |
| Magazine Type & Loading |
Top-Load Extruded Aluminum Magazine with Heavy-Duty Pusher |
| Depth-of-Drive Adjustment |
Tool-Free Wheel Adjustment (Flush-Drive to Precise Countersink) |
| Exhaust Direction |
Front-Directed Deflector (Diverts Exhaust Air & Oil Away from Operator) |
| Housing & Handle Ergonomics |
High-Strength Aluminum Body with Molded Non-Slip Rubber Grip |
| Overall Dimensions (L × W × H) |
21.0 in × 4.0 in × 13.75 in (53.3 cm × 10.2 cm × 34.9 cm / 533 mm × 102 mm × 349 mm) |
| Operating Net Weight |
8.6 lbs (3.90 kg) |
| Primary Substrates & Applications |
Wall Framing, Truss Fabrication, Roof Decking, Subflooring, Pallets & Crating |
| Included Kit Hardware |
(1) NPR90 Framing Nailer, (1) Contact Actuation Trigger Assembly |
Air Volume & Fastener Collation Guidance
To consistently countersink 3-1/2" × .148" nails into dense engineered lumber (LVL), supply a continuous 90 to 105 PSI via a minimum 3/8" air hose. Always match collation angle strictly between 20° and 22° plastic strips to prevent feeding jams or driver blade skipping.
