Spotnails Brad Finish Nailer CB1650 16 Gauge (80 - 110 PSI Pneumatic Air Pressure 3/4 - 2 Inch Brads 115 Nail Aluminum Magazine Trim Cabinet Molding)
Couldn't load pickup availability

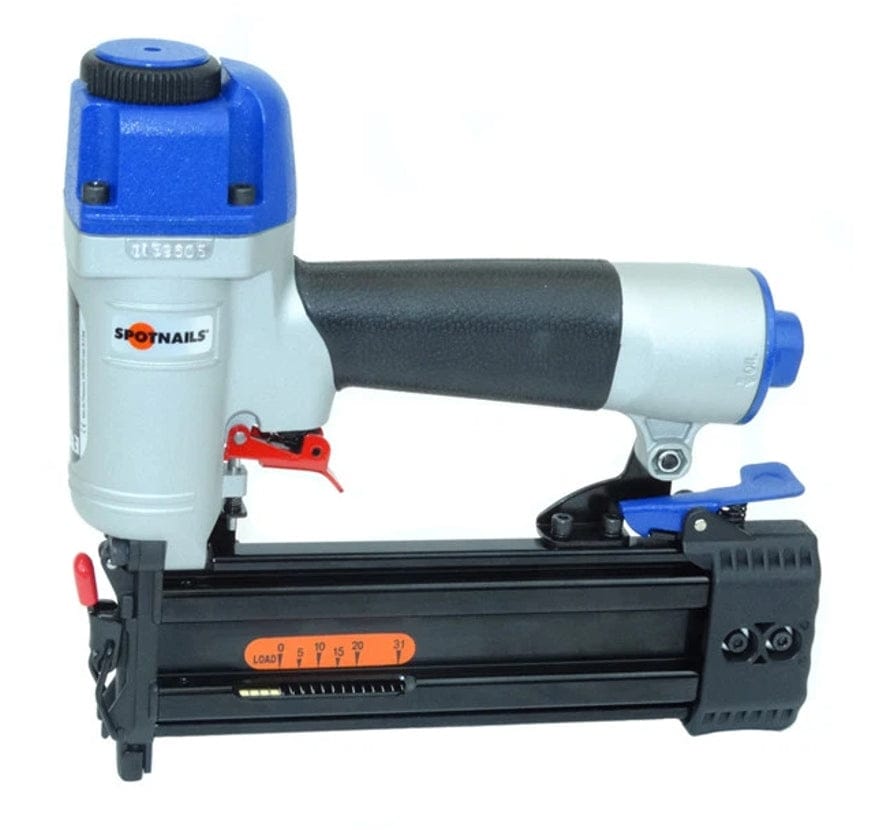

Spotnails CB1650 16-Gauge Pneumatic Brad Finish Nailer
The Spotnails CB1650 16-Gauge Pneumatic Brad Finish Nailer is an industrial finish fastening tool engineered for cabinet assembly, interior trim molding installation, furniture construction, and hardwood flooring installation. Operating within an air pressure range of 80 to 110 PSI, this pneumatic bradder drives 16-gauge straight brad nails from 3/4 inch to 2 inches in length. Outfitted with a 115-nail capacity side-load aluminum magazine, a quick-clear nose door for jam removal, a 360-degree adjustable exhaust deflector, adjustable depth of drive control, and a 2.4-pound lightweight frame, this pneumatic tool executes high-precision trim carpentry.
Best Used For:
- Cabinetry & Furniture Frame Construction: Securing face frames, drawer boxes, and cabinet carcasses without splitting decorative hardwood surfaces.
- Interior Trim & Crown Molding Installation: Fastening baseboards, chair rails, door casings, and crown moldings flush against wall framing.
- Hardwood Flooring Starter Strip Setting: Blind-nailing hardwood tongue-and-groove floor boards close to wall perimeters where floor staplers cannot reach.
Key Performance & Safety Features
- 16-Gauge Fastener Drive Engine: Drives standard 16-gauge straight brad finish nails from 3/4 in. up to 2 in. into dense hardwoods.
- 80 to 110 PSI Operating Range: Operates efficiently on standard jobsite air compressors to maintain consistent fastener countersinking.
- Ultra-Lightweight 2.4-Pound Housing: Compact ergonomic aluminum body minimizes operator wrist fatigue during extended overhead trimming.
- 115-Nail Aluminum Side-Load Magazine: High-capacity aluminum rail housing resists jobsite drops while ensuring rapid fastener reloading.
- Tool-Free Quick-Clear Nose Assembly: Latch-style nosepiece opens instantly to clear jammed brads without requiring hex wrenches.
- 360-Degree Adjustable Air Exhaust: Rotatable exhaust cap channels oil mist and spent air away from the user and finished wood workpieces.
What's Included
- (1) Spotnails CB1650 16-Gauge Pneumatic Brad Finish Nailer
- (1) Heavy-Duty Molded Plastic Carrying Case
- (1) Pair of Protective Safety Glasses
- (1) Bottle of Pneumatic Tool Lubricating Oil
- (1) Operating Manual and Parts Breakdown Diagram
Technical Specifications
| Brand / Manufacturer | Spotnails |
| Model / Part Number | CB1650 |
| Fastener Gauge Rating | 16 Gauge (16GA) |
| Fastener Type Compatibility | Straight Brad Nails / Finish Brads |
| Fastener Length Range Capacity | 3/4 in. to 2.0 in. (19 mm to 50 mm) |
| Operating Air Pressure Range | 80 – 110 PSI (5.5 – 7.6 Bar) |
| Total Magazine Loading Capacity | 115 Brad Nails |
| Magazine Loading & Material | Side-Load Extruded Aluminum |
| Actuation Firing Modes | Contact Actuation (Bump) & Full Sequential (Includes Trigger) |
| Air Exhaust Direction Control | 360° Rotatable Manual Exhaust Deflector |
| Overall Tool Body Length | 10.5 in. (266.7 mm) |
| Assembled Net Tool Weight | 2.4 lbs (1.09 kg) |
Pro-Tip: Add 3 to 5 drops of pneumatic tool oil directly into the air inlet fitting before connecting your air hose each morning; continuous lubrication protects internal O-rings and prevents driver blade binding in hardwood trim.
