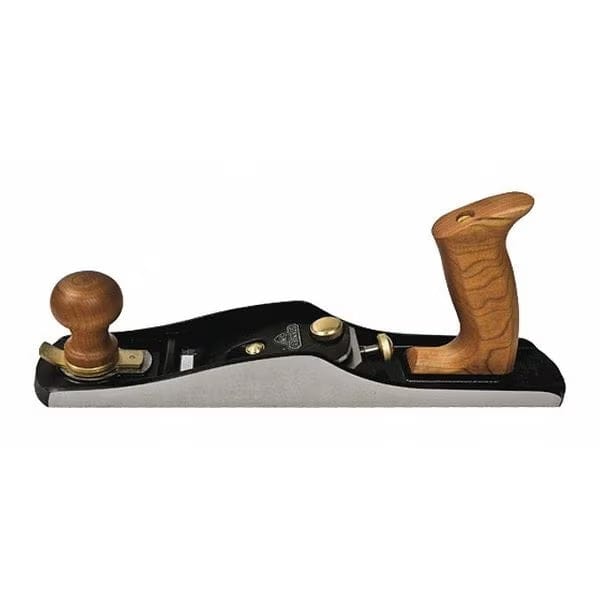

Angled studio view of the Stanley Sweetheart No. 62 low angle jack plane, highlighting the precision-ground silver sides, black iron body, solid cherry wood handles, and brass adjustment hardware.

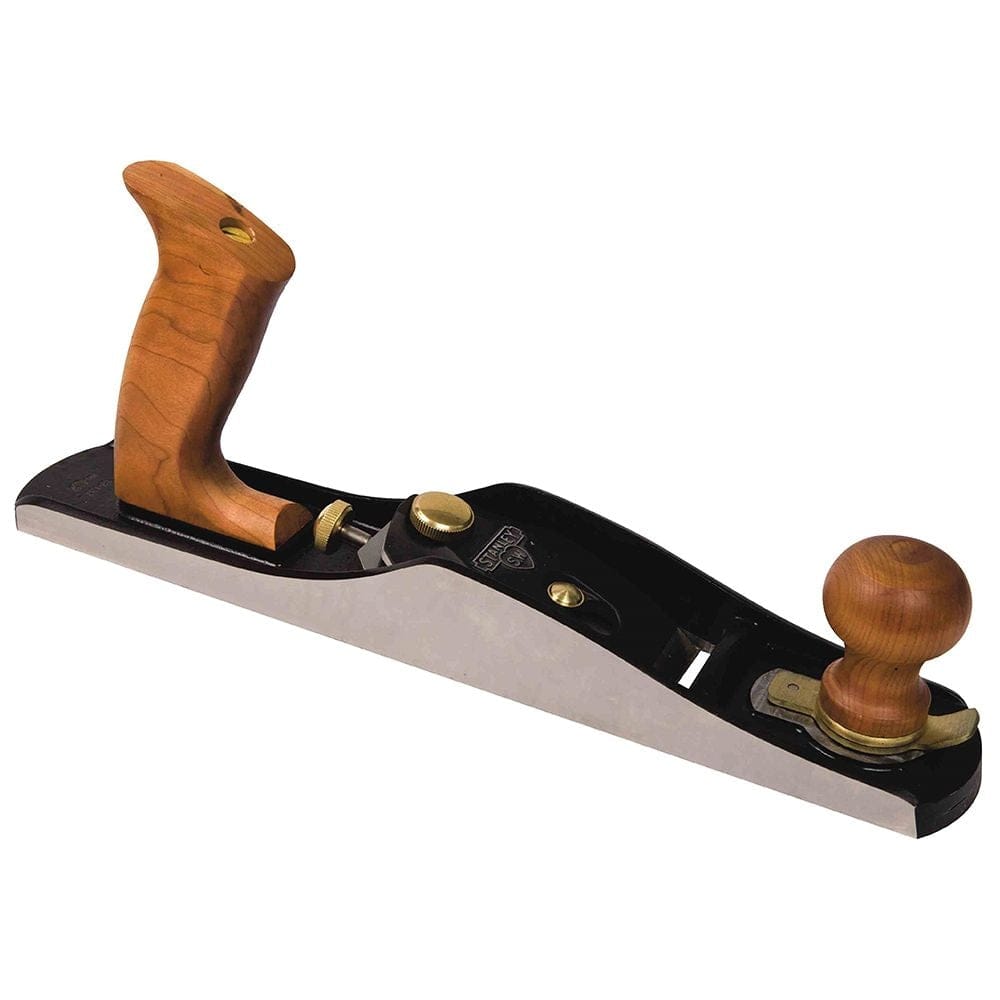

Side profile view of the Stanley low angle jack plane, displaying the long flat sole, the low bedding angle of the iron, and the ergonomic curves of the wooden tote and knob.
Angled studio view of the Stanley Sweetheart No. 62 low angle jack plane, highlighting the precision-ground silver sides, black iron body, solid cherry wood handles, and brass adjustment hardware.
Side profile view of the Stanley low angle jack plane, displaying the long flat sole, the low bedding angle of the iron, and the ergonomic curves of the wooden tote and knob.
Stanley

Stanley 12-137 Sweetheart No 62 Low Angle Jack Plane with A2 Steel Blade and Cherry Handles for Precision Woodworking and End Grain Smoothing

Only 1 left
SKU: 12-137
$154.98

Description

Experience Premium Precision with a Modern Classic

Rediscover the joy of hand-tool woodworking with the Stanley 12-137 Sweetheart™ No. 62 Low Angle Jack Plane. Modeled after the legendary design favored by master craftsmen, this versatile plane is engineered for superior performance on the most difficult wood grains. The body is cast from heavy-duty ductile iron, providing the weight and stability needed to glide through cuts without chatter. At the heart of this tool is an extra-thick 3/16-inch A2 steel blade, known for its exceptional ability to hold a razor-sharp edge significantly longer than standard carbon steel, allowing you to work longer between sharpenings.

Designed for both heavy stock removal and delicate finishing, this "Jack" plane features a 12-degree low-angle bed, making it the ultimate weapon against end grain, knots, and figured woods where tear-out is a concern. The integrated Norris-style adjuster combines lateral and depth adjustments into a single mechanism for intuitive, micro-fine tuning. Finished with solid cherry wood handles (tote and knob) for ergonomic comfort and a touch of elegance, this tool is not just a workhorse—it is an heirloom-quality instrument essential for any serious joinery or furniture-making shop.

Key Features

  • Premium Sweetheart™ Construction: Based on the classic No. 62 design with modern material improvements.
  • Heavy-Duty Blade: Features a 3/16 in. thick A2 steel blade for superior edge retention and reduced chatter.
  • Low Angle Geometry: 12-degree bed angle is ideal for shearing end grain and planing highly figured wood without tear-out.
  • Durable Body: Base is machined from ductile iron, offering greater durability and shock resistance than grey iron.
  • Precision Adjustment: Norris-style adjuster allows for easy, single-point control over both blade depth and lateral alignment.
  • Adjustable Throat: The adjustable mouth plate allows you to close the throat for fine shavings or open it for coarse removal.
  • Ergonomic Comfort: Fitted with solid FSC-certified cherry wood handles for a comfortable, secure grip and classic aesthetic.
  • Precision Ground Sole: The sole and sides are precision ground for flatness and squareness right out of the box.

What's Included

(1) Stanley 12-137 No. 62 Low Angle Jack Plane

Specifications

Brand Stanley
Model Number 12-137
Hand Plane Type Low Angle Jack / Bench Plane
Style No. 62
Blade Width 2 in. (1.98 in.)
Blade Material A2 Steel
Blade Thickness 3/16 in. (4.75 mm)
Bed Angle 12 Degrees
Handle Material Cherry Wood
Body Material Ductile Iron
Sole Length Approx. 14 in.
Adjustment Type Norris Style
Pro Tip: The No. 62 is famously known as the best plane for using on a "shooting board." Because the sides are ground perfectly square to the sole, you can lay this plane on its side to trim the ends of boards (end grain) to perfect 90-degree or 45-degree angles. Keep the adjustable mouth closed tight (small gap) when doing this to support the wood fibers and prevent them from breaking out.
