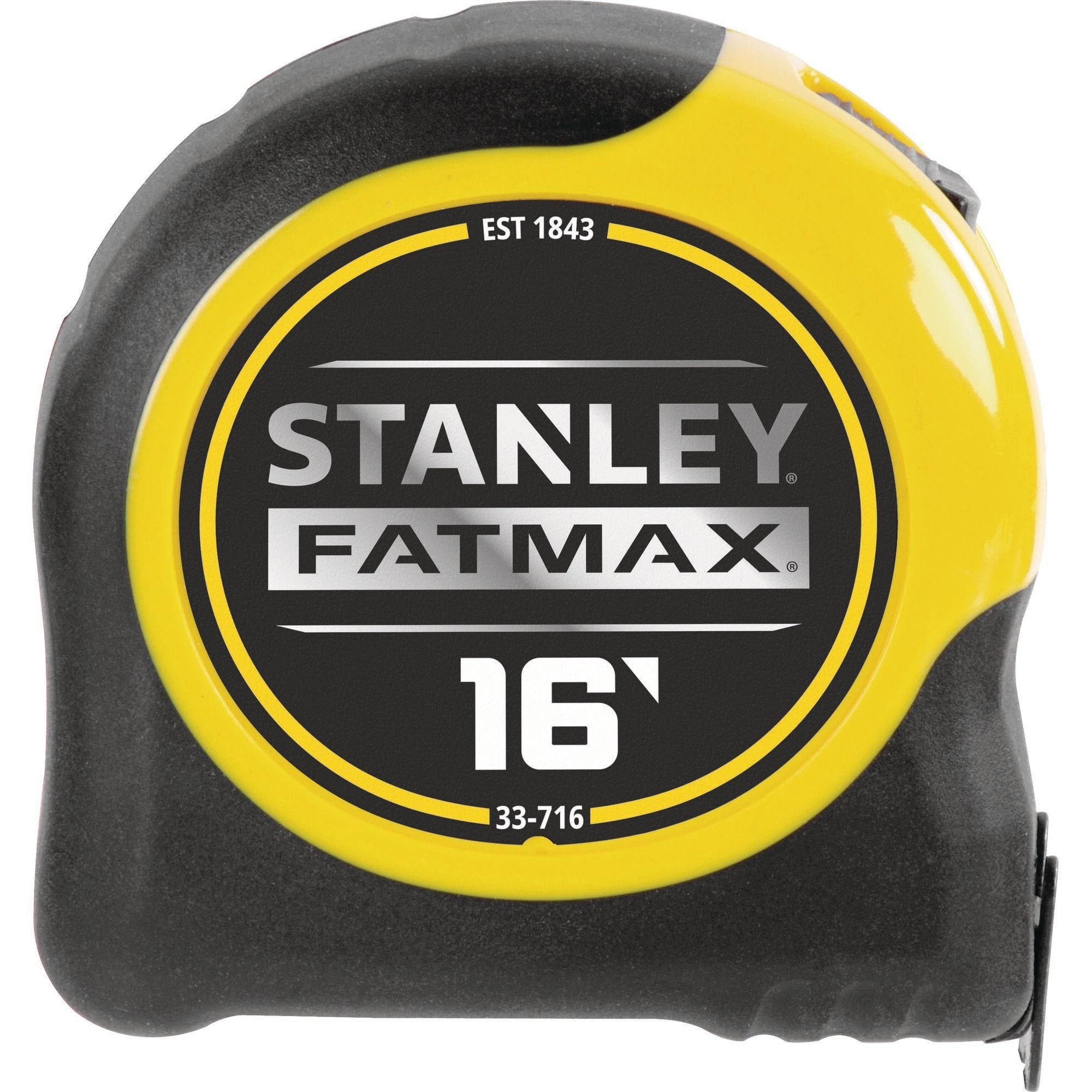

A direct side-profile studio photograph of the yellow and black Stanley FatMax 16-foot tape measure case, showcasing the circular center brand badge with the model numbers and full-scale product specifications against a pure white background.

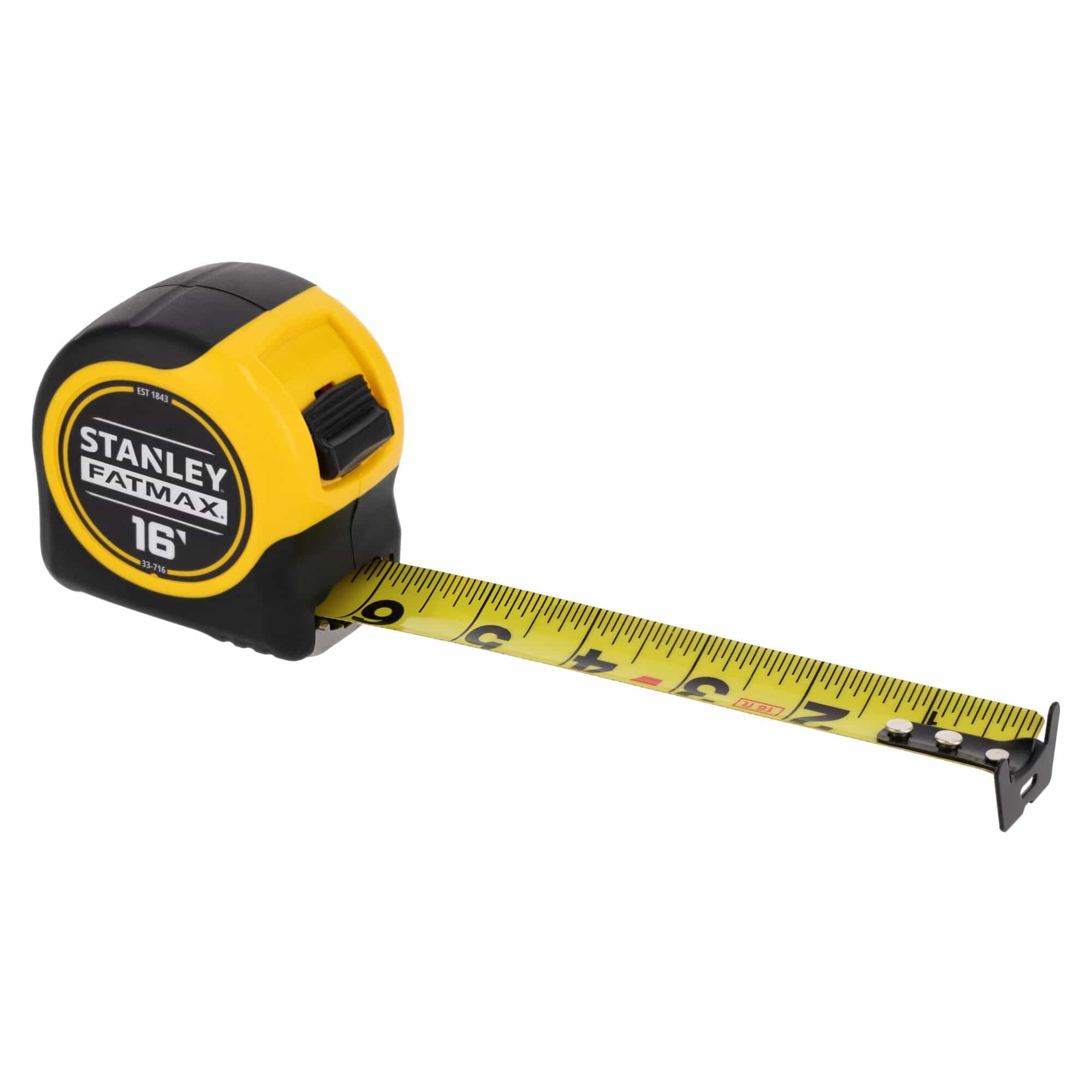

An isometric product perspective shot of the extended Stanley FatMax 16-foot pocket rule, illustrating the high-contrast yellow steel measuring blade with printed fractional markers rolling out through the front slot mouth.

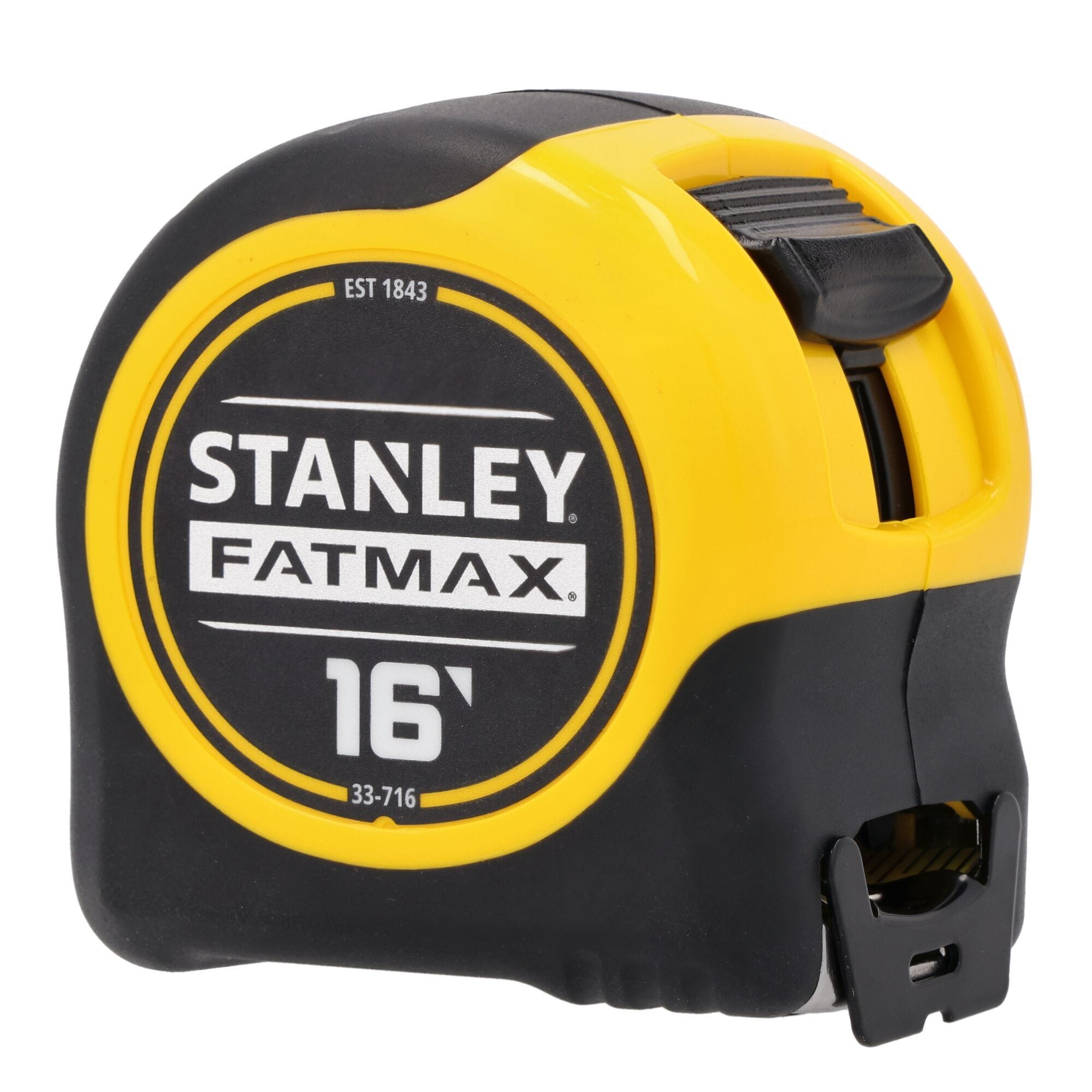

A three-quarter front angle studio product layout of the closed Stanley FatMax measuring device, displaying the black textured rubber cushion over-mold chassis and the prominent top-forward thumb lock slider tab.

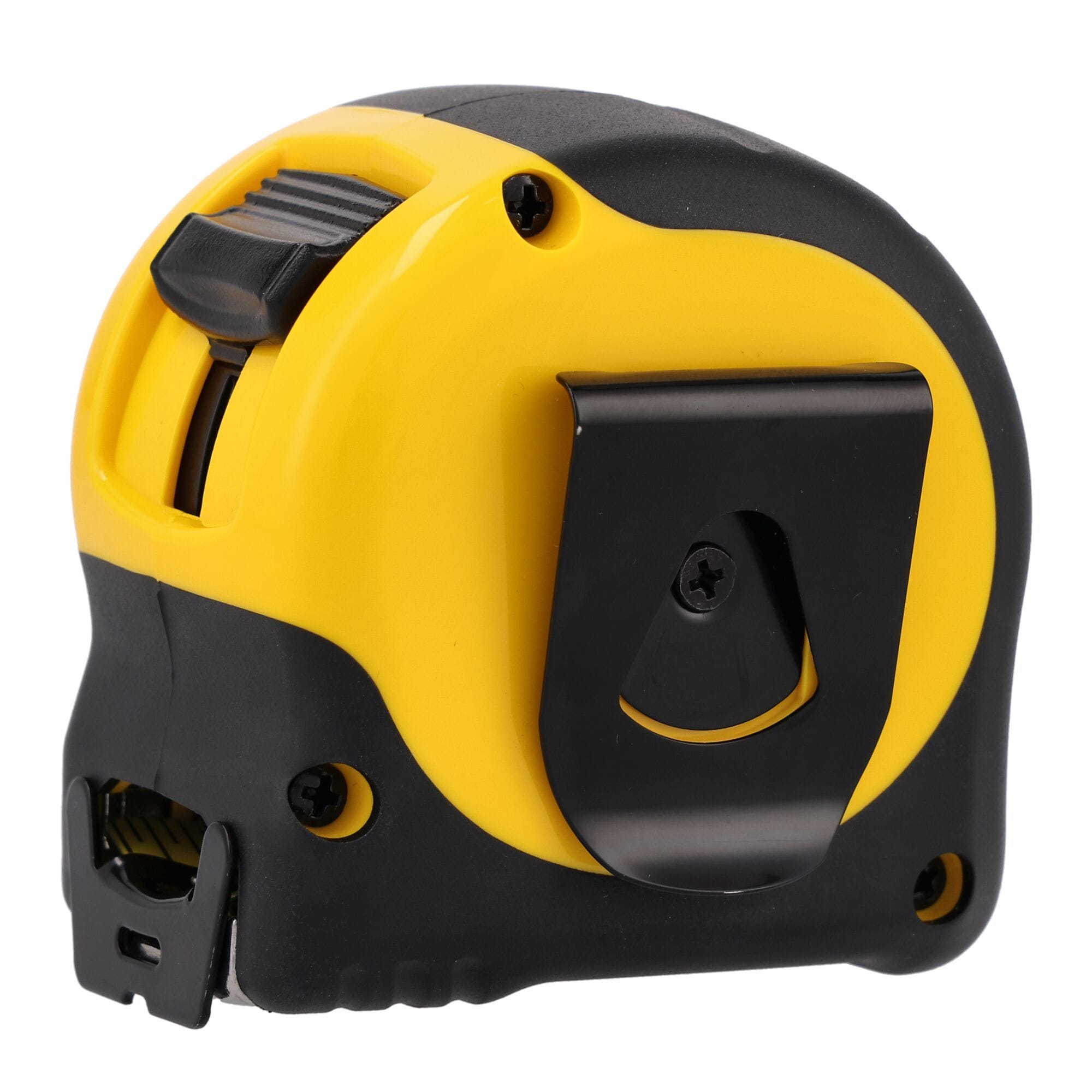

A reverse three-quarter rear perspective view of the compact Stanley FatMax measuring tape housing, showcasing the black steel spring-tempered belt clip attached securely to the yellow plastic frame body via a recessed center screw.
STANLEY - Reach Matters Most promotional video
A direct side-profile studio photograph of the yellow and black Stanley FatMax 16-foot tape measure case, showcasing the circular center brand badge with the model numbers and full-scale product specifications against a pure white background.
An isometric product perspective shot of the extended Stanley FatMax 16-foot pocket rule, illustrating the high-contrast yellow steel measuring blade with printed fractional markers rolling out through the front slot mouth.
A three-quarter front angle studio product layout of the closed Stanley FatMax measuring device, displaying the black textured rubber cushion over-mold chassis and the prominent top-forward thumb lock slider tab.
A reverse three-quarter rear perspective view of the compact Stanley FatMax measuring tape housing, showcasing the black steel spring-tempered belt clip attached securely to the yellow plastic frame body via a recessed center screw.
STANLEY - Reach Matters Most promotional video
Stanley

Stanley Tape Measure 33-716 16 Foot FatMax 1-1/4 Inch Wide Blade (11 Ft Standout BladeArmor Rubber Grip Retractable Mechanical Layout Rule)

In stock
SKU: 33-716T
$17.95 USD

Description

Stanley Logo logout

Stanley FatMax 33-716 16 Foot x 1-1/4 Inch BladeArmor Retractable Tape Measure

The Stanley FatMax 33-716 16-Foot Tape Measure functions as a mechanical layout measuring rule engineered to execute one-person framing layouts, subfloor measurements, and drywall sizing. Featuring a 1-1/4-inch wide steel blade, an 11-foot standout, a 14-foot total reach, BladeArmor thermoplastic reinforcement on the first 6 inches, and a rubberized high-impact case, this measuring tape allows solo operators to span distances without blade buckling. Outfitted with a top-forward thumb lock, a multi-catch end hook, and a stainless steel wear plate, this 16-foot rule provides 10X blade durability during framing, carpentry, and masonry applications.

Best Used For:

  • Solo Framing & Ceiling Joist Layouts: Extending across 11-foot open spans without assistance to measure wall studs, rafters, and floor joist layouts.
  • Subfloor & Drywall Panel Sizing: Verifying sheet goods, plywood subfloors, and drywall panel dimensions using the multi-catch end hook.
  • High-Impact Jobsite Measuring: Operating in drop-prone framing environments utilizing the shock-absorbing rubberized cushion grip casing.

Key Performance & Safety Features

  • 11-Foot Standout / 14-Foot Reach: Extra-wide 1-1/4-inch blade geometry provides 11 feet of rigid standout for single-operator measuring.
  • Patented BladeArmor Coating: Thermoplastic coating shields the first 6 inches of the blade to prevent tape snapping and hook-zone fatigue.
  • Oversized Multi-Catch End Hook: Versatile hook profile grips workpiece edges securely from top, bottom, or lateral surface angles.
  • High-Impact Cushion Grip Case: Ergonomic composite shell wrapped in non-slip rubber protects internal recoil mechanics from drop impacts.
  • Stainless Steel Wear Plate: Metallic guard plate at the case mouth prevents the retracting steel blade from cutting the housing frame.
  • Top-Forward Thumb Lock: Positive-locking sliding button mechanics allow single-thumb blade locking and controlled retraction speed.

What's Included

  • (1) Stanley FatMax 16-Foot Tape Measure with BladeArmor (33-716)

Technical Specifications

Brand Manufacturer Stanley Tools
Model Part Number OEM SKU 33-716 (FatMax® Series)
Measuring Tool Classification Retractable Mechanical Steel Tape Measure
Blade Length Capacity 16.0 ft. (4.88 m)
Blade Nominal Width 1.25 in. (1-1/4 in. / 31.75 mm)
Maximum Unassisted Standout 11.0 ft. (3.35 m)
Maximum Operational Reach 14.0 ft. (4.27 m)
Blade Protective Coating BladeArmor Thermoplastic Coating (First 6 in.)
Chassis Lock Mechanism Top-Forward Sliding Mechanical Lock
Wear Resistance Feature Stainless Steel Anti-Cutter Front Plate
Ergonomic Grip Coating Non-Slip Impact-Resistant Rubberized Cushion Grip
Total Item Net Weight 1.15 lbs. (0.52 kg)
California Proposition 65 Warning Required (Yes)
Manufacturer Warranty Coverage Lifetime Limited Protection Against Factory Defects

Pro-Tip: When taking long 11-foot standout measurements with the FatMax 33-716, cup the tape measure body from underneath and extend the blade with a steady, fluid movement. Avoid sharp whipping motions when pulling the blade past 10 feet to maintain structural blade crown curvature and prevent premature buckle snaps.
