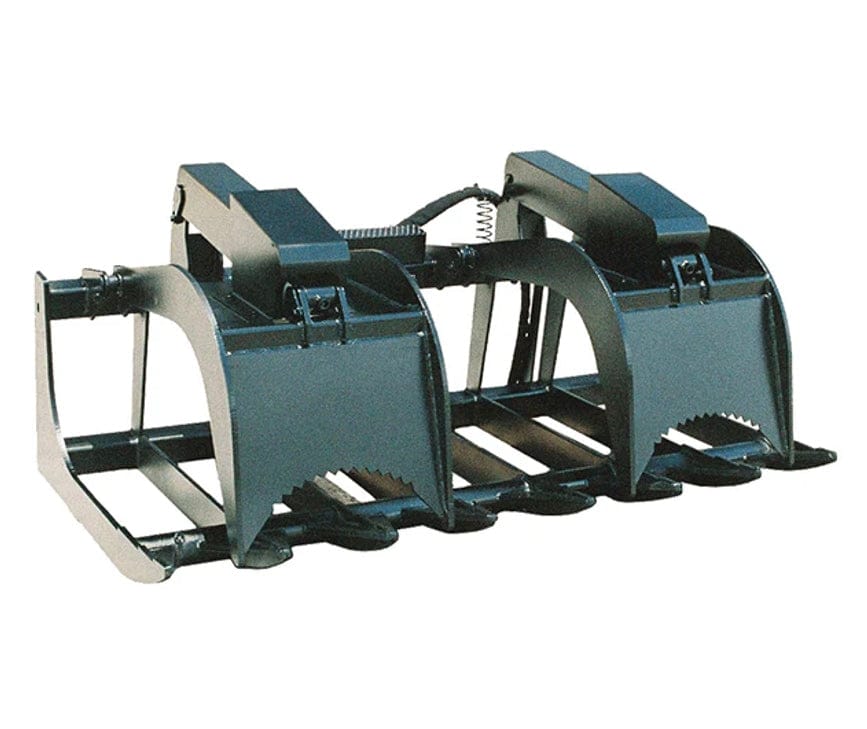

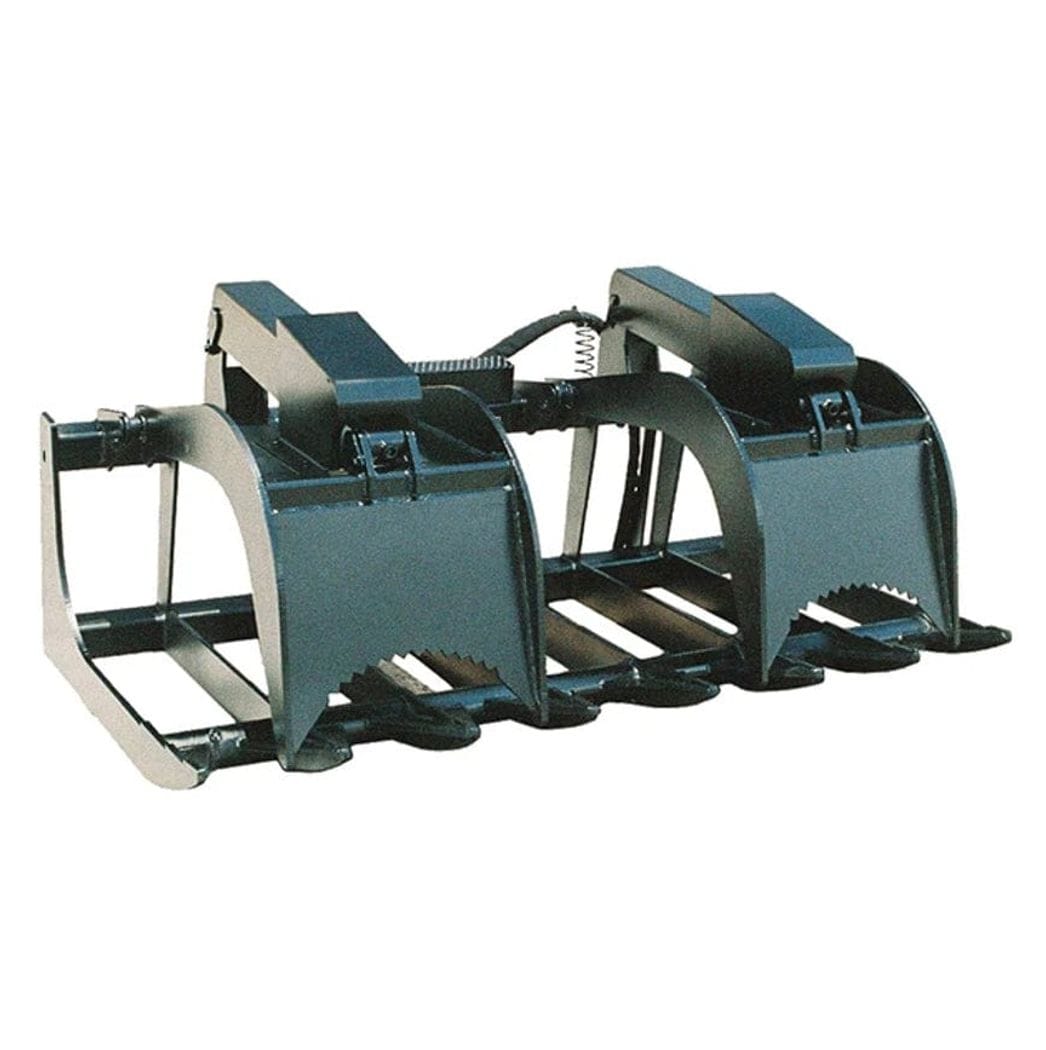

Front studio shot of the 72-inch skid steer root grapple with both upper claws closed against the bottom tines, showcasing the heavy-duty reinforced steel plate construction and flat-faced couplers.
Front studio shot of the 72-inch skid steer root grapple with both upper claws closed against the bottom tines, showcasing the heavy-duty reinforced steel plate construction and flat-faced couplers.

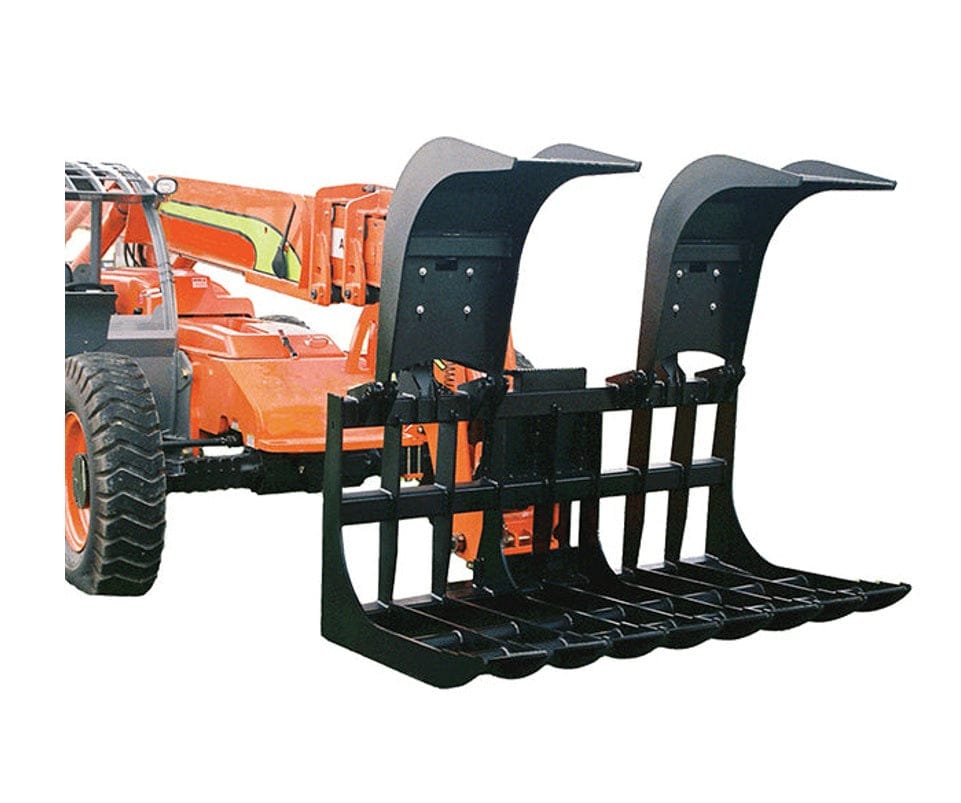

Star Industries root grapple mounted on an orange telehandler machine, shown in an open position against a white background to illustrate the attachment compatibility and clamping width.

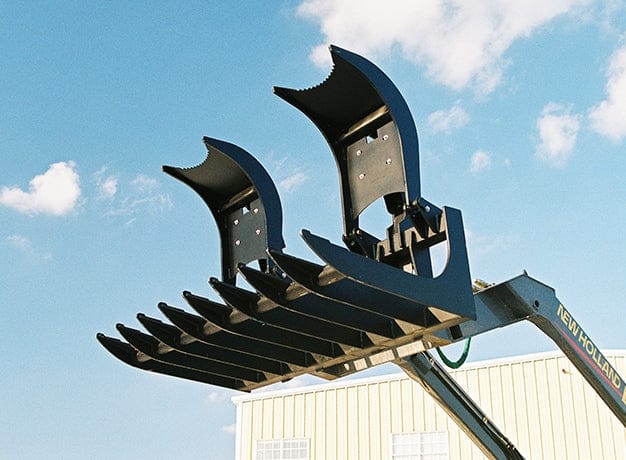

Low angle shot of the root grapple attached to a loader arm and raised against a blue sky, with both hydraulic claws fully extended open to demonstrate the vertical jaw range and tine spacing.

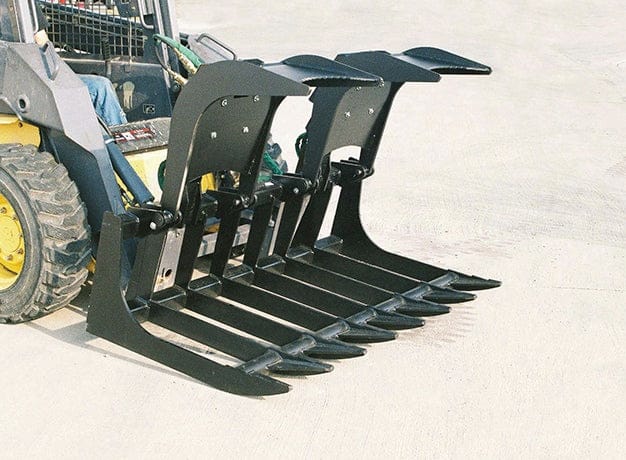

High angle view of the root grapple attached to a skid steer loader resting on a concrete surface, showing the dual independent hydraulic clamps in the open position and the protected hydraulic cylinder housings.

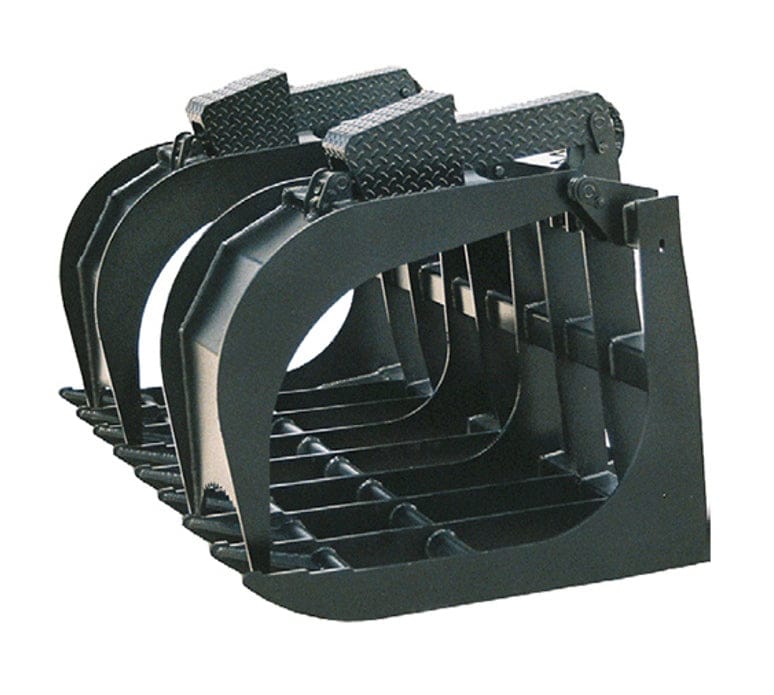

Studio angle view of the heavy-duty root grapple constructed from black steel, highlighting the curved tine geometry, serrated teeth on the upper claws, and the open bottom design for debris sifting.

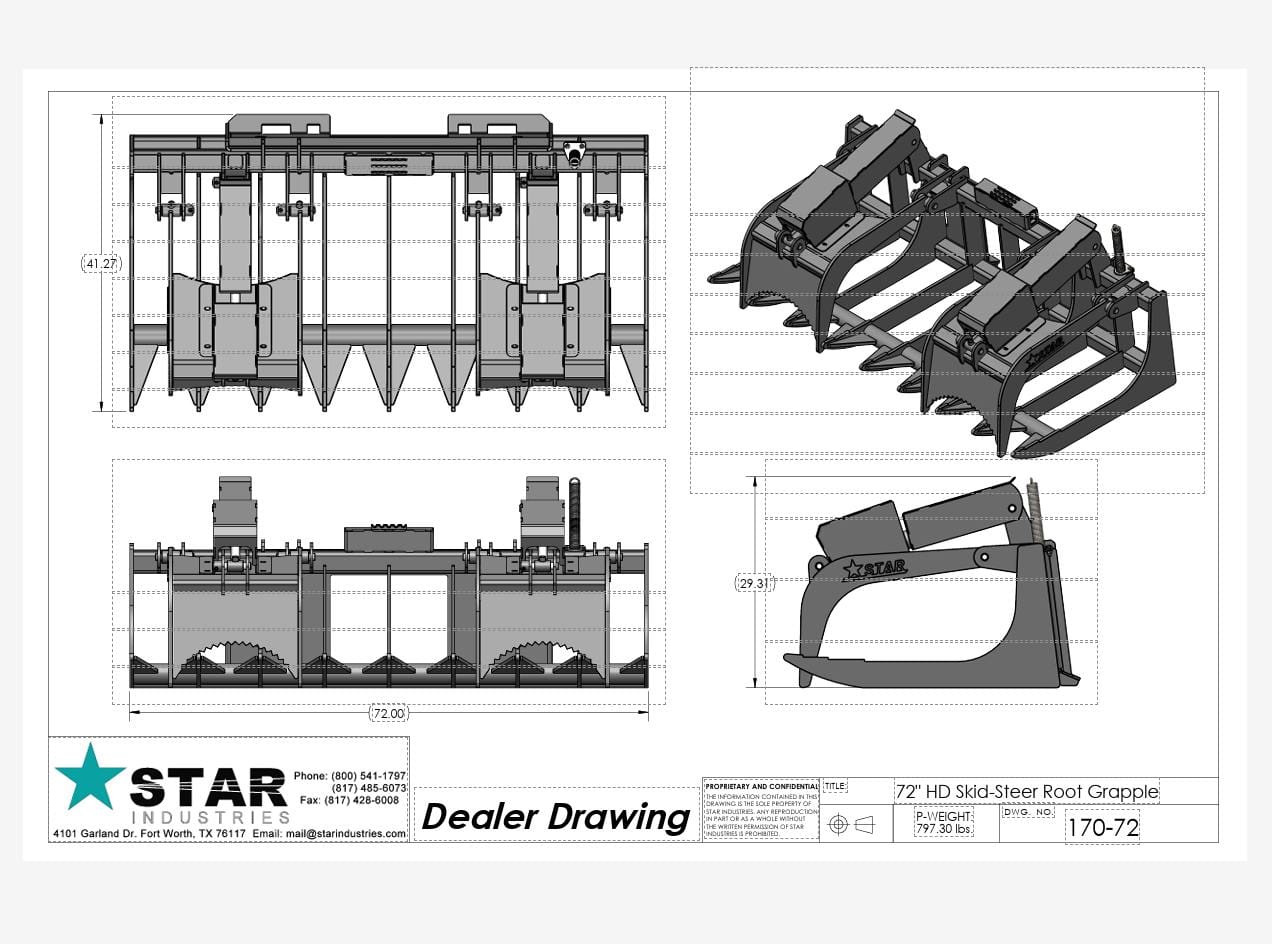

Technical dealer drawing displaying four views of the 170-72 grapple including front, top, side, and isometric perspectives, detailing dimensions such as the 72-inch width and 29.31-inch height along with the Star Industries logo.
Star Industries | Skid Steel Grapple Bucket promotional video
Front studio shot of the 72-inch skid steer root grapple with both upper claws closed against the bottom tines, showcasing the heavy-duty reinforced steel plate construction and flat-faced couplers.
Front studio shot of the 72-inch skid steer root grapple with both upper claws closed against the bottom tines, showcasing the heavy-duty reinforced steel plate construction and flat-faced couplers.
Star Industries root grapple mounted on an orange telehandler machine, shown in an open position against a white background to illustrate the attachment compatibility and clamping width.
Low angle shot of the root grapple attached to a loader arm and raised against a blue sky, with both hydraulic claws fully extended open to demonstrate the vertical jaw range and tine spacing.
High angle view of the root grapple attached to a skid steer loader resting on a concrete surface, showing the dual independent hydraulic clamps in the open position and the protected hydraulic cylinder housings.
Studio angle view of the heavy-duty root grapple constructed from black steel, highlighting the curved tine geometry, serrated teeth on the upper claws, and the open bottom design for debris sifting.
Technical dealer drawing displaying four views of the 170-72 grapple including front, top, side, and isometric perspectives, detailing dimensions such as the 72-inch width and 29.31-inch height along with the Star Industries logo.
Star Industries | Skid Steel Grapple Bucket promotional video
Star Industries

Star Industries Skid Steer Root Grapple 170-72 72 Inch Heavy Duty (17.2 Cu Ft Capacity 1/2 Steel Tines Dual Hydraulic Cylinders Debris Cleanup)

Only 1 left
SKU: 170-72
$3,700.00 USD

Shipping Quote Required

Request a Shipping Quote
Description

High-Density 72 Inch Heavy Duty Skid Steer Root Grapple with Dual Independent Hydraulic Cylinders

Call or Email for Availability and Shipping:
281-351-2211 - Sales@HilltopTool.com

The Star Industries 170-72 72-Inch Skid Steer Root Grapple Attachment delivers an industrial site clearing and demolition solution engineered to haul bulky logs, thick brush, concrete slabs, and storm debris across tough terrain. Constructed from 1/2-inch thick high-tensile steel plates, this heavy-duty 750-pound attachment features a 17.2 cubic feet capacity and dual 2-inch by 10-inch welded hydraulic cylinders that clamp independently to secure uneven or irregular loads. The system incorporates widely spaced 3-1/2-inch high tines with approximately 8-1/2-inch spacing to sift out topsoil during operations, while upward-curved tine tips prevent snagging underground cables or utility lines during commercial site preparation and storm cleanup tasks.

Best Used For:

  • Commercial Land Clearing: Moving bulky tree trunks, roots, and dense brush piles while leaving topsoil behind via the open-bottom tine layout.
  • Demolition Site Cleanup: Clamping jagged concrete pieces, discarded lumber, and structural debris using independent dual hydraulic clamp jaws.
  • Storm Damage Restoration: Clearing fallen timber and branch piles along utility corridors without snagging overhead or shallow buried utility infrastructure.

Key Performance & Safety Features

  • Dual Independent Jaws: Twin 2-inch by 10-inch welded hydraulic cylinders apply equal clamping pressure around misshapen or off-center objects.
  • 1/2-Inch Steel Plate Core: Heavy-duty 1/2-inch thick steel tines, side plates, and grapple jaws resist bending under intense torsional loads.
  • Soil-Sifting Tine Layout: Spaced tines (approx. 8-1/2 inches apart) filter out loose dirt and small rock fill to reduce payload weight.
  • Upward-Curved Tine Safety: Specially angled bottom tine tips glide over surfaces to avoid hooking underground utility cables or buried lines.
  • Protected Hydraulic Components: Integrated steel shields cover hydraulic hose connections, cylinder rods, and greasable tube zerks from impact.

What's Included

  • (1) Star Industries 72" Root Grapple (Model 170-72)
  • (1) Set of Hydraulic Hoses
  • (1) Set of Quick-Disconnect Flat-Faced Couplers

Available for pickup at our Tomball, TX location:

30702 State Highway 249
Tomball, Texas 77375

Monday-Friday 7am-5pm CST
Saturday 7am-1pm CST

Technical Specifications

Brand Name Star Industries
Model Number SKU 170-72
Attachment Classification Skid Steer Heavy-Duty Root Grapple
Overall Attachment Width 72.0 in.
Volumetric Grapple Capacity 17.2 cu. ft.
Empty Operating Weight 750 lbs.
Overall Frame Depth 35.5 in. (35-1/2 in.)
Back Frame Height 21.0 in.
Plate Steel Thickness 0.50 in. (1/2 in. Tines, Grapple, & Side Plates)
Tine Profile Height 3.5 in. (3-1/2 in.)
Tine Spacing Gap Approx. 8.5 in. (8-1/2 in.)
Hydraulic Cylinder Spec Dual 2.0 in. x 10.0 in. Welded Cylinders
Mounting Interface Type Universal Skid Steer Quick-Attach (SSQA)
Local Pickup Availability 30702 State Highway 249, Tomball, TX 77375

Pro-Tip: When back-dragging land-clearing sites to collect scattered brush, tilt the grapple attachment forward so only the upward-curved tine tips make contact with the soil. This prevents the teeth from digging deep ruts while sweeping up loose branches and debris into neat, manageable piles.
