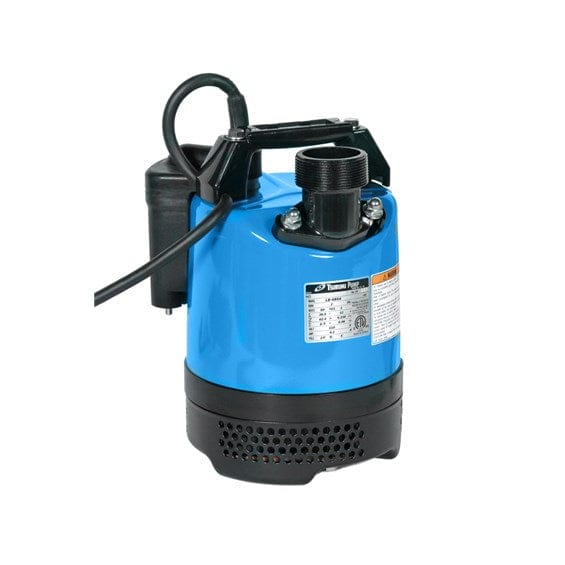

Tsurumi 2" Automatic Submersible Dewatering Pump

The LB-480A features Relay Unit (Level Sensor) which incorporates low voltage, stainless steel probes, epoxy and rubber encapsulated timing relay, that turns the unit off when water is not present. It saves energy and extends the life of the motor and bearings!

FEATURES

• No control panel or float switches required
• Performs like the non-automatic pump with no special float installation required
• Requires very small space to operate - only 8 3/4" diameter
• Sensitive electrodes detect water to start pump operation even when foreign materials are present
• Internal 60-second timer eliminates frequent on/off operation in rough water to extend motor life
• Relay sensor completely molded in resin and covered by rubber case for protection against rough handling
• Jobsite tested for more than 30,000 on-off cycles without failure or damage

SPECIFICATIONS

• MODEL: LB-480A
• MOTOR OUTPUT (HP): 2/3 HP
• PHASE: Single
• DISCHARGE BORE (IN): 2"
• CABLE LENGTH (FT): 32'
• DIMENSIONS (DIA. x H, IN): 8-3/4" x 11-1/4"

• CONT. RUNNING WATER LEVEL (IN): 4-1/2"

• SHIPPING WEIGHT: 29 lbs
