UCT Gem Carbide Rotary Burr SC-5 1/2 Inch (1/4 Inch Shank Tungsten Carbide Tree Shape Double Cut 20000 Max RPM Weld Grinding Steel Porting)

UCT Gem Carbide SC-5 1/2-Inch Tree Shape Carbide Rotary Burr

The UCT Gem Carbide SC-5 1/2-Inch Tree Shape Carbide Rotary Burr is a specialized rotary grinding and deburring bit engineered for blending internal weld seams, grinding narrow V-grooves, shaping acute-angled contours, and porting cylinder heads without clogging in restricted clearances. Rated for operational speeds up to 20,000 RPM on a standard 1/4-inch steel shank, this tungsten carbide head bit features a radius-end tree profile and double-cut cross-flute geometry that breaks material into fine chips to eliminate chatter. Outfitted with a 1/2-inch head diameter and a 1-inch length of cut across a 2-3/4-inch overall length, this 0.25-pound rotary tool accessory executes high-volume metal removal.

Best Used For:

• Acute-Angle & V-Groove Joint Grinding: Reaching deep into narrow angled weld preparations and tight interior corners to remove heavy bead material.
• Internal Contouring & Recessed Deburring: Shaving sharp flash lines and burs from narrow cavities in steel castings and machined structural fabrications.
• Engine Head & Intake Manifold Porting: Enlarging, shaping, and smoothing curved internal runner transitions and port walls in automotive cylinder heads.

Key Performance & Safety Features

• Tungsten Carbide Cutting Head: High-density carbide composition maintains cutting edge hardness under intense frictional heat during heavy grinding.
• Tree Shape Radius-End (SC-5) Profile: Tapered tree geometry provides maximum clearance in narrow V-cuts, acute angles, and tight fillets.

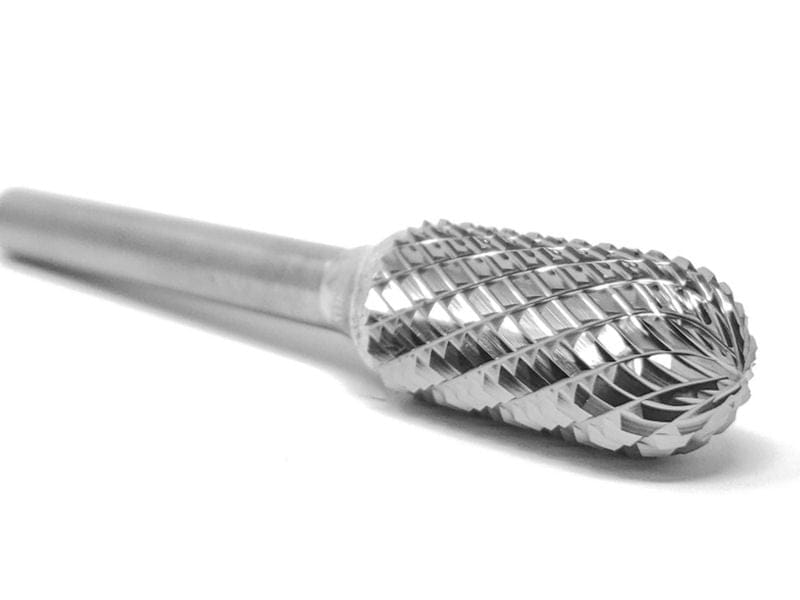

• Double-Cut Cross-Flute Design: Opposing cutting flutes produce granular metal chips to minimize tool chatter and deliver smooth surface finishes.
• 20,000 Maximum RPM Speed Rating: Precision-balanced construction accommodates pneumatic and electric 1/4-inch die grinders at full operating speed.
• Hardened 1/4-Inch Steel Shank: Precision-ground steel shank mounts securely into standard 1/4-inch collets to eliminate rotational runout.
• Multi-Metal Substrate Compatibility: Cuts efficiently through structural steel, cast iron, stainless steel, brass, bronze, and aluminum alloys.

What's Included

• (1) UCT Gem Carbide SC-5 1/2-Inch Double Cut Tree Shape Solid Carbide Burr

Technical Specifications

Pro-Tip: Guide the tapered tree head smoothly through narrow V-grooves without jamming; maintaining steady die grinder speeds near 20,000 RPM with light pressure prevents tooth chipping and ensures even stock removal.
