UCT

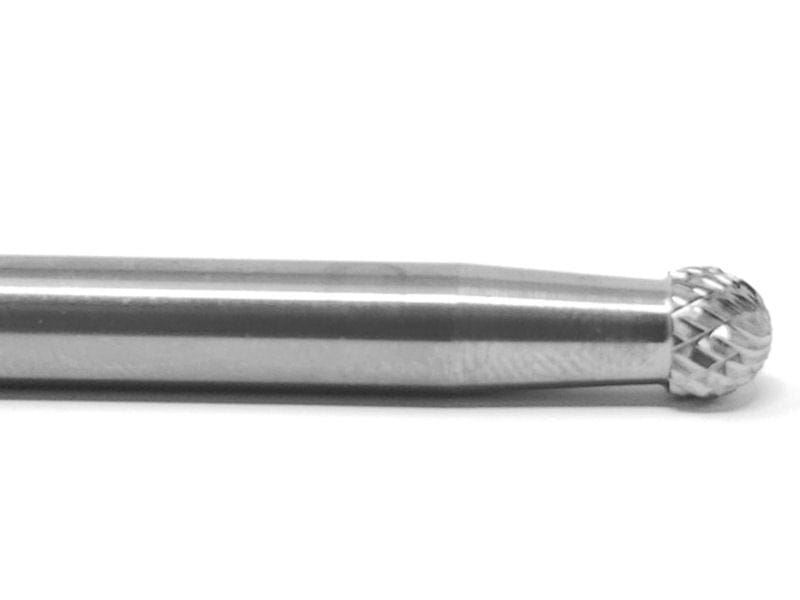

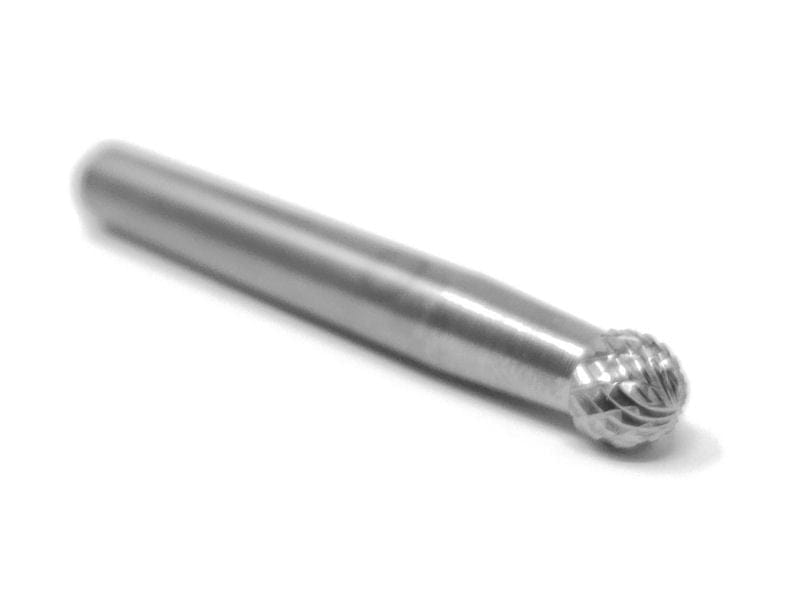

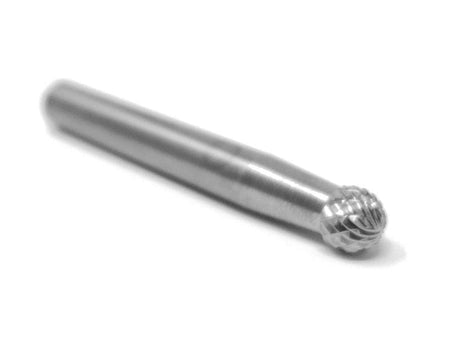

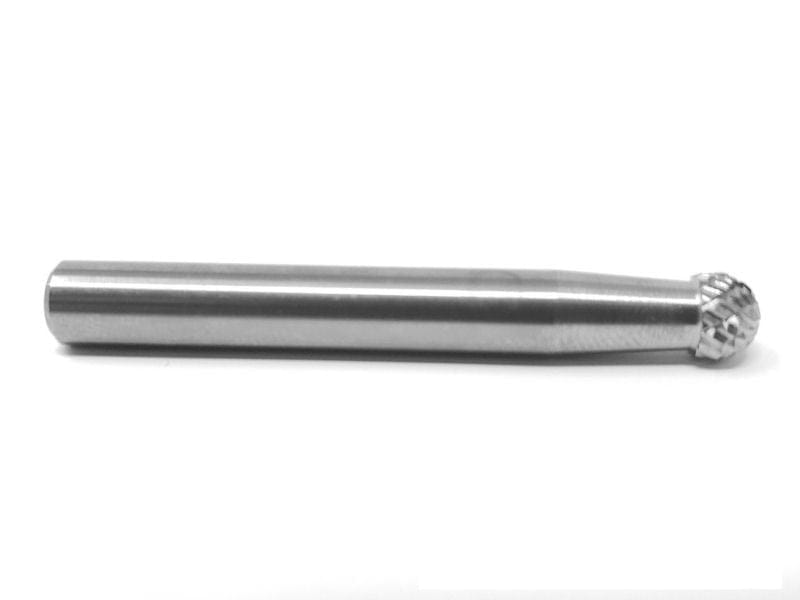

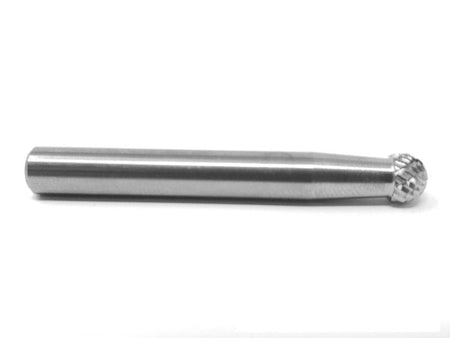

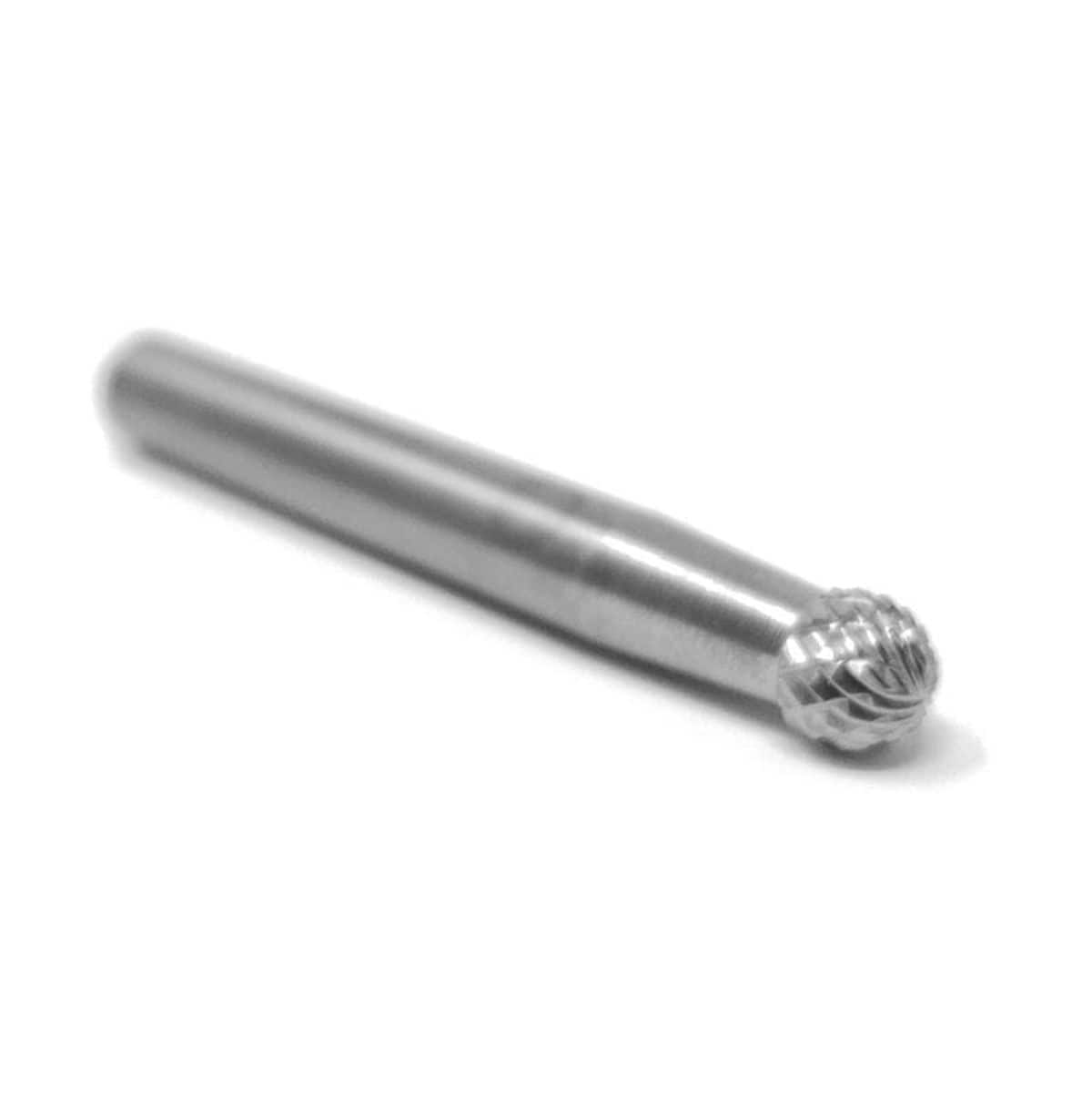

UCT Gem Carbide SD-1 1/4-Inch Double Cut Ball Shape Solid Carbide Burr 1/4-Inch Shank for Metal Grinding Hollowing and Deburring Steel

In stock
SKU: 600-SD-1-DBL
Regular price $10.95

The Go-To Burr for Hollowing and Shaping

When you need to hollow out a workpiece, create a concave profile, or deburr the inside of a pipe, a flat burr just won't cut it. The UCT Gem Carbide SD-1 is a 1/4" ball-shaped burr designed for exactly that. Its "double cut" (cross-cut) flutes give you smooth, controllable grinding and a finer finish, breaking down tough steel and cast iron into small, manageable chips.

Key Features

  • Double-Cut Head: Produces small chips for smooth operation and a finer finish. Ideal for ferrous and non-ferrous metals.
  • Ball Shape (SD-1): Perfect for hollowing, creating concave profiles, and deburring the inside of pipes or holes.
  • Solid Tungsten Carbide: Made from one solid piece of carbide for maximum rigidity, high-heat tolerance, and a long cutting life.
  • 1/4-Inch Shank: The industry standard shank, compatible with most 1/4-inch die grinders and rotary tools.
  • Versatile Application: Makes quick work of deburring, shaping, porting, and contouring on steel, cast iron, and aluminum.

What's Included

  • (1) SD-1 1/4" Double Cut Ball Shape Solid Carbide Burr

Specifications

Specification Detail
Brand UCT / Gem Carbide
Model SD-1
Material Solid Tungsten Carbide
Cut Type Double Cut (Cross-Cut)
Head Shape Ball Shape
Head Diameter 1/4"
Head Length of Cut 7/32"
Shank Diameter 1/4"
Overall Length 2-1/2"
Application Steel, Cast Iron, Non-Ferrous Metals
Max RPM 35,000

This high-performance burr needs a tool with serious RPM to get the best results. To get the most out of this bit with smooth, reliable power, we highly recommend pairing it with the Makita GD0601 1/4" Die Grinder.
