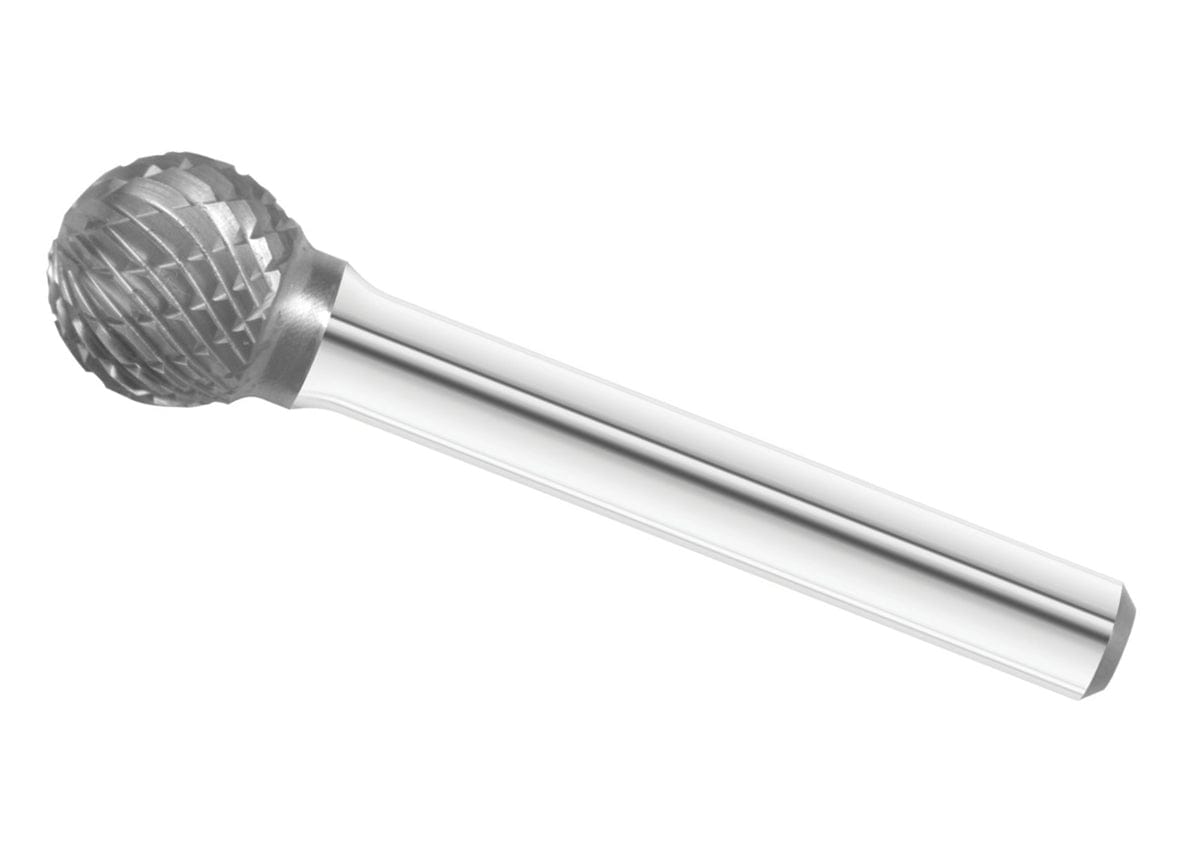

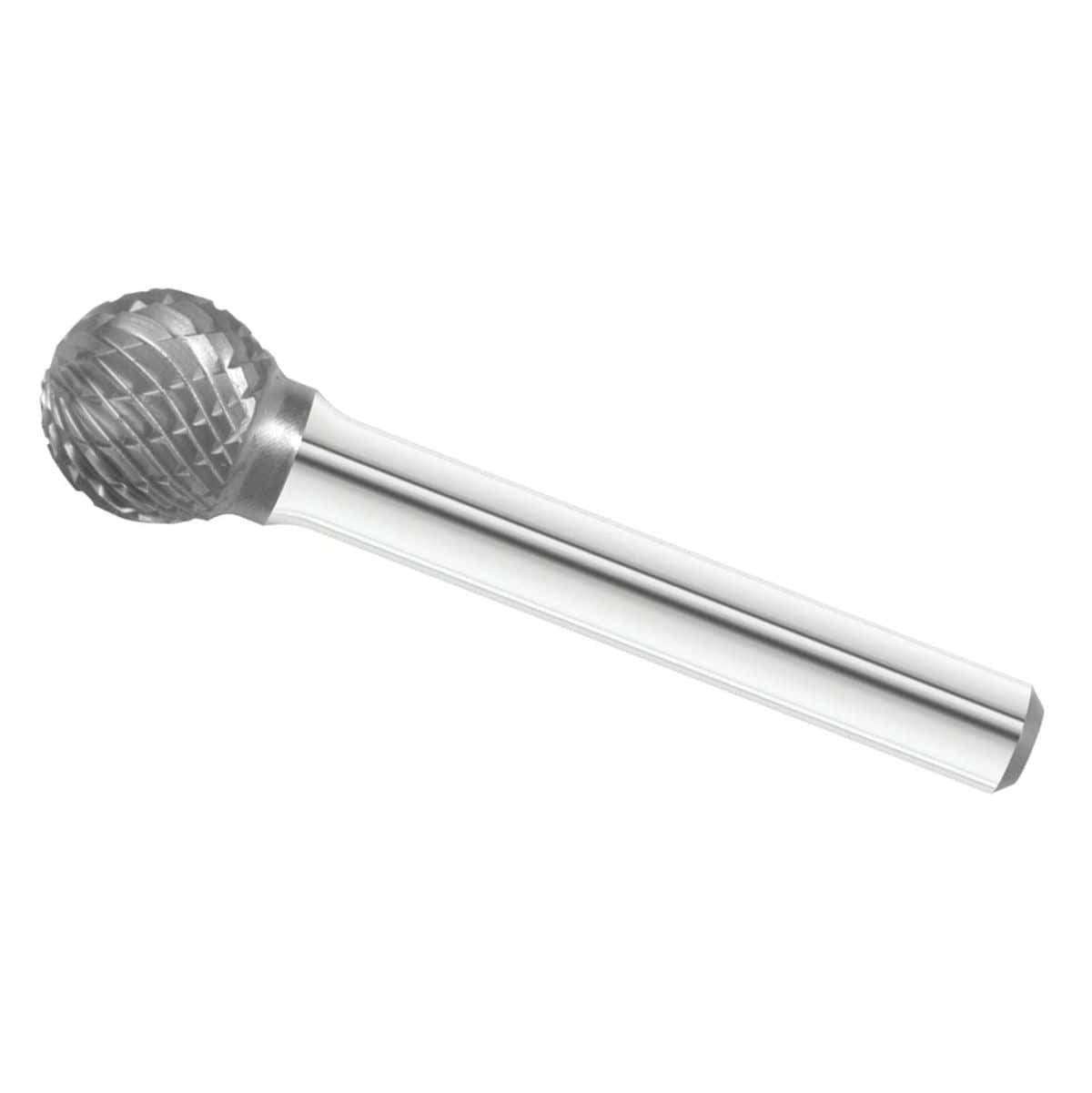

UCT Gem Carbide SD-5 1/2-Inch Double Cut Ball Shape Solid Carbide Burr 1/4-Inch Shank for Metal Grinding Hollowing and Contouring Steel
In stock
Regular price
$21.99
Couldn't load pickup availability
The Go-To Burr for Hollowing and Contouring
When you need to hollow out a workpiece, create a concave profile, or deburr the inside of a pipe, a flat burr just won't cut it. The UCT Gem Carbide SD-5 is a 1/2" ball-shaped burr designed for exactly that. Its "double cut" (cross-cut) flutes give you smooth, controllable grinding and a finer finish, breaking down tough steel and cast iron into small, manageable chips.
Key Features

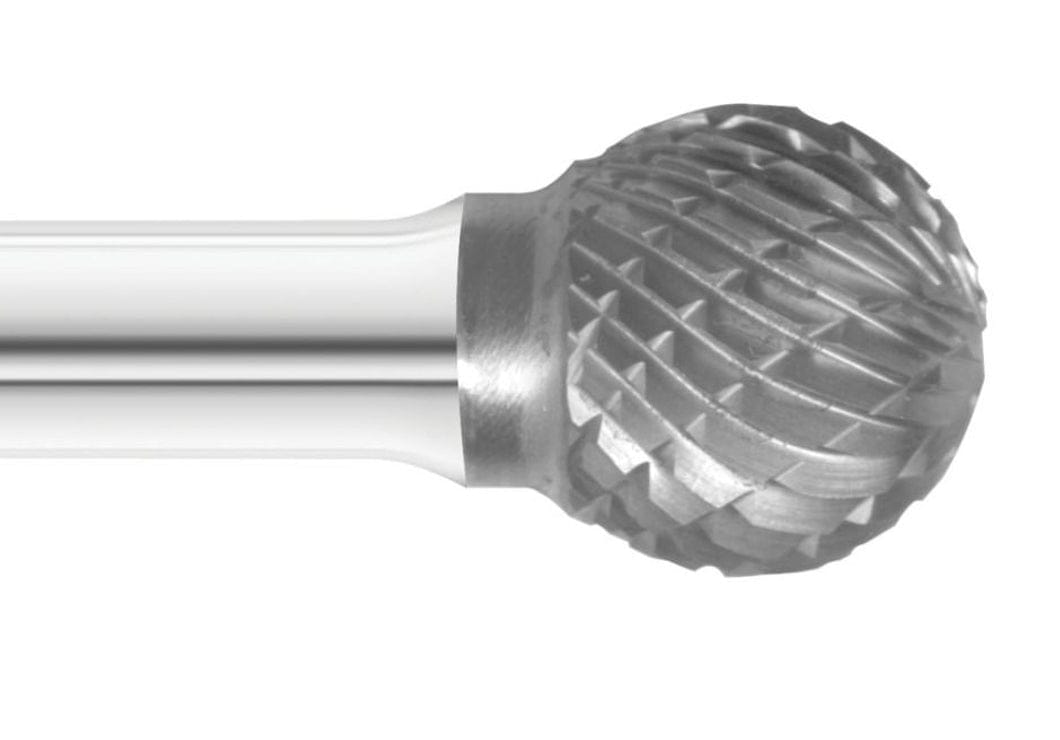

- Double-Cut Head: Produces small chips for smooth operation and a finer finish. Ideal for ferrous and non-ferrous metals.
- Ball Shape (SD-5): Perfect for hollowing, creating concave profiles, and deburring the inside of pipes or holes.
- Solid Carbide Head: Made from high-quality tungsten carbide for maximum rigidity, high-heat tolerance, and a long cutting life.
- 1/4-Inch Steel Shank: The industry standard shank, compatible with most 1/4-inch die grinders and rotary tools.
- Versatile Application: Makes quick work of deburring, shaping, porting, and contouring on steel, cast iron, and aluminum.
What's Included
- (1) SD-5 1/2" Double Cut Ball Shape Solid Carbide Burr
Specifications
| Specification | Detail |
| Brand | UCT / Gem Carbide |
| Model | SD-5 |
| Material | Tungsten Carbide (Head), Steel (Shank) |
| Cut Type | Double Cut (Cross-Cut) |
| Head Shape | Ball Shape |
| Head Diameter | 1/2" |
| Head Length of Cut | 7/16" |
| Shank Diameter | 1/4" |
| Overall Length | 2-5/8" |
| Application | Steel, Cast Iron, Non-Ferrous Metals |
| Max RPM | 20,000 |
This high-performance burr needs a tool with serious RPM to get the best results. To get the most out of this bit with smooth, reliable power, we highly recommend pairing it with the Makita GD0600 1/4" Die Grinder.
