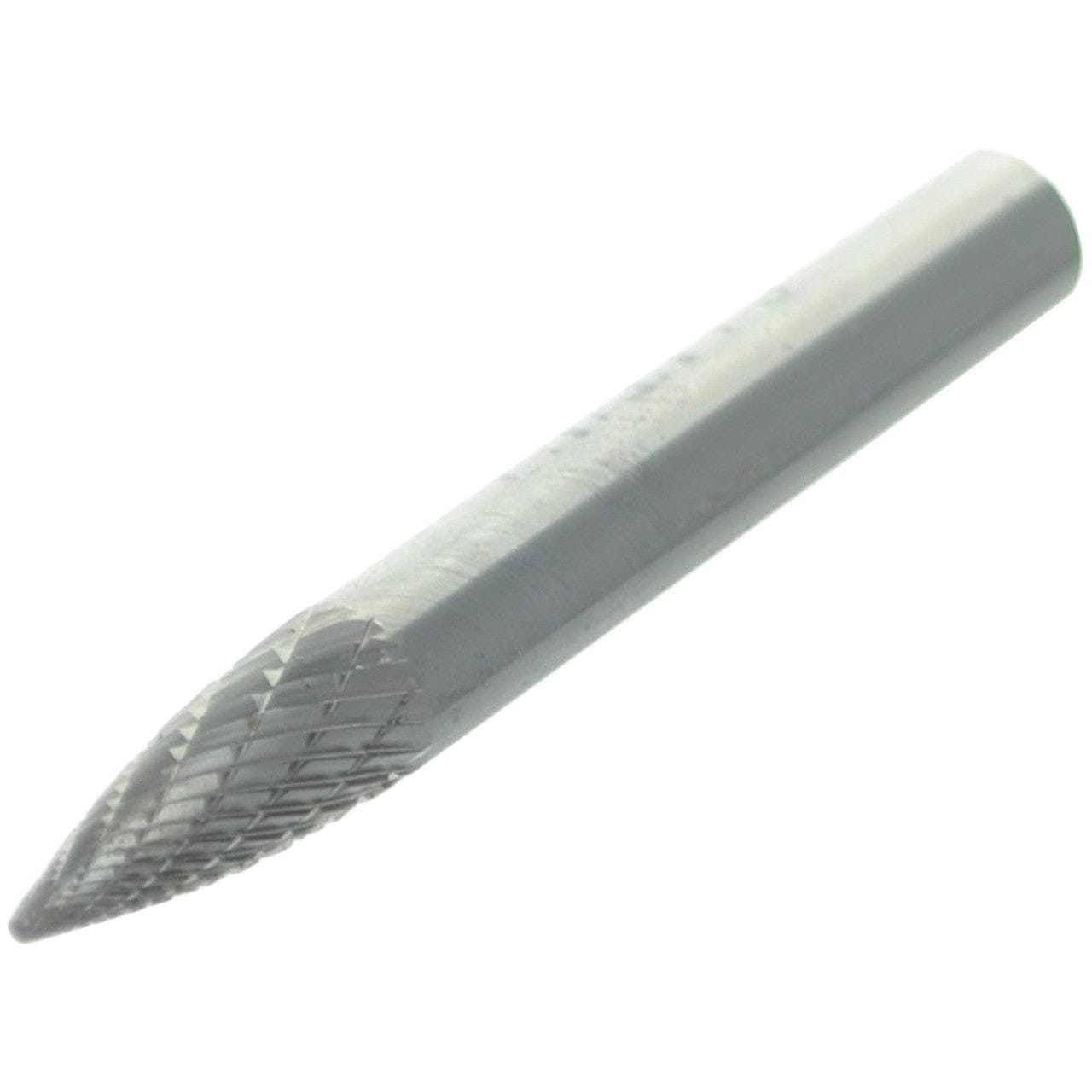

UCT Gem Carbide SG-1 1/4-Inch Double Cut Pointed Tree Solid Carbide Burr 1/4-Inch Shank for Metal Grinding Contouring and V-Cuts

In stock
SKU: 600-SG-1-DBL
Regular price $12.99

The Ultimate Burr for V-Cuts and Sharp Angles

When you need to clean out a sharp corner or get into a tight V-cut, a standard cylindrical burr just won't do it. The UCT Gem Carbide SG-1 is the specialty tool for the job. Its pointed "tree" shape is perfect for getting into acute-angled grooves, deburring complex shapes, and contouring inside welded joints. The double-cut (cross-cut) flutes provide smooth, controllable grinding and a fine finish, breaking down tough steel and metal into small chips.

Key Features

  • Double-Cut Head: Produces small chips for smooth operation and a finer finish. Ideal for ferrous and non-ferrous metals.
  • Pointed Tree Shape (SG-1): The flame-like pointed head is designed for grinding in tight corners, acute angles, and V-cuts.
  • Solid Tungsten Carbide: Made from one solid piece of carbide for maximum rigidity, high-heat tolerance, and a long cutting life.
  • 1/4-Inch Shank: The industry standard shank, compatible with most 1/4-inch die grinders and rotary tools.
  • Versatile Application: Makes quick work of deburring, shaping, porting, and contouring on steel, cast iron, and aluminum.

What's Included

  • (1) SG-1 1/4" Double Cut Pointed Tree Solid Carbide Burr

Specifications

Specification Detail
Brand UCT / Gem Carbide
Model SG-1
Material Solid Tungsten Carbide
Cut Type Double Cut (Cross-Cut)
Head Shape Pointed Tree / Flame Shape
Head Diameter 1/4"
Head Length of Cut 5/8"
Shank Diameter 1/4"
Overall Length 2-1/2"
Application Steel, Cast Iron, Non-Ferrous Metals
Max RPM 30,000

This burr is designed for high-RPM, precision work. To get the best results with cordless freedom, we highly recommend pairing it with the Bosch 12V Max Brushless 1/4 In. Right Angle Die Grinder Kit.
