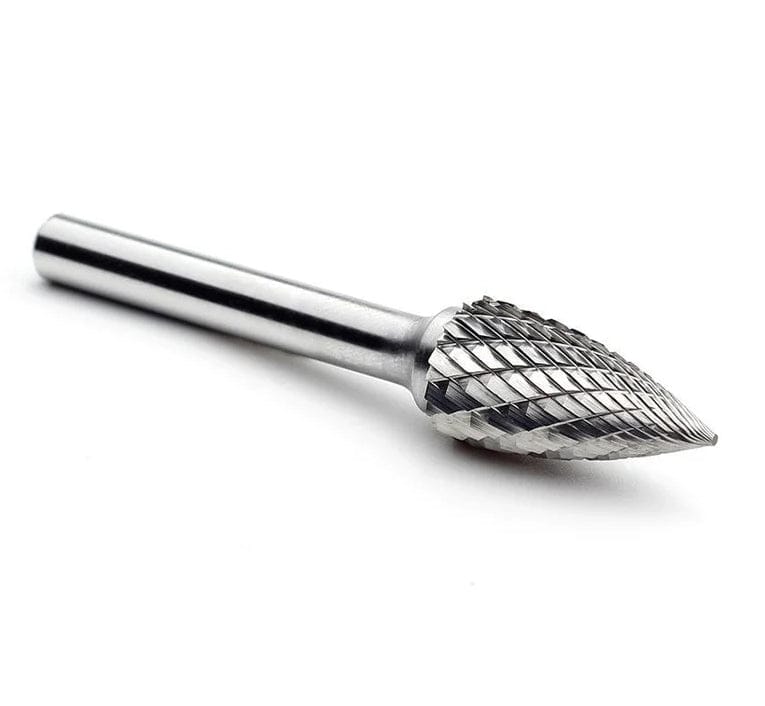

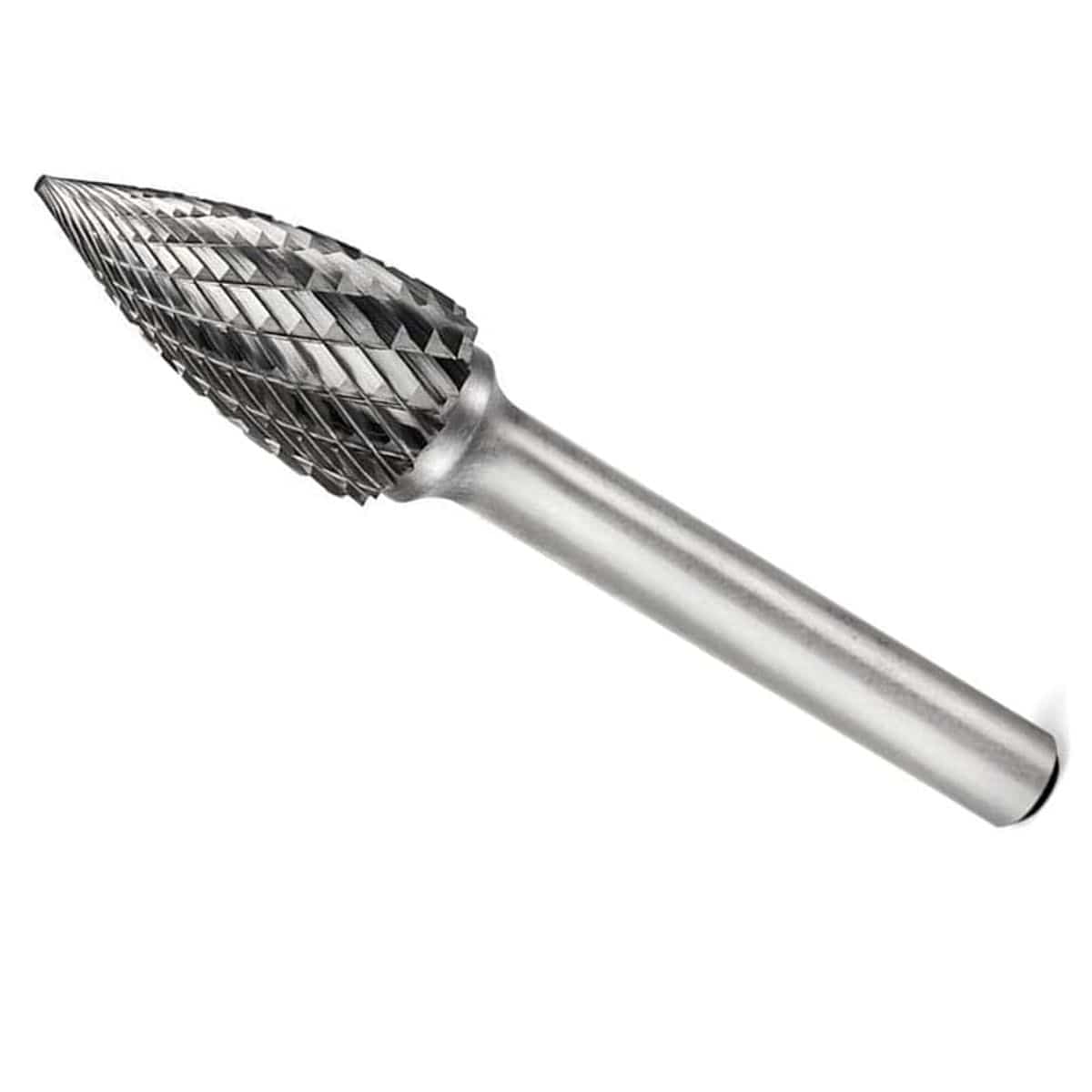

Product studio shot from a top angled perspective of the UCT Gem Carbide SG-3 Pointed Tree Solid Carbide Burr against a white background, highlighting its sharp fluted double-cut abrasive pattern on the head and a smooth unpainted 1/4-inch straight steel mounting shank.

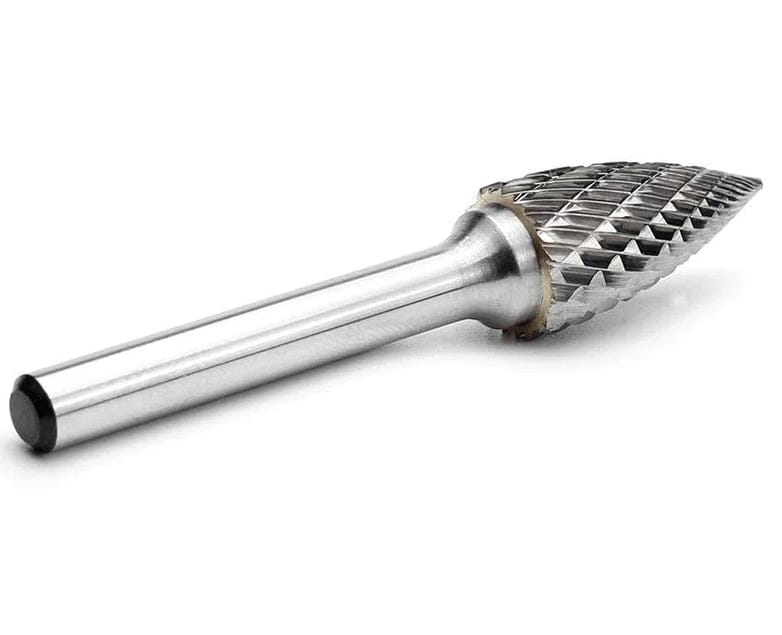

A low-angle product studio profile shot looking from the shank base toward the head of the UCT Gem Carbide SG-3 pointed tree die grinder burr, displaying a black protective cap on the end of the 1/4-inch shank and the brazed seam connecting to the carbide head.

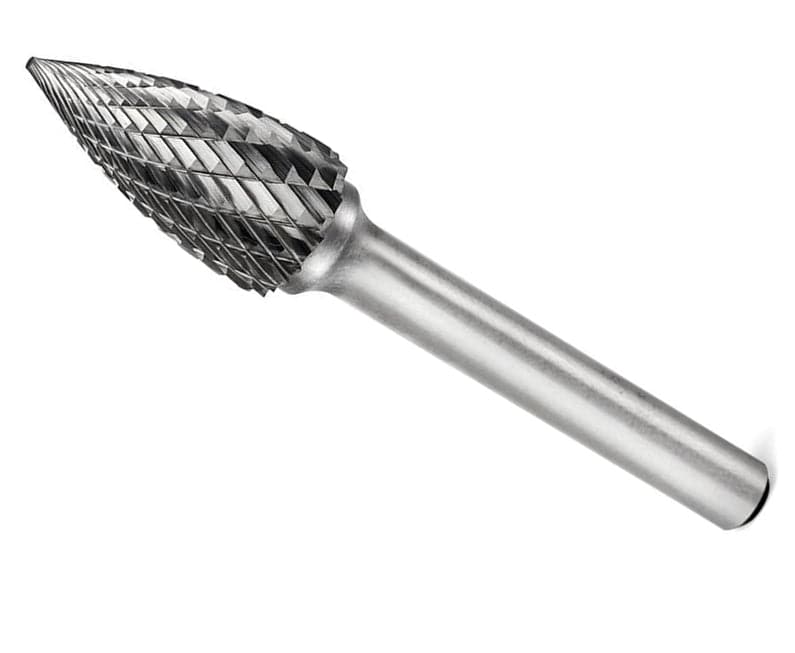

An opposing low-angle studio product shot of the UCT Gem Carbide SG-3 pointed tree rotary burr file, showcasing the symmetrical geometry of the 3/8-inch cutting head and the highly polished steel construction of the quick-change power tool shank.

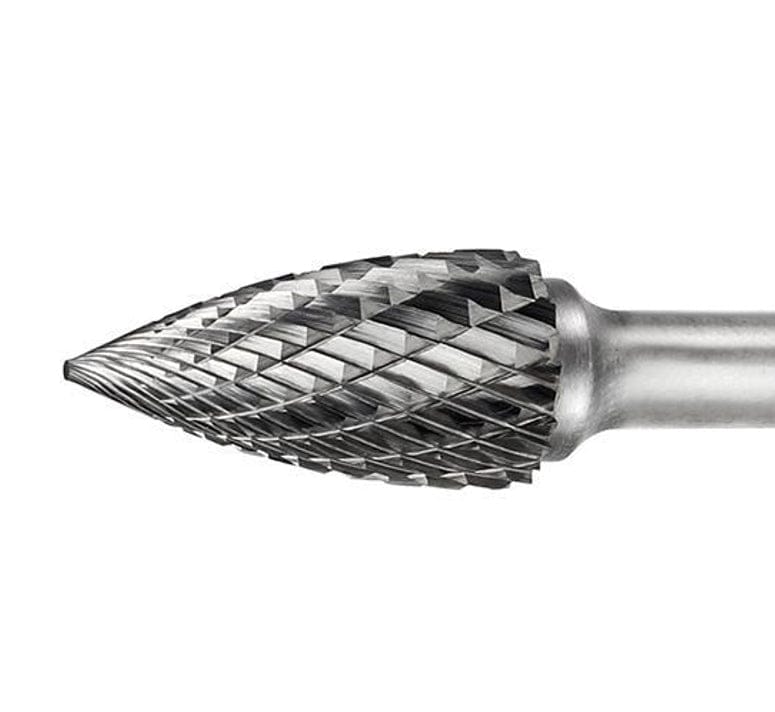

A macro close-up graphic view focusing entirely on the 3/8-inch tree-shaped head of the UCT Gem Carbide SG-3 rotary file bit, illustrating the precision-ground cross-cut ridges designed for rapid deburring, shaping, and making V-cuts in hardened metals.
An exact duplicate top angled product studio profile view of the UCT Gem Carbide SG-3 3/8-inch double-cut solid carbide rotary burr over a clean white backdrop, emphasizing the intricate diamond-patterned grinding teeth and the cylindrical metal shank.
Product studio shot from a top angled perspective of the UCT Gem Carbide SG-3 Pointed Tree Solid Carbide Burr against a white background, highlighting its sharp fluted double-cut abrasive pattern on the head and a smooth unpainted 1/4-inch straight steel mounting shank.
A low-angle product studio profile shot looking from the shank base toward the head of the UCT Gem Carbide SG-3 pointed tree die grinder burr, displaying a black protective cap on the end of the 1/4-inch shank and the brazed seam connecting to the carbide head.
An opposing low-angle studio product shot of the UCT Gem Carbide SG-3 pointed tree rotary burr file, showcasing the symmetrical geometry of the 3/8-inch cutting head and the highly polished steel construction of the quick-change power tool shank.
A macro close-up graphic view focusing entirely on the 3/8-inch tree-shaped head of the UCT Gem Carbide SG-3 rotary file bit, illustrating the precision-ground cross-cut ridges designed for rapid deburring, shaping, and making V-cuts in hardened metals.
An exact duplicate top angled product studio profile view of the UCT Gem Carbide SG-3 3/8-inch double-cut solid carbide rotary burr over a clean white backdrop, emphasizing the intricate diamond-patterned grinding teeth and the cylindrical metal shank.
UCT

UCT Gem Carbide Rotary Burr SG-3 3/8 Inch (1/4 Inch Shank Solid Tungsten Carbide Pointed Tree Shape Double Cut 25000 Max RPM Weld Grinding)

In stock
SKU: 600-SG-3-DBL
$15.95 USD

Description

UCT Gem Carbide SG-3 3/8-Inch Pointed Tree Solid Carbide Rotary Burr

The UCT Gem Carbide SG-3 3/8-Inch Pointed Tree Solid Carbide Rotary Burr is a specialized rotary grinding and deburring bit engineered for cleaning out acute-angled corners, grinding narrow V-cuts, blending internal welded seams, and deburring complex metal geometries without binding in tight spaces. Rated for operational speeds up to 25,000 RPM on a standard 1/4-inch shank, this solid tungsten carbide bit features a pointed tree flame-like profile and double-cut cross-flute geometry that breaks material into fine chips to eliminate chatter. Outfitted with a 3/8-inch head diameter and a 3/4-inch length of cut across a 2-1/2-inch overall length, this 0.15-pound rotary tool accessory executes precision metal removal.

Best Used For:

  • Acute-Angle & V-Groove Joint Grinding: Accessing narrow angled weld preparations and sharp interior corners to remove excess bead material.
  • Complex Mold & Die Cavity Deburring: Removing sharp flash lines and burs from narrow recessed cavities in steel castings and machined parts.
  • Engine Cylinder Head & Porting Modifications: Shaping and smoothing narrow internal runner transitions and curved port walls in automotive cylinder heads.

Key Performance & Safety Features

  • Tungsten Carbide Cutting Head: High-density carbide composition brazed to a hardened steel shank maintains cutting edge hardness under intense heat.
  • Pointed Tree (SG-3) Flame-Like Profile: Tapered tree geometry provides maximum clearance in narrow V-cuts, acute angles, and sharp fillets.
  • Double-Cut Cross-Flute Design: Opposing cutting flutes produce granular metal chips to minimize tool chatter and deliver smooth surface finishes.
  • 25,000 Maximum RPM Speed Rating: Precision-balanced construction accommodates pneumatic and electric 1/4-inch die grinders at full operating speed.
  • Standard 1/4-Inch Steel Shank: Precision-ground shank inserts securely into standard 1/4-inch collets to eliminate rotational runout.
  • Multi-Metal Substrate Compatibility: Cuts efficiently through structural steel, cast iron, stainless steel, brass, bronze, and aluminum.

What's Included

  • (1) UCT Gem Carbide SG-3 3/8-Inch Double Cut Pointed Tree Solid Carbide Burr

Technical Specifications

Brand / Manufacturer UCT / Gem Carbide
Model / Part Number SG-3 (SG3)
Head Material Composition Tungsten Carbide
Shank Material Composition Hardened Steel Shank
Cutting Flute Architecture Double Cut (Cross-Cut Flutes)
Head Profile Shape Pointed Tree / Flame Shape
Cutting Head Diameter 3/8 in. (0.375 in. / 9.525 mm)
Head Length of Cut (Flute Length) 3/4 in. (0.750 in. / 19.05 mm)
Shank Diameter Size 1/4 in. (0.250 in. / 6.35 mm)
Overall Length Dimension 2-1/2 in. (2.50 in. / 63.5 mm)
Maximum Rotational Speed 25,000 RPM Maximum Operating Velocity
Substrate Application Compatibility Steel, Cast Iron, Stainless Steel, Brass, Non-Ferrous Metals
Assembled Net Weight 0.15 lb (0.068 kg)
Pro-Tip: Guide the pointed tip lightly when working in narrow V-grooves; maintaining high die grinder speeds near 25,000 RPM without pushing hard prevents tip chipping and delivers smooth material removal in tight angles.
