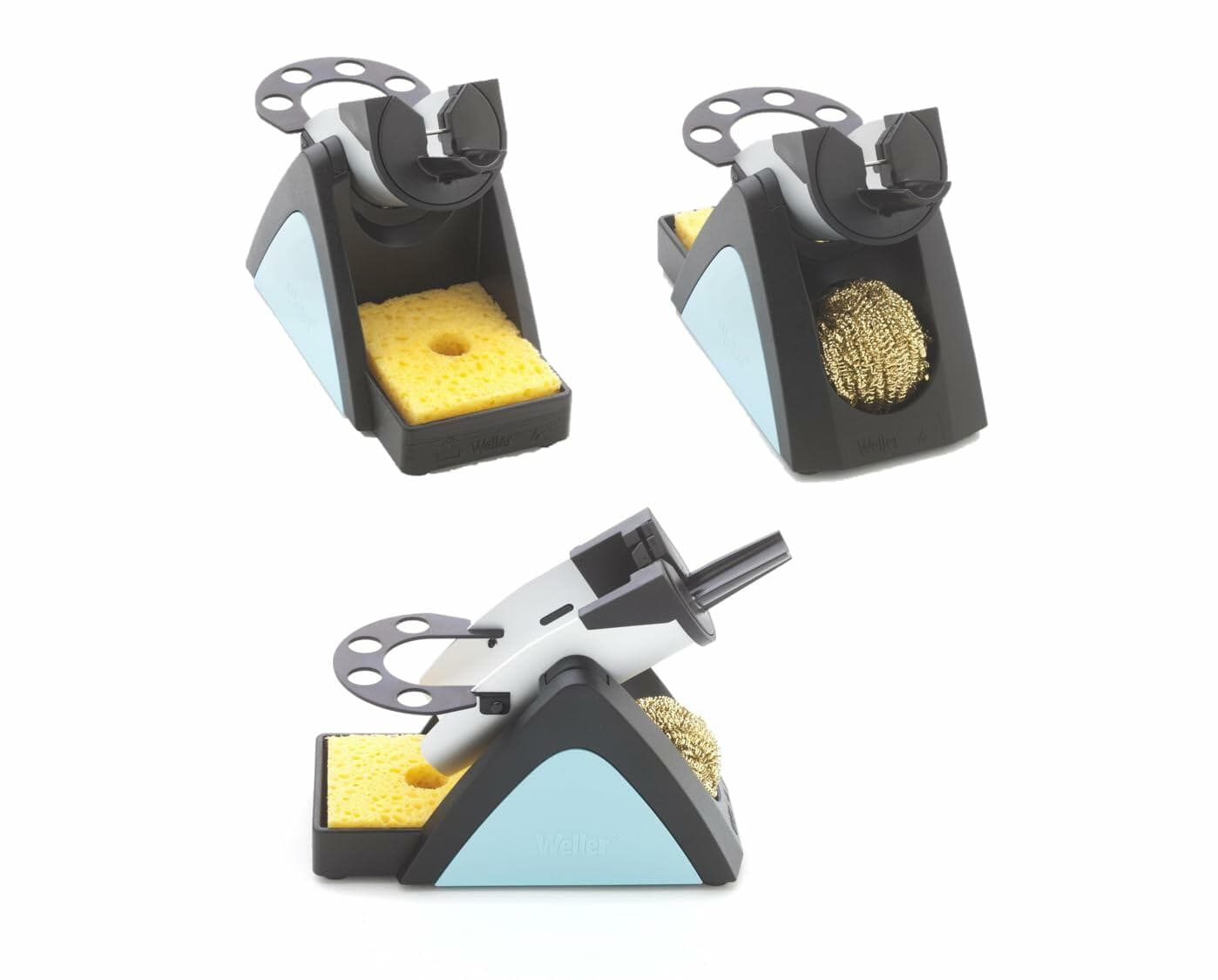

Three angled views of a Weller soldering tip cleaning station featuring a triangular base with light blue sides and a black top. The station includes a sponge and brass wire for cleaning soldering iron tips, with multiple holes for tool placement.

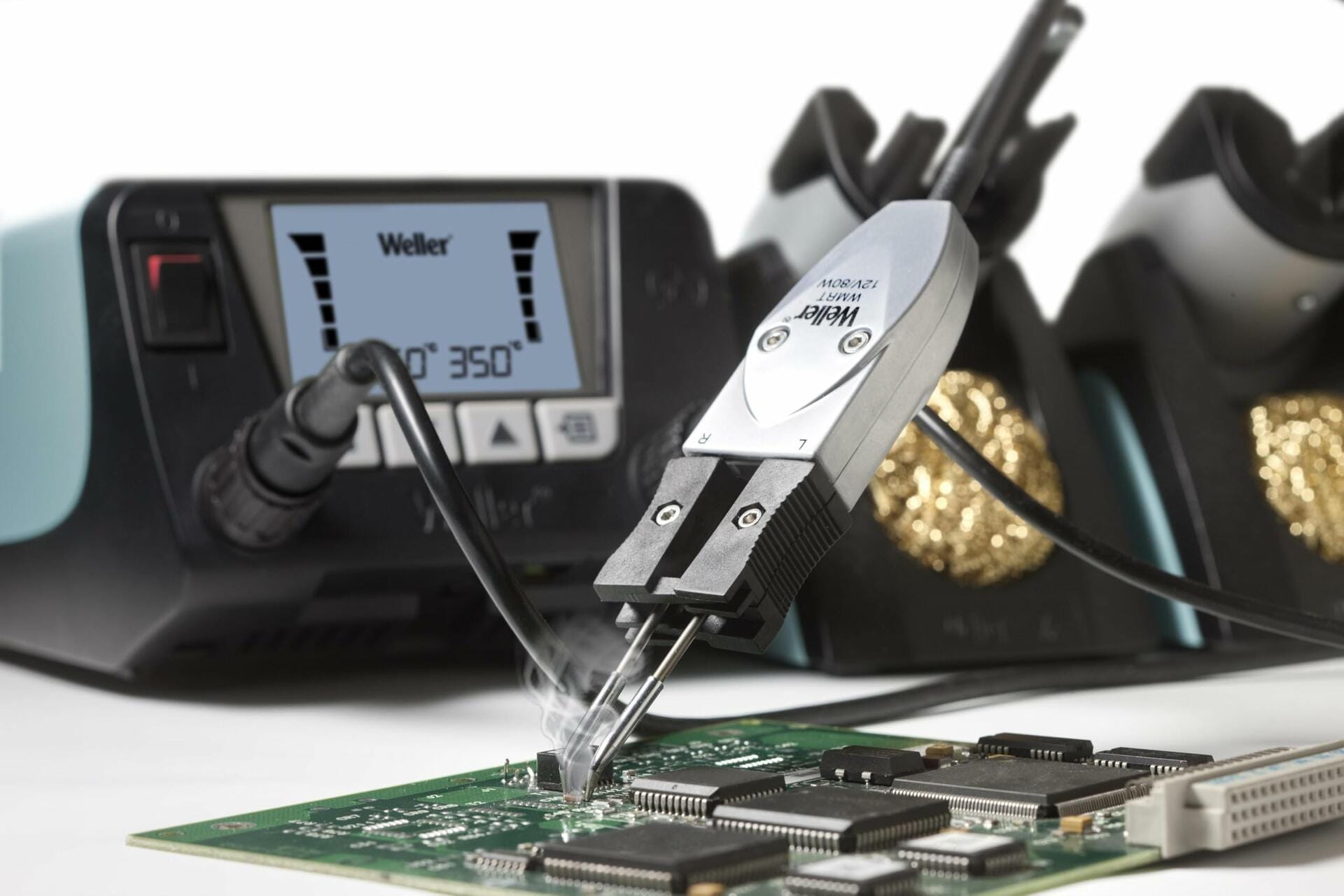

Close-up of a PCB being soldered with heated tweezers connected to the Weller WT2021MS station. The display shows 350°C. Smoke rises from the contact point, indicating active soldering. Brass wire sponges and tip holders are visible in the background.

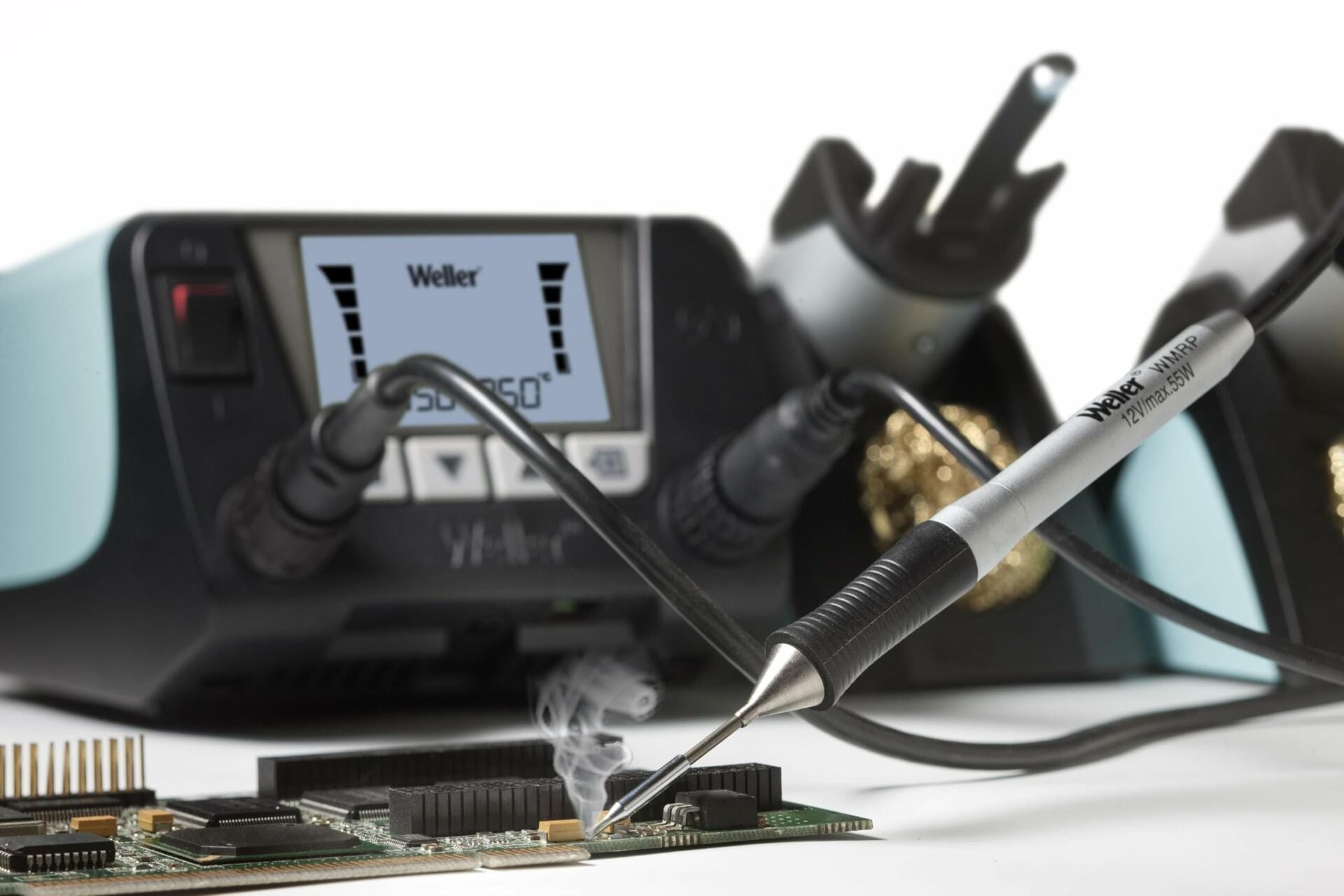

Live soldering scene featuring the Weller WT2021MS station set to 350°C. A Weller WXP 120 soldering iron is actively soldering a circuit board, with visible smoke rising from the contact point. Brass wire sponges and tip holders are shown in the background.
Top-down view of the Weller WT2021MS soldering station showing a digital display with temperature settings reading “SET 250°C” and “ACT 250°C.” The front panel includes control buttons and tool ports, with a black grid-patterned surface for heat dissipation.

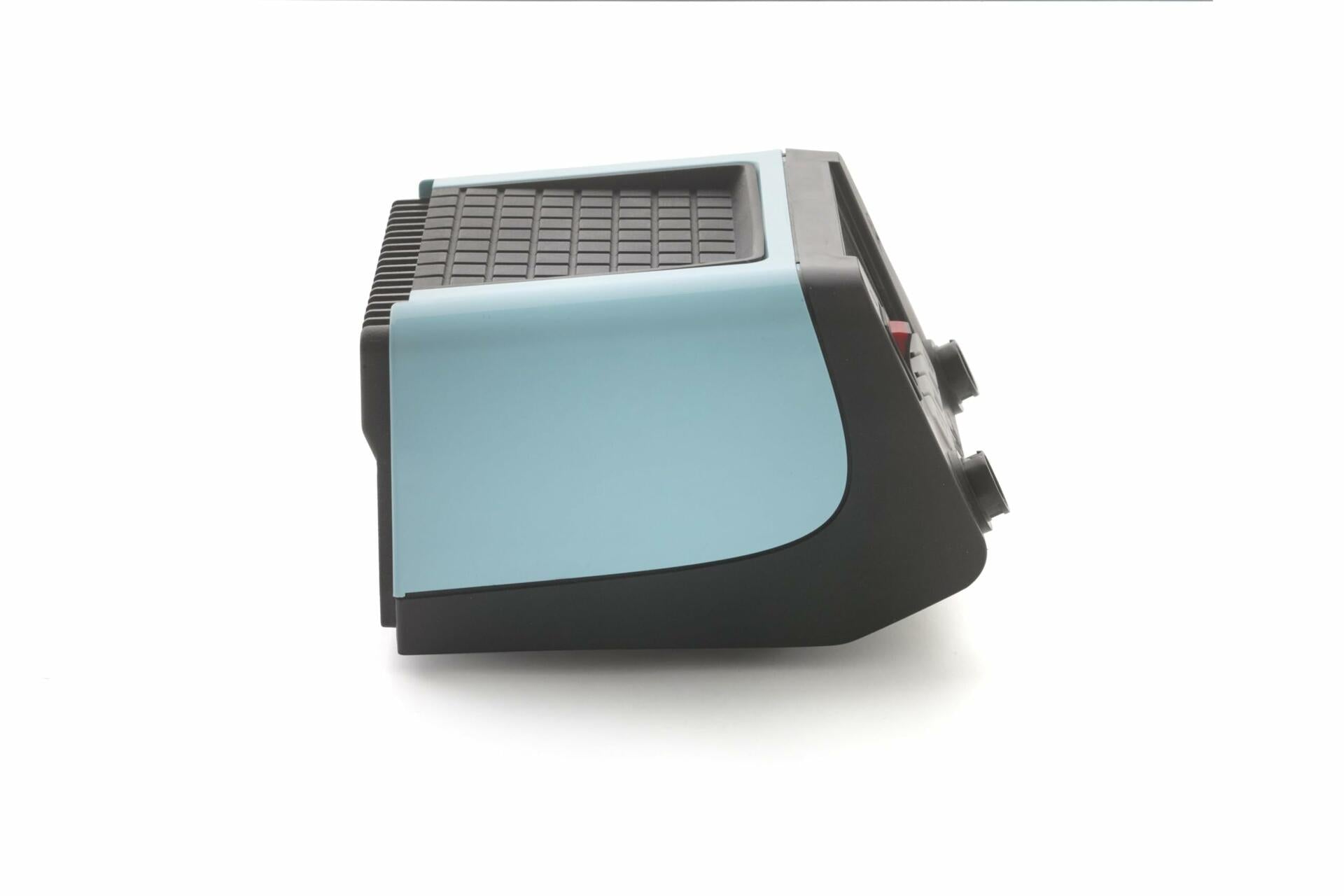

Side view of the Weller WT2021MS soldering station featuring a slanted front panel with control knobs and buttons. The casing combines light blue and black sections, reflecting a retro-industrial design used in professional electronics workstations.

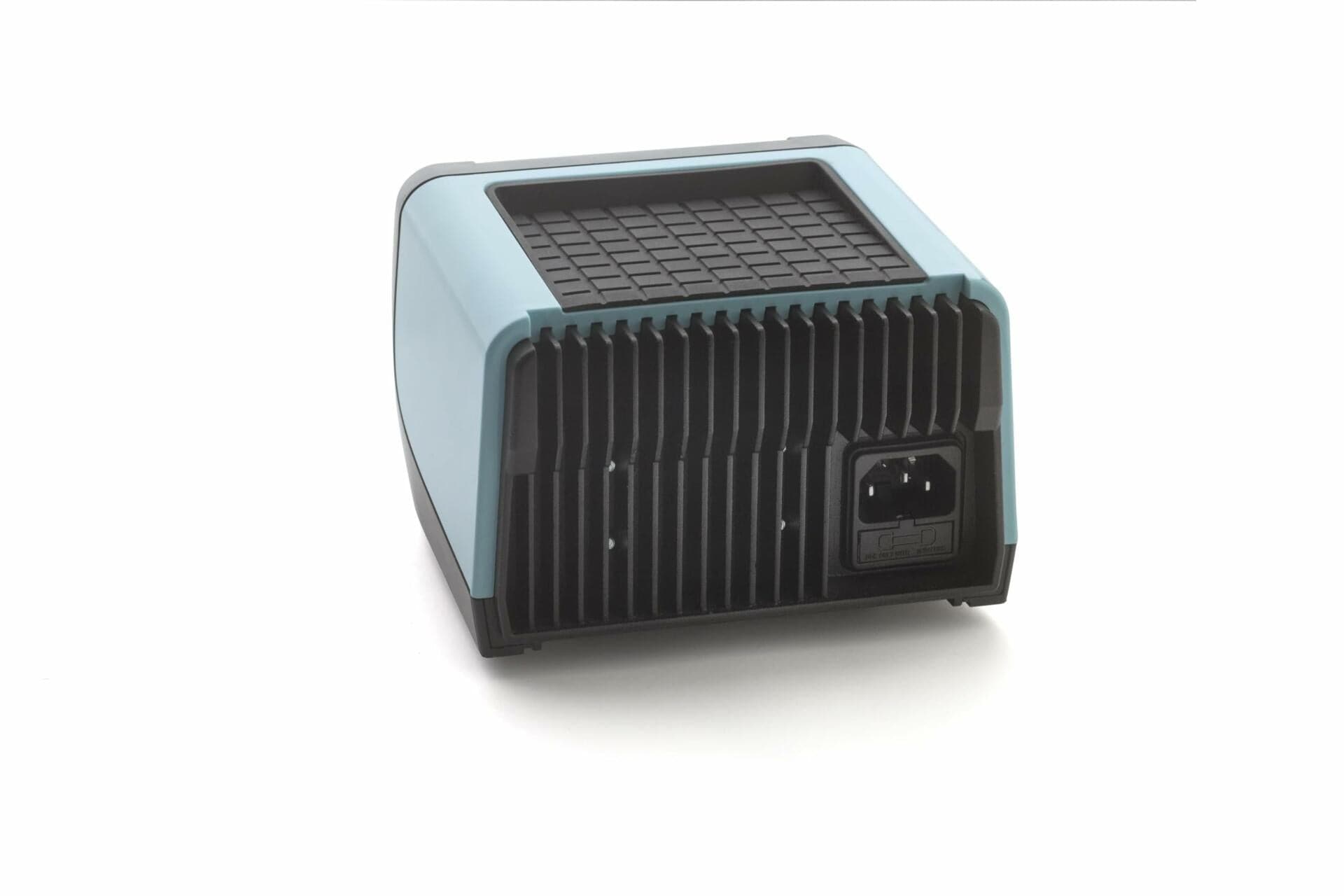

Close-up of the Weller WT2021MS soldering station’s power unit. The image shows the front panel with a vented grid structure and an IEC C14 power input socket, designed for efficient cooling and secure power connection in industrial environments

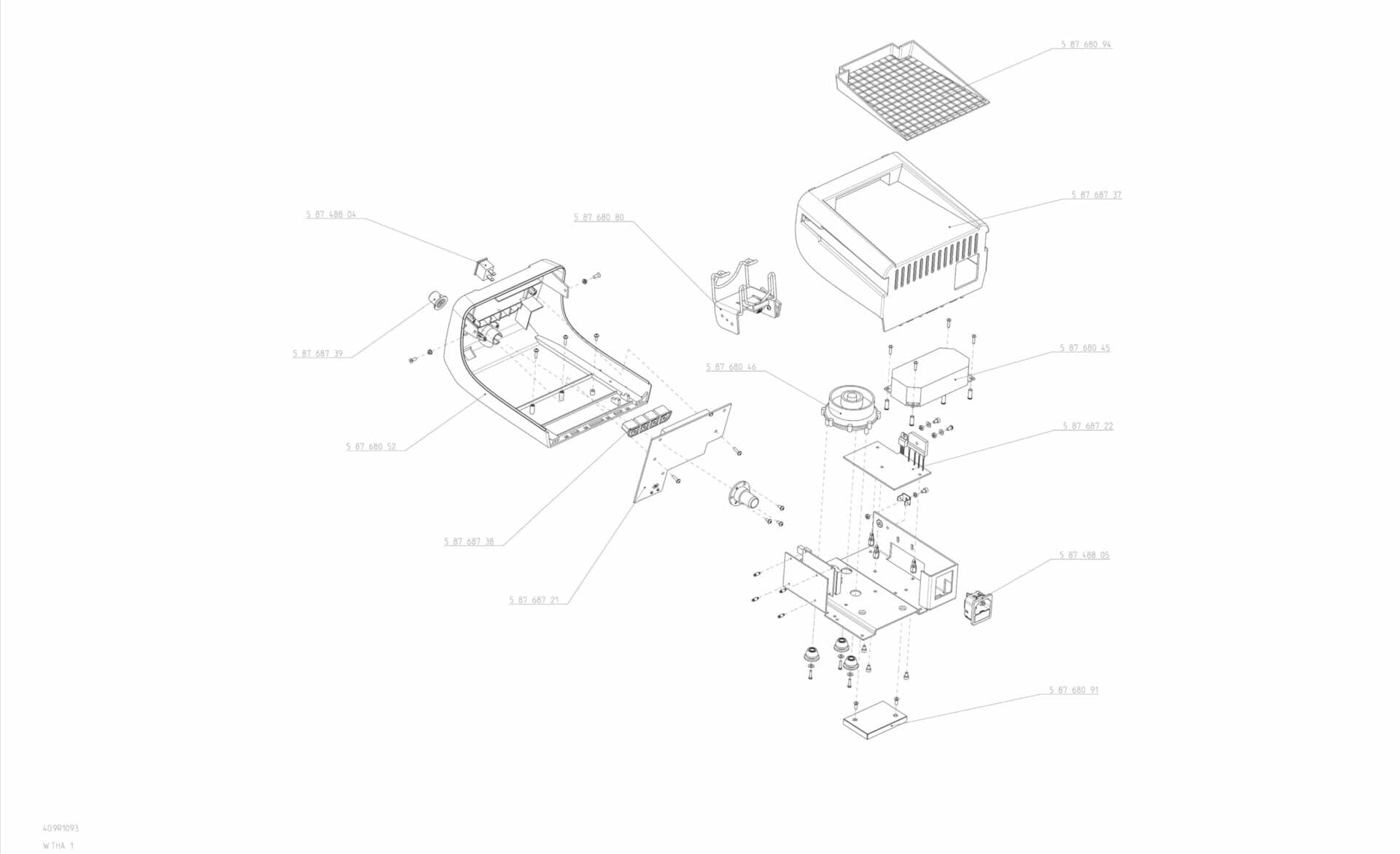

Exploded view diagram of the Weller WT2021MS soldering station showing individual components including power unit housing, internal electronics, connectors, and mounting hardware. Each part is labeled for assembly reference, aiding in maintenance and repair tasks.
Three angled views of a Weller soldering tip cleaning station featuring a triangular base with light blue sides and a black top. The station includes a sponge and brass wire for cleaning soldering iron tips, with multiple holes for tool placement.
Close-up of a PCB being soldered with heated tweezers connected to the Weller WT2021MS station. The display shows 350°C. Smoke rises from the contact point, indicating active soldering. Brass wire sponges and tip holders are visible in the background.
Live soldering scene featuring the Weller WT2021MS station set to 350°C. A Weller WXP 120 soldering iron is actively soldering a circuit board, with visible smoke rising from the contact point. Brass wire sponges and tip holders are shown in the background.
Top-down view of the Weller WT2021MS soldering station showing a digital display with temperature settings reading “SET 250°C” and “ACT 250°C.” The front panel includes control buttons and tool ports, with a black grid-patterned surface for heat dissipation.
Side view of the Weller WT2021MS soldering station featuring a slanted front panel with control knobs and buttons. The casing combines light blue and black sections, reflecting a retro-industrial design used in professional electronics workstations.
Close-up of the Weller WT2021MS soldering station’s power unit. The image shows the front panel with a vented grid structure and an IEC C14 power input socket, designed for efficient cooling and secure power connection in industrial environments
Exploded view diagram of the Weller WT2021MS soldering station showing individual components including power unit housing, internal electronics, connectors, and mounting hardware. Each part is labeled for assembly reference, aiding in maintenance and repair tasks.
Weller

Weller Soldering Station WT2021MS Dual Channel Digital (150W Power Unit 40W Iron 80W Tweezers PCB Assembly Microelectronics Aerospace)

In stock
SKU: WT2021MS
$756.29 USD
$1,208.99 USD Sale $756.29 USD

Description

Weller WT2021MS Dual-Channel Digital Soldering Station

The Weller WT2021MS dual-channel digital soldering station delivers precision control and rapid thermal recovery across microelectronics, aerospace, and PCB manufacturing workflows. Driven by a 150W power unit, this comprehensive system includes a 40W microsoldering iron and 80W desoldering tweezers featuring active-tip heating technology. Military Standard certified, it provides adjustable temperatures from 150°F to 850°F for reliable performance on sensitive components.

Best Used For:

  • PCB Assembly and Repair: Soldering and reworking fine-pitch integrated circuits and high-density electronic circuit boards.
  • Medical Device Manufacturing: Executing delicate, reliable micro-soldering connections required in medical equipment production.
  • Defense and Aerospace Electronics: Meeting strict military standard quality benchmarks for critical wiring and component assembly.

Key Performance & Safety Features

  • Dual-Channel Control: Operate two tools simultaneously for streamlined workflows.
  • Active-Tip Heating Technology: Delivers rapid heat-up and consistent thermal recovery.
  • Military Standard (MS) Certified: Trusted for defense-grade precision and durability.
  • Wide Temperature Range: Adjustable from 150°F to 850°F for diverse soldering needs.
  • Compact & Intuitive Interface: Clear menu structure for fast setup and tool switching.

What's Included

  • (1) WT 2M Dual-Channel Power Unit (150W)
  • (1) WMRP MS Micro Soldering Iron (40W, 12V)
  • (1) WMRT MS Micro Desoldering Tweezers (80W total, 2x40W, 12V)
  • (1) WSR 203 Tool Stand
  • (1) WSR 205 Tool Stand

Technical Specifications

Brand Weller
Model Number WT2021MS
Channels 2
Temperature Range 150°F to 850°F
Power Supply 120V / 60Hz
Total Power Output 150W
Soldering Iron WMRP MS – 40W, 12V
Desoldering Tweezers WMRT MS – 80W (2x40W), 12V
Technology Active-Tip Heating
Certification Military Standard (MS)

Pro-Tip: Always use active-tip compatible cleaning brass wool rather than wet sponges to prevent thermal shock and extend soldering tip lifespan.
