Winco PTO Driveshaft 54326-001 1-3/8 Inch 6-Spline Generator Link Shaft(90 HP Rating 540 RPM Telescoping Tractor Power Take Off Coupler)

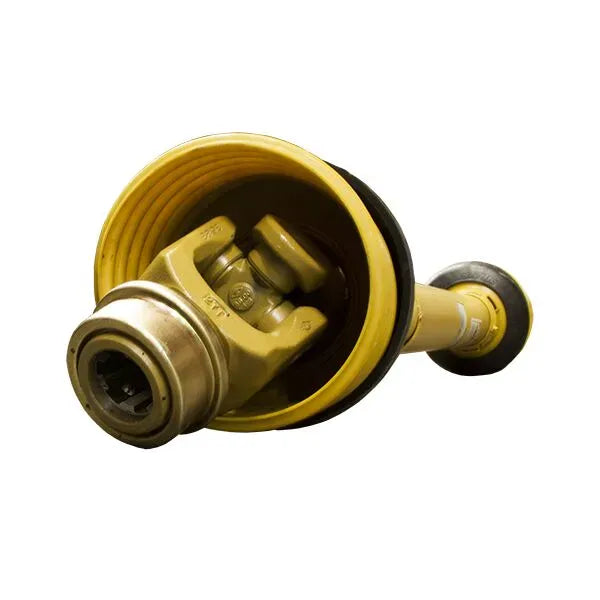

Winco 54326-001 1-3/8" 6-Spline Heavy-Duty Tractor PTO Driveshaft

The Winco 54326-001 heavy-duty tractor-driven PTO driveshaft transmits mechanical rotation from agricultural utility tractors to off-grid PTO generators rated between 27 kW and 55 kW at a continuous operating speed of 540 RPM. Featuring high-torque universal joints capable of handling input ratings up to 90 horsepower, this 40-lb farm-duty drive assembly couples standard 1-3/8-inch 6-spline tractor power take-off stubs to matching 1-3/8-inch 6-spline generator gearboxes. Engineered with a telescoping driveline providing an operating range of 37.6 inches to 53.5 inches and full safety guard shielding, it delivers uninterrupted electrical generation across livestock farms, irrigation sites, and rural commercial facilities during emergency grid outages.

Best Used For:

• Agricultural Emergency Backup Power Generation: Transferring 540 RPM mechanical tractor torque directly to 27kW to 55kW PTO generators to power dairy barns, poultry houses, and grain drying bins during electrical blackouts.
• Remote Field and Irrigation Power Supply: Driving standalone generator units in unpowered pastures to run high-volume agricultural water pumps, pivot systems, and field service equipment.
• Commercial Farm Shop Power Backup: Hooking utility tractors quickly to stationary or trailer-mounted Winco PTOC generator units using quick-disconnect 6-spline locking collars.

Key Performance & Safety Features

• Heavy 90 HP Mechanical Rating: Robust forged alloy universal joints and drive yokes handle continuous mechanical input loads up to 90 horsepower on the tractor side.
• Standard 1-3/8" 6-Spline Interface: Dual-ended 1-3/8-inch 6-spline QD couplers match standard Category 1/2 agricultural tractor power take-off stubs and Winco generator shafts.
• Adjustable Telescoping Driveline: Sliding profile shaft extends from 37.6 inches to 53.5 inches during operation to compensate for varying tractor drawbar hitch distances.
• 540 RPM Operating Specification: Optimized internal gear ratios ensure direct rotational matching with 540 RPM agricultural tractor power take-off standards.
• Full Safety Shielding System: High-impact yellow safety shield enclosure spins freely on low-friction bearings to protect farm operators from rotating metal shafts.
• Precision Greaseable Cross Bearings: Features accessible grease zerks on universal joint spiders for fast field maintenance and extended rotational component life.

What's Included

• (1) Winco 54326-001 1-3/8" 6-Spline Heavy-Duty Telescoping PTO Driveshaft
• (1) Integrated High-Visibility Full-Length Safety Shield Assembly

Technical Specifications

Pro-Tip: Always maintain at least a one-third (1/3) overlap between the inner and outer telescoping drive tubes during operation, and keep the universal joint angles equal and under 15 degrees to prevent driveline vibration and premature bearing failure.
