Winco 6000W Bi-Fuel Single-Phase Portable Generator - Honda Engine

Call for Availability and Shipping

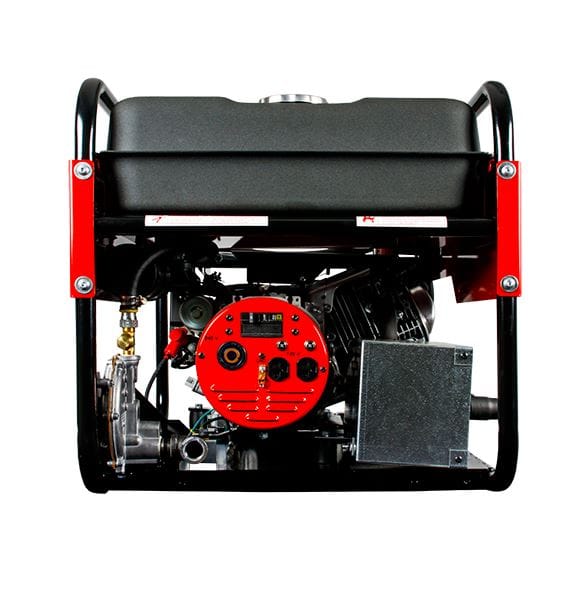

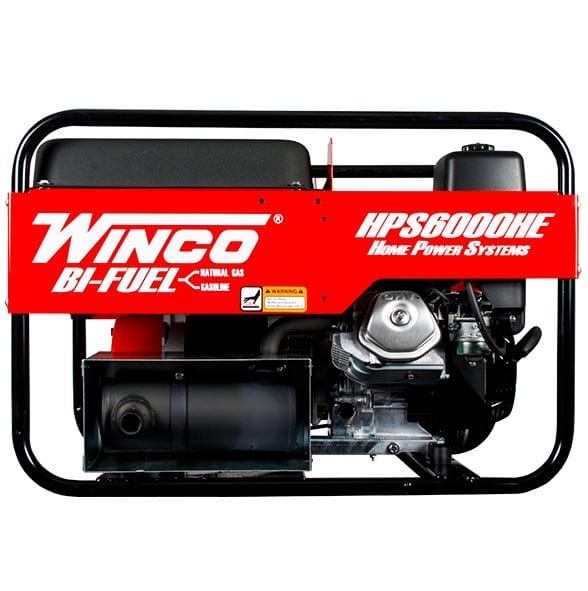

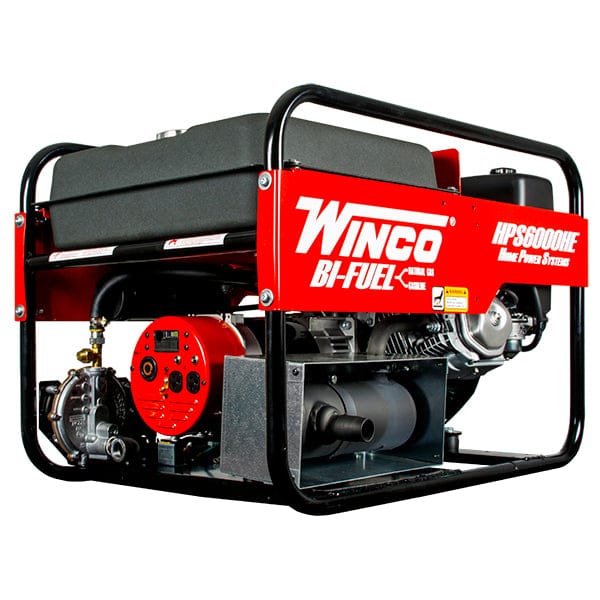

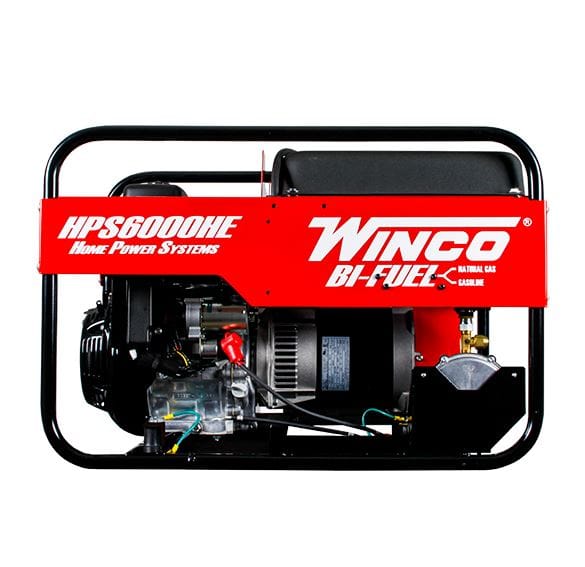

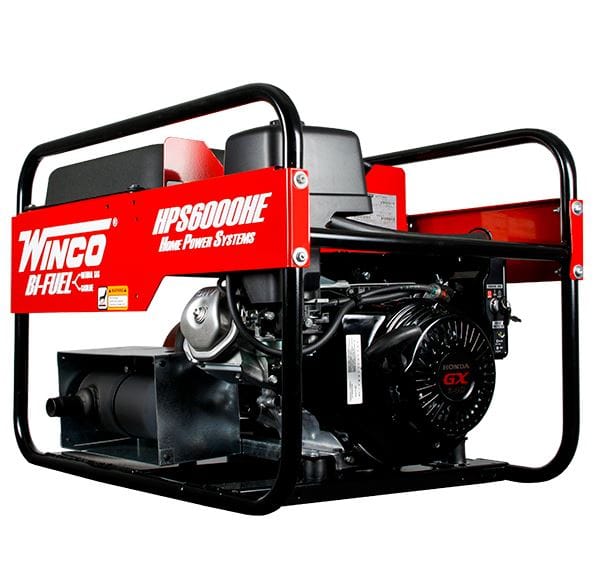

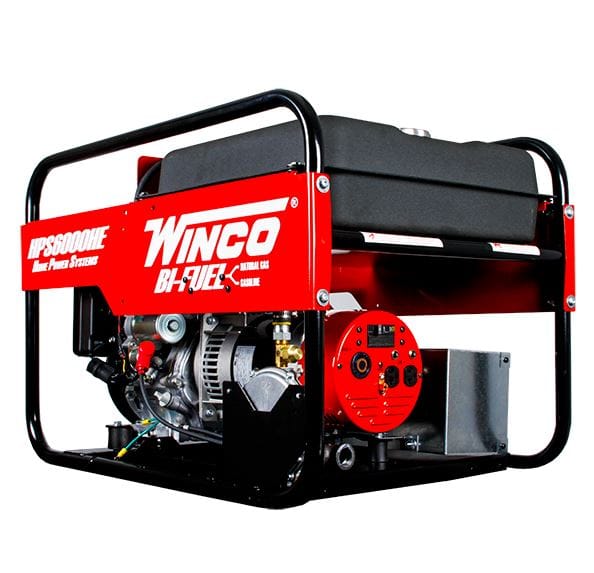

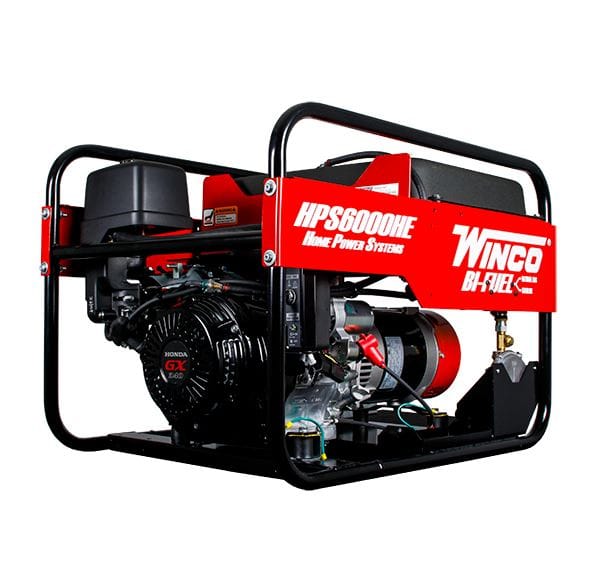

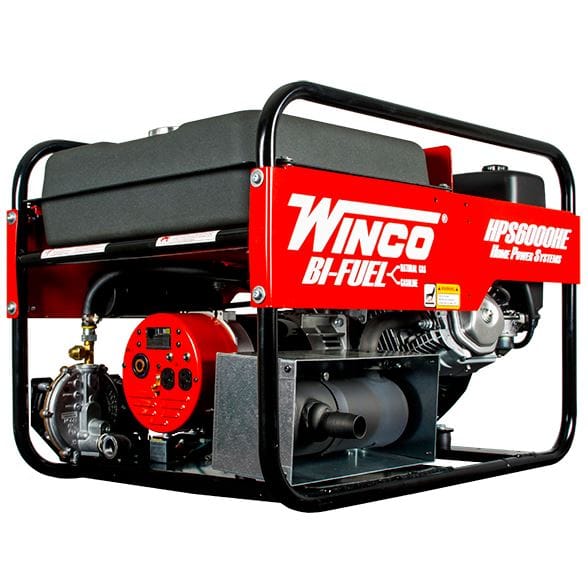

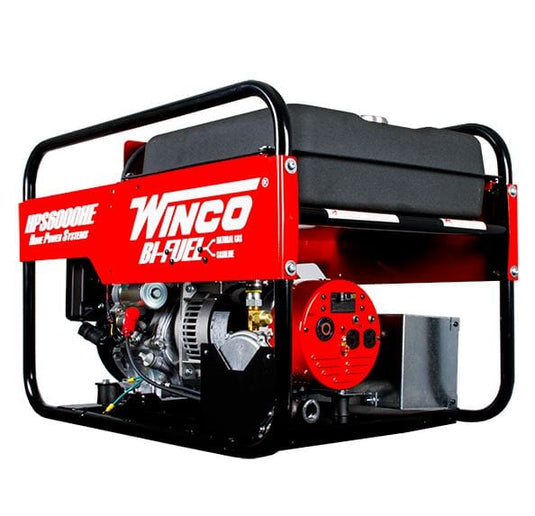

Winco’s HPS6000HE is a high quality and versatile portable generator. It utilizes the dependable Honda GX340 engine and is fitted with a special carburetor which allows the engine to operate on gasoline or natural gas. Switching between fuels is quick and simple. When this generator is combined with a manual transfer switch it powers essential circuits in your residence during outages but remains mobile enough for a trip to the cabin. This is not an aftermarket adaption. You will maintain your full engine warranty and the generator set meets EPA emissions standards.

FEATURES

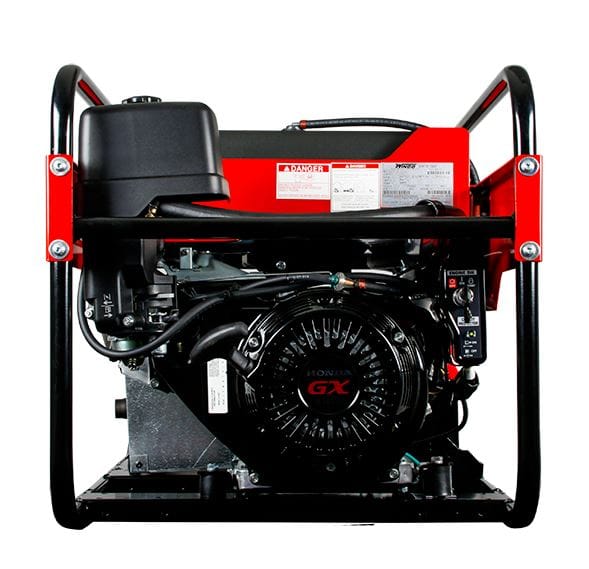

• Honda GX340 Engine - You expect the best, you get the best. The Honda GX340 engine has more power, lower fuel consumption, and lower emissions than previous versions.
• Bi-Fuel - Designed to easily run and transition between two fuel sources; natural gas and gasoline.
• Low Oil Protection - In the event there is a low oil level, the engine will shut down to protect the engine from damage.
• Sturdy Wrap-Around Welded Tubular Cradle - Winco uses 1"-14 gauge steel for dependable durability.
• 7 Gallon Fuel Tank - The EPA-approval steel fuel tank design eliminates hydrocarbon emissions.
• Premium Square D Circuit Breakers - Square D is the industry leader in circuit breaker protection.
• 100% Load Tested - Every generator is fully tested prior to leaving Winco's facility.

ENGINE SPECIFICATIONS

• ENGINE BRAND: HONDA
• ENGINE MODEL: GX30
• ENGINE STARTER: RECOIL/ELECTRIC
• ENGINE SPEED: 3600 RPM
• ENGINE CYLINDERS: SINGLE
• DISPLACEMENT/TYPE: 389 CC / OHV
• LOW OIL PROTECTION: STANDARD
• RECOMMENDED OIL: 10W-30
• OIL CAPACITY: 1.2 QTS
• FUEL TANK: 7 GAL
• FUEL GAUGE: ON TANK
• FUEL USE GASOLINE: 1 GAL/HR
• FUEL USE NATURAL GAS: 160 FT(3)/HR - 163,200 BTU/HR
• ENGINE WARRANTY: 3 YRS RESIDENTIAL

UNIT SPECIFICATIONS

• STARTING WATTS: 6,000
• RUNNING WATTS: 5,500
• RUNNING AMPS @ 120 VAC (Derate 20% for Natural gas): 45.8
• RUNNING AMPS @ 240 VAC (Derate 20% for Natural gas): 22.9
• VOLTAGE REGULATION: CAPACITOR +/-5%
• FREQUENCY REGULATION: +/-3%
• MAIN CIRCUIT BREAKER: 25 AMP
• NEUTRAL BONDED: YES
• 120 VOLT RECEPTACLES: (1) NEMA 5-20 20A (GFCI)
• 120/240 VOLT RECEPTACLES: (1) NEMA L14--30 30A
• MOTOR STARTING (CODE G): 2 HP
• SOUND DATA FULL LOAD: 72
• LIFTING EYE: NO
• ASSEMBLED IN: USA
• EPA APPROVED: YES
• CARB APPROVED: NO
• CSA APPROVED: NO
• UNIT WARRANTY: 2 YR RESIDENTIAL
• DIMENSIONS: 32.75" x 22.5" x 22"
• NET WEIGHT: 202 LBS
• SHIPPING DIMENSIONS: 33" x 25" x 26"
• SHIP WEIGHT: 224 LBS
