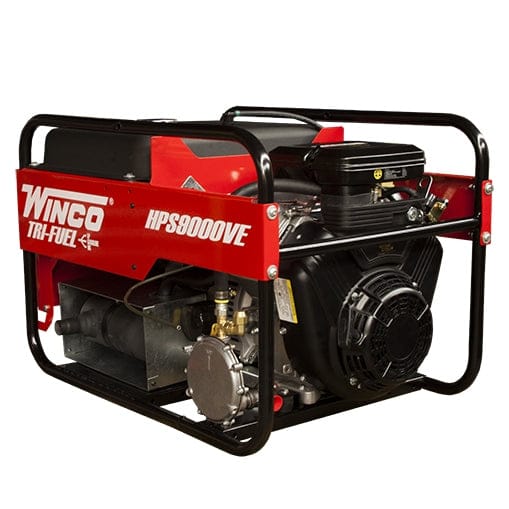

Winco HPS9000VE tri-fuel generator with exposed engine and fuel system. Red and black casing with branding and model number. Built for gasoline, propane, and natural gas operation.

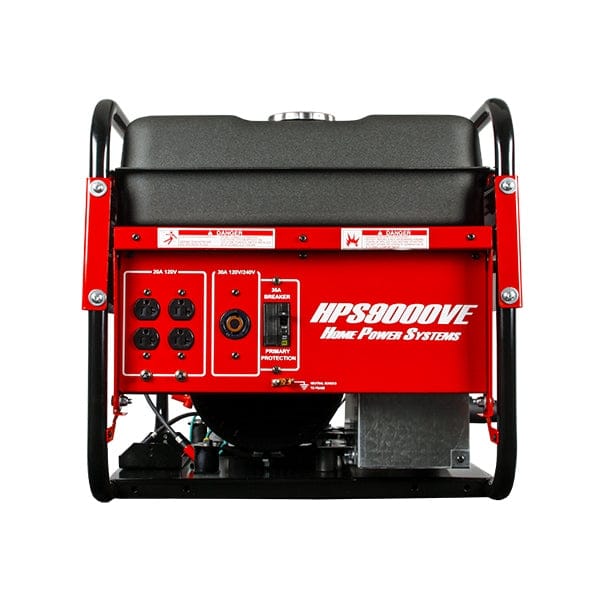

Close-up of Winco HPS9000VE generator control panel showing two 120V outlets, one 120/240V outlet, main breaker, and primary protection switch. Fuel tank cap visible on top.

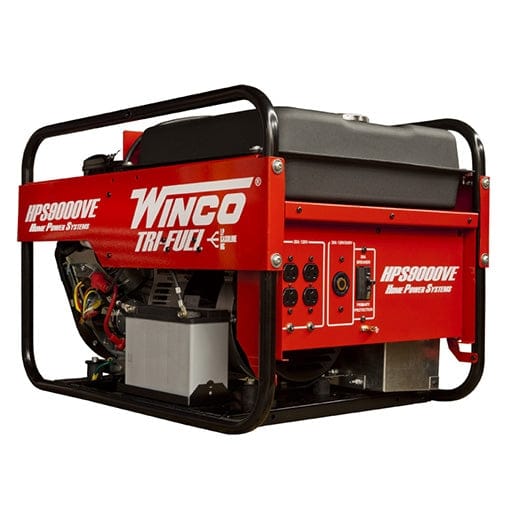

Winco HPS9000VE tri-fuel generator with red panels and black metal frame. Control panel and fuel tank visible. Labeled for gasoline, propane, and natural gas operation.
Winco HPS9000VE tri-fuel generator with exposed engine and fuel system. Red and black casing with branding and model number. Built for gasoline, propane, and natural gas operation.
Close-up of Winco HPS9000VE generator control panel showing two 120V outlets, one 120/240V outlet, main breaker, and primary protection switch. Fuel tank cap visible on top.
Winco HPS9000VE tri-fuel generator with red panels and black metal frame. Control panel and fuel tank visible. Labeled for gasoline, propane, and natural gas operation.
Winco

Winco Tri-Fuel Generator HPS9000VE-03/B 8000 Running Watts Briggs Vanguard Engine Gasoline/LP/NG Electric Start, Jobsite-Grade Durability

Only 3 left
SKU: HPS9000VE-03/B
$3,295.00
Description

Winco HPS9000VE-03/B 16609-003 Tri-Fuel Generator With Electric Start (Battery Not Included), 8,000 Watts, Briggs And Stratton Gasoline/NG/LP Engine


Call for Availability & Shipping 281-351-2211


 HPS9000VE-03/B was built with versatility in mind. It is the only Tri-Fuel capable, Vanguard-powered generator on the market that DOES NOT void the engine warranty. It’s constructed with the same components we use in our Industrial line.


Product Features:


- Replaces HPS9000VE-03/A, 03/B uses a new muffler design.


- Briggs & Stratton Vanguard Engine: Premium-grade Vanguard engines are application-engineered to power equipment that works for a living.
- Tri-Fuel: Designed to easily transition between three fuel sources: LP, Natural Gas, and Gasoline.
- Low Oil Protection: In the event there is low oil pressure, the engine will shut down, which will protect the engine from damage.
- 7 Gallon Fuel Tank: EPA approved steel fuel tank design eliminates hydrocarbon emissions.
- Sturdy Wrap-Around Welded Tubular Cradle: Winco uses use 1 inch tubular steel for dependable durability.
- Premium Circuit Breakers: Providing clear and instant identification of a tripped circuit.
- 100% Load Tested: You won’t find statistical sampling here. Winco load tests every generator before it leaves the factory.


 SPECIFICATIONS:


  • Engine: Briggs & Stratton Vanguard
  • Engine Starter: Recoil/Electric Engine
  • Speed: 3600Rpm
  • Engine Cylinders: V-Twin
  • Displacement/Type: 480 cc / OHV
  • Frequency Regulation: +/- 3%
  • Low Oil Protection
  • Standard Fuel Tank: 7 Gal
  • Fuel Gauge: Yes
  • Full Load Run Time: 1 Hours
  • Starting Watts: 9,000
  • Running Watts: 8,000
  • Running Amps: @ 120 Vac 66.7
  • Running Amps: @ 240 Vac 33.3
  • Voltage Regulation Capacitor: +/- 5%
  • Main Circuit Breaker: 35 Amp, 240v
  • Bonded Neutral: Yes
  • 120 Volt Receptacles: (2) Nema 5-20 20a 120/240
  • Volt Receptacles: (1) Nema L14-30r 30a
  • Dimensions: 33” x 25” x 27”
  • Weight: 272 lbs.


Winco HPS9000VE-03/B Generator Specifications



  • Power Output: 9,000 watts (starting) / 8,000 watts (continuous)

  • Engine: Briggs & Stratton Vanguard V-Twin engine

  • Fuel Type: Gasoline

  • Tank Capacity: Large fuel tank for extended runtime

  • Voltage: 120/240V output for various applications

  • Frame: Heavy-duty black metal frame for durability

  • Outlets: Multiple receptacles for different power needs

  • Features:
    • Electric start for convenience
    • Low oil shutdown for engine protection
    • Brushless generator head for maintenance-free operation


FEATURES
