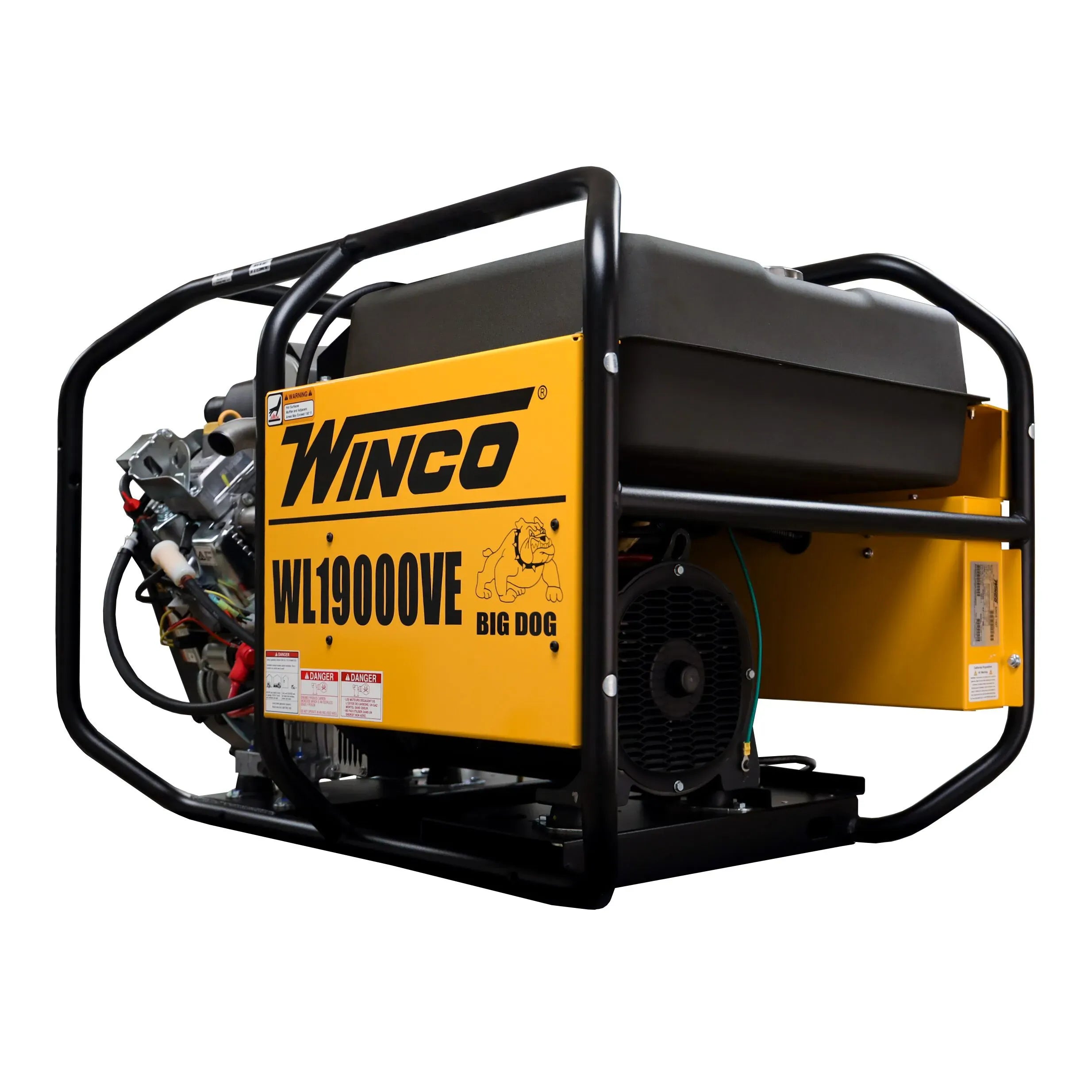

Winco WL19000VE Big Dog generator profile highlighting the 15-gallon steel fuel tank and 14-gauge powder-coated roll cage for heavy job site durability.

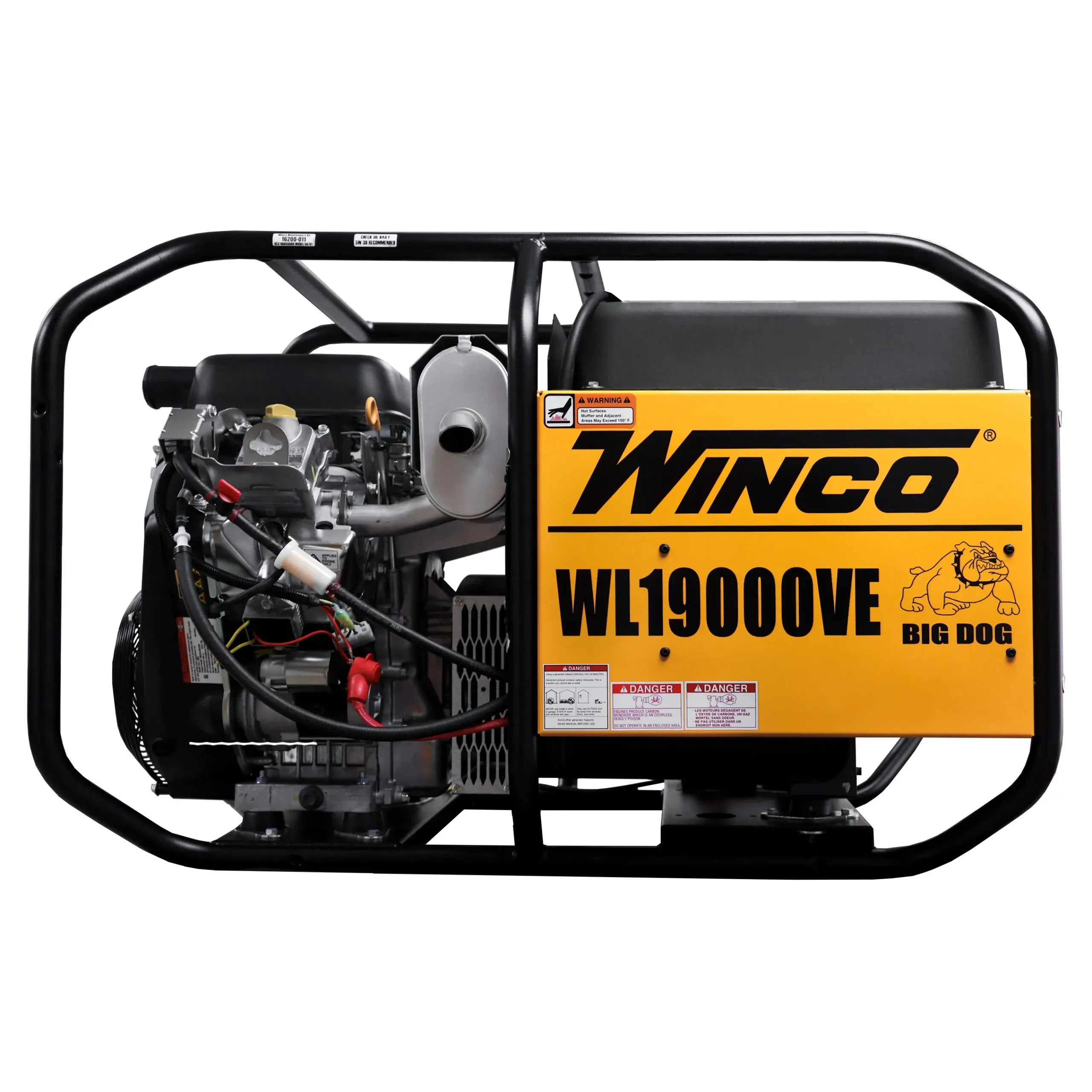

Side profile of the Winco WL19000VE power station showing the commercial Briggs Vanguard engine layout and industrial exhaust muffler setup.

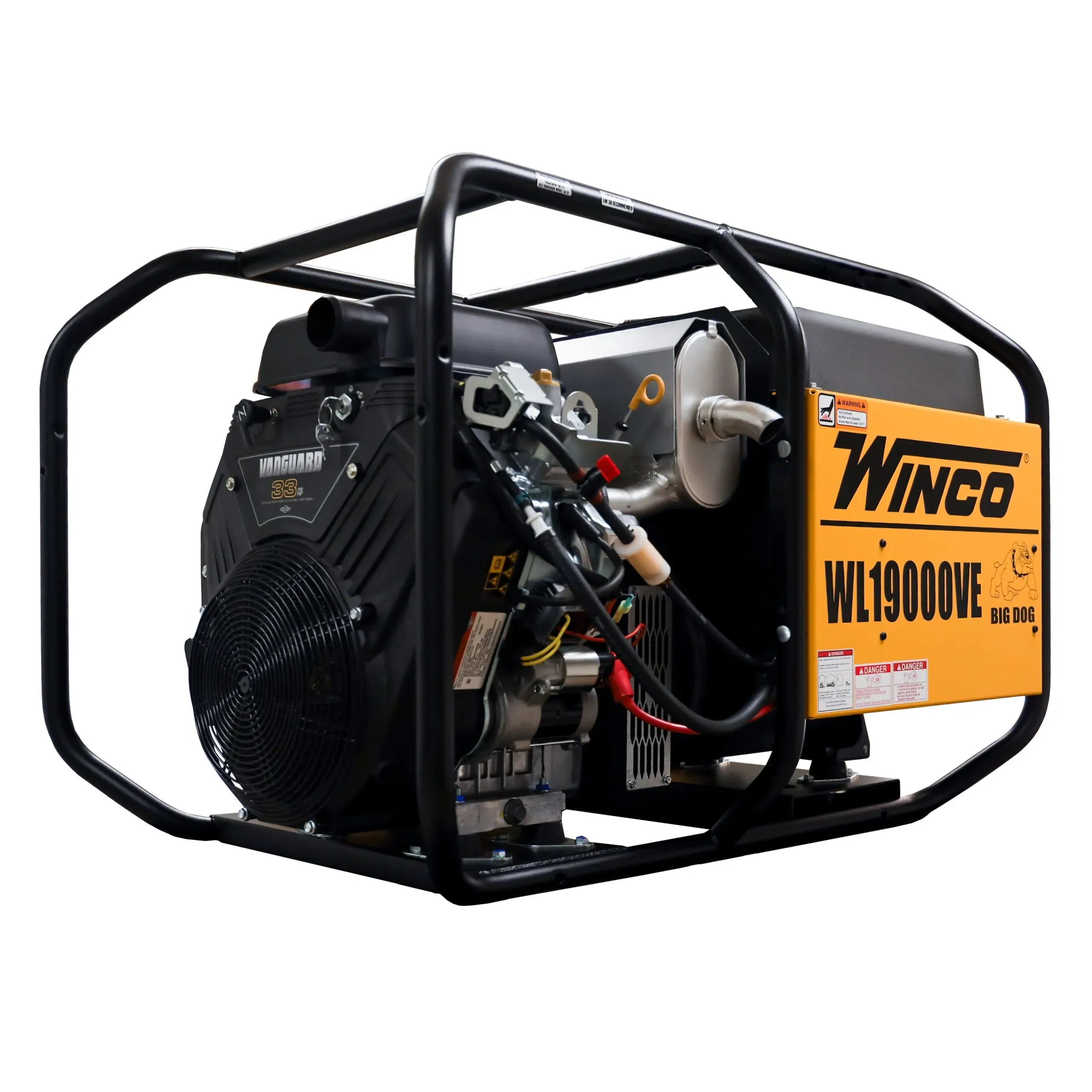

Briggs and Stratton Vanguard 33 HP V-Twin engine mounted on the Winco 17kW generator to deliver high-torque power for spray foam equipment.

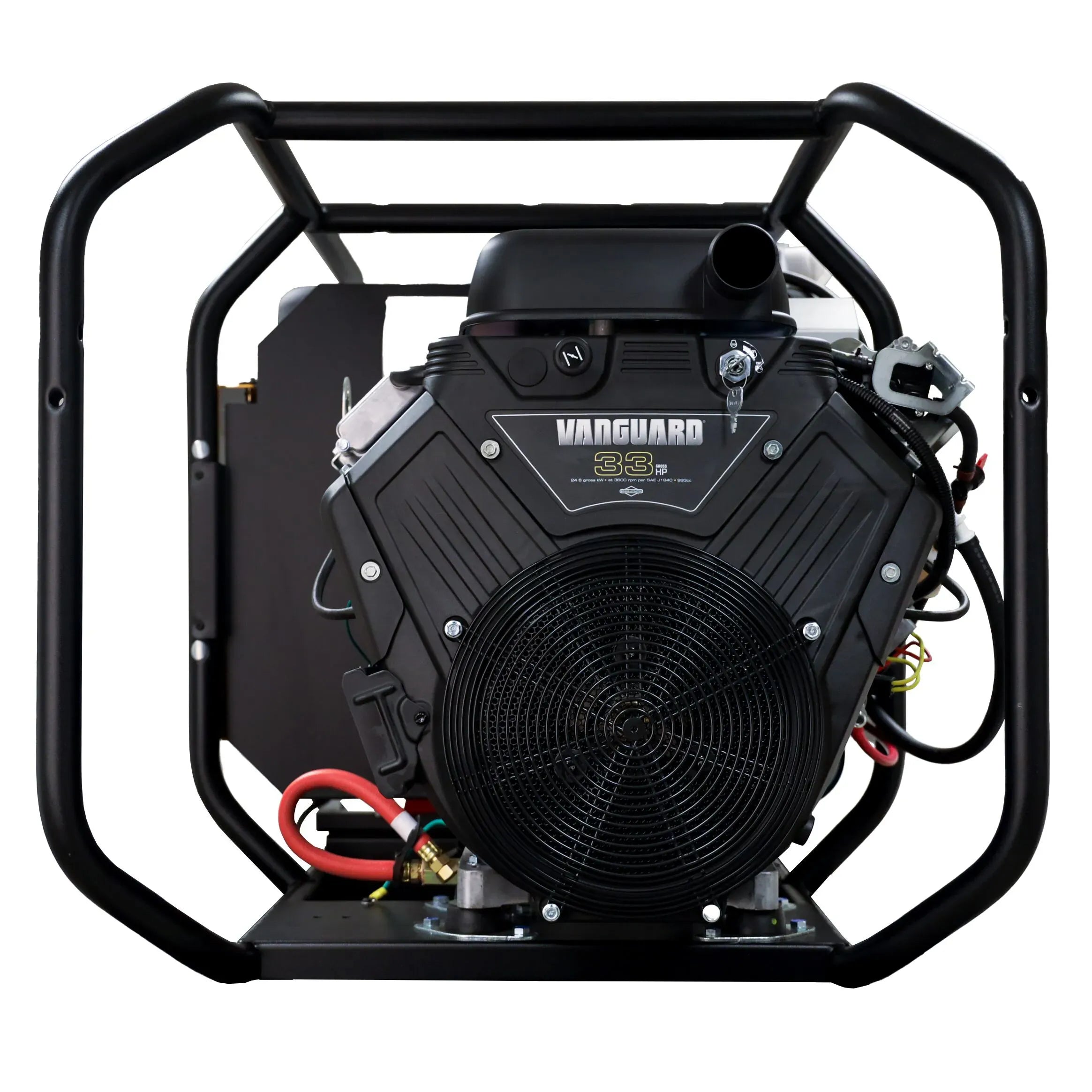

Frontal view of the Briggs and Stratton Vanguard 33 HP engine with electric key start switch for reliable commercial generator ignition.

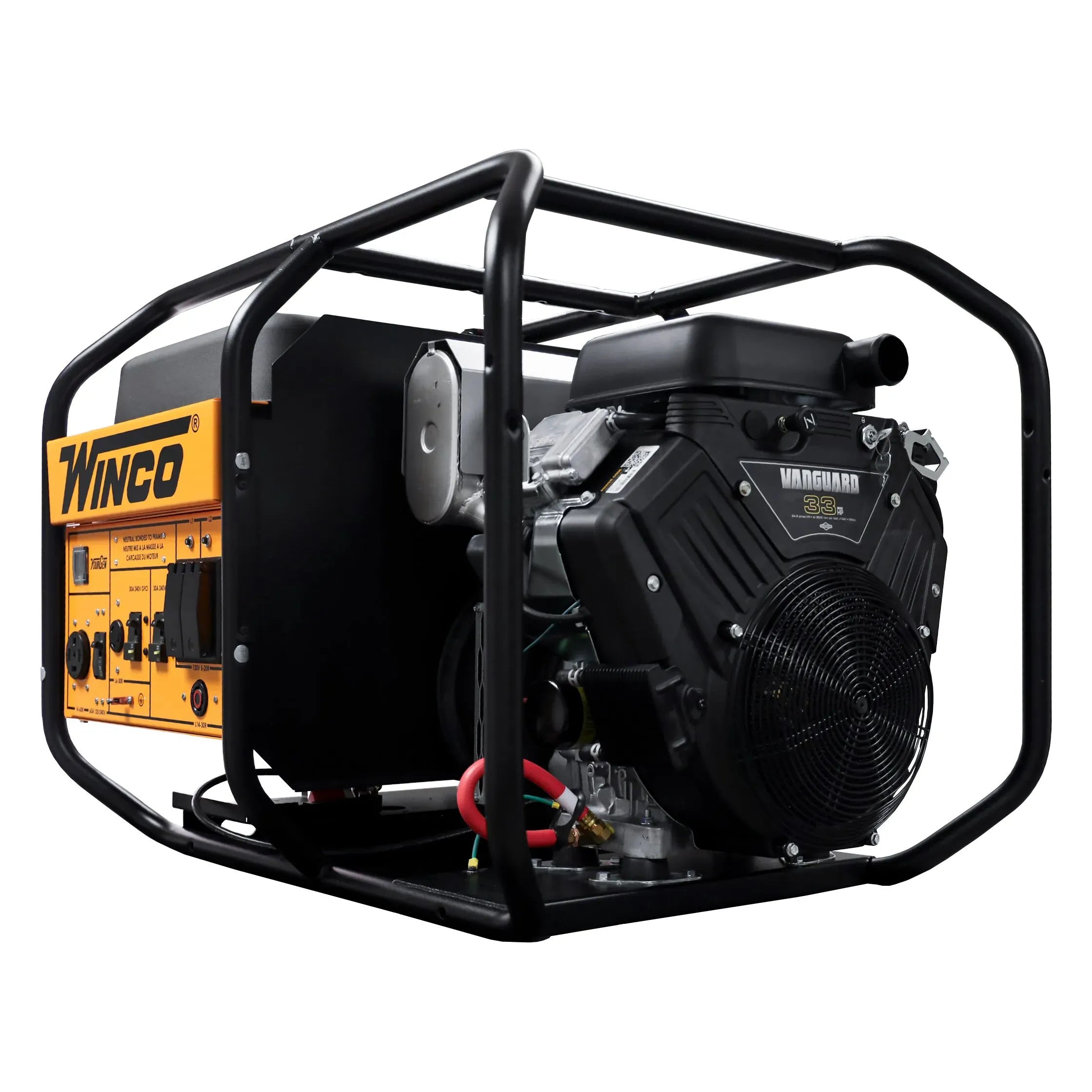

Three-quarter view of the Winco WL19000VE generator showing engine access, tubular steel frame protection, and side control panel layout.

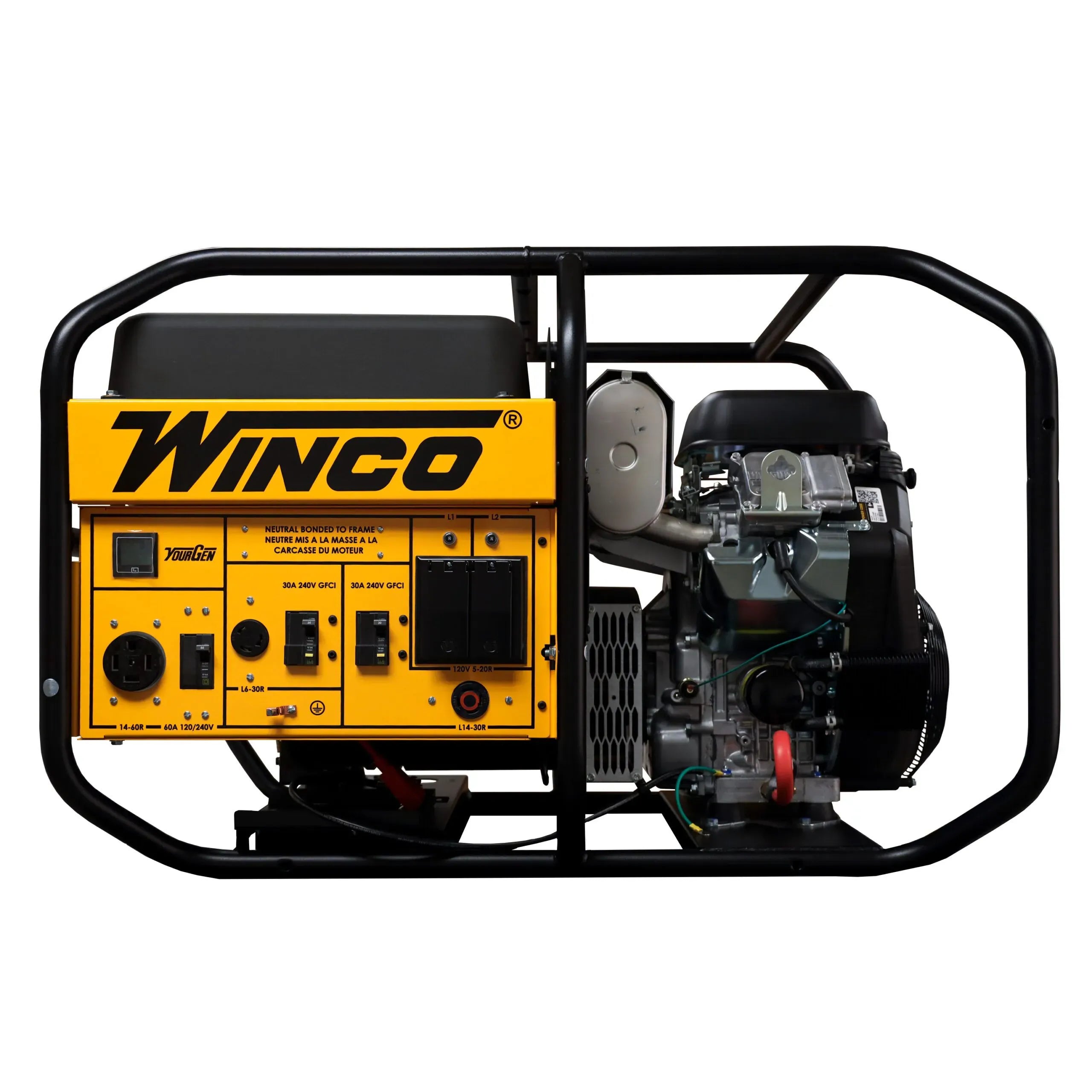

Full control panel of the Winco WL19000VE generator displaying the YourGen LED display, circuit breakers, and 120/240V power receptacle layout.

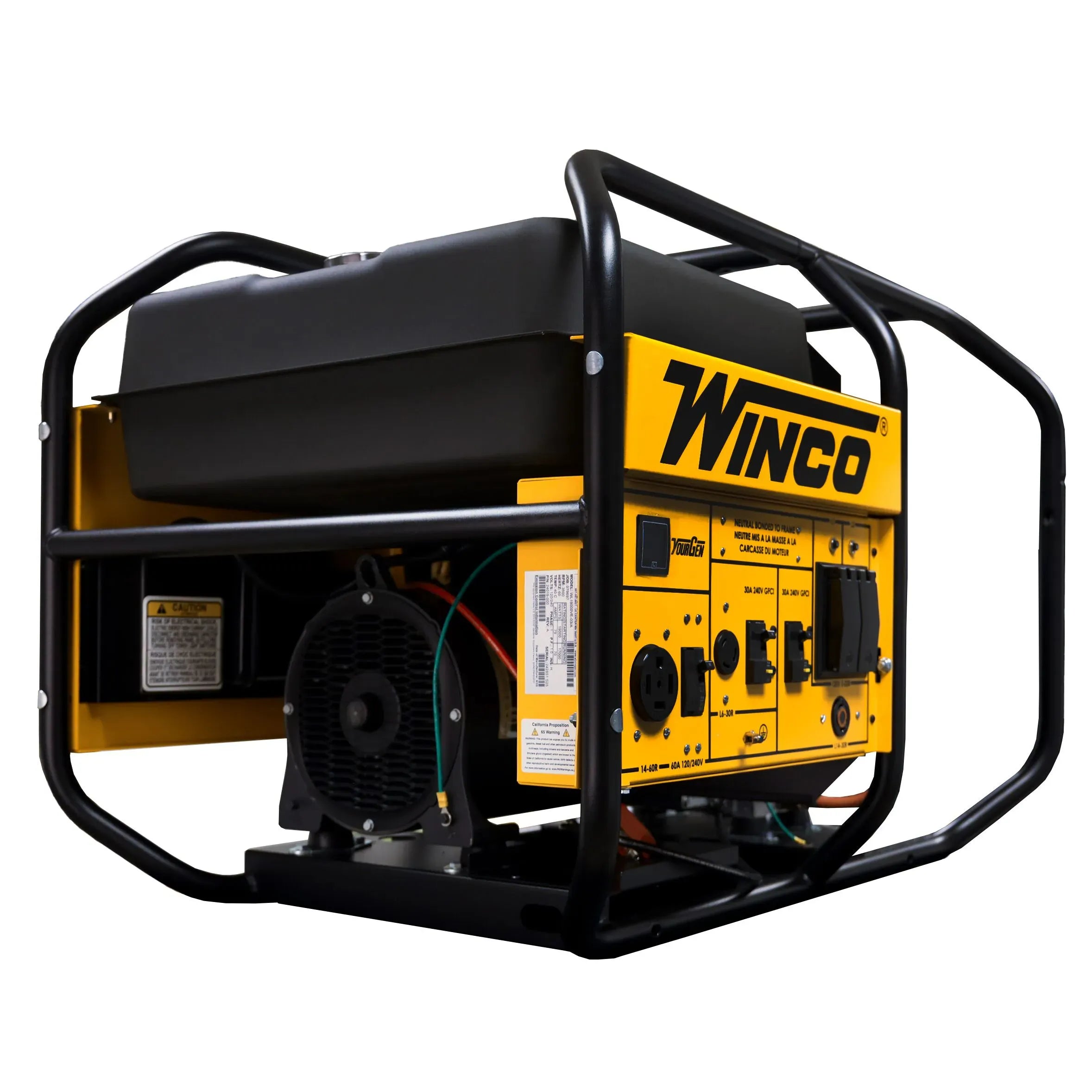

Winco 17kW portable generator outlet panel detailing the 60-amp NEMA 14-60R plug and twist-lock GFCI receptacles for mobile equipment hookups.

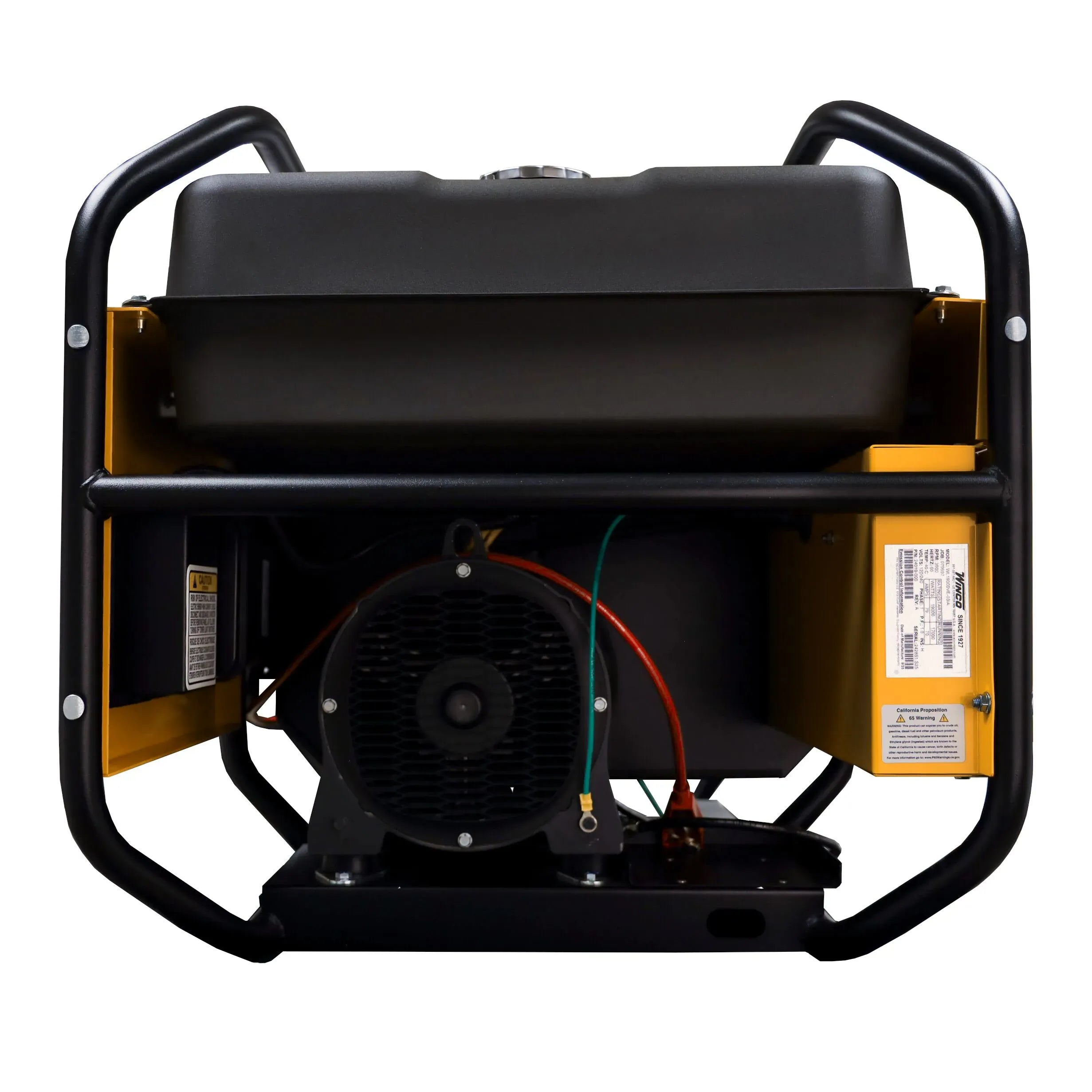

End-view of the Winco 17,000-watt generator showcasing the grounded stator end housing, 15-gallon fuel cell, and protective tubular frame geometry.
Winco WL19000VE-03/A generator panel showing a NEMA 14-60R receptacle, GFCI outlets, and YourGen LED meter for monitoring commercial power loads.
Rear view of the Winco WL19000VE-03/A portable generator showing the heavy-duty 100% load-tested alternator end and welded 14-gauge steel cradle frame.
Winco WL19000VE Big Dog generator profile highlighting the 15-gallon steel fuel tank and 14-gauge powder-coated roll cage for heavy job site durability.
Side profile of the Winco WL19000VE power station showing the commercial Briggs Vanguard engine layout and industrial exhaust muffler setup.
Briggs and Stratton Vanguard 33 HP V-Twin engine mounted on the Winco 17kW generator to deliver high-torque power for spray foam equipment.
Frontal view of the Briggs and Stratton Vanguard 33 HP engine with electric key start switch for reliable commercial generator ignition.
Three-quarter view of the Winco WL19000VE generator showing engine access, tubular steel frame protection, and side control panel layout.
Full control panel of the Winco WL19000VE generator displaying the YourGen LED display, circuit breakers, and 120/240V power receptacle layout.
Winco 17kW portable generator outlet panel detailing the 60-amp NEMA 14-60R plug and twist-lock GFCI receptacles for mobile equipment hookups.
End-view of the Winco 17,000-watt generator showcasing the grounded stator end housing, 15-gallon fuel cell, and protective tubular frame geometry.
Winco

Winco Portable Generator WL19000VE-03/A 17kW 15 Gallon Gasoline Power Station (120/240V Single Phase, Briggs Vanguard, Spray Foam Rigs)

Only 1 left
SKU: WL19000VE-03/A
$6,789.60 USD

Shipping Quote Required

Request a Shipping Quote
Description

Winco WL19000VE-03/A 17,000-Watt 120/240V Single-Phase Gasoline Industrial Portable Generator

The Winco WL19000VE-03/A is a commercial-grade single-phase gasoline portable generator delivering 17,000 running watts and 19,000 surge watts for high-demand industrial jobsites. Powered by a premium Briggs & Stratton Vanguard V-Twin engine, this 504 lb mobile power system features a 15-gallon steel fuel tank, electric start, low-oil protection, and a 100% factory load-tested alternator. Constructed inside a 14-gauge welded tubular steel roll cradle with powder-coat protection, this continuous-duty unit incorporates an integrated YourGen LED digital meter and heavy-duty GFCI receptacles to deliver stable power for commercial roofing, insulation spraying, and mobile jobsite setups.

Best Used For:

  • Commercial Spray Foam & Insulation Rigs: Providing 17,000 continuous watts at 120/240V to operate high-draw electric proportioners and air compressors.
  • Roofing & Construction Site Equipment: Powering heavy-duty 240V welders, masonry saws, and multiple simultaneous 120V power tools without voltage drop.
  • Emergency Commercial Backup Power: Connecting directly to manual transfer switches via high-amperage NEMA receptacles during grid outages.

Key Performance & Safety Features

  • Briggs & Stratton Vanguard V-Twin Engine: Commercial-grade gasoline engine engineered for continuous high-torque operations on heavy jobsites.
  • YourGen Digital LED Parameter Meter: Displays real-time hours, engine RPMs, output voltage, frequency readings, and active load percentage balancing.
  • 15-Gallon Heavy-Duty Steel Fuel Tank: EPA-approved fuel storage system engineered for extended engine runtimes and zero hydrocarbon emissions.
  • 14-Gauge Tubular Steel Roll Cradle: Full-wrap welded steel frame with powder-coat finish guards internal generator components against impact.
  • Automatic Low-Oil Engine Shutdown: Engine protection sensor cuts ignition when oil drops below safe limits to prevent internal motor damage.
  • Commercial Circuit Breakers & Full GFCI Outlets: Premium breakers supply immediate visual trip indications alongside full GFCI receptacle protection.

What's Included

  • (1) Winco WL19000VE-03/A 17kW Gasoline Portable Generator
  • (1) Integrated 15-Gallon EPA Steel Fuel Tank
  • (1) YourGen Digital LED Parameter Meter Panel
  • (1) Commercial 3-Year Factory Warranty Coverage

Technical Specifications

Brand Manufacturer Winco® Generators
Model Part Number OEM SKU WL19000VE-03/A
Generator Classification Industrial Gasoline Portable Power Generator
Continuous Running Power Capacity 17,000 Watts (17 kW)
Maximum Surge Starting Power 19,000 Watts (19 kW)
Output Voltage & Phase Configuration 120/240V Single-Phase (1-Ph)
Engine Type & Brand Briggs & Stratton® Vanguard V-Twin Gasoline Engine
Receptacle Panel Layout (2) NEMA 5-20R 20A GFCI Duplex, (1) NEMA 14-60A, (1) NEMA L14-30A GFCI, (1) NEMA L6-30A GFCI
Fuel Storage Capacity 15.0 Gallons (EPA Approved Steel Tank)
Frame Construction Profile 14-Gauge Welded Tubular Steel Cradle with Powder-Coat Finish
Digital Parameter Metering YourGen LED (Hours, Voltage, Frequency, RPM, Load Percentage Bar)
Factory Testing Protocol 100% Load Tested Prior to Factory Dispatch
Assembled Net Generator Weight 504.0 lbs (228.6 kg)
Commercial Factory Warranty 3-Year Commercial Warranty
Country of Assembly Assembled in the USA

Pro-Tip: Pay close attention to the YourGen LED load bar during initial equipment startup. Balancing your 120V loads evenly across both stator windings prevents phase imbalance overheating and ensures full 17,000-watt continuous generator output.
