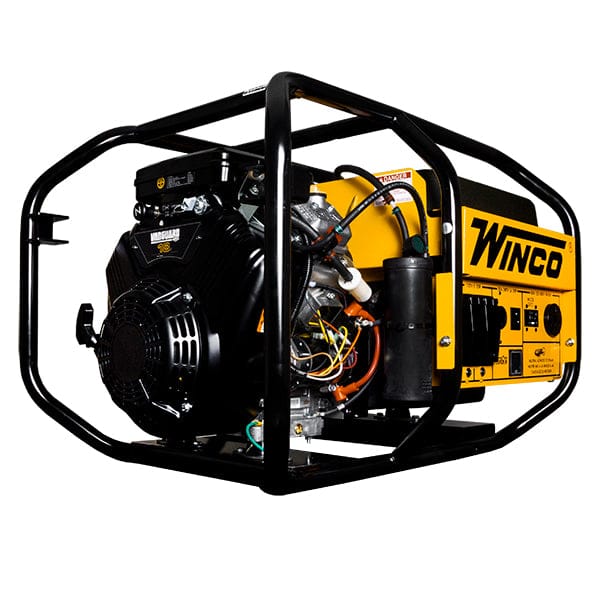

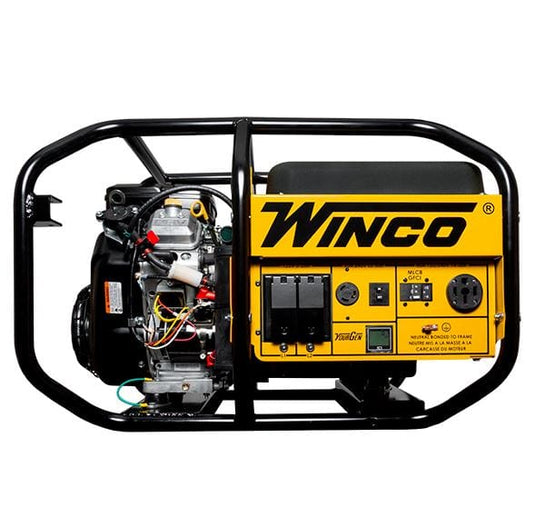

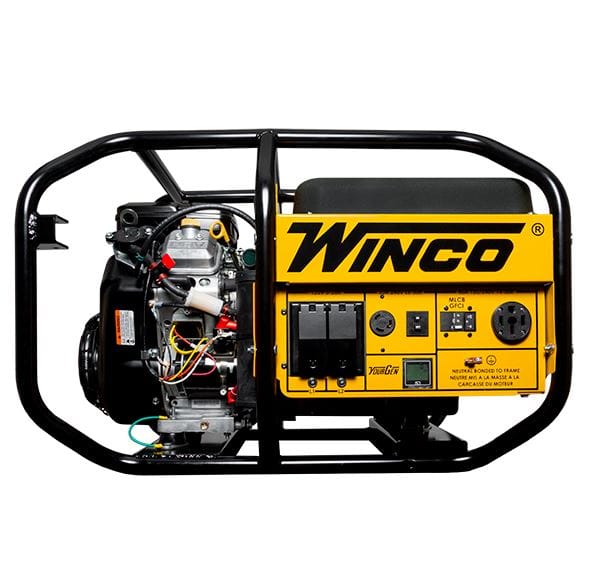

Winco 10kW Single-Phase Portable Generator - Vanguard Engine

DETAILS

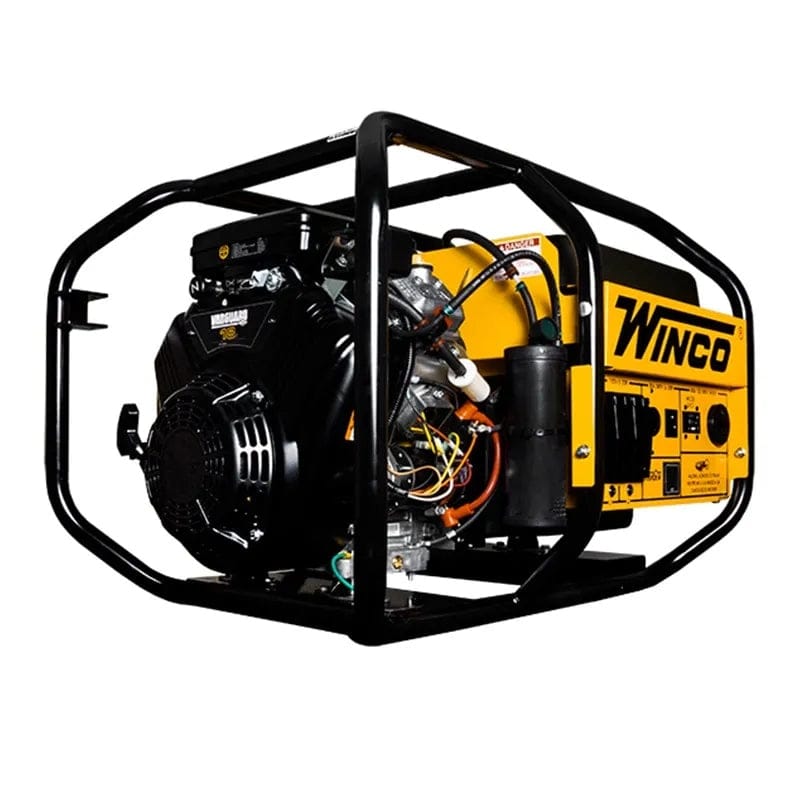

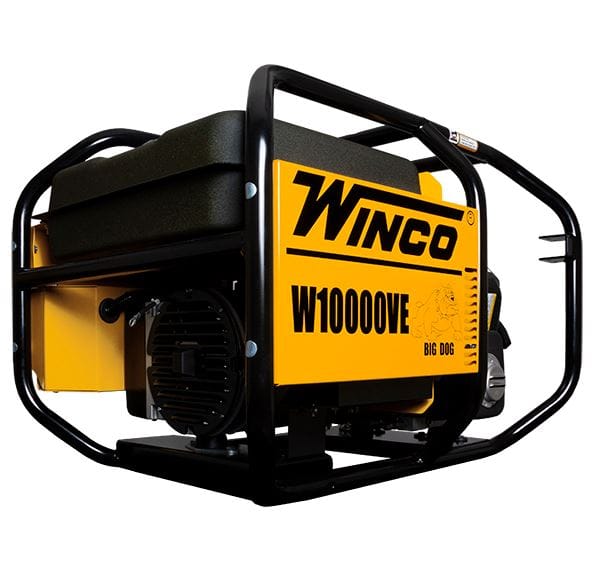

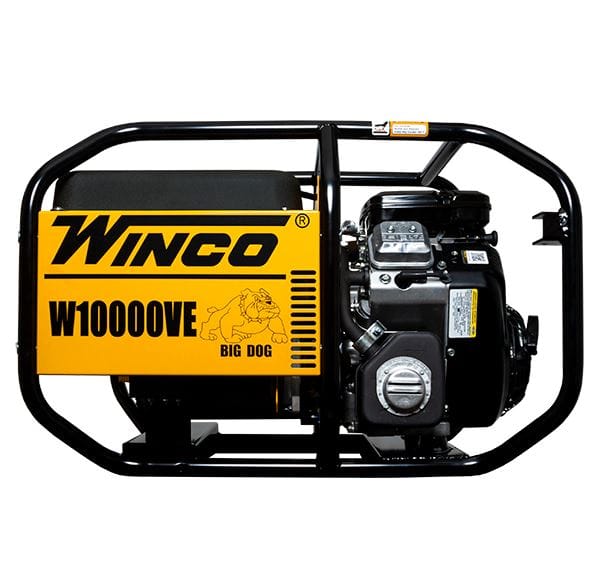

The WINCO W10000VE is a 40 amp continuous duty generator perfect for flat top roofing, concrete contractors, and general construction. The Briggs & Stratton Vanguard 18 HP engine is commercial grade and built to last for thousands of hours of use with proper maintenance. The generator and engine produce clean and smooth electrical power that is safe for sensitive electronics yet powerful enough to safely run compressors and other power tools. For flat top roofers this generator is large enough to run one robotic welder and one handheld welder.

FEATURES

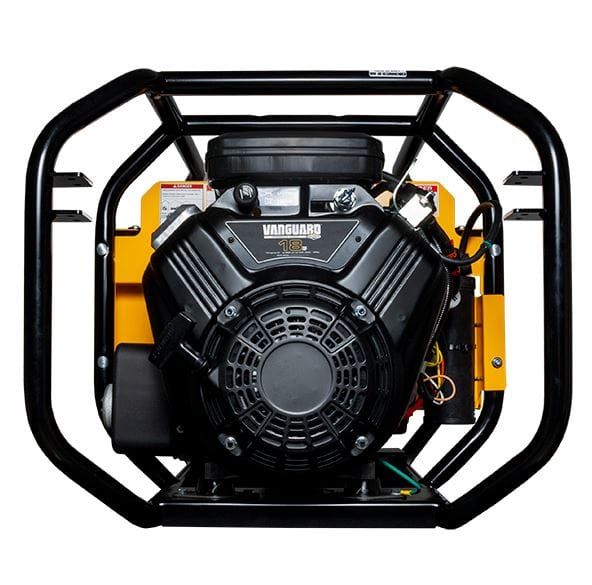

• BRIGGS & STRATTON VANGUARD ENGINE: Premium grade Vanguard engines are application-engineered to power equipment that works for a living.

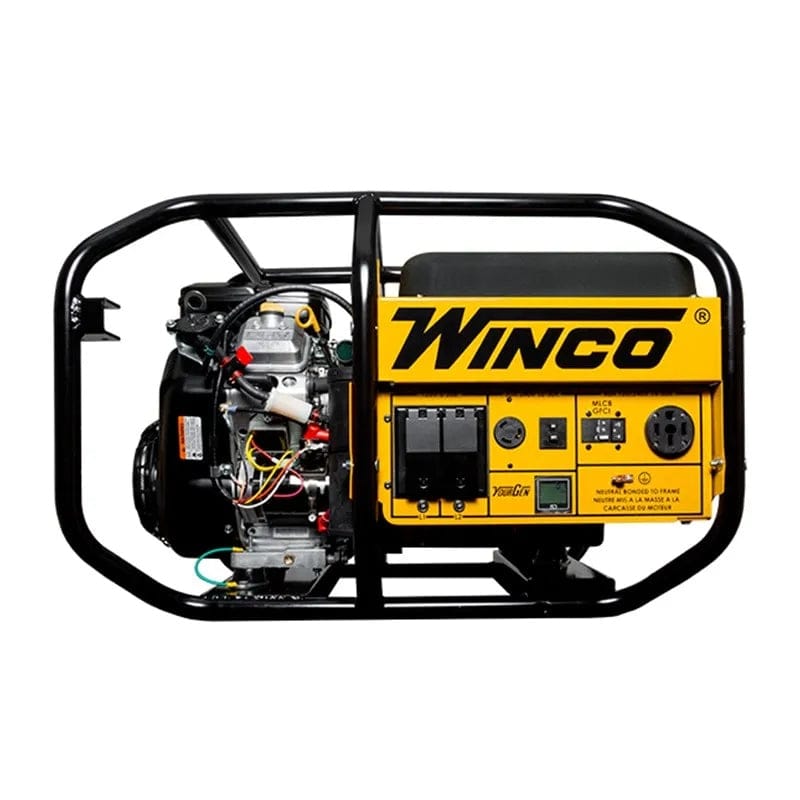

• YOURGEN METER: LED meter displaying house, RPMs, voltage, and frequency readings. Verifies the load balance with a load bar display. Warnings when a parameter is outside of normal range and when an oil change is needed.
• LOW OIL PROTECTION: In the event there is a low oil level, the engine will shut down to protect the engine from damage.
• POWDER COAT PAINT: For an incredibly durable finish.

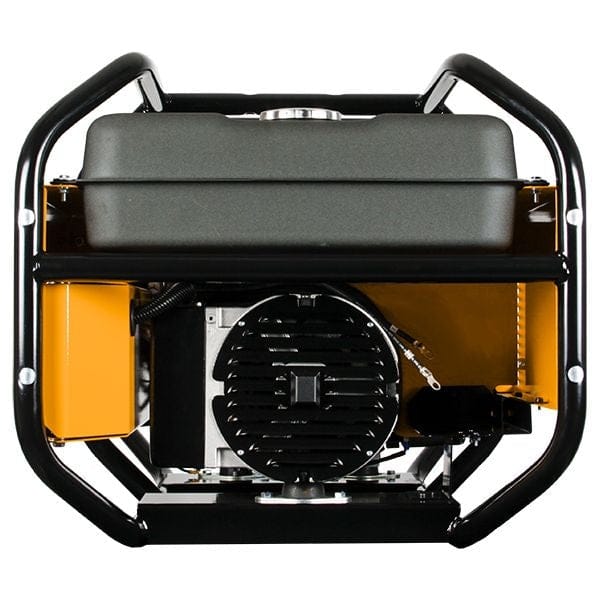

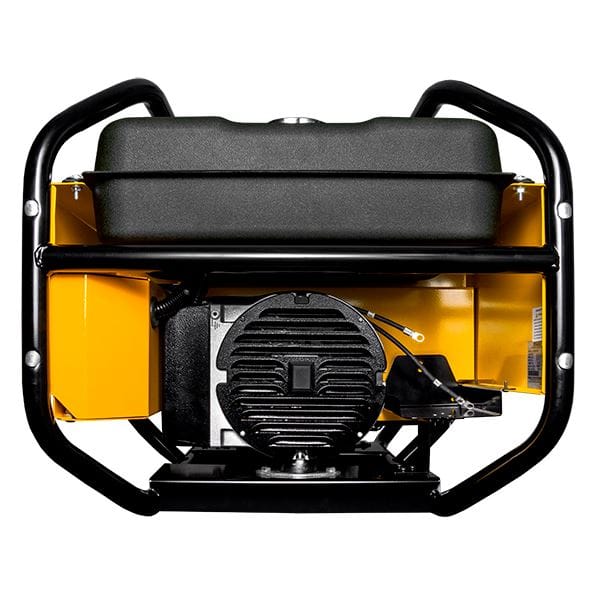

• STURDY WRAP-AROUND CRADLE: 14 gauge, welded, tubular steel provides industrial strength support.
• AUTOMATIC VOLTAGE REGULATION This generator will automatically regulate voltage at +/- 1% and is safe for sensitive electrical equipment.
• PREMIUM CIRCUIT BRAKERS: Provides clear and instant identification of a tripped circuit.
• 100% LOAD TESTED: Every generator is fully tested prior to leaving Winco's facility.

ENGINE SPECIFICATIONS

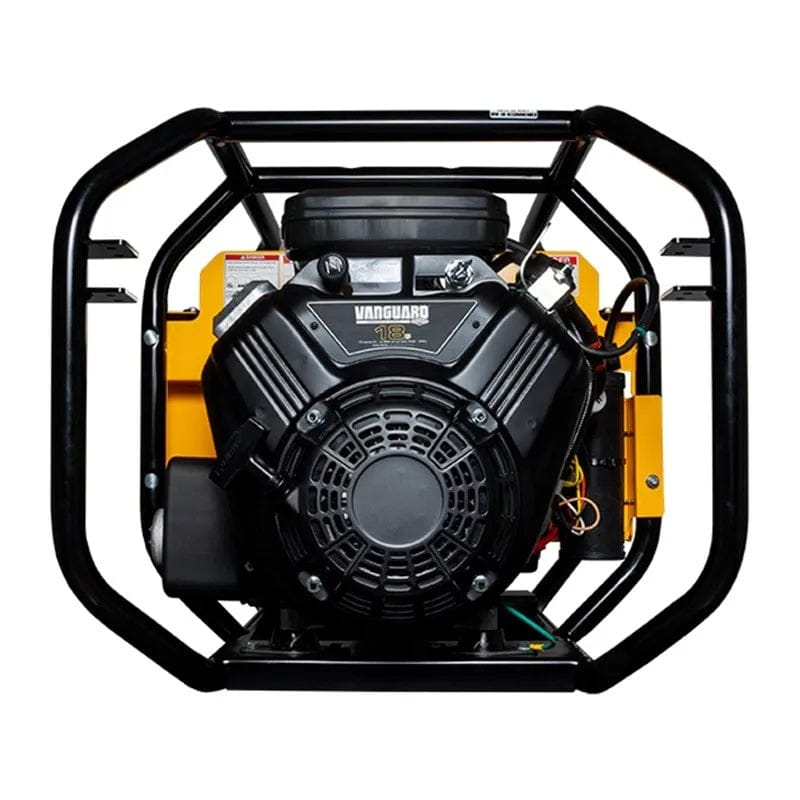

• ENGINE BRAND: BRIGGS & STRATTON
• ENGINE MODEL: VANGUARD
• ENGINE STARTER: ELECTRIC/RECOIL
• ENGINE SPEED: 3600 RPM
• ENGINE CYLINDERS: V-TWIN
• DISPLACEMENT/TYPE: 570 CC / OVH
• FREQUENCY REGULATION: +/- 3%
• LOW OIL PROTECTION: STANDARD
• RECOMMENDED OIL: 10W-30
• OIL CAPACITY: 2.4 QT

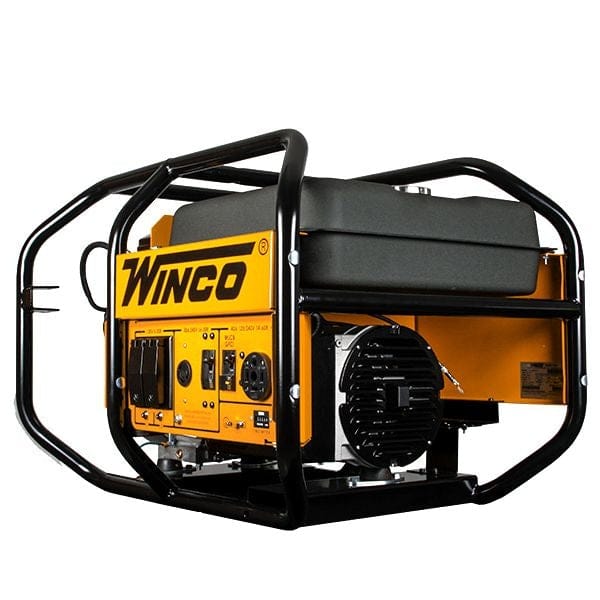

• FUEL TANK: 7 GAL
• FUEL GAUGE: YES
• FULL LOAD RUN TIME: 4.3 HOURS
• FUEL CONSUMPTION GAL/HR @ 100%: 1.64
• FUEL CONSUMPTION @ 75%: 1.34
• FUEL CONSUMPTION @ 50%: 1.01
• FUEL CONSUMPTION @ 25%: 0.77
• FUEL CONSUMPTION @ 0%: 0.28

GENERATOR SPECIFICATIONS

• STARTING WATTS: 10,000
• RUNNING WATTS: 9,600
• RUNNING AMPS @ 120 VAC: 80
• RUNNING AMPS @ 240 VAC: 40
• VOLTAGE REGULATION AVR: +/- 1%
• MAIN CIRCUIT BREAKER: 40 AMP, 240V (GFCI)
• BRUSH: YES
• BONDED NEUTRAL: YES
• 120 VOLT RECEPTACLES: (2) NEMA 5-20 20A (GFCI)
• 120/240 VOLT RECEPTACLES: (1) NEMA L14-50 50A (GFCI
• 240 VOLT RECEPTACLES: (1) NEMA L6-30 30A (GFCI)
• YOURGEN METER: STANDARD
• MOTOR STARTING (CODE G): 3 HP
• DBA @ 7 METERS NO LOAD: 81.3
• DBA @ 7 METERS FULL LOAD: 82.8
• TOTAL HARMONIC DISTROTION: < 6%
• LIFTING EYE: STANDARD
• INSULATION CLASS: H
• PROTECTIVE ROLL FRAME: 1.25" DIA 14 GAUGE STEEL
• ASSEMBLED IN: USA
• EPA APPROVED: YES
• CARB APPROVED: YES
• CSA APPROVED: NO
• UNIT WARRANTY: 3 YEARS COMMERCIAL
• SHIPPING DIMENSIONS: 36" x 26" x 24"
• SHIP WEIGHT: 298 LBS
