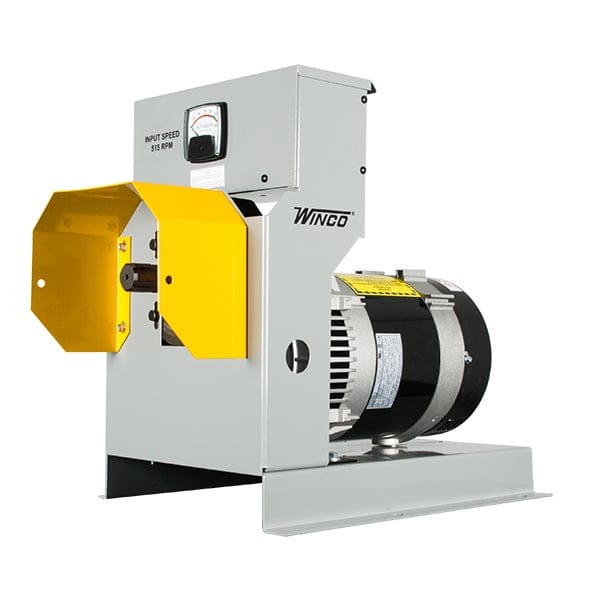

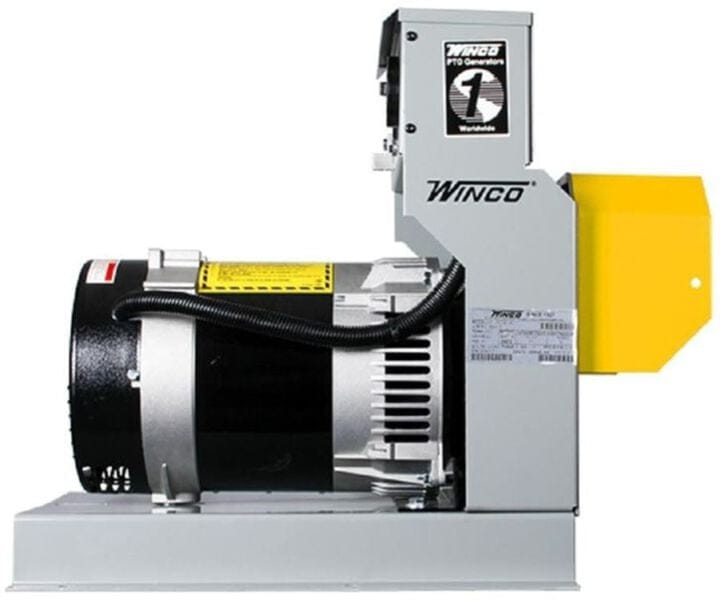

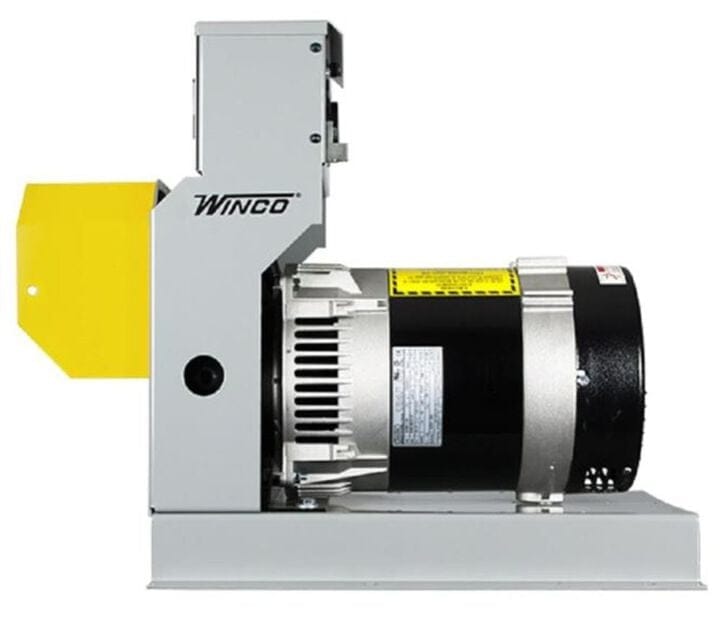

Winco W10PTOS 10kW Tractor Driven PTO Generator 515 RPM 120 240V Single Phase Farm Backup Power NEMA 14-60 Plug
Couldn't load pickup availability
Transform Your Tractor into a Mobile Power Plant
Call or Email for Availability and Shipping:
281-351-2211 - Sales@HilltopTool.com
Secure your home and farm against power outages with the Winco W10PTOS-3/A 10kW PTO Generator. Designed specifically for the hobby farmer and rural homeowner, this compact yet powerful unit harnesses the engine power of your existing tractor to generate 10,000 watts of reliable electricity. Because it utilizes the tractor you already own, it eliminates the maintenance headaches of a separate engine, ensuring that when the grid goes down, you have immediate access to 120/240V single-phase power. It is the ultimate cost-effective solution for running essential appliances, well pumps, and lighting during emergencies.
Built to endure the rigors of agricultural work, the W10PTOS features a heavy-duty cast iron gearcase equipped with helical gears. This precision engineering ensures smooth, quiet operation and efficient power transfer from your tractor's PTO shaft. With a required input speed of just 515 RPM, it is compatible with standard 540 RPM PTO drive tractors (minimum 20 HP). The unit comes ready to connect with a NEMA 14-60 full-power plug and dual 120V convenience receptacles, protected by individual circuit breakers and monitored via a clear, easy-to-read voltmeter.
Key Features & Benefits
- 10kW Power Capacity: Provides ample power for home backup, running essential circuits and tools.
- Tractor Driven Efficiency: Operates off a standard 540 RPM PTO shaft (515 RPM input), utilizing a 20HP+ tractor.
- Durable Gearcase: Cast iron construction with helical gears ensures longevity and reduced operational noise.
- Versatile Connectivity: Equipped with a 60 Amp NEMA 14-60 full power plug and standard 120V outlets.
- Safety Monitoring: Integrated voltmeter allows for precise RPM adjustment to maintain correct voltage output.
- Circuit Protection: Individual circuit breakers protect the generator and connected equipment from overloads.
- Portable Design: Compact frame makes it easy to transport or mount to a trailer (trailer sold separately).
- Maintenance Free: No separate engine to maintain, service, or fuel—just grease the fittings and go.
What's Included
- (1) Winco W10PTOS-3/A 10kW PTO Generator
- (1) PTO Safety Shield
- (1) NEMA 14-60P Plug (shipped loose)
- (1) Operator's Manual
Available for pickup at our Tomball, TX location:
30702 State Highway 249
Tomball, Texas 77375
Monday-Friday 7am-5pm CST
Saturday 7am-1pm CST
Specifications
| Brand | Winco |
| Model Number | W10PTOS-3/A |
| Continuous Watts | 10,000 Watts (10 kW) |
| Continuous Amps (240V) | 42 Amps |
| Voltage Output | 120/240 Volt Single Phase |
| Required Tractor HP | 20 HP |
| PTO Input Speed | 515 RPM |
| Main Receptacle | NEMA 14-60R (60A) |
| Auxiliary Receptacles | (2) NEMA 5-20R (20A Duplex) |
| Input Shaft | 1-3/8" 6-Spline |
| Oil Capacity | 0.9 Pints |
| Dimensions (LxWxH) | 25" x 13" x 18" |
| Weight | 148 lbs |
Pro-Tip: The most critical factor in running a PTO generator is maintaining the correct frequency (60Hz). This generator requires 515 RPM at the PTO shaft to produce clean 60Hz power. Always set your tractor's throttle using the generator's voltmeter as a guide—aim for the "Green Zone" on the meter before applying electrical loads. If the voltmeter drops significantly when a load turns on, increase the tractor throttle slightly to compensate.
