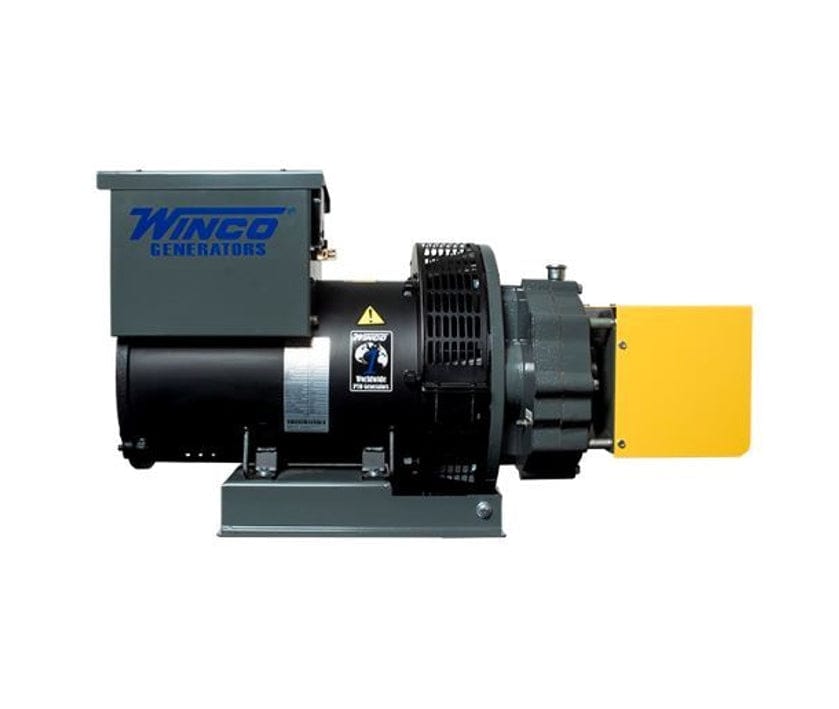

Full side view of the Winco PTO generator resting on its steel mounting base.

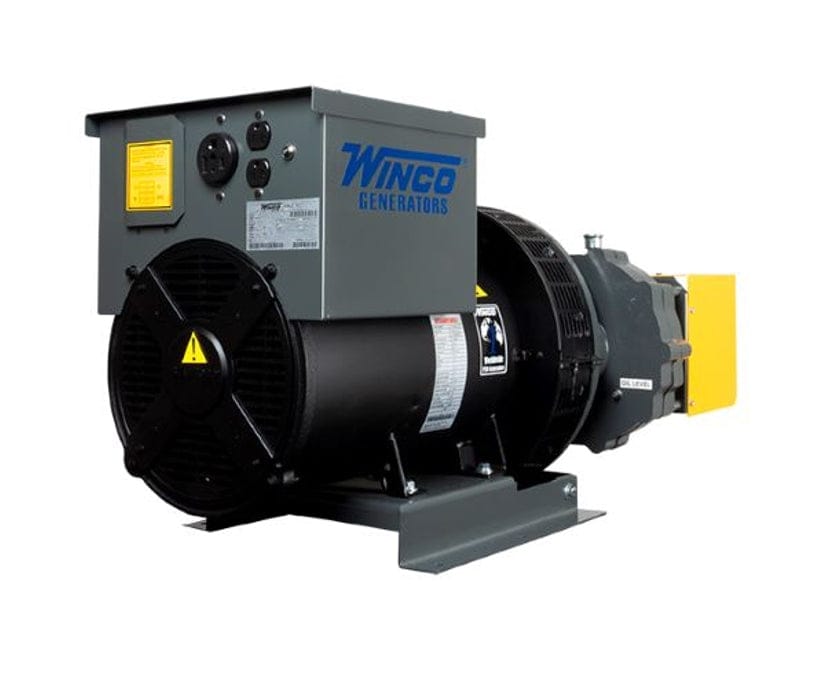

Side angle view showing the Winco Generators logo on the control box and the main cylindrical generator housing.

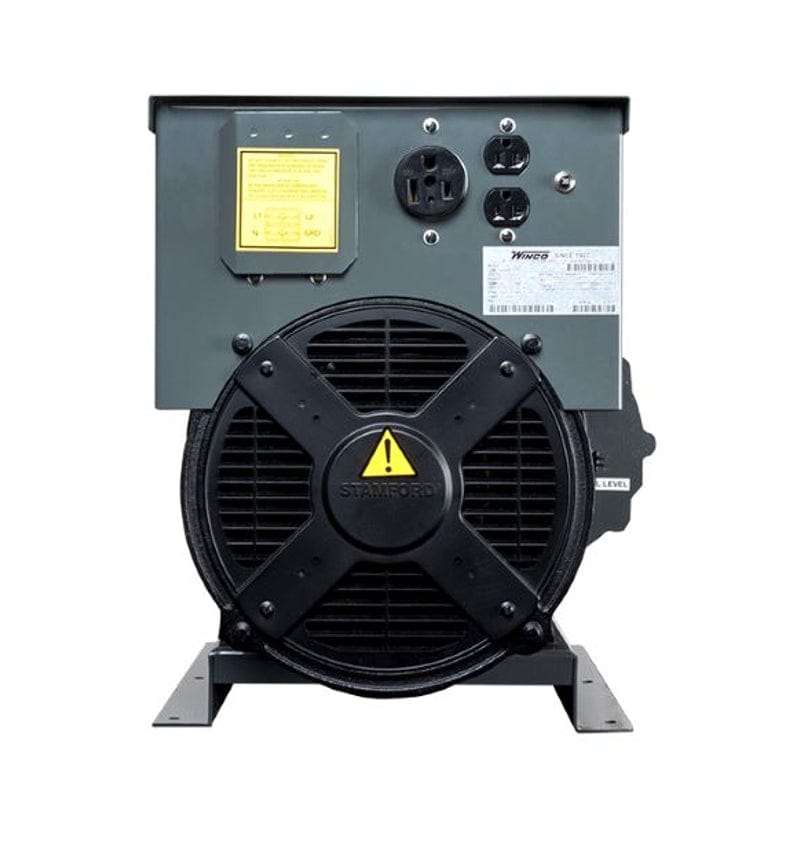

Straight on view of the output panel featuring a 50 amp plug, 20 amp plugs, and circuit breakers above the main cooling fan.

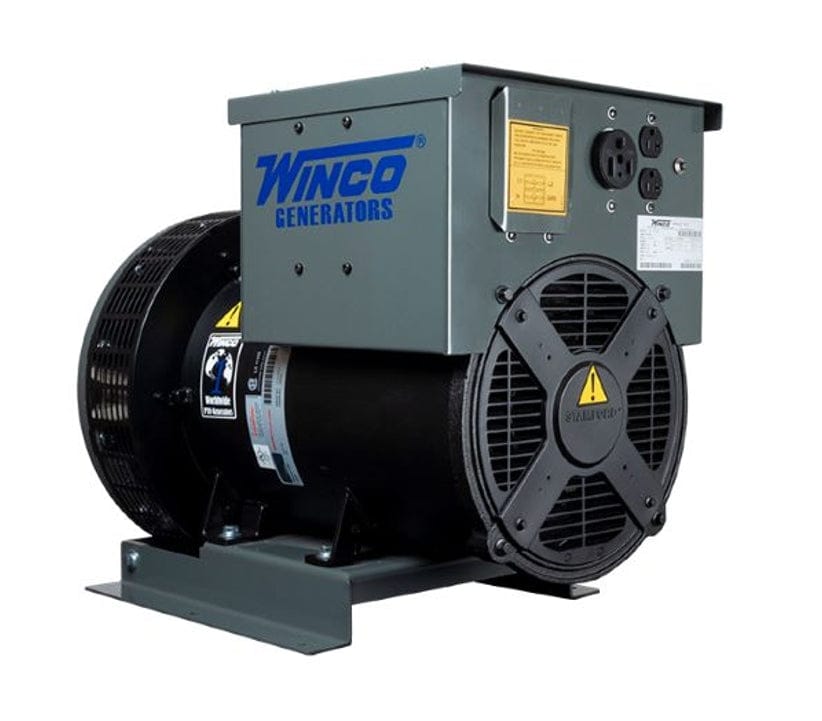

Front quarter view displaying the electrical panel with various receptacles and the circular generator air intake.

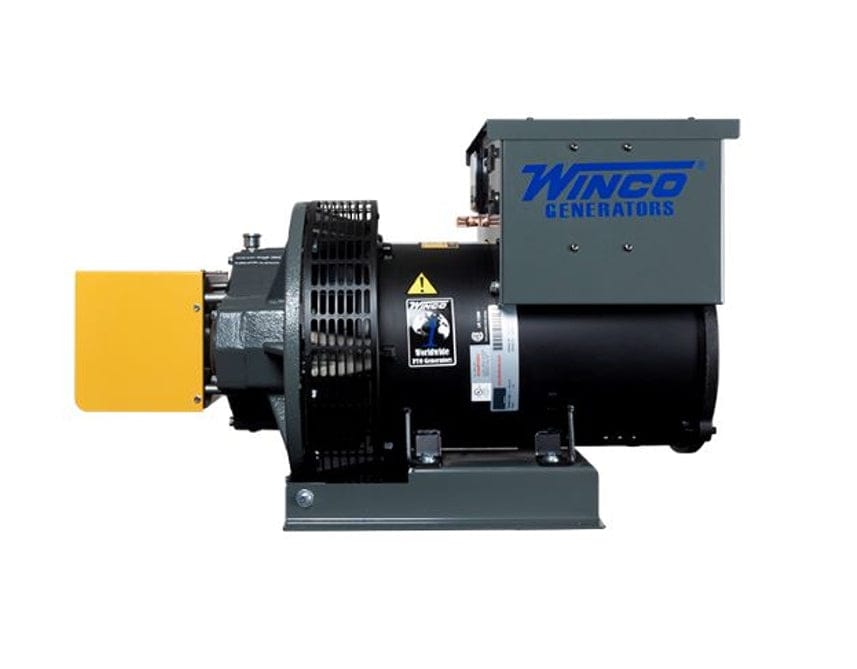

Side profile view of the generator unit showing the black housing, grey control box, and gearbox assembly.

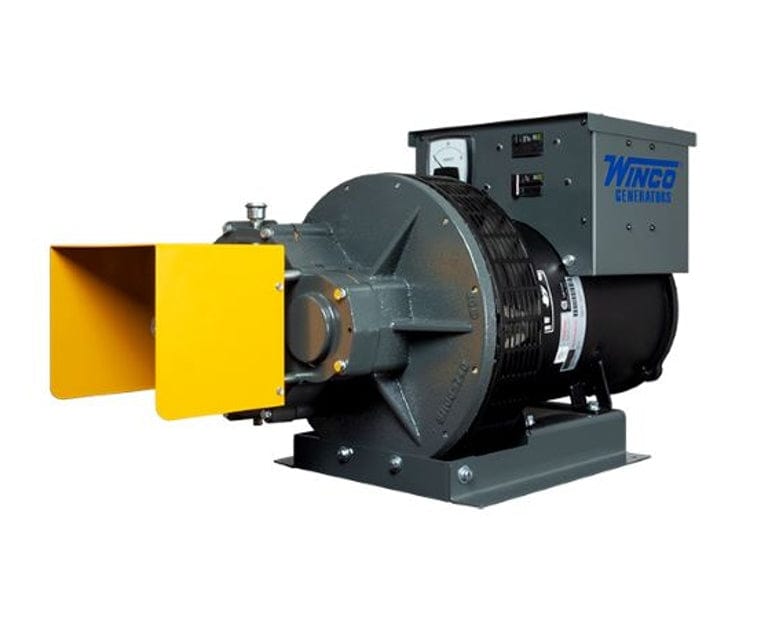

Rear quarter view of the Winco PTO generator showing the cast iron gearcase, yellow PTO safety shield, and cooling fan housing.

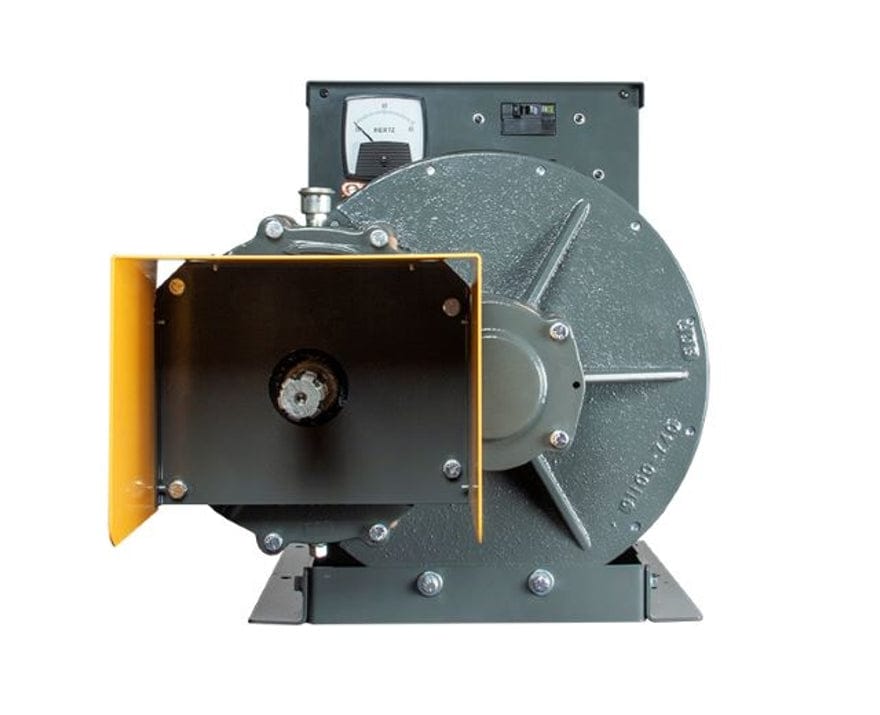

Rear view focusing on the 6-spline PTO input shaft surrounded by a yellow safety guard and the grey gearbox.
Angled rear view showing the frequency meter on the control box and the yellow shield protecting the PTO connection point.
Full side view of the Winco PTO generator resting on its steel mounting base.
Side angle view showing the Winco Generators logo on the control box and the main cylindrical generator housing.
Straight on view of the output panel featuring a 50 amp plug, 20 amp plugs, and circuit breakers above the main cooling fan.
Front quarter view displaying the electrical panel with various receptacles and the circular generator air intake.
Side profile view of the generator unit showing the black housing, grey control box, and gearbox assembly.
Rear quarter view of the Winco PTO generator showing the cast iron gearcase, yellow PTO safety shield, and cooling fan housing.
Rear view focusing on the 6-spline PTO input shaft surrounded by a yellow safety guard and the grey gearbox.
Winco

Winco W27PTO 27kW Tractor Driven PTO Generator 540 RPM 120 240V Single Phase Farm Backup Power

In stock
SKU: 27PTOC4-03
$4,940.40
Description

Reliable Tractor-Driven Power for Farm and Home Backup

Call or Email for Availability and Shipping:
281-351-2211 - Sales@HilltopTool.com

Transform your tractor into a mobile power plant with the Winco 27PTOC4-03 PTO Generator. Designed for the rigorous demands of agricultural and residential backup, this high-capacity unit utilizes your tractor’s engine to produce a massive 27,600 watts of standby power and 23,500 watts of continuous output. Whether you need to run barn ventilation fans, milking equipment, or keep your entire home operational during a storm, the W27PTO delivers steady 120/240V single-phase electricity. Its robust cast-iron gearcase is engineered to operate at a standard 540 RPM, ensuring durability and consistent performance that Winco has been known for over the last 60 years.

Unlike standard industrial generators, the W27PTO is engineered with Low Harmonic Distortion, providing clean power that is safe for sensitive modern electronics and farm automation systems. The unit features a user-friendly control panel equipped with a large 3.5-inch frequency meter, allowing you to easily monitor and adjust your tractor's RPM for optimal output. This package is built for convenience and mobility for easy transport across your property. Equipped with a full array of receptacles, including a heavy-duty Anderson connector, this generator ensures you have the right connection for every application.

Key Features & Benefits

  • High Output Capacity: Delivers 27.6 kW standby and 23.5 kW continuous power to handle heavy farm and home loads.
  • Clean Power Technology: Low harmonic distortion (<5%) ensures safety for sensitive electronics and variable speed drives.
  • Heavy-Duty Gearcase: Proven cast-iron design withstands continuous use and ensures long operational life.
  • Mobility Package: Includes the TDM80 off-road trailer kit for effortless transport behind your tractor.
  • Easy Monitoring: Large 3.5-inch frequency meter allows for precise engine speed adjustments.
  • Versatile Connectivity: Features a 5-wire Anderson full power plug, NEMA 5-20 duplexes, and a NEMA 6-50R receptacle.
  • Safety First: Equipped with premium circuit breakers and a protective PTO shield to ensure operator safety.
  • 100% Load Tested: Every unit is rigorously tested at full load before leaving the facility to guarantee performance.

What's Included

  • (1) Winco W27PTO Generator Unit (27PTOC4-03)
  • (1) 5-Wire Anderson Full Power Plug

Available for pickup at our Tomball, TX location:

30702 State Highway 249
Tomball, Texas 77375

Monday-Friday 7am-5pm CST
Saturday 7am-1pm CST

Specifications

Brand Winco
Model Number 27PTOC4-03
Standby Watts 27,600 Watts (27.6 kW)
Continuous Watts 23,500 Watts (23.5 kW)
Standby Amps 115 Amps
Continuous Amps 98 Amps
Voltage Output 120/240 Volt Single Phase
PTO Speed 540 RPM
Input Shaft 1-3/8" 6-Spline
Receptacles (2) NEMA 5-20, (1) NEMA 6-50R, (1) Anderson 175A
Voltage Regulation AVR (Automatic Voltage Regulator)
Dimensions (LxWxH) 37" x 21" x 24.3"
Warranty 3 Year Unit Warranty

Pro-Tip: To ensure clean power and prevent damage to your generator, use the frequency meter to maintain the PTO shaft speed as close to 540 RPM as possible. Even a small drop in tractor RPM under load can significantly drop the voltage and frequency (Hz), so set your throttle slightly higher before engaging heavy electrical loads to compensate for the initial draw.
