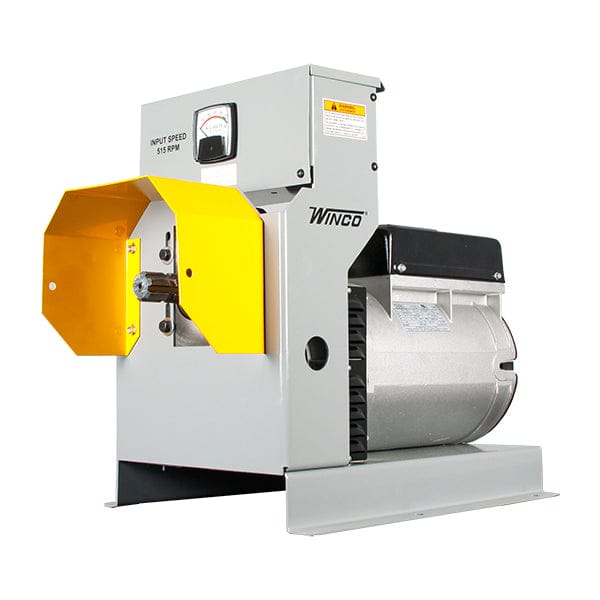

Winco 50kW Single-Phase PTO Generator W50PTO 120/240V Output 540 RPM Gearcase AVR Voltage Regulation Anderson Plug Frequency Meter Farm and Backup Power
Couldn't load pickup availability
Heavy-Duty PTO Power – Built for Farms, Backup Systems, and High-Demand Applications
Call for Availability and Shipping 281-351-2211
When your operation demands serious wattage and dependable performance, the Winco W50PTO 50kW Single-Phase Generator delivers. Designed for agricultural, industrial, and emergency backup use, this unit provides 50,000 standby watts40,000 continuous watts120/240V single-phase output
Operating at 540 RPM1-3/8" 6-spline PTO shaftAVR (Automatic Voltage Regulator) ensures clean, stable power with low harmonic distortion—safe for sensitive electronics and heavy-duty tools alike. A large 3.5" frequency meterpremium circuit breakers
With a 5-wire Anderson full power plug100% load tested
What's Included
- (1) Winco W50PTO Generator – 50kW Standby / 40kW Continuous
- (1) Winco Gearcase – 540 RPM, 1-3/8" 6-Spline PTO Shaft
- (1) AVR Voltage Regulator
- (1) 3.5" Frequency Meter
- (1) 5-Wire Anderson Full Power Plug – 175A
- (2) NEMA 5-20 20A 120V Receptacles
- (1) NEMA 6-50R 50A 240V Receptacle
- (1) Protective PTO Shield
Available for pickup at our location:
30702 State Highway 249
Tomball, Texas 77375
Monday-Friday 7am-5pm CST
Saturday 7am-1pm CST
Specifications
| Model Number | W50PTO |
| Standby Power | 50,000 Watts / 208 Amps @ 1.0 PF |
| Continuous Power | 40,000 Watts / 166 Amps @ 1.0 PF |
| Voltage Output | 120/240V Single Phase |
| Voltage Regulation | AVR (Automatic Voltage Regulator) |
| PTO Shaft | 1-3/8" 6-Spline, 540 RPM |
| 120V Receptacles | (2) NEMA 5-20 20A |
| 240V Receptacle | (1) NEMA 6-50R 50A |
| Full Power Connector | 5-Wire Anderson Plug – 175 Amps |
| Dimensions (L x W x H) | 41″ x 20″ x 27″ |
| Shipping Weight | 680 lbs |
| Warranty | 3 Years |
| Assembled In | USA |
| Prop 65 | WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
Key Features
- 50kW standby and 40kW continuous power output
- AVR-regulated voltage for clean, stable power
- Durable Winco gearcase with 540 RPM PTO input
- Full power Anderson plug and multiple receptacles
- 100% load tested for performance assurance
Power your farm, facility, or emergency systems with the Winco W50PTO Generator—engineered for reliability, built for heavy-duty use, and trusted across industries.
